Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 CVT AIR-OUTLET PIPE CONNECTOR (Ref. č 1) A01A20040001 CVT AIR-OUTLET PIPE CONNECTOR  1 251,24 Kč 304 Kč
SKLADEM
16 STRAINER (Ref. č 16) A01A21007001 STRAINER  1 837,19 Kč 1 013 Kč
SKLADEM
15 CVT AIR-OUTLET PIPE GASKET (Ref. č 15) A01A00400001 CVT AIR-OUTLET PIPE GASKET  1 272,73 Kč 330 Kč
SKLADEM
14 ENGINE EXHAUST PIPE (Ref. č 14) A01A21001001 ENGINE EXHAUST PIPE  1 1 063,64 Kč 1 287 Kč
SKLADEM
13 CLAMP,SPRINGBAND 30 (Ref. č 13) QCT006211008 CLAMP,SPRINGBAND 30  2 96,69 Kč 117 Kč
SKLADEM
12 HEXAGON FLANGE BOLT M6×25 (Ref. č 12) GBT005789010 HEXAGON FLANGE BOLT M6×25  1 54,55 Kč 66 Kč
SKLADEM
11 CVT EXHAUST TUBE (Ref. č 11) A01A20020001 CVT EXHAUST TUBE  1 861,98 Kč 1 043 Kč
SKLADEM
10 A-BAND, TRANSMISSION HOSE 70 (Ref. č 10) QCT000620006 A-BAND, TRANSMISSION HOSE 70  1 94,21 Kč 114 Kč
SKLADEM
9 RUBBER SLEEVE (Ref. č 9) T01000005001 RUBBER SLEEVE  2 60,33 Kč 73 Kč
SKLADEM
8 HEXAGON FLANGE BOLT M6×35 (Ref. č 8) GBT005789011 HEXAGON FLANGE BOLT M6×35  2 54,55 Kč 66 Kč
SKLADEM
7 RUBBER RING (Ref. č 7) T01000002001 RUBBER RING  1 54,55 Kč 66 Kč
SKLADEM
6 CVT AIR-INTAKE PIPE GASKET (Ref. č 6) A01A00200001 CVT AIR-INTAKE PIPE GASKET  1 395,87 Kč 479 Kč
SKLADEM
5 A-BAND, TRANSMISSION HOSE 80 (Ref. č 5) QCT000620007 A-BAND, TRANSMISSION HOSE 80  4 54,55 Kč 66 Kč
SKLADEM
4 LEAKING SEAL (Ref. č 4) U01A21111001 LEAKING SEAL  3 60,33 Kč 73 Kč
SKLADEM
3 CLAMP,SPRINGBAND 16 (Ref. č 3) QCT006211005 CLAMP,SPRINGBAND 16  3 60,33 Kč 73 Kč
SKLADEM
2 CVT AIR INTAKE PIPE (Ref. č 2) A01A20050001 CVT AIR INTAKE PIPE  1 391,74 Kč 474 Kč
SKLADEM
17 AIR FILTER ASSY (Ref. č 17) A01A21000001 AIR FILTER ASSY  1 2 495,87 Kč 3 020 Kč
SKLADEM
Kód produktu SGW_1_124_ATV570F-A2

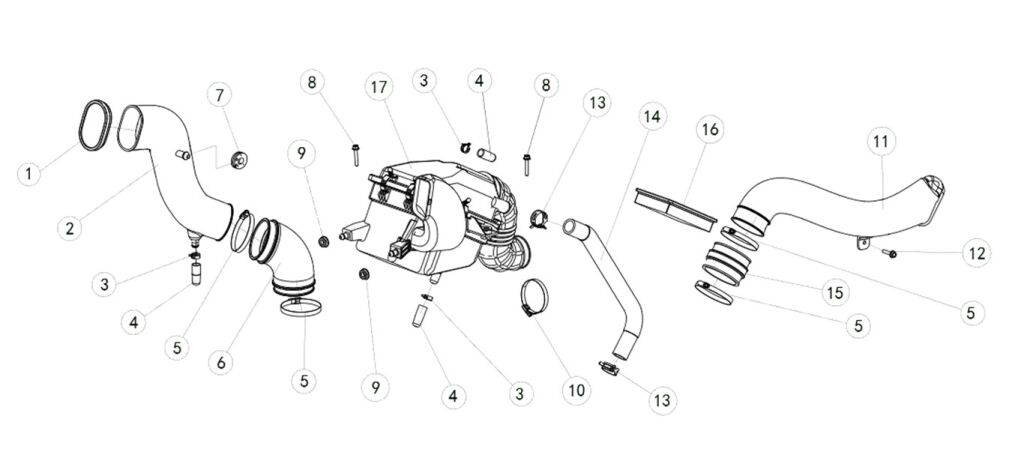

TYP ROZKRESU: ENGINE PARTS
Vybrat ZNAČKU: SEGWAY
Vybrat TYP: AT6
Vybrat MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
