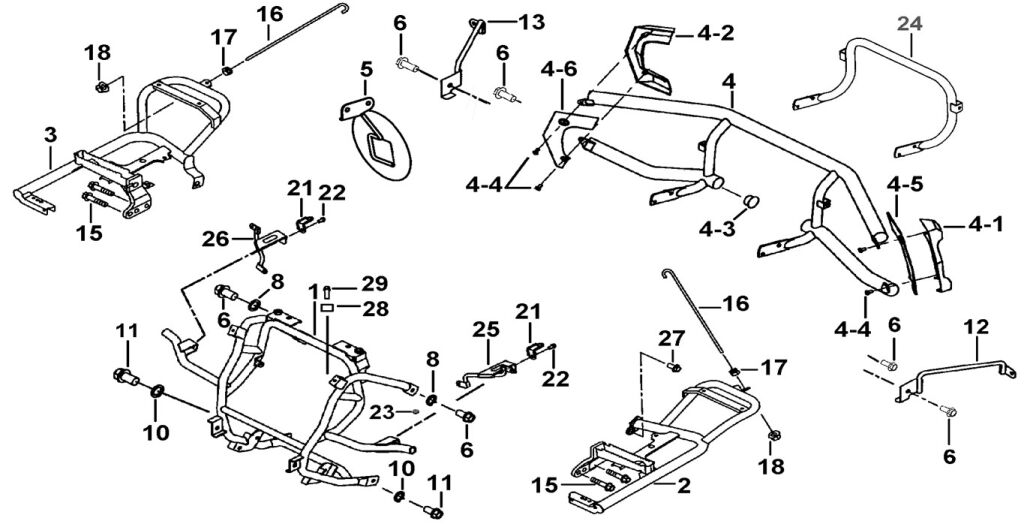

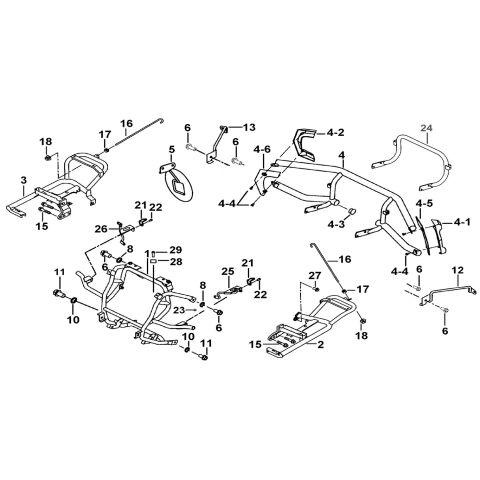

BUMPER BRACKET

TGB
Výrobce: TGB
Kód produktu: TGB_4_206_FBH-JDLE
Vybrat MODEL:
BLADE 600LTX E4 BLADE 600LTX E4
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
01 512099 BRACKET, VENTILATION BOARD  1 6 191,74 Kč 7 492 Kč
NA DOTAZ
18 NUT (Ref. č 18) N10604 NUT  4 56,20 Kč 68 Kč
SKLADEM
21 BRACKET, HEAD LAMP (Ref. č 21) 512095 BRACKET, HEAD LAMP  2 289,26 Kč 350 Kč
SKLADEM
22 BOLT, FLANGE (Ref. č 22) S20802 BOLT, FLANGE  2 56,20 Kč 68 Kč
SKLADEM
23 Washer, Rubber (Ref. č 23) 402129 Washer, Rubber  2 56,20 Kč 68 Kč
SKLADEM
24B HAND HOLD, REAR(FLO. YELLOW) (Ref. č 24B) 518755SY HAND HOLD, REAR(FLO. YELLOW)

OPTION

1 1 070,25 Kč 1 295 Kč
SKLADEM
24C HAND HOLD, REAR(INDIGO BLUE) (Ref. č 24C) 518755NB HAND HOLD, REAR(INDIGO BLUE)

OPTION

1 1 070,25 Kč 1 295 Kč
SKLADEM
25 BRACKET LH. (Ref. č 25) 512031 BRACKET LH.  1 631,40 Kč 764 Kč
SKLADEM
26 BRACKET RH. (Ref. č 26) 512032 BRACKET RH.  1 631,40 Kč 764 Kč
SKLADEM
29 BOLT M6X16L (Ref. č 29) S25602 BOLT M6X16L  2 56,20 Kč 68 Kč
SKLADEM
04.1 ORNAMENTAL COVER(L) (Ref. č 04-1) 518753 ORNAMENTAL COVER(L)  1 161,98 Kč 196 Kč
NA CESTĚ
04.2 ORNAMENTAL COVER(R) (Ref. č 04-2) 518754 ORNAMENTAL COVER(R)  1 161,98 Kč 196 Kč
SKLADEM
04.5 BRACKET LH. (Ref. č 04-5) 518757 BRACKET LH.  1 341,32 Kč 413 Kč
SKLADEM
17 NUT M6 (Ref. č 17) N02601 NUT M6  2 56,20 Kč 68 Kč
SKLADEM
16 SUPPORTING ROD (Ref. č 16) 516096 SUPPORTING ROD  2 266,94 Kč 323 Kč
NA DOTAZ
15 BOLT, FLANGE (Ref. č 15) S20004 BOLT, FLANGE  4 56,20 Kč 68 Kč
SKLADEM
02 BRACKET, FOOT BOARD, LH (Ref. č 02) 512065 BRACKET, FOOT BOARD, LH

←006269

1 2 154,55 Kč 2 607 Kč
SKLADEM
03 BRACKET, FOOT BOARD, RH (Ref. č 03) 512066 BRACKET, FOOT BOARD, RH

←006269

1 2 119,83 Kč 2 565 Kč
SKLADEM
04.3 R/B 512430 PLUG (Ref. č 04-3) 518756 R/B 512430 PLUG  2 56,20 Kč 68 Kč
NA DOTAZ
04.4 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 04-4) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 56,20 Kč 68 Kč
SKLADEM
04B TGB BLADE 600 LTX and 1000 LTX REAR PROTECTION BUMPER(STEEL)(FLO. YELLOW) (Ref. č 04B) 518752SYA TGB BLADE 600 LTX and 1000 LTX REAR PROTECTION BUMPER(STEEL)(FLO. YELLOW)

OPTION

1 4 216,53 Kč 5 102 Kč
SKLADEM
04C TGB BLADE 600 and 1000 LTX REAR PROTECTION BUMPER(STEEL)(INDIGO BLUE) (Ref. č 04C) 518752NBA TGB BLADE 600 and 1000 LTX REAR PROTECTION BUMPER(STEEL)(INDIGO BLUE)

OPTION

1 4 216,53 Kč 5 102 Kč
SKLADEM
06 BOLT, FLANGE (Ref. č 06) S20814 BOLT, FLANGE  6 56,20 Kč 68 Kč
SKLADEM
08 SPRING WASHER (Ref. č 08) GA556WS04 SPRING WASHER  2 56,20 Kč 68 Kč
SKLADEM
10 SPRING WASHER 10X18X2,5 (Ref. č 10) GA556WS06 SPRING WASHER 10X18X2,5  2 56,20 Kč 68 Kč
SKLADEM
11 BOLT M10X20 (Ref. č 11) S21008 BOLT M10X20  2 56,20 Kč 68 Kč
SKLADEM
12 BRACKET, BUMPER REAR LH. (Ref. č 12) 512081 BRACKET, BUMPER REAR LH.  1 254,55 Kč 308 Kč
SKLADEM
13 BRACKET, BUMPER REAR RH. (Ref. č 13) 512082 BRACKET, BUMPER REAR RH.  1 254,55 Kč 308 Kč
NA DOTAZ
04.6 BRACKET RH. (Ref. č 04-6) 518758 BRACKET RH.  1 341,32 Kč 413 Kč
NA DOTAZ
