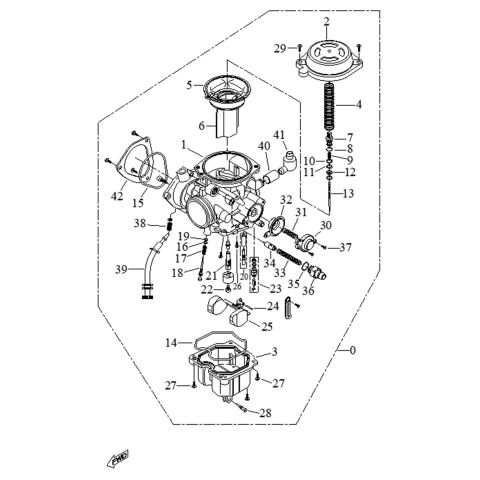

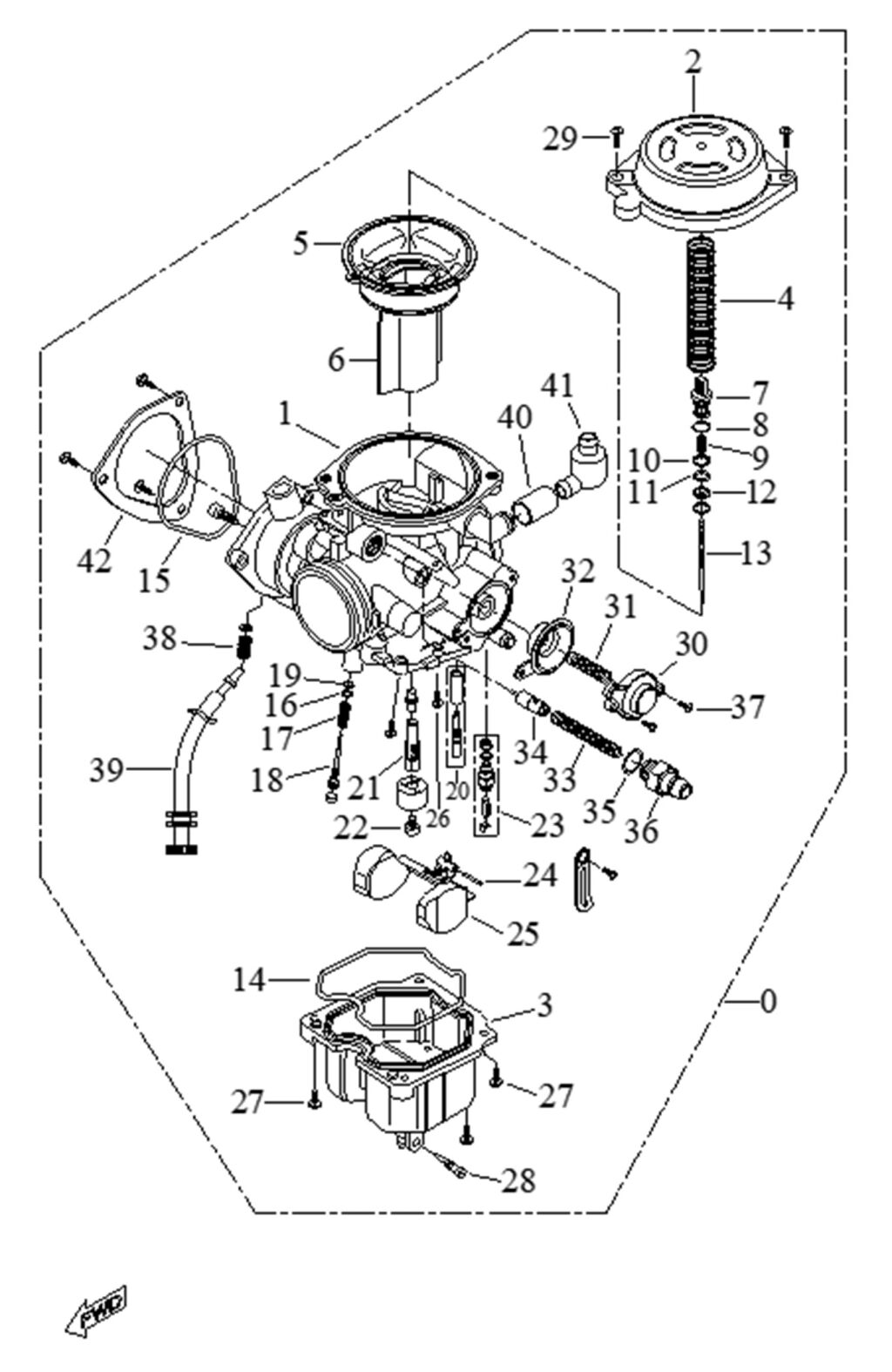

CARBURETOR ASS'Y

ACCESS MOTOR
Výrobce: ACCESS MOTOR
Kód produktu: ACCESS_1_112_WARRIOR_450
Vybrat MODEL:
warrior 450 warrior 450
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
41 R/B 16100-E12-143-6 Air Filter, Box (Ref. č 41) 16305-E12-000 R/B 16100-E12-143-6 Air Filter, Box  1
NA DOTAZ
Detail
29 SCREW (Ref. č 29) 16135-E12-000 SCREW  2 56,20 Kč 68 Kč
SKLADEM
28 16120-E10-000 Screw  1 56,20 Kč 68 Kč
NA DOTAZ
27 16110-E10-010 SCREW  3
NA DOTAZ
Detail
26 16110-E10-000 SCREW  1
NA DOTAZ
Detail
25 FLOAT (Ref. č 25) 16107-E12-000 FLOAT  1 385,12 Kč 466 Kč
NA DOTAZ
24 PIN (Ref. č 24) 16108-E12-000 PIN  1 56,20 Kč 68 Kč
SKLADEM
23 NEEDLE VALVE Ass'Y (Ref. č 23) 16113-E12-000 NEEDLE VALVE Ass'Y  1 895,87 Kč 1 084 Kč
NA DOTAZ
22 Main Jet (Ref. č 22) 16101-E12-000 Main Jet  1 172,73 Kč 209 Kč
SKLADEM
30 16151-E12-000 COVER ASS'Y  1
NA DOTAZ
Detail
31 16133-E12-010 COMPRESSION SPRING  1
NA DOTAZ
Detail

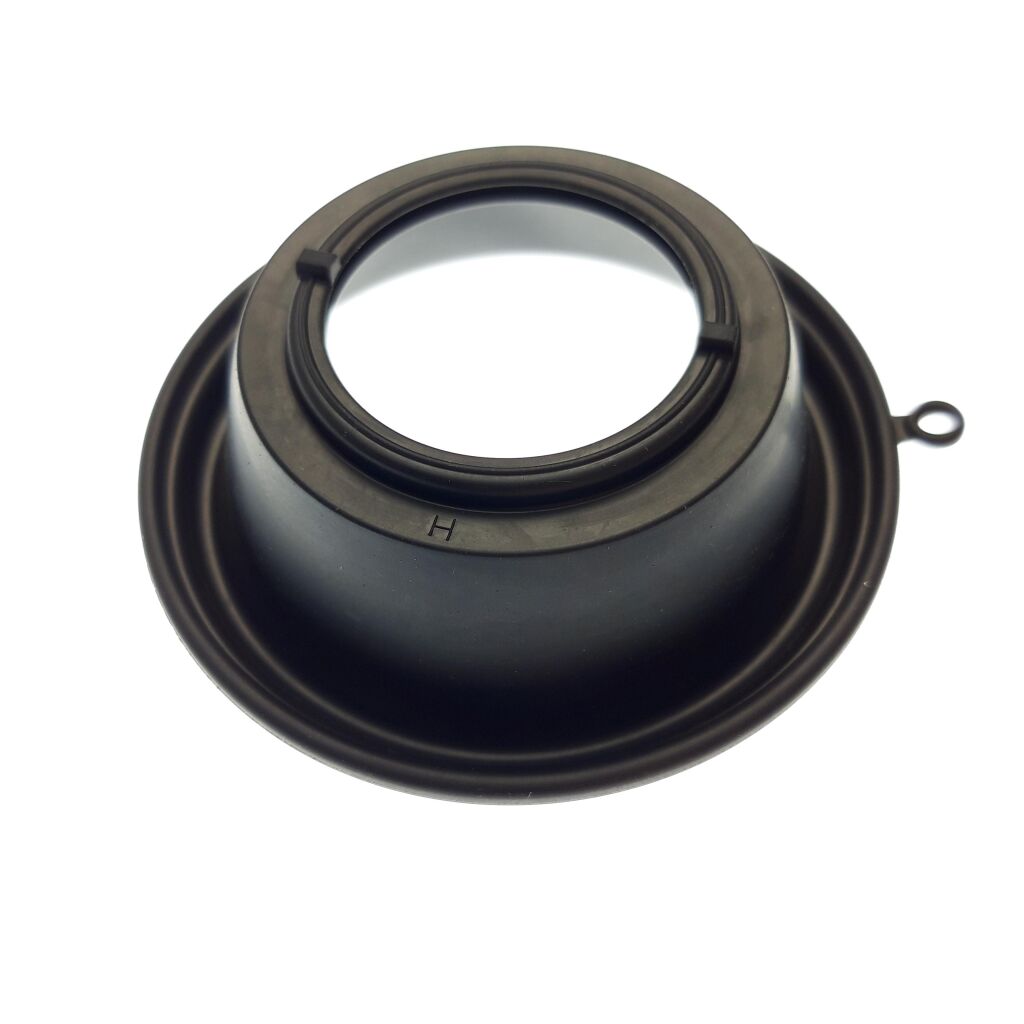

32 DIAPHRAGM ASS'Y (Ref. č 32) 16171-E12-000 DIAPHRAGM ASS'Y  1 417,36 Kč 505 Kč
NA DOTAZ
40 Tube A, Fuel 11*15*35 (Ref. č 40) 16310-E10-000 Tube A, Fuel 11*15*35  1 56,20 Kč 68 Kč
SKLADEM
39 16128-E12-000 ADJUSTER SCREW  1
NA DOTAZ
Detail
38 97225-E12-000 COMPRESSION SPRING  1
NA DOTAZ
Detail
37 16110-E12-000 SCREW  2
NA DOTAZ
Detail
36 Guide Holder (Ref. č 36) 16118-E12-000 Guide Holder  1 93,39 Kč 113 Kč
SKLADEM
35 O-RING (Ref. č 35) 96200-100015 O-RING  1 56,20 Kč 68 Kč
SKLADEM
34 Plunger ASSY (Ref. č 34) 16125-E12-000 Plunger ASSY  1 66,94 Kč 81 Kč
SKLADEM
33 Compression spring (Ref. č 33) 16124-E12-000 Compression spring  1 56,20 Kč 68 Kč
SKLADEM
21 16106-E12-000 JET HOLDER  1
NA DOTAZ
Detail
20 16102-E12-000 PILOT JET  1
NA DOTAZ
Detail
8 96200-045020 O-RING  1
NA DOTAZ
Detail
7 16132-E12-000 HOLDER  1
NA DOTAZ
Detail
6 Piston Valve (Ref. č 6) 16126-E12-000 Piston Valve  1 963,64 Kč 1 166 Kč
SKLADEM
5 R/B 16100-E12-143-1 DIAGRAM (Ref. č 5) 16170-E12-000 R/B 16100-E12-143-1 DIAGRAM  1 454,55 Kč 550 Kč
NA DOTAZ
4 COMPRESSION SPRING (Ref. č 4) 16133-E12-000 COMPRESSION SPRING  1 56,20 Kč 68 Kč
SKLADEM
3 16160-E12-000 FLOAT BODY  1
NA DOTAZ
Detail
2 16150-E12-000 DIAPHRAGM COVER  1
NA DOTAZ
Detail
1 16140-E12-000 MIXING BODY ASS'Y  1
NA DOTAZ
Detail
9 97224-E12-000 COMPRESSION SPRING  1
NA DOTAZ
Detail
10 93100-0306310 WASHER  1
NA DOTAZ
Detail
11 16136-E12-000 E-RING  1
NA DOTAZ
Detail
19 O-RING (Ref. č 19) 96200-038010 O-RING  1 56,20 Kč 68 Kč
SKLADEM
18 R/B 16100-E12-143-2 ADJUSTER (PS) (Ref. č 18) 16129-E12-000 R/B 16100-E12-143-2 ADJUSTER (PS)  1 143,80 Kč 174 Kč
NA DOTAZ
17 SPRING COMPRESSION (Ref. č 17) 97223-E12-000 SPRING COMPRESSION  1 56,20 Kč 68 Kč
SKLADEM
16 WASHER (Ref. č 16) 93100-0305005 WASHER  1 56,20 Kč 68 Kč
NA DOTAZ
15 O-Ring (unavailable) (Ref. č 15) 16121-E10-000 O-Ring (unavailable)  1 264,46 Kč 320 Kč
NA DOTAZ
14 R/B 16100-E12-143-2 O-RING (Ref. č 14) 16109-E12-000 R/B 16100-E12-143-2 O-RING  1 172,73 Kč 209 Kč
NA DOTAZ
13 JET NEEDLE (Ref. č 13) 16131-E12-000 JET NEEDLE  1 327,27 Kč 396 Kč
NA DOTAZ
12 93104-0307025 RING  1
NA DOTAZ
Detail
0 16100-E12-100 CARBURATOR ASS'Y  1
NA DOTAZ
Detail
