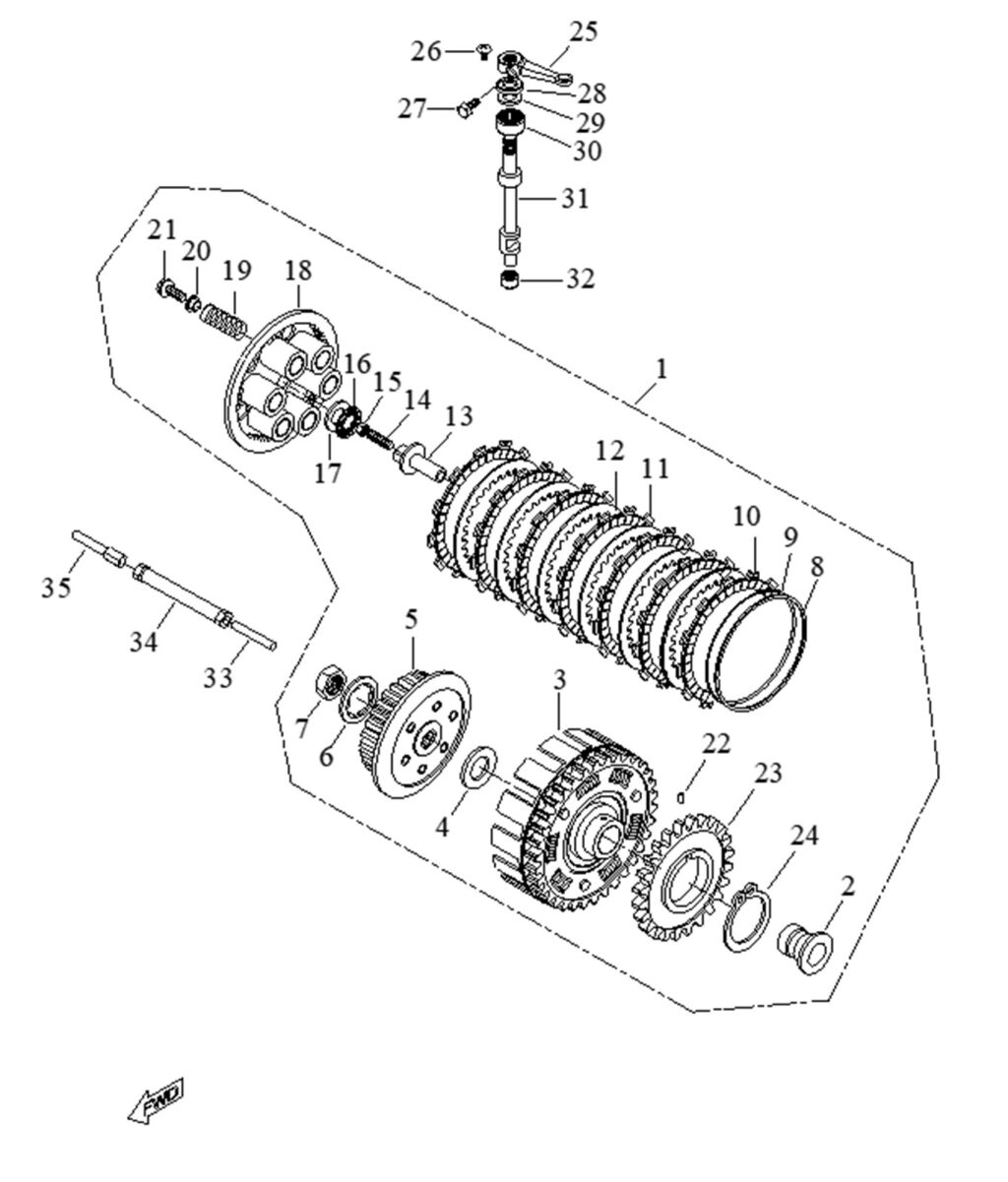

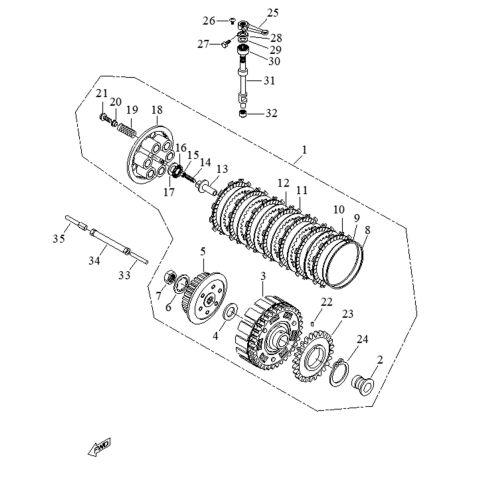

CLUTCH ASS'Y

ACCESS MOTOR
Výrobce: ACCESS MOTOR
Kód produktu: ACCESS_2_115_WARRIOR_450
Vybrat MODEL:
warrior 450 warrior 450
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 MULTIPLATE CLUTCH (Ref. č 1) 22335-E12-000 MULTIPLATE CLUTCH  1 11 843,80 Kč 14 331 Kč
NA DOTAZ
18 22348-E12-100 DISK, clutch pressure  1 840,50 Kč 1 017 Kč
NA DOTAZ

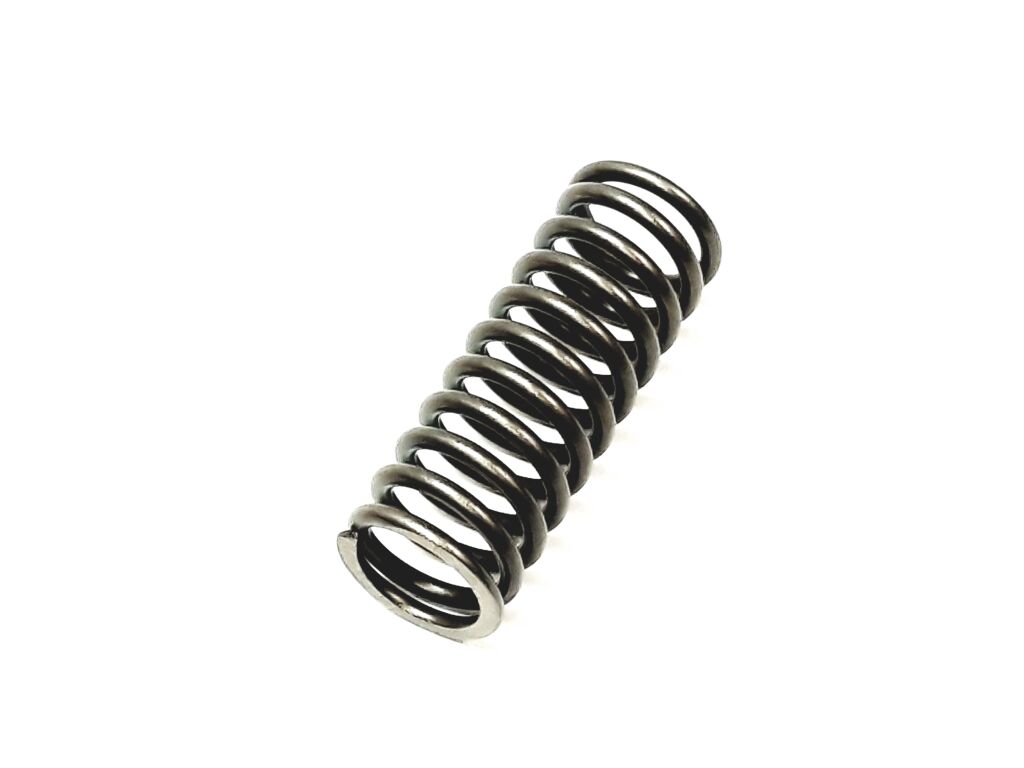

19 SPRING, clutch (Ref. č 19) 22331-E12-100 SPRING, clutch  6 81,82 Kč 99 Kč
SKLADEM
20 22349-E12-100 RETAINER, clutch spring  6
NA DOTAZ
Detail
21 91770-06040-10Z BOLT, clutch spring  6
NA DOTAZ
Detail
23 15110-E12-100 GEAR, oil pump driven  1 1 235,54 Kč 1 495 Kč
NA DOTAZ
25 41072-E12-100 ARM, clutch release  1
NA DOTAZ
Detail
26 91731-06010Z STOPPER, clutch release camshaft oi  1 45,45 Kč 55 Kč
NA DOTAZ
27 91770-06020-10Z BOLT, clutch release arm  1 45,45 Kč 55 Kč
NA DOTAZ
28 OIL SEAL, clutch release camshaft (Ref. č 28) 96100-122807 OIL SEAL, clutch release camshaft  1 148,76 Kč 180 Kč
SKLADEM
29 93107-12228-10W THRUST WASHER, clutch release c  1 54,55 Kč 66 Kč
NA DOTAZ
30 Bearing, Needle (Ref. č 30) 95200-HK1812-2 Bearing, Needle  1 180,99 Kč 219 Kč
NA DOTAZ
31 22350-E12-100 SHAFT, clutch release cam  1 1 044,63 Kč 1 264 Kč
NA DOTAZ
32 Bearing, Needle (Ref. č 32) 95200-HK1010-2 Bearing, Needle  1 72,73 Kč 88 Kč
SKLADEM
33 22342-E12-100 ROD, clutch push  1 80,99 Kč 98 Kč
NA DOTAZ
17 93107-15028-10-1 WASHER, clutch release thrust  1
NA DOTAZ
Detail
16 95200-AXK1102 BEARING, clutch release thrust  1 314,88 Kč 381 Kč
NA DOTAZ
2 22351-E12-100 SPACER, primary driven gear  1
NA DOTAZ
Detail
3 22340-E12-100 GEAR ASS'Y, primary driven  1 13 257,85 Kč 16 042 Kč
NA DOTAZ
4 93100-20235-30-1 WASHER, primary driven gear thrust  1
NA DOTAZ
Detail
5 22341-E12-100 HUB, clutch sleeve  1 1 479,34 Kč 1 790 Kč
NA DOTAZ
6 93240-E12-100 WASHER, clutch sleeve hub thrust  1 44,63 Kč 54 Kč
NA DOTAZ
7 92110-20-27B-1 NUT, clutch sleeve hub  1
NA DOTAZ
Detail
8 22353-E12-100 SEAT, clutch wave washer  1
NA DOTAZ
Detail
9 22352-E12-100 WASHER, clutch wave  1
NA DOTAZ
Detail
10 22346-E12-100 PLATE, clutch driven No.2  1
NA DOTAZ
Detail

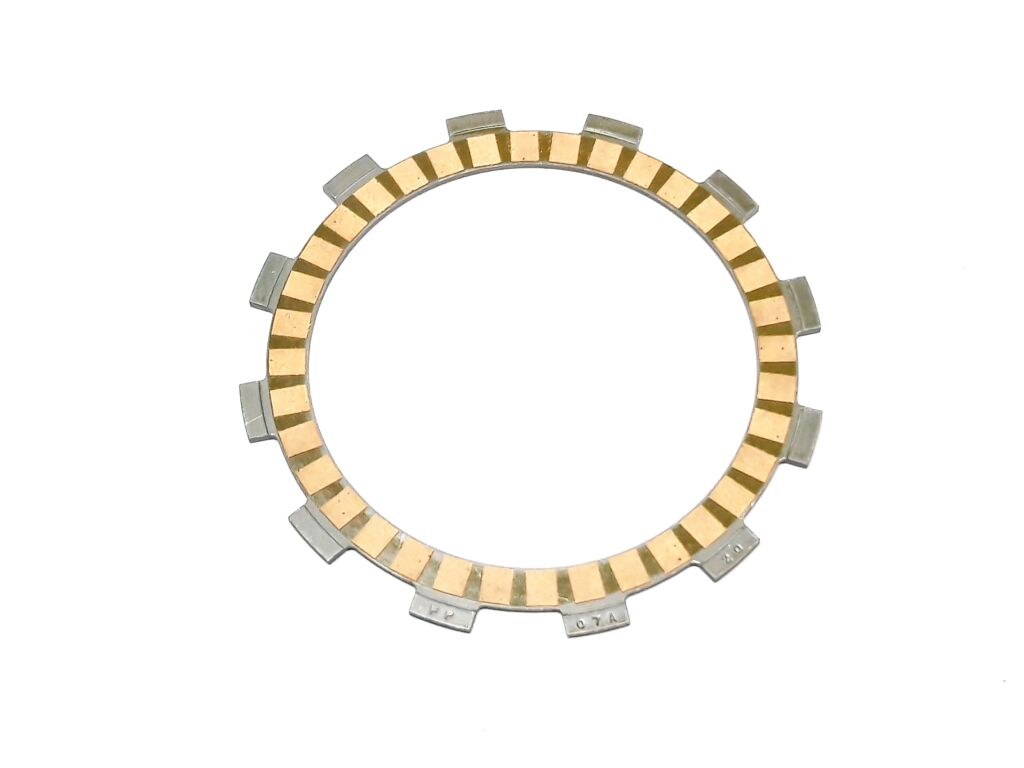

11 PLATE, clutch drive (Ref. č 11) 22345-E12-100 PLATE, clutch drive  6 895,87 Kč 1 084 Kč
SKLADEM

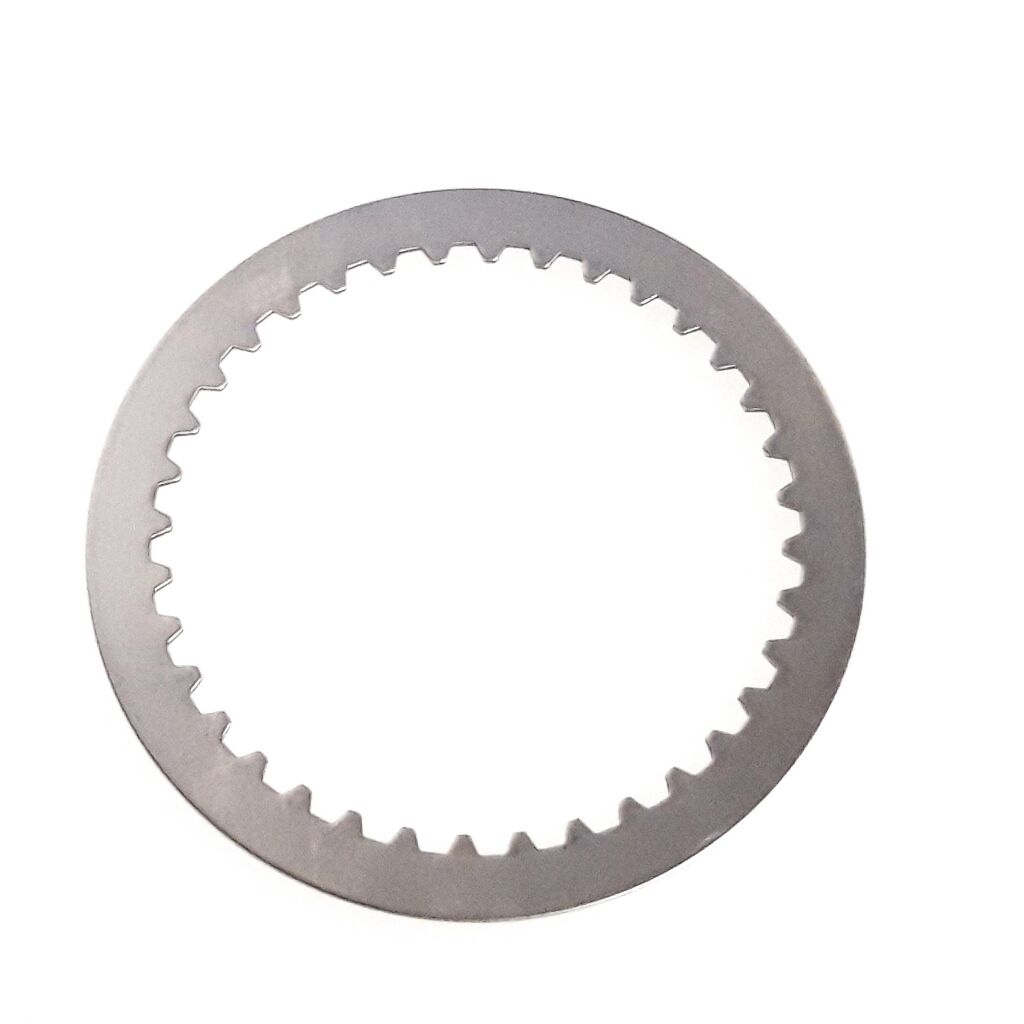

12 PLATE, clutch driven (Ref. č 12) 22347-E12-100 PLATE, clutch driven  6 125,62 Kč 152 Kč
NA DOTAZ
13 22343-E12-100 PIECE, clutch push  1
NA DOTAZ
Detail
14 91000-06025 SCREW, clutch release adjuster  1
NA DOTAZ
Detail
15 92110-06-10W-1 NUT, clutch release adjust  1
NA DOTAZ
Detail
34 22344-E12-100 R/B 22344-E12-101 ROD COMP, clutch push M  1 287,60 Kč 348 Kč
NA DOTAZ
