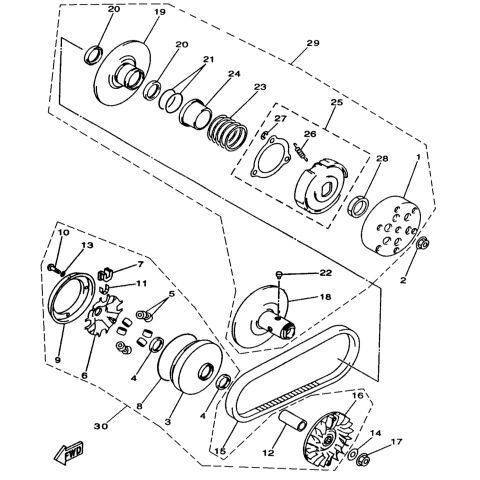

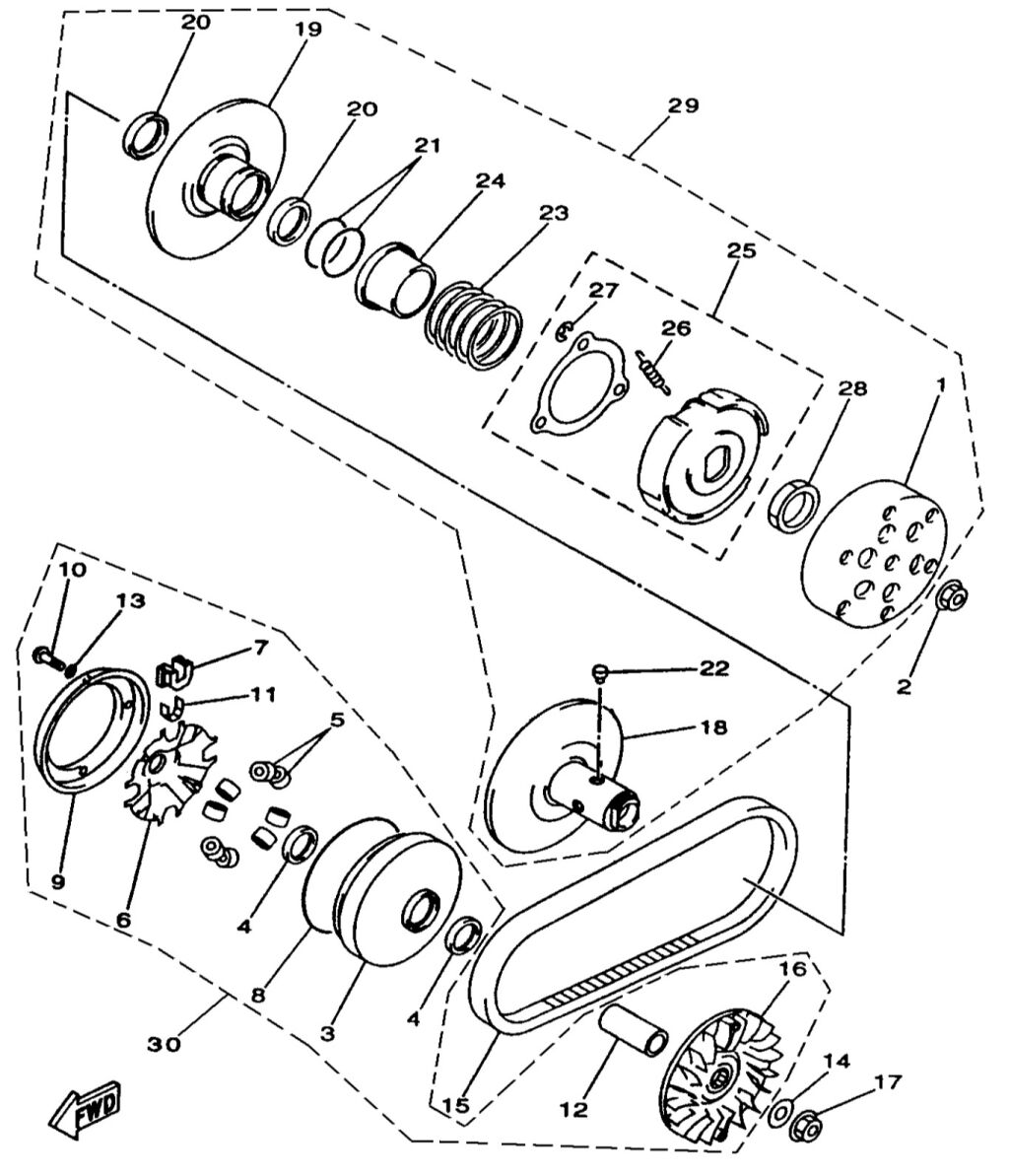

CLUTCH

LINHAI
Výrobce: LINHAI
Kód produktu: LINHAI_1_132_ATV300-3D
Vybrat MODEL:
300 E2 300 E2
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 CLUTCH HOUSING COMP. (Ref. č 1) 23801a CLUTCH HOUSING COMP.  1 1 380,17 Kč 1 670 Kč
NA DOTAZ
17 NUT (Ref. č 17) 23802 NUT  1 56,20 Kč 68 Kč
SKLADEM
18 SECONDARY FIXED SHEAVE COMP. INCLUDE TWO BEARINGS ONE OIL SEAL AND ONE CIRCLIP (Ref. č 18) 23818 SECONDARY FIXED SHEAVE COMP. INCLUDE TWO BEARINGS ONE OIL SEAL AND ONE CIRCLIP  1 2 554,55 Kč 3 091 Kč
SKLADEM
19 SECONDARY SLIDING SHEAVE (Ref. č 19) 23819a SECONDARY SLIDING SHEAVE  1 2 093,39 Kč 2 533 Kč
NA DOTAZ
20 OIL SEAL (Ref. č 20) 23820 OIL SEAL  2 149,59 Kč 181 Kč
SKLADEM
21 O-RING 45X1.8 (Ref. č 21) 23821 O-RING 45X1.8  2 56,20 Kč 68 Kč
SKLADEM
22 PIN GUIDE (Ref. č 22) 23822 PIN GUIDE  4 56,20 Kč 68 Kč
SKLADEM
23 COMPRESSION SPRING LH260 (unavailable) (Ref. č 23) 23923 COMPRESSION SPRING LH260 (unavailable)  1 102,48 Kč 124 Kč
NA DOTAZ
24 SEAT SECONDARY SPRING (Ref. č 24) 23924 SEAT SECONDARY SPRING  1 56,20 Kč 68 Kč
SKLADEM
25 CLUTCH CARRIER ASSY (Ref. č 25) 23925a CLUTCH CARRIER ASSY  1 2 964,46 Kč 3 587 Kč
SKLADEM
26 CLUTCH WEIGHT SPRING 1 (Ref. č 26) 23926A CLUTCH WEIGHT SPRING 1  3 81,82 Kč 99 Kč
SKLADEM
27 10133 CIRCLIP 8  3 169,42 Kč 205 Kč
NA DOTAZ
28 NUT M36X1.5 (Ref. č 28) 23928 NUT M36X1.5  1 56,20 Kč 68 Kč
SKLADEM ZA 16 dnů
29 CLUTCH WEIGHT SPRING 1 (Ref. č 29) 23929A CLUTCH WEIGHT SPRING 1  3 6 457,85 Kč 7 814 Kč
SKLADEM
16 SHEAVE PRIMARY FIXED (18teeth) (Ref. č 16) 23816 SHEAVE PRIMARY FIXED (18teeth)  1 1 419,01 Kč 1 717 Kč
SKLADEM
15 R/B 23815G BELT Linhai 300, 400 (Ref. č 15) 23815 R/B 23815G BELT Linhai 300, 400  1 2 787,60 Kč 3 373 Kč
NA DOTAZ
3 PRIMARY SLIDING SHEAVE COMP (Ref. č 3) 23803 PRIMARY SLIDING SHEAVE COMP  1 1 055,37 Kč 1 277 Kč
SKLADEM
4 OIL SEAL 28X36X4 (Ref. č 4) 23804 OIL SEAL 28X36X4  2 266,94 Kč 323 Kč
SKLADEM
5 WEIGHT (Ref. č 5) 23805 WEIGHT  8 151,24 Kč 183 Kč
SKLADEM
6 CAM (Ref. č 6) 23806 CAM  1 132,23 Kč 160 Kč
SKLADEM
2 NUT (Ref. č 2) 23802 NUT  1 56,20 Kč 68 Kč
SKLADEM
7 SLIDER (Ref. č 7) 23807 SLIDER  4 118,18 Kč 143 Kč
SKLADEM
8 O-RING 118X2.5 (Ref. č 8) 23808 O-RING 118X2.5  1 96,69 Kč 117 Kč
SKLADEM
9 STOPPER (Ref. č 9) 23809 STOPPER  1 128,93 Kč 156 Kč
SKLADEM
10 PAN HEAD SCREW M4X12 (Ref. č 10) 10132 PAN HEAD SCREW M4X12  4 56,20 Kč 68 Kč
SKLADEM
11 SPACER 1 (Ref. č 11) 23811 SPACER 1  4 88,43 Kč 107 Kč
SKLADEM ZA 16 dnů
12 COLLAR (Ref. č 12) 23812 COLLAR  1 139,67 Kč 169 Kč
SKLADEM
13 WASHER PLATE 4 (Ref. č 13) 23813 WASHER PLATE 4  4 56,20 Kč 68 Kč
SKLADEM
14 WASHER PLATE 14 (Ref. č 14) 23814 WASHER PLATE 14  1 56,20 Kč 68 Kč
SKLADEM
30 23930 R/B 25621 DRIVE ASSY COMPLETE  1 4 017,36 Kč 4 861 Kč
NA DOTAZ
