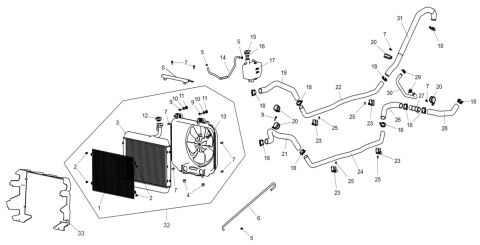

Cooling system assembly

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_132_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 RADIATOR PROTECTION NET (Ref. č 1) U09A41106001 RADIATOR PROTECTION NET  1 412,40 Kč 499 Kč
NA DOTAZ
19 U09 ENGINE FRONT WATER INLET HOSE (Ref. č 19) U09A42006001 U09 ENGINE FRONT WATER INLET HOSE  1 350,41 Kč 424 Kč
SKLADEM
20 T05000070001 R/B T05000007001 38 ADHESIVE STRIP CLAMP  4 57,02 Kč 69 Kč
NA DOTAZ
21 U09 ENGINE FRONT WATER OUTLET HOSE (Ref. č 21) U09A42001001 U09 ENGINE FRONT WATER OUTLET HOSE  1 395,87 Kč 479 Kč
SKLADEM
22 U09 ENGINE WATER INLET AL PIPE (Ref. č 22) U09A42005001 U09 ENGINE WATER INLET AL PIPE  1 516,53 Kč 625 Kč
SKLADEM
23 U09 WATER PIPE CLAMP (Ref. č 23) U09A42011001 U09 WATER PIPE CLAMP  4 57,02 Kč 69 Kč
SKLADEM
24 U09 ENGINE WATER OUTLET AL PIPE (Ref. č 24) U09A42004001 U09 ENGINE WATER OUTLET AL PIPE  1 516,53 Kč 625 Kč
SKLADEM
25 GBT008191004 SCREW M6×14  4 57,02 Kč 69 Kč
NA DOTAZ
26 U09 ENGINE REAR WATER INLET HOSE 1 (Ref. č 26) U09A42003001 U09 ENGINE REAR WATER INLET HOSE 1  1 239,67 Kč 290 Kč
SKLADEM
27 S01 ENGINE RADIATOR THREE-WAY (Ref. č 27) S01A42500001 S01 ENGINE RADIATOR THREE-WAY  1 123,97 Kč 150 Kč
SKLADEM
29 CLAMP 20 (Ref. č 29) QCT006211015 CLAMP 20  2 57,02 Kč 69 Kč
SKLADEM
30 U09 ENGINE OIL COOLING PIPE (Ref. č 30) U09A42008001 U09 ENGINE OIL COOLING PIPE  1 94,21 Kč 114 Kč
SKLADEM
31 U09 ENGINE REAR WATER OUTLET HOSE (Ref. č 31) U09A42002001 U09 ENGINE REAR WATER OUTLET HOSE  1 613,22 Kč 742 Kč
SKLADEM
32 ENGINE RADIATOR ASSY(V) (Ref. č 32) U09-A400100-000-01 ENGINE RADIATOR ASSY(V)  1 5 958,68 Kč 7 210 Kč
SKLADEM
18 CLAMP 38 (Ref. č 18) BQ006211-03815-Z01 CLAMP 38  10 54,55 Kč 66 Kč
NA DOTAZ
17 WATER TANK BODY (Ref. č 17) U01A43041004 WATER TANK BODY  1 247,93 Kč 300 Kč
SKLADEM
16 WATER TANK PLUG (Ref. č 16) U01A43043001 WATER TANK PLUG  1 57,02 Kč 69 Kč
SKLADEM
2 BOLT M6×10 (Ref. č 2) GBT005789005 BOLT M6×10  4 54,55 Kč 66 Kč
NA DOTAZ
3 RADIATOR BODY V (Ref. č 3) U09-A400101-000-01 RADIATOR BODY V  1 4 204,96 Kč 5 088 Kč
NA DOTAZ
4 MOTOR RADIATOR T-BUSHING LOWER (Ref. č 4) S01A40103001 MOTOR RADIATOR T-BUSHING LOWER  2 71,07 Kč 86 Kč
SKLADEM
5 CLAMP,SPRINGBAND 11 (Ref. č 5) QCT006211003 CLAMP,SPRINGBAND 11  3 66,94 Kč 81 Kč
SKLADEM
6 REAR AXLE SNORKEL (Ref. č 6) A02A10002001 REAR AXLE SNORKEL  1 578,51 Kč 700 Kč
SKLADEM
7 Bolt M6×16 (Ref. č 7) GBT005789007 Bolt M6×16  8 57,02 Kč 69 Kč
SKLADEM

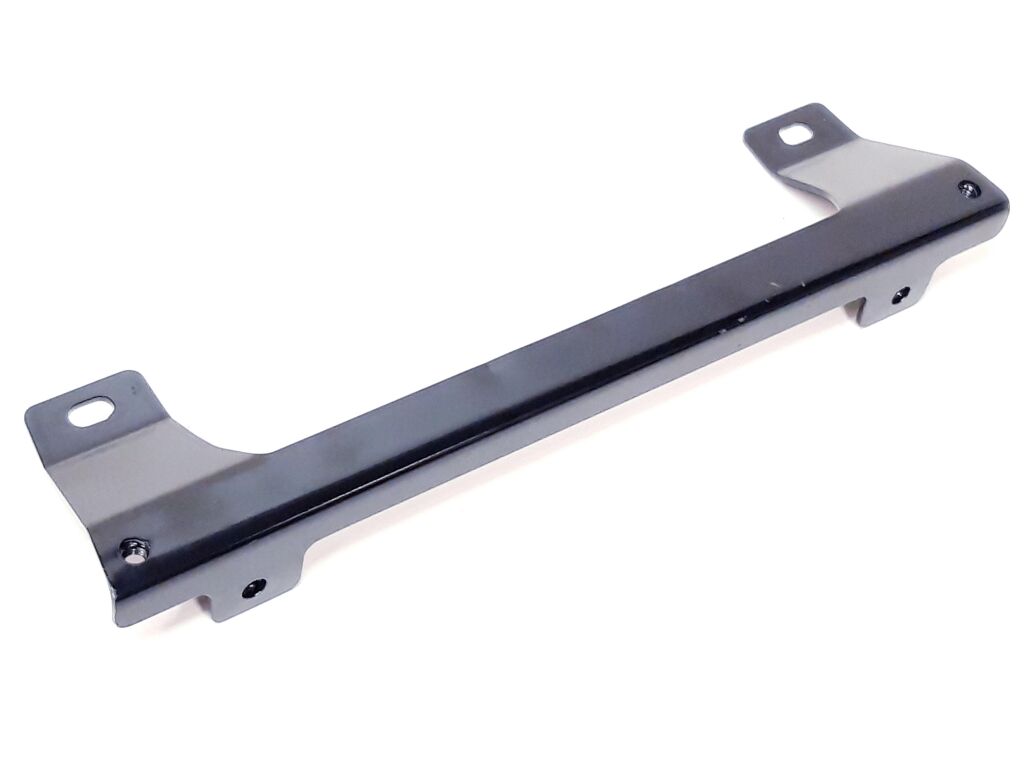

8 Radiator fixing bracket (Ref. č 8) U01-C000010-DB0-00 Radiator fixing bracket  1 101,65 Kč 123 Kč
NA DOTAZ
9 HEXAGON FLANGE BOLT M6×25 (Ref. č 9) GBT005789010 HEXAGON FLANGE BOLT M6×25  3 57,02 Kč 69 Kč
SKLADEM
10 T BUSH V (Ref. č 10) U09A41105001 T BUSH V  2 57,02 Kč 69 Kč
SKLADEM
11 I-SHAPED RUBBER RING V (Ref. č 11) U09A41104001 I-SHAPED RUBBER RING V  2 57,02 Kč 69 Kč
SKLADEM
12 TANK LID ASSY V (Ref. č 12) A01A41110002 TANK LID ASSY V  1 100 Kč 121 Kč
SKLADEM

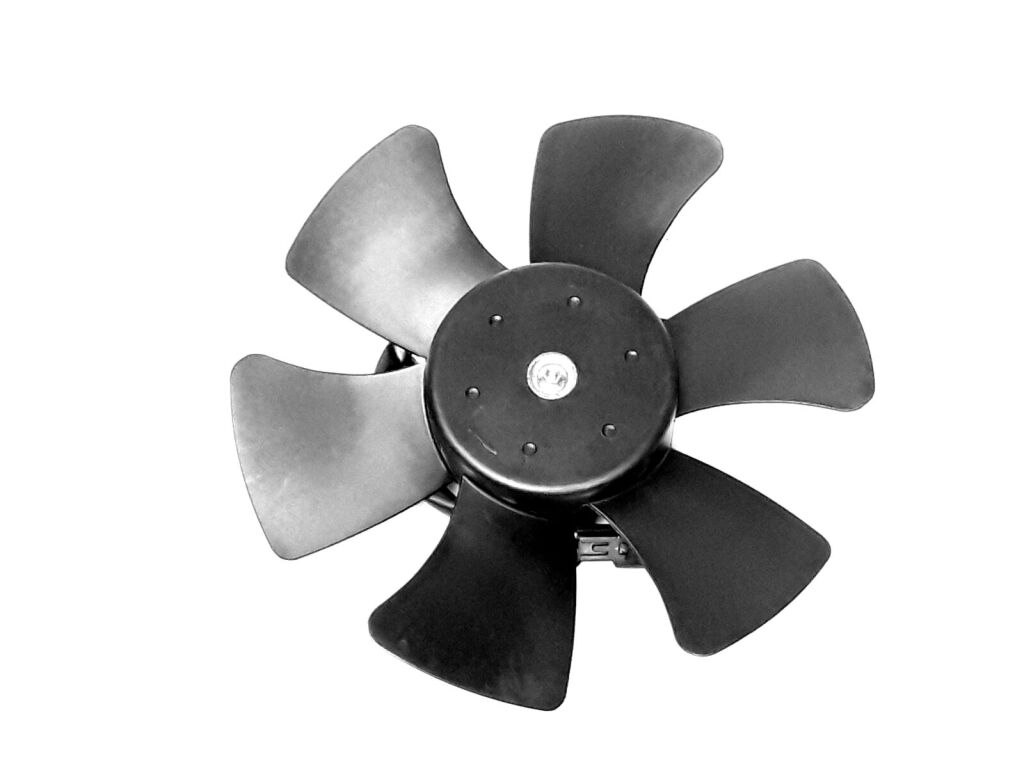

13 FAN MOTOR ASSY V (Ref. č 13) U09-A400102-000-01 FAN MOTOR ASSY V  1 1 735,54 Kč 2 100 Kč
SKLADEM
14 RADIATOR REGATIVE PRESSURE PIPE (Ref. č 14) U09A43051001 RADIATOR REGATIVE PRESSURE PIPE  1 57,02 Kč 69 Kč
SKLADEM
15 WATER TANK COVER (Ref. č 15) U01A43042001 WATER TANK COVER  1 57,02 Kč 69 Kč
SKLADEM
33 Radiator Front Baffle (Ref. č 33) U09-A400104-000-00 Radiator Front Baffle  1 342,15 Kč 414 Kč
NA DOTAZ
