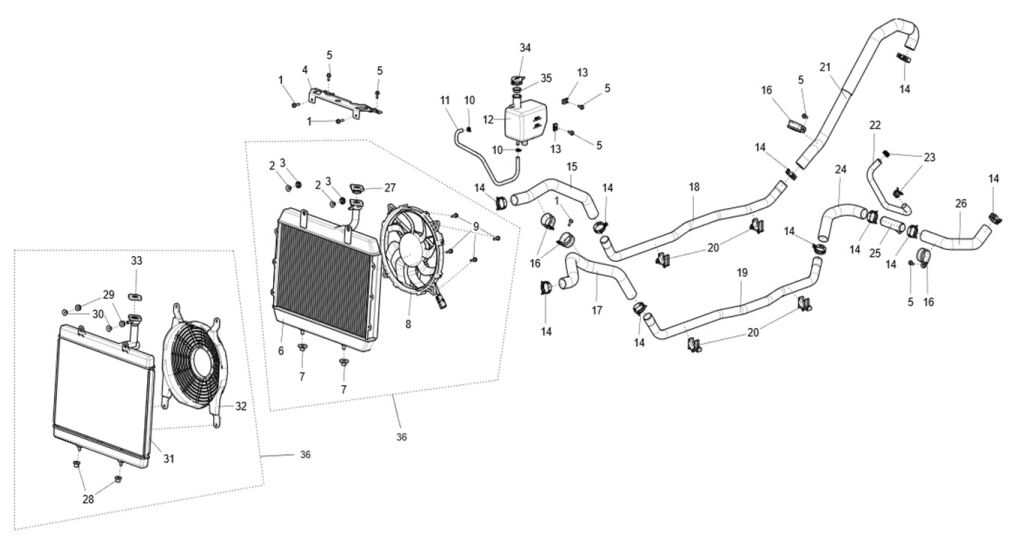

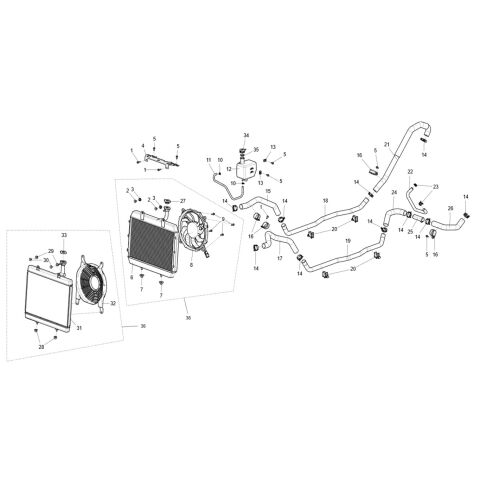

Cooling system assembly

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_133_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 HEXAGON FLANGE BOLT M6×25 (Ref. č 1) GBT005789010 HEXAGON FLANGE BOLT M6×25  3 57,02 Kč 69 Kč
SKLADEM
17 U09 ENGINE FRONT WATER OUTLET HOSE (Ref. č 17) U09A42001001 U09 ENGINE FRONT WATER OUTLET HOSE  1 395,87 Kč 479 Kč
SKLADEM

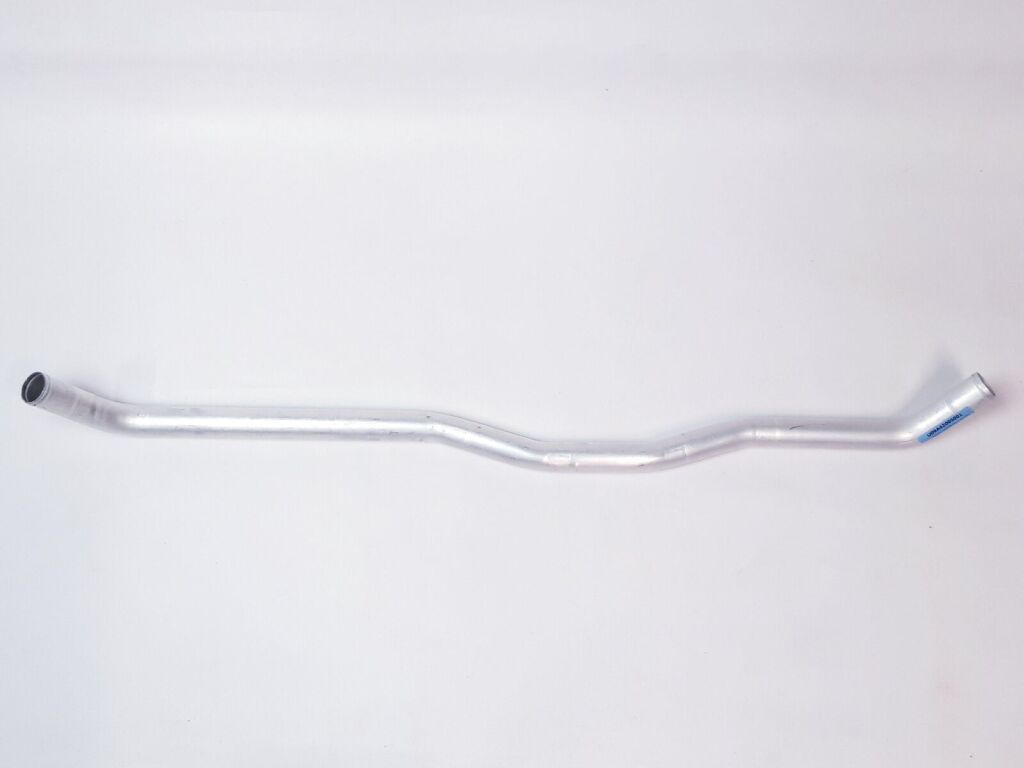

18 U09 ENGINE WATER INLET AL PIPE (Ref. č 18) U09A42005001 U09 ENGINE WATER INLET AL PIPE  1 516,53 Kč 625 Kč
SKLADEM
19 U09 ENGINE WATER OUTLET AL PIPE (Ref. č 19) U09A42004001 U09 ENGINE WATER OUTLET AL PIPE  1 516,53 Kč 625 Kč
SKLADEM
20 U09 WATER PIPE CLAMP (Ref. č 20) U09A42011001 U09 WATER PIPE CLAMP  4 57,02 Kč 69 Kč
SKLADEM
21 U09 ENGINE REAR WATER OUTLET HOSE (Ref. č 21) U09A42002001 U09 ENGINE REAR WATER OUTLET HOSE  1 613,22 Kč 742 Kč
SKLADEM
22 U09 ENGINE OIL COOLING PIPE (Ref. č 22) U09A42008001 U09 ENGINE OIL COOLING PIPE  1 94,21 Kč 114 Kč
SKLADEM
23 CLAMP 20 (Ref. č 23) QCT006211015 CLAMP 20  1 57,02 Kč 69 Kč
SKLADEM
24 U09 ENGINE REAR WATER INLET HOSE 1 (Ref. č 24) U09A42003001 U09 ENGINE REAR WATER INLET HOSE 1  1 239,67 Kč 290 Kč
SKLADEM
25 S01 ENGINE RADIATOR THREE-WAY (Ref. č 25) S01A42500001 S01 ENGINE RADIATOR THREE-WAY  1 123,97 Kč 150 Kč
SKLADEM
27 TANK LID ASSY V (Ref. č 27) A01A41110002 TANK LID ASSY V  1 100 Kč 121 Kč
SKLADEM
34 WATER TANK COVER (Ref. č 34) U01A43042001 WATER TANK COVER  1 57,02 Kč 69 Kč
SKLADEM

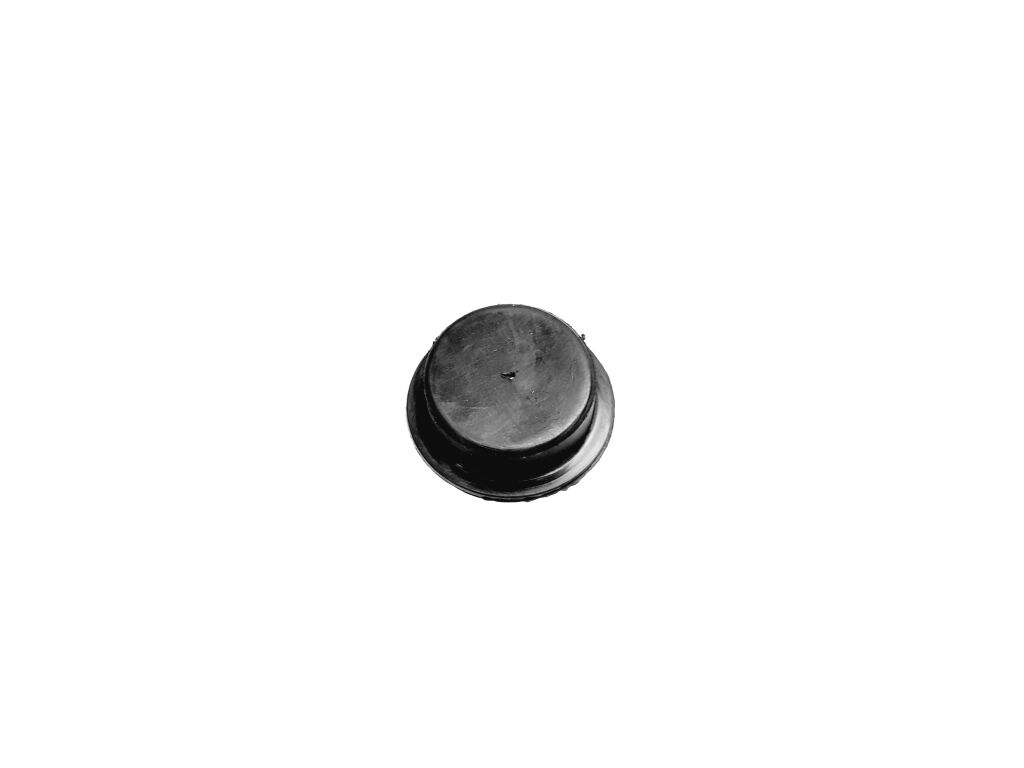

35 WATER TANK PLUG (Ref. č 35) U01A43043001 WATER TANK PLUG  1 57,02 Kč 69 Kč
SKLADEM
16 T05000070001 R/B T05000007001 38 ADHESIVE STRIP CLAMP  4 57,02 Kč 69 Kč
NA DOTAZ
15 U09 ENGINE FRONT WATER INLET HOSE (Ref. č 15) U09A42006001 U09 ENGINE FRONT WATER INLET HOSE  1 350,41 Kč 424 Kč
SKLADEM
14 CLAMP 38 (Ref. č 14) BQ006211-03815-Z01 CLAMP 38  10 54,55 Kč 66 Kč
NA DOTAZ
2 T BUSH V (Ref. č 2) U09A41105001 T BUSH V  2 57,02 Kč 69 Kč
SKLADEM
3 I-SHAPED RUBBER RING V (Ref. č 3) U09A41104001 I-SHAPED RUBBER RING V  2 57,02 Kč 69 Kč
SKLADEM
4 U01 RADIATOR MOUNTING BRACKET ASSY (Ref. č 4) U01C00010002 U01 RADIATOR MOUNTING BRACKET ASSY  1 556,20 Kč 673 Kč
SKLADEM
5 Bolt M6×16 (Ref. č 5) GBT005789007 Bolt M6×16  6 57,02 Kč 69 Kč
SKLADEM

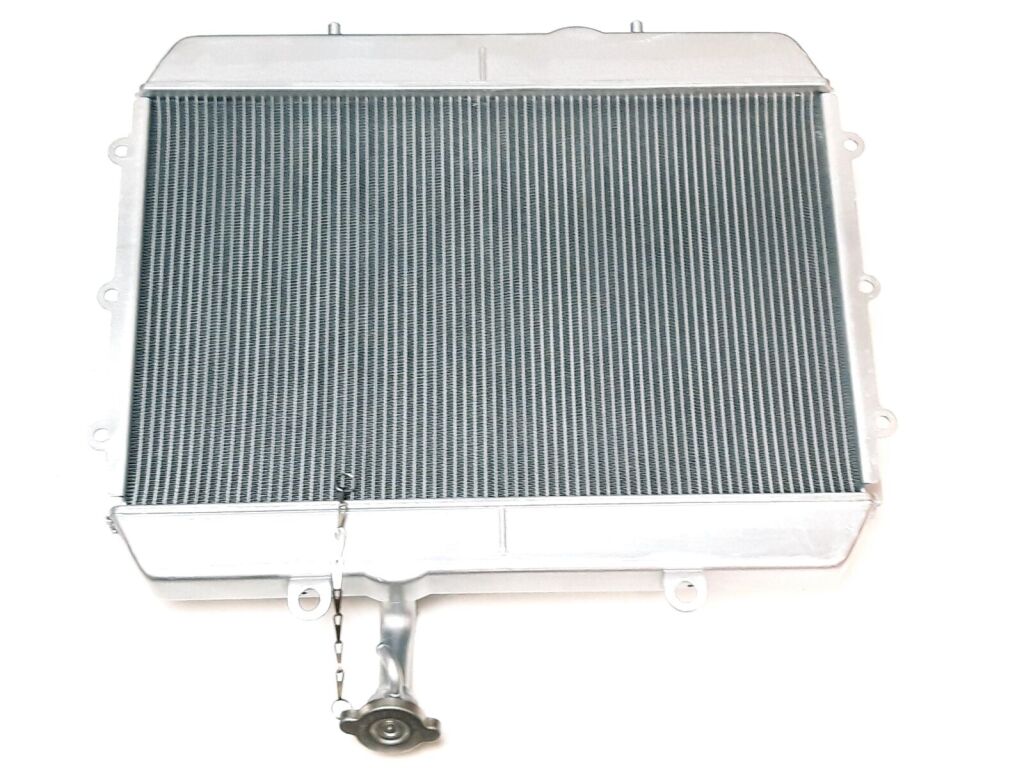

6 RADIATOR BODY V (Ref. č 6) U09A41101002 RADIATOR BODY V  1 4 150,41 Kč 5 022 Kč
SKLADEM
7 T-SHAPED RUBBER RING V (Ref. č 7) U09A41103001 T-SHAPED RUBBER RING V  2 57,02 Kč 69 Kč
SKLADEM
8 R/B U09-A400102-000-00 FAN MOTOR ASSY V (Ref. č 8) U09A41102001 R/B U09-A400102-000-00 FAN MOTOR ASSY V  1 1 843,80 Kč 2 231 Kč
NA DOTAZ
9 HEXAGON FLANGE BOLT M6×20 (Ref. č 9) GBT005789008 HEXAGON FLANGE BOLT M6×20  4 57,02 Kč 69 Kč
SKLADEM
10 CLAMP,SPRINGBAND 11 (Ref. č 10) QCT006211003 CLAMP,SPRINGBAND 11  3 66,94 Kč 81 Kč
SKLADEM
11 RADIATOR REGATIVE PRESSURE PIPE (Ref. č 11) U09A43051001 RADIATOR REGATIVE PRESSURE PIPE  1 57,02 Kč 69 Kč
SKLADEM
12 WATER TANK BODY (Ref. č 12) U01A43041004 WATER TANK BODY  1 247,93 Kč 300 Kč
SKLADEM
13 M6 nut clip (Ref. č 13) T04000002001 M6 nut clip  2 57,02 Kč 69 Kč
SKLADEM
14 CLAMP 38 (Ref. č 14) QCT006211016 CLAMP 38  10 57,02 Kč 69 Kč
SKLADEM
36 R/B U09-A400100-000-00 U09 ENGINE RADIATOR ASSY(V) (Ref. č 36) U09A41100001 R/B U09-A400100-000-00 U09 ENGINE RADIATOR ASSY(V)  1 6 239,67 Kč 7 550 Kč
SKLADEM
