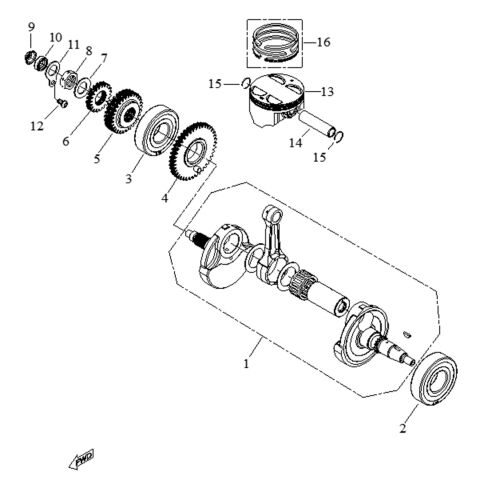

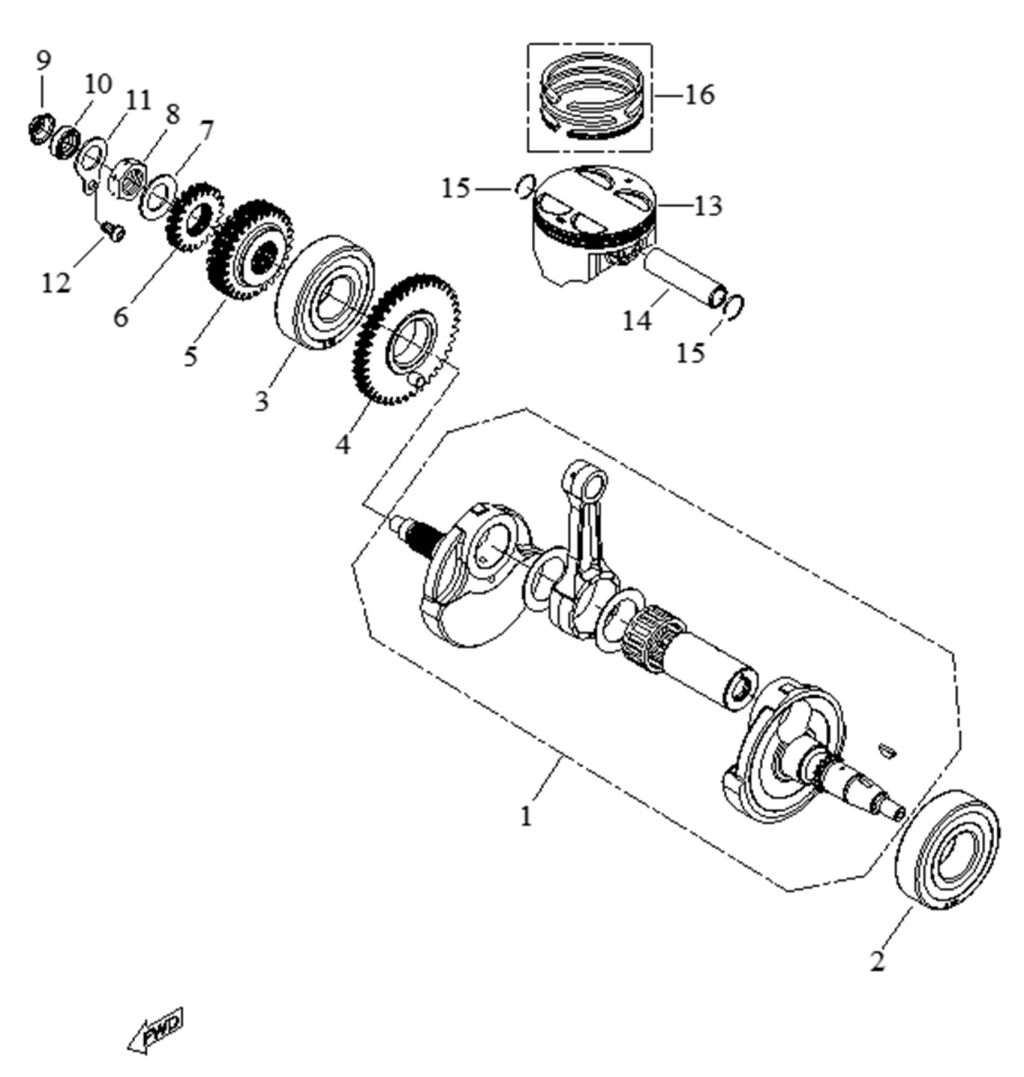

CRANK SHAFT

ACCESS MOTOR
Výrobce: ACCESS MOTOR
Kód produktu: ACCESS_1_107_WARRIOR_450
Vybrat MODEL:
warrior 450 warrior 450
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 13000-E12-100 R/B 13000-E12-102 CRANK SHAFT 450cc  1 18 404,96 Kč 22 270 Kč
NA DOTAZ
7 93106-18231-18 WASHER, water pump deive gear loc  1 45,45 Kč 55 Kč
NA DOTAZ

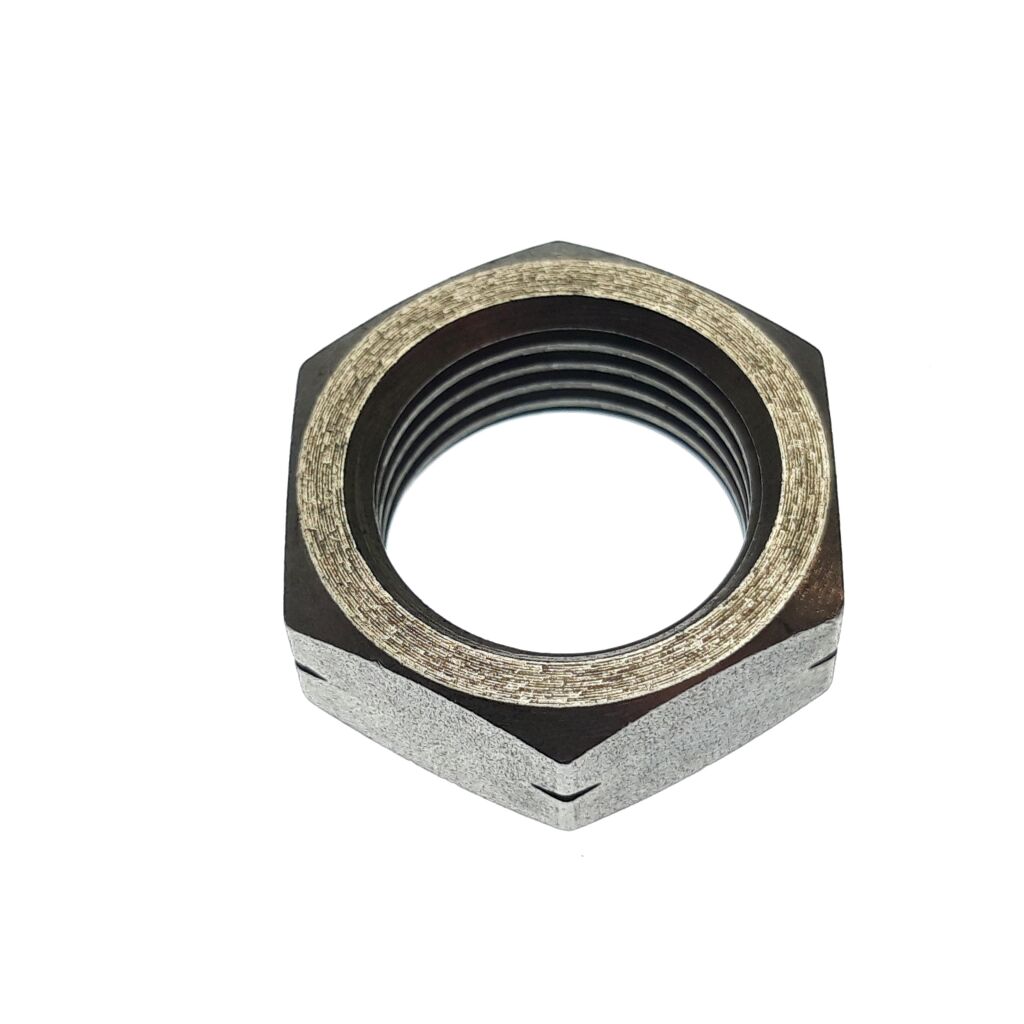

8 NUT, primary drive gear (Ref. č 8) 92110-18-24-1 NUT, primary drive gear  1 56,20 Kč 68 Kč
SKLADEM
9 JET, crank shaft R (Ref. č 9) 14210-E12-100 JET, crank shaft R  1 833,88 Kč 1 009 Kč
SKLADEM
10 SEAL, oil (Ref. č 10) 96100-122107 SEAL, oil  1 56,20 Kč 68 Kč
NA DOTAZ
11 RETAINER, crank shaft oil seal (Ref. č 11) 83121-E12-100 RETAINER, crank shaft oil seal  1 56,20 Kč 68 Kč
SKLADEM
12 91740-06010Z SCREW, gear shift cam bearing retain  1 45,45 Kč 55 Kč
NA DOTAZ
13 PISTON (Ref. č 13) 13300-E12-100 PISTON  1 989,26 Kč 1 197 Kč
NA DOTAZ
14 PIN, piston (Ref. č 14) 13400-E12-100 PIN, piston  1 223,14 Kč 270 Kč
SKLADEM
15 CIRCLIP, piston pin (Ref. č 15) 13410-E12-100 CIRCLIP, piston pin  2 56,20 Kč 68 Kč
SKLADEM

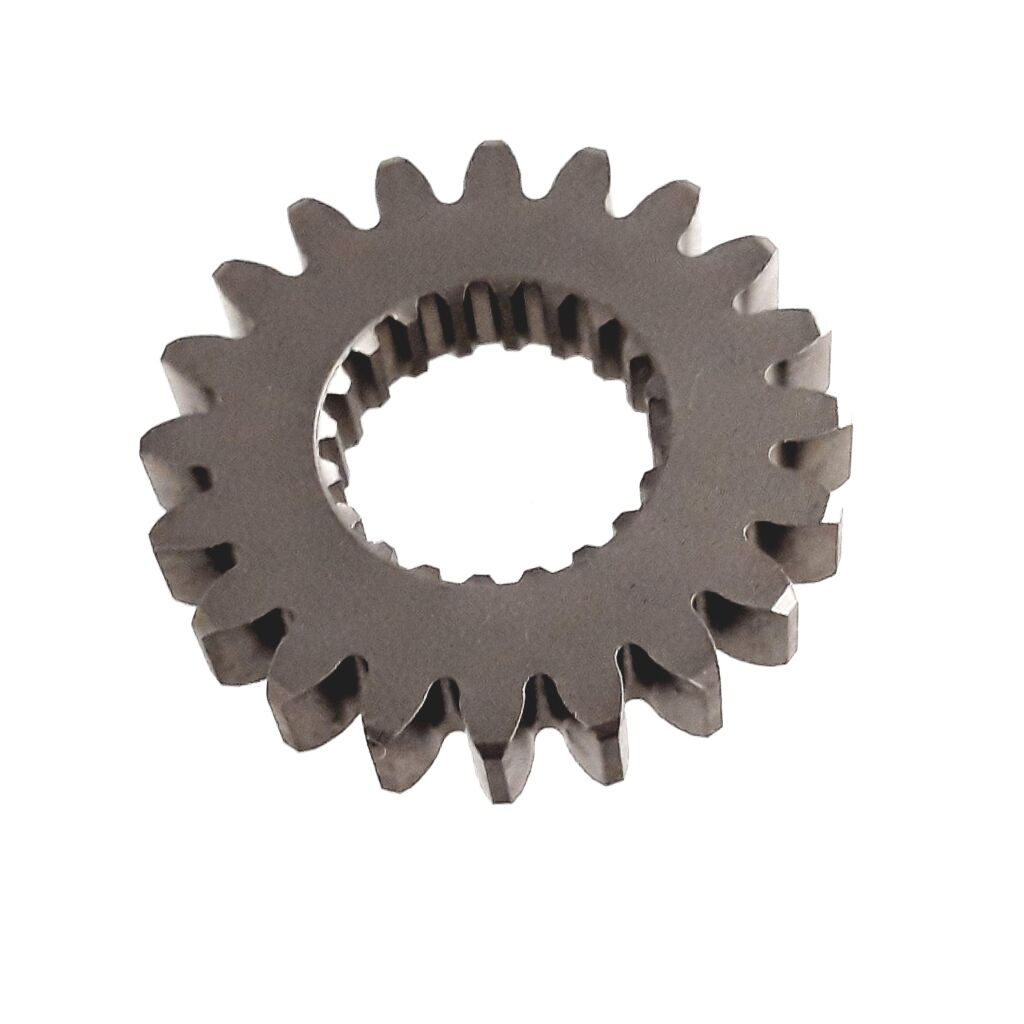

6 GEAR, Water Pump Drive (Ref. č 6) 13000-E12-100-6 GEAR, Water Pump Drive  1 338,84 Kč 410 Kč
SKLADEM
5 GEAR, Water Pump Drive (Ref. č 5) 13000-E12-100-7 GEAR, Water Pump Drive  1 527,27 Kč 638 Kč
SKLADEM
1.1 13000-E12-100-1 ROD, connecting  1
NA DOTAZ
Detail
1.2 13000-E12-100-2 BEARING, crank pin  1
NA DOTAZ
Detail
1.3 13000-E12-100-3 PIN COMP, crank  1
NA DOTAZ
Detail
1.4 13000-E12-100-4 CRANK SHAFT, R  1
NA DOTAZ
Detail
1.5 13000-E12-100-5 CRANK SHAFT, L  1
NA DOTAZ
Detail
1.7 KEY, magneto (Ref. č 1-7) 13010-E12-100 KEY, magneto  1 56,20 Kč 68 Kč
NA DOTAZ
2 Bearing, Ball (Ref. č 2) 95100-TMB307 Bearing, Ball  1 1 824,79 Kč 2 208 Kč
SKLADEM
3 Bearing, Ball (Ref. č 3) 95100-TMB306 Bearing, Ball  1 1 618,18 Kč 1 958 Kč
NA DOTAZ
4 GEAR, Water Pump Drive (Ref. č 4) 13000-E12-100-8 GEAR, Water Pump Drive  1 1 135,54 Kč 1 374 Kč
SKLADEM
16 RINGSET, piston (Ref. č 16) 13310-E12-100 RINGSET, piston  1 652,89 Kč 790 Kč
SKLADEM ZA 4 dnů
