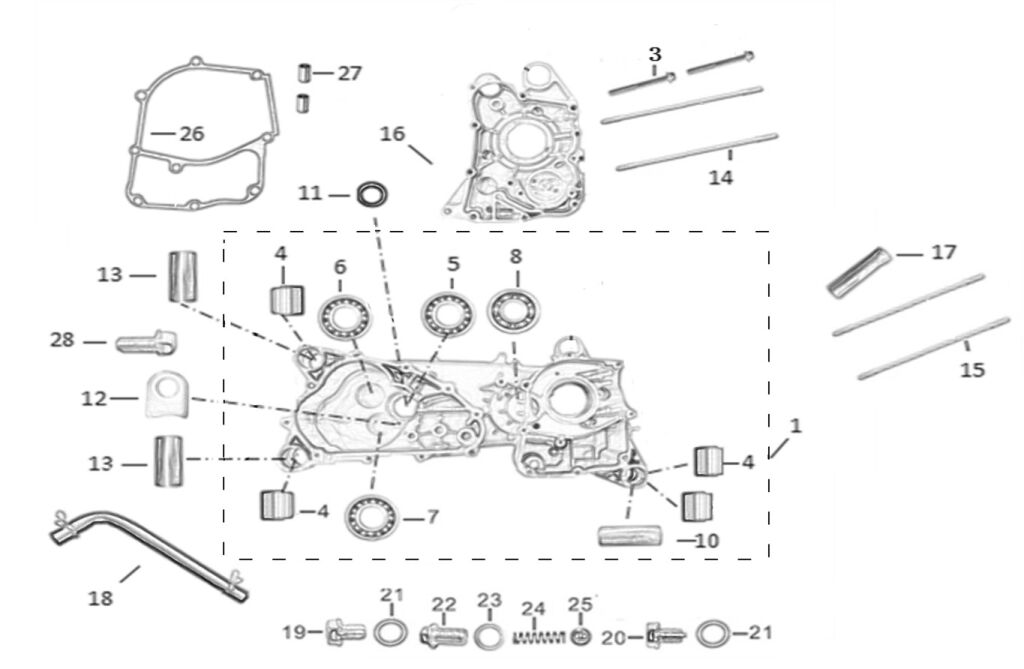

CRANKCASE COMP

LINHAI
Výrobce: LINHAI
Kód produktu: LINHAI_1_129_M210_EFI_T3
Vybrat MODEL:
M210 T3 M210 T3
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 62322 CRANKCASE ASSY., LEFT  1
NA DOTAZ
Detail
17 37250 JOINT, BREATHER HOSE  1
NA DOTAZ
Detail
18 37242 TUBE, BREATHER  1
NA DOTAZ
Detail
19 11748 BOLT, OIL DRAIN M12×15  2
NA DOTAZ
Detail
20 11749 BOLT, OIL DRAIN M12×15 (MAGNETISM)  1
NA DOTAZ
Detail
21 11765 WASHER, PLAIN 12×20×1.5  2
NA DOTAZ
Detail
22 11753 EYE BOLT, HEXAGON FLANGE 14×21  1
NA DOTAZ
Detail
23 11766 WASHER, PLAIN φ14×φ22×2  1
NA DOTAZ
Detail
24 37226 LOCATING SPRING  1
NA DOTAZ
Detail
25 37227 BALL, STEEL 9.5  1
NA DOTAZ
Detail
26 62326 GASKET, CRANKCASE  1
NA DOTAZ
Detail
27 11761 PIN, DOWEL 8×14  2
NA DOTAZ
Detail
16 62325 CRANKCASE ASSY., RIGHT  1
NA DOTAZ
Detail
15 11743 BOLT, STUD M8×201  2
NA DOTAZ
Detail
3 Bolt M6x50 (Ref. č 3) 10349 Bolt M6x50  2 56,20 Kč 68 Kč
NA DOTAZ
4 37243 BUSH, ENGINE HANGER CUSHION  4
NA DOTAZ
Detail
5 11736 BEARING 6204/P6  1
NA DOTAZ
Detail
6 11735 BEARING 6203/P6  1
NA DOTAZ
Detail
7 11734 BEARING 6202/P6  1
NA DOTAZ
Detail
8 11738 BEARING 6301/P53  1
NA DOTAZ
Detail
10 37239 ENGINE HANGER BUSH φ20×φ10.5×50  1
NA DOTAZ
Detail
11 11759 OIL SEAL 20×32×6  1
NA DOTAZ
Detail
12 37251 PLATE  1
NA DOTAZ
Detail
13 37238 ENGINE HANGER BUSH φ20×φ10.5×42  2
NA DOTAZ
Detail
14 11742 BOLT, STUD M8×196  2
NA DOTAZ
Detail
28 BOLT M6X12 (Ref. č 28) 10140 BOLT M6X12  1 56,20 Kč 68 Kč
SKLADEM
