Crankcase

ACCESS MOTOR
Výrobce: ACCESS MOTOR
Kód produktu: ACCESS_1_101_MAX_800i_LT
Vybrat MODEL:
SHADE 850LT E4 EPS SHADE 850LT E4 EPS
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 11100-E24-000 R/B 11000-E24-000 Crankcase, R  1 11 341,32 Kč 13 723 Kč
NA DOTAZ
43 Washer, Plain (AL) (Ref. č 43) 93105-12020-20-2 Washer, Plain (AL)  3 56,20 Kč 68 Kč
NA CESTĚ
42 91830-A07-100 Bolt, Brake Hose  1 75,21 Kč 91 Kč
NA DOTAZ
41 15130-E24-000 PIPE COMP, oil connecter  1
NA DOTAZ
Detail
40 Union, Engine Oil Filter (Ref. č 40) 15291-E24-000 Union, Engine Oil Filter  1 183,47 Kč 222 Kč
SKLADEM
39 FILTER OIL, Access, Triton 450, AX 600, 650, 700, 750, 800, 850 (Ref. č 39) 15290-E12-200 FILTER OIL, Access, Triton 450, AX 600, 650, 700, 750, 800, 850  1 442,98 Kč 536 Kč
SKLADEM
38 O-Ring (Ref. č 38) 96200-138024 O-Ring  1 56,20 Kč 68 Kč
NA DOTAZ
37 15810-E20-000 RELIEF VALVE ASSY  1 610,74 Kč 739 Kč
NA DOTAZ
36 Gasket, Crank Cover (Ref. č 36) 11111-E24-001 Gasket, Crank Cover  1 200,83 Kč 243 Kč
SKLADEM
35 R/B 14520-E20-002 GUIDE, STOPPER (Ref. č 35) 14520-E20-A01 R/B 14520-E20-002 GUIDE, STOPPER  1 199,17 Kč 241 Kč
NA DOTAZ
34 Chain, Cam (Ref. č 34) 23319-E20-000 Chain, Cam  1 131,40 Kč 159 Kč
SKLADEM
33 92110-10-14C Nut, Hex  1 45,45 Kč 55 Kč
NA DOTAZ
32 WASHER, LOCK (Ref. č 32) 93250-10216-10 WASHER, LOCK  1 56,20 Kč 68 Kč
SKLADEM
44 Bolt, Brake Hose (Ref. č 44) 91830-A01-000 Bolt, Brake Hose  1 56,20 Kč 68 Kč
SKLADEM
45 Cushion Rubber (Ref. č 45) 93506-A27-000 Cushion Rubber  4 995,87 Kč 1 205 Kč
SKLADEM
46 R/B 63305-E20-010 Sensor speedometer (Ref. č 46) 63305-E20-000 R/B 63305-E20-010 Sensor speedometer  1 818,18 Kč 990 Kč
NA DOTAZ
59 PLUG, DRAIN (Ref. č 59) 93671-E20-000 PLUG, DRAIN  1 56,20 Kč 68 Kč
SKLADEM
57 15292-E20-000 Adaptor, Oil Filter Block  1 1 024,79 Kč 1 240 Kč
NA DOTAZ
56 Oil-Ring (Ref. č 56) 96200-594031 Oil-Ring  1 85,12 Kč 103 Kč
SKLADEM
55 96200-186035 Oil-Ring  1 45,45 Kč 55 Kč
NA DOTAZ
54 Oil Level Gauge (Ref. č 54) 15550-A12-000 Oil Level Gauge  1 88,43 Kč 107 Kč
SKLADEM
53 91700-10035-14W Hex Washer Face Bolt  4 43,80 Kč 53 Kč
NA DOTAZ

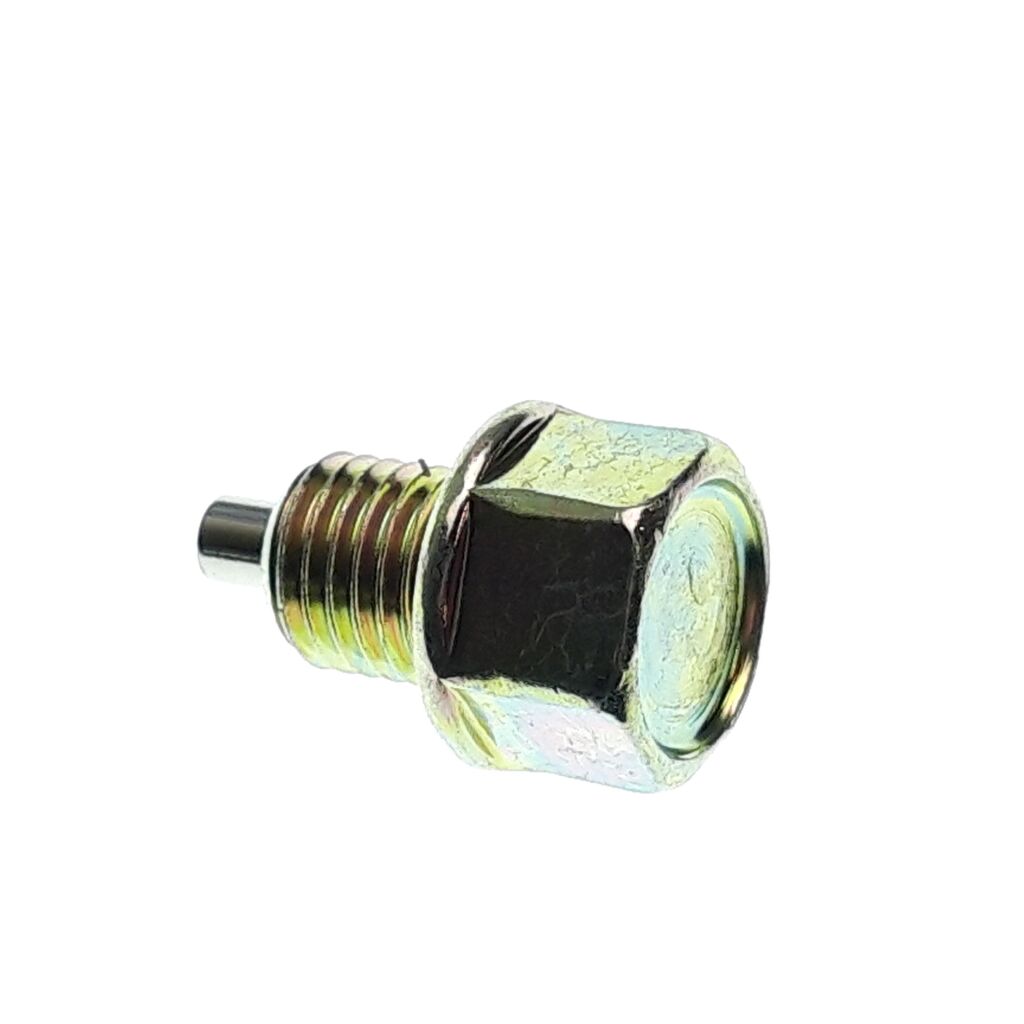

52 R/B 91833-E10-201 Drain Bolt (Ref. č 52) 91833-E10-202 R/B 91833-E10-201 Drain Bolt  1 92,56 Kč 112 Kč
NA DOTAZ
51 Cam Chan Tensioner Pivot (Ref. č 51) 14505-E10-100 Cam Chan Tensioner Pivot  2 56,20 Kč 68 Kč
SKLADEM
50 91736-06012Z Bolt, Cross  7
NA DOTAZ
Detail
49 Cover, Crank (Ref. č 49) 11110-E24-000 Cover, Crank  1 378,51 Kč 458 Kč
SKLADEM
48 Bearing (Ref. č 48) 95324-101210 Bearing  1 56,20 Kč 68 Kč
NA DOTAZ
47 Bolt, Sealing (Ref. č 47) 91838-A27-000 Bolt, Sealing  2 56,20 Kč 68 Kč
SKLADEM
31 Drive,Gear, Oil-Pump (Ref. č 31) 15110-E20-000 Drive,Gear, Oil-Pump  1 341,32 Kč 413 Kč
SKLADEM
30 Hex. Bolt, Flange (Ref. č 30) 91700-06020-08G-1 Hex. Bolt, Flange  4 56,20 Kč 68 Kč
SKLADEM
14 11115-E12-000 Hook, Fixed Wire (unavailable)  1
NA DOTAZ
Detail
13 94001-100130 Pin, Dowel  18 45,45 Kč 55 Kč
NA DOTAZ
12 O-RING 2, Clutch Outer Cover (Ref. č 12) 11365-E20-000 O-RING 2, Clutch Outer Cover  1 276,03 Kč 334 Kč
SKLADEM
11 COVER, clutch outer (Ref. č 11) 11360-E20-000 COVER, clutch outer  1 1 338,02 Kč 1 619 Kč
SKLADEM
10 91710-06028-10G Hex. Bolt, Flange  20 45,45 Kč 55 Kč
NA DOTAZ
9 O-RING 2, Transmission (Ref. č 9) 11410-E20-000 O-RING 2, Transmission  1 92,56 Kč 112 Kč
SKLADEM
8 O-RING, Clutch Cover (Ref. č 8) 11393-E20-000 O-RING, Clutch Cover  1 276,03 Kč 334 Kč
SKLADEM
7 COVER COMP, clutch (Ref. č 7) 11350-E20-000 COVER COMP, clutch  1 1 219,83 Kč 1 476 Kč
NA CESTĚ
6 91760-08045-06G-1 Bolt, Hexagon, Socker  3 45,45 Kč 55 Kč
NA DOTAZ
5 91700-06065-08Z Hex. Bolt, Flange  4
NA DOTAZ
Detail
4 91700-06040-08G-1 Hex. Bolt, Flange  12 45,45 Kč 55 Kč
NA DOTAZ
3 94001-140160 Pin, Dowel  4 51,24 Kč 62 Kč
NA DOTAZ
15 Housing, Pin Holder (Ref. č 15) 11345-E20-000 Housing, Pin Holder  1 1 379,34 Kč 1 669 Kč
NA CESTĚ
16 Pin, Dowel (Ref. č 16) 94001-100140 Pin, Dowel  2 56,20 Kč 68 Kč
SKLADEM
17 BOLT, gear shift lever (Ref. č 17) 91710-06032-10G BOLT, gear shift lever  2 56,20 Kč 68 Kč
SKLADEM
29 GASKET, PUMP COVER (Ref. č 29) 15101-E20-000 GASKET, PUMP COVER  1 56,20 Kč 68 Kč
SKLADEM
28 Pump, Oil (Ref. č 28) 15100-E24-000 Pump, Oil  1 1 802,48 Kč 2 181 Kč
NA DOTAZ
27 Washer, Plate (AL) - 10*16*1.0 (Ref. č 27) 93105-10016-10 Washer, Plate (AL) - 10*16*1.0  3 54,55 Kč 66 Kč
SKLADEM
26 91700-10012-12C BOLT, oil galley  1 45,45 Kč 55 Kč
NA DOTAZ
25 Pin, Dowel (Ref. č 25) 94001-080140 Pin, Dowel  1 56,20 Kč 68 Kč
SKLADEM
24 96200-340020 Oil-Ring  1 47,11 Kč 57 Kč
NA DOTAZ
23 61210-E20-002 R/B 61210-E20-003 SWITCH ASS´Y, gear shift  1 878,51 Kč 1 063 Kč
NA DOTAZ
22 91700-06016-08G-1 Hex. Bolt, Flange  6 45,45 Kč 55 Kč
NA DOTAZ
21 RETAINER, crank shaft oil seal (Ref. č 21) 83121-E12-100 RETAINER, crank shaft oil seal  1 56,20 Kč 68 Kč
SKLADEM
20 Seal, Oil (Ref. č 20) 96100-123207 Seal, Oil  1 150,41 Kč 182 Kč
SKLADEM
19 bearing, Ball (Ref. č 19) 95100-T6201LLB bearing, Ball  1 166,12 Kč 201 Kč
SKLADEM
18 Hex. Bolt, Flange (Ref. č 18) 91710-06042-10G Hex. Bolt, Flange  2 56,20 Kč 68 Kč
SKLADEM
2 11200-E24-000 R/B 11000-E24-000 Crankcase, L  1 8 155,37 Kč 9 868 Kč
NA DOTAZ
