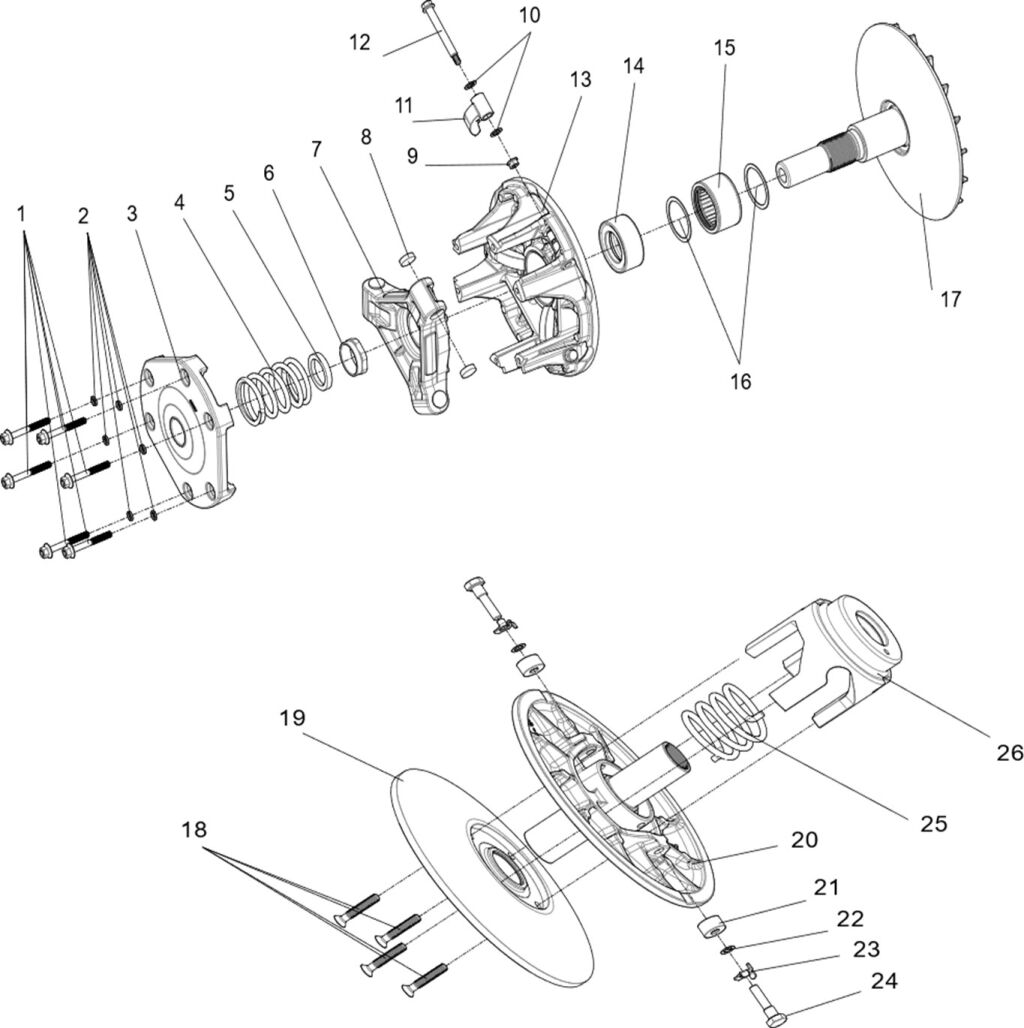

CVT assembly HZ CVT

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_124_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 BOLT M6×52 (Ref. č 1) E02E20005001 BOLT M6×52  6 54,55 Kč 66 Kč
NA DOTAZ
16 THRUST WASHER 40.5 (Ref. č 16) E02E20001001 THRUST WASHER 40.5  2 54,55 Kč 66 Kč
NA DOTAZ
17 DRIVE PULLEY SET (Ref. č 17) E02E21000001 DRIVE PULLEY SET  1 54,55 Kč 66 Kč
NA DOTAZ
18 FIXING SCREW (Ref. č 18) E02E30001001 FIXING SCREW  4 54,55 Kč 66 Kč
NA DOTAZ
19 MOVING DISK ASSEMBLY (Ref. č 19) E02E30100001 MOVING DISK ASSEMBLY  1 54,55 Kč 66 Kč
NA DOTAZ
20 FIXED SHAFT (Ref. č 20) E02E31100001 FIXED SHAFT  1 54,55 Kč 66 Kč
NA DOTAZ
21 SLIDER(HZ) (Ref. č 21) E02E31001001 SLIDER(HZ)  2 171,07 Kč 207 Kč
SKLADEM
22 WASHER 8 (Ref. č 22) E02E22002001 WASHER 8  2 54,55 Kč 66 Kč
NA DOTAZ
23 BOLT LOCK CATCH (Ref. č 23) E02E31003001 BOLT LOCK CATCH  2 54,55 Kč 66 Kč
NA DOTAZ
24 CVT BOLT (Ref. č 24) E02E31002001 CVT BOLT  2 54,55 Kč 66 Kč
NA DOTAZ
25 DRIVEN SPRING (Ref. č 25) E02E30002001 DRIVEN SPRING  1 54,55 Kč 66 Kč
NA DOTAZ
15 BEARING ASSEMBLY (Ref. č 15) E02E25000001 BEARING ASSEMBLY  1 54,55 Kč 66 Kč
NA DOTAZ
14 BEARING SLEEVE (Ref. č 14) E02E20002001 BEARING SLEEVE  1 54,55 Kč 66 Kč
NA DOTAZ
12 BOLT M6×68 (Ref. č 12) E02E22001001 BOLT M6×68  3 54,55 Kč 66 Kč
NA DOTAZ
2 Spring washer Φ 6 (Ref. č 2) GB0000093003 Spring washer Φ 6  6 54,55 Kč 66 Kč
NA DOTAZ
3 COVER PLATE ASSEMBLY (Ref. č 3) E02E24000001 COVER PLATE ASSEMBLY  1 54,55 Kč 66 Kč
NA DOTAZ
4 SPRING (Ref. č 4) E02E20008001 SPRING  1 54,55 Kč 66 Kč
NA DOTAZ
5 POSITIONING BUSHING (Ref. č 5) E02E20009001 POSITIONING BUSHING  1 54,55 Kč 66 Kč
NA DOTAZ
6 NUT (Ref. č 6) E02E20007001 NUT  1 54,55 Kč 66 Kč
NA DOTAZ
7 BRACKET ASSEMBLY (Ref. č 7) E02E23000001 BRACKET ASSEMBLY  1 54,55 Kč 66 Kč
NA DOTAZ
8 BRACKET BUFFER GASKET (Ref. č 8) E02E23001001 BRACKET BUFFER GASKET  6 54,55 Kč 66 Kč
NA DOTAZ
9 NUT M6 (Ref. č 9) GBT061771002 NUT M6  3 57,02 Kč 69 Kč
SKLADEM
11 BLOCK ASSEMBLY (Ref. č 11) E02E22110001 BLOCK ASSEMBLY  3 54,55 Kč 66 Kč
NA DOTAZ
26 CAM COMBINATION (Ref. č 26) E02E30200001 CAM COMBINATION  1 54,55 Kč 66 Kč
NA DOTAZ
10 WASHER 8 (Ref. č 10) E02E22002001 WASHER 8  6 54,55 Kč 66 Kč
NA DOTAZ
