Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 CVT INNER COVER (Ref. č 1) F01C30110001 CVT INNER COVER  1 3 617,36 Kč 4 377 Kč
SKLADEM
17 CVT COVER PLUG (Ref. č 17) F01C30005001 CVT COVER PLUG  1 60,33 Kč 73 Kč
SKLADEM
16 Seal,Clutch cover plug (Ref. č 16) F01C30004001 Seal,Clutch cover plug  1 207,44 Kč 251 Kč
SKLADEM ZA 25 dnů
15 BOLT M6×28 (Ref. č 15) F01000014001 BOLT M6×28  18 60,33 Kč 73 Kč
SKLADEM
14 BOLT M6×55 (Ref. č 14) F01000009001 BOLT M6×55  2 60,33 Kč 73 Kč
SKLADEM
13 BOLT M6×30 (Ref. č 13) F01000006001 BOLT M6×30  12 60,33 Kč 73 Kč
SKLADEM
12 LEFT CRANKCASE COVER GASKET (Ref. č 12) E01C20101001 LEFT CRANKCASE COVER GASKET  1 545,45 Kč 660 Kč
SKLADEM
11 STATOR COVER PLUG (Ref. č 11) E01C20104001 STATOR COVER PLUG  1 453,72 Kč 549 Kč
SKLADEM
10 O-Ring 35×3.5 (Ref. č 10) E01C20107001 O-Ring 35×3.5  1 60,33 Kč 73 Kč
SKLADEM
9 O-Ring 18×3.5 (Ref. č 9) E01C20103001 O-Ring 18×3.5  1 60,33 Kč 73 Kč
SKLADEM
8 OIL DIPSTICK (Ref. č 8) E01C20102001 OIL DIPSTICK  1 200,83 Kč 243 Kč
SKLADEM
7 O-RING 30×3 (Ref. č 7) F01C30006001 O-RING 30×3  1 60,33 Kč 73 Kč
SKLADEM
6 CVT INNER COVER SEAL Ⅱ (Ref. č 6) F01C30002001 CVT INNER COVER SEAL Ⅱ  1 327,27 Kč 396 Kč
SKLADEM
5 CVT INNER COVER SEALⅠ (Ref. č 5) F01C30001001 CVT INNER COVER SEALⅠ  1 1 412,40 Kč 1 709 Kč
SKLADEM
4 LEFT CRANKCASE COVER ASSEMBLY (Ref. č 4) E01C20110001 LEFT CRANKCASE COVER ASSEMBLY  1 4 313,22 Kč 5 219 Kč
SKLADEM
3 CVT COVER SEAL (Ref. č 3) F01C30003001 CVT COVER SEAL  1 381,82 Kč 462 Kč
SKLADEM

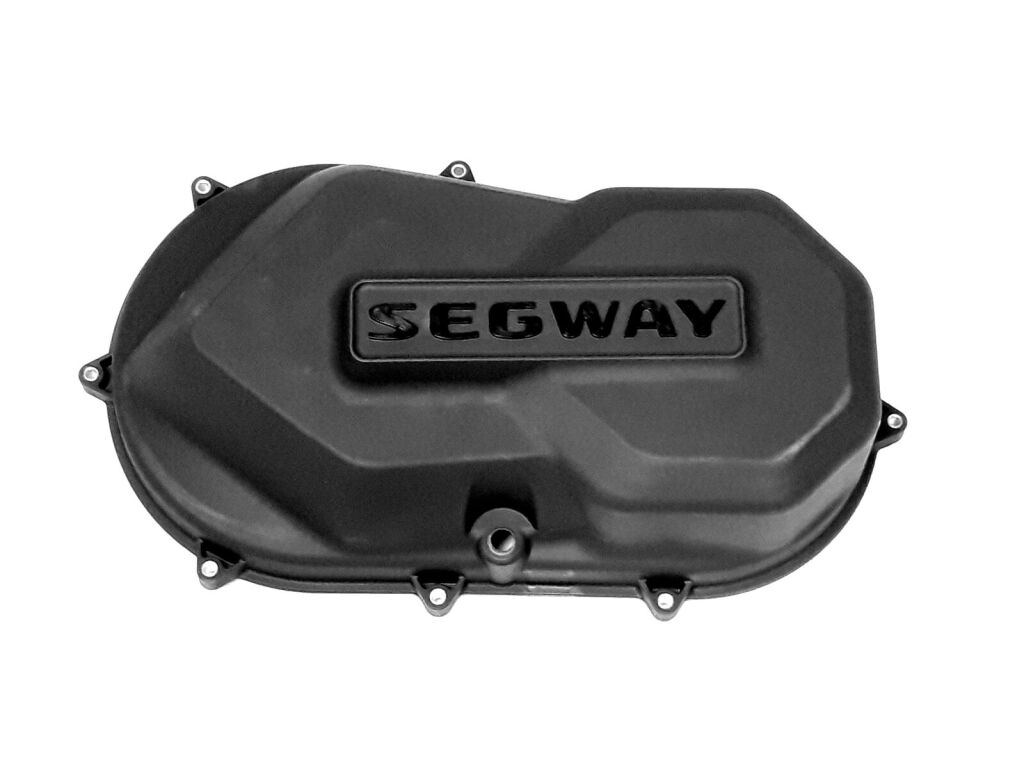

2 R/B F01-C300000-0K0-00 CVT OUTER COVER (Ref. č 2) F01C30210001 R/B F01-C300000-0K0-00 CVT OUTER COVER  1 3 064,46 Kč 3 708 Kč
NA DOTAZ
18 HOSE CLAMP (Ref. č 18) F01H00002001 HOSE CLAMP  2 60,33 Kč 73 Kč
SKLADEM
Kód produktu SGW_1_113_ATV570F-A2
TYP ROZKRESU: ENGINE PARTS
Vybrat ZNAČKU: SEGWAY
Vybrat TYP: AT6
Vybrat MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
