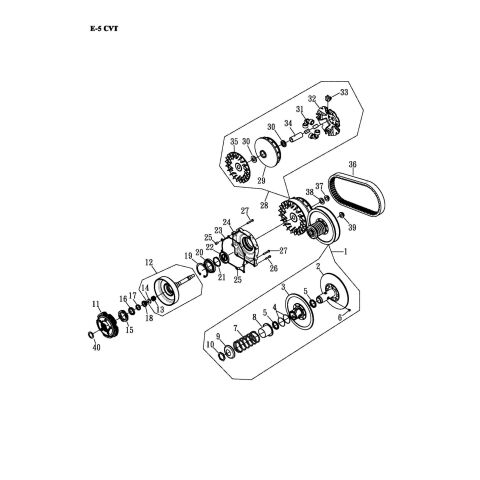

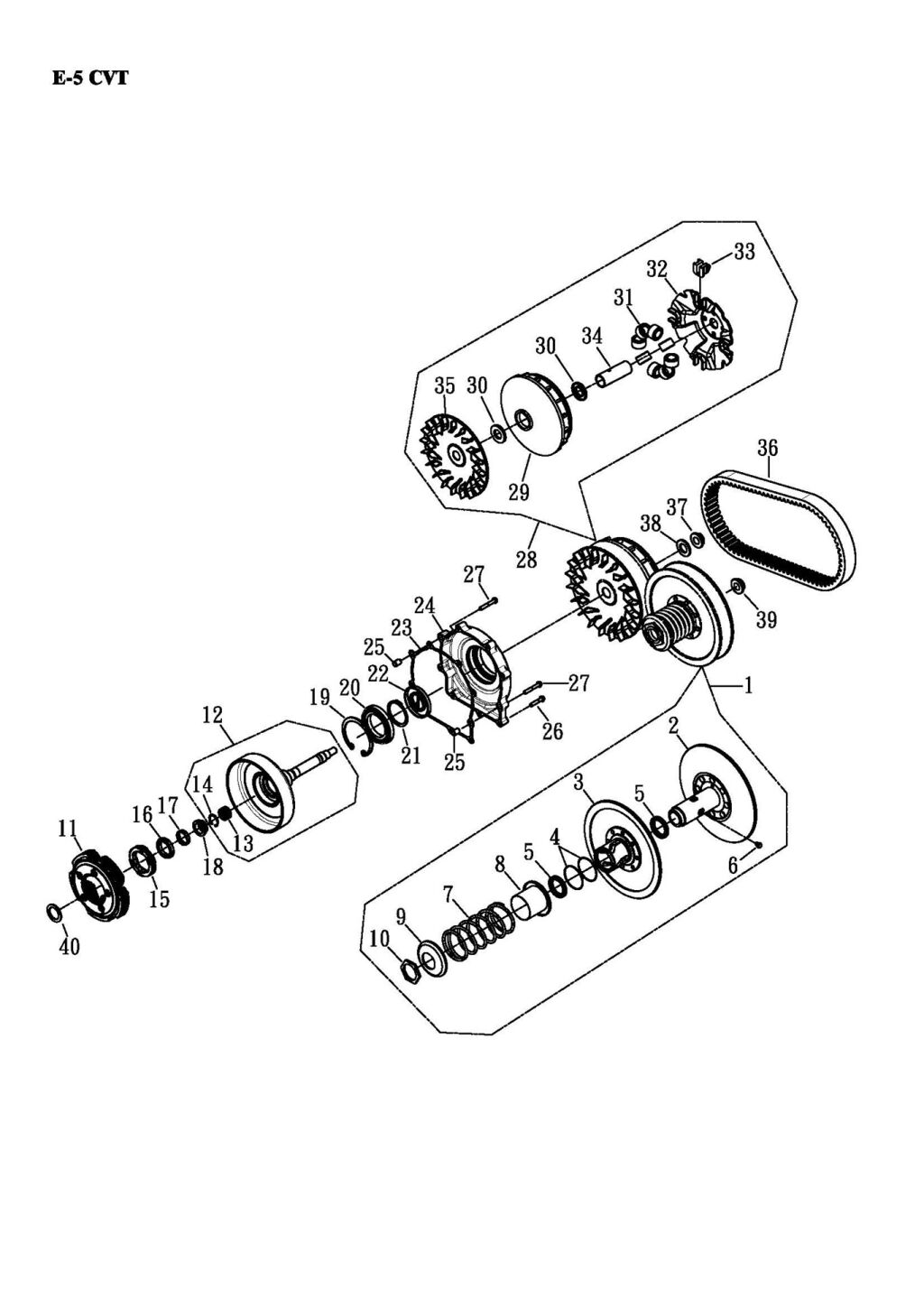

CVT

ACCESS MOTOR
Výrobce: ACCESS MOTOR
Kód produktu: ACCESS_1_105_MAX_800i_LT
Vybrat MODEL:
SHADE 850LT E4 EPS SHADE 850LT E4 EPS
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost

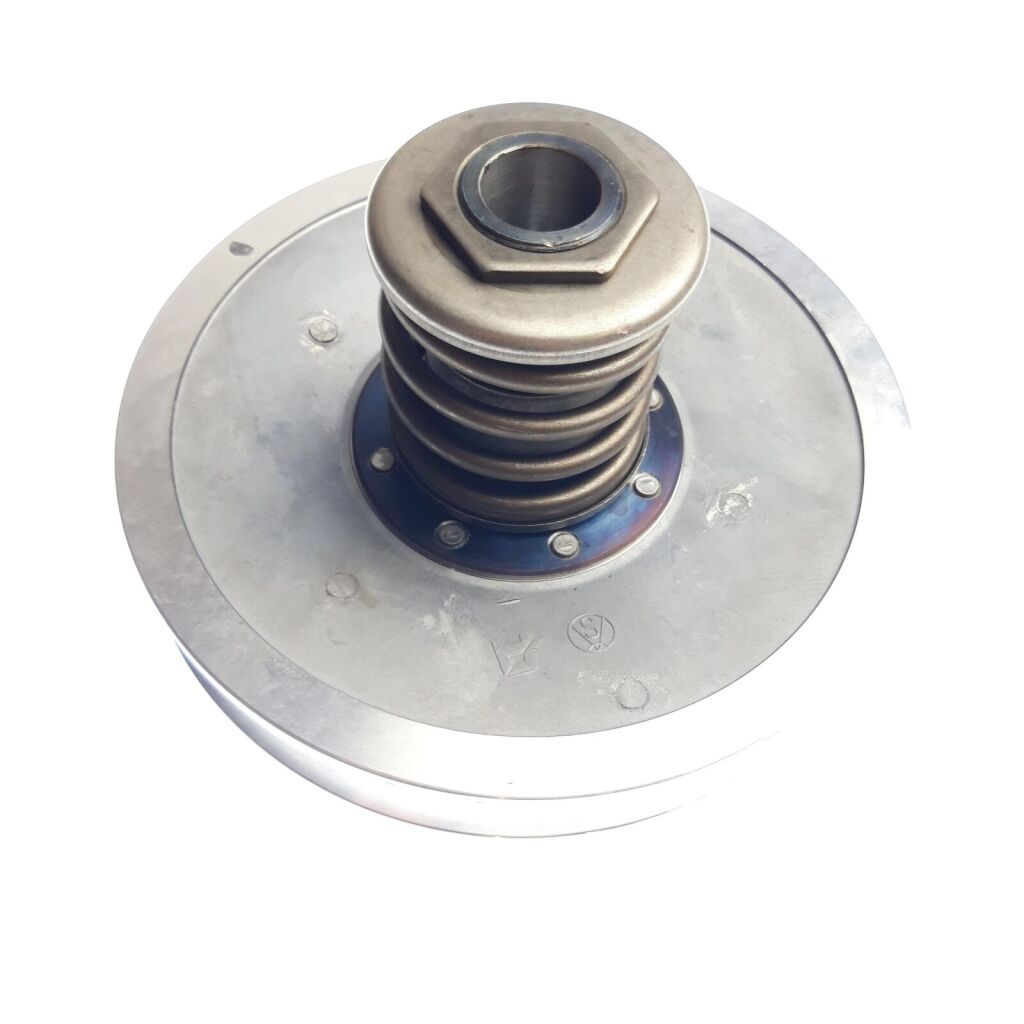

1 Secondary Sheave Assy (Ref. č 1) 22300-E24-000 Secondary Sheave Assy  1 9 368,60 Kč 11 336 Kč
SKLADEM
29 22410-E20-000 R/B 22410-E24-000 Sliding Sheave  1 3 520,66 Kč 4 260 Kč
NA DOTAZ
28 Sliding Sheave Assy (Ref. č 28) 22400-E24-010 Sliding Sheave Assy  1 7 871,90 Kč 9 525 Kč
SKLADEM
27 91700-06040-08G-1 Hex. Bolt, Flange  2 45,45 Kč 55 Kč
NA DOTAZ
26 91700-06030-08G-2 Hex. Bolt, Flange  7 45,45 Kč 55 Kč
NA DOTAZ
25 Pin, Dowel (Ref. č 25) 94001-100140 Pin, Dowel  2 56,20 Kč 68 Kč
SKLADEM
24 HOUSING, BEARING 1 (Ref. č 24) 22430-E20-000 HOUSING, BEARING 1  1 1 008,26 Kč 1 220 Kč
SKLADEM
23 GASKET, COVER PINION 2 (Ref. č 23) 22431-E20-000 GASKET, COVER PINION 2  1 109,09 Kč 132 Kč
NA DOTAZ
22 Oil Seal HTCR 35*66*8 (Ref. č 22) 96100-356608 Oil Seal HTCR 35*66*8  1 280,17 Kč 339 Kč
SKLADEM
30 R/B 96100-354505 Oil Seal (Ref. č 30) 96100-443405 R/B 96100-354505 Oil Seal  2 242,15 Kč 293 Kč
NA DOTAZ
31 Weight Roller 18g (Ref. č 31) 22413-E24-010 Weight Roller 18g  8 223,97 Kč 271 Kč
SKLADEM
39 R/B 92120-16-22W Nut,Hex. Flange (Ref. č 39) 92120-16-22C R/B 92120-16-22W Nut,Hex. Flange  1 216,53 Kč 262 Kč
NA DOTAZ
38 Washer , Plate(SK5) (Ref. č 38) 93107-19235-32 Washer , Plate(SK5)  1 113,22 Kč 137 Kč
SKLADEM
37 Nut,Hex. Flange (Ref. č 37) 92120-16-22G Nut,Hex. Flange  1 222,31 Kč 269 Kč
NA DOTAZ
36 BELT ACCESS MOTOR 850,800,750,650 (Ref. č 36) 22500-E24-000 BELT ACCESS MOTOR 850,800,750,650  1 7 846,28 Kč 9 494 Kč
SKLADEM
35 22420-E20-000 Sheave, Primary Fixed R/B 22420-E24-000  1 1 246,28 Kč 1 508 Kč
NA DOTAZ
34 R/B 22414-E24-000 Collar (Ref. č 34) 22414-E20-000 R/B 22414-E24-000 Collar  1 519,83 Kč 629 Kč
NA DOTAZ
33 22412-E20-000 R/B 22412-E24-000 Slider, Cam Plate  4 82,64 Kč 100 Kč
NA DOTAZ
32 22411-E20-000 R/B 22411-E24-000 Plate, Cam  1 1 011,57 Kč 1 224 Kč
NA DOTAZ
21 Cir Clip STW-50 (Ref. č 21) 93406-STW50 Cir Clip STW-50  1 56,20 Kč 68 Kč
SKLADEM
20 Pin Holder, Ball 16010 C3 80x50x10 (Ref. č 20) 95100-16010C3 Pin Holder, Ball 16010 C3 80x50x10  1 1 269,42 Kč 1 536 Kč
SKLADEM
9 22317-E20-000 SEAT, SPRING  1
NA DOTAZ
Detail
8 22315-E20-000 SEAT, SECONDARY SPRING  1
NA DOTAZ
Detail
7 22312-E20-000 Spring, Compression  1 326,45 Kč 395 Kč
NA DOTAZ
6 22313-E20-000 PIN, GUIDE  4 47,93 Kč 58 Kč
NA DOTAZ
5 96100-462020 Oil Seal  2
NA DOTAZ
Detail
4 96200-480020 Oil-Ring  2 110,74 Kč 134 Kč
NA DOTAZ
3 22320-E20-000 Sliding Sheave, Secondary  1
NA DOTAZ
Detail
2 22310-E20-000 R/B 22300-E24-000 Secondary Sheave Support  1 4 419,83 Kč 5 348 Kč
NA DOTAZ
10 92110-36-46C Nut, Hex  1
NA DOTAZ
Detail

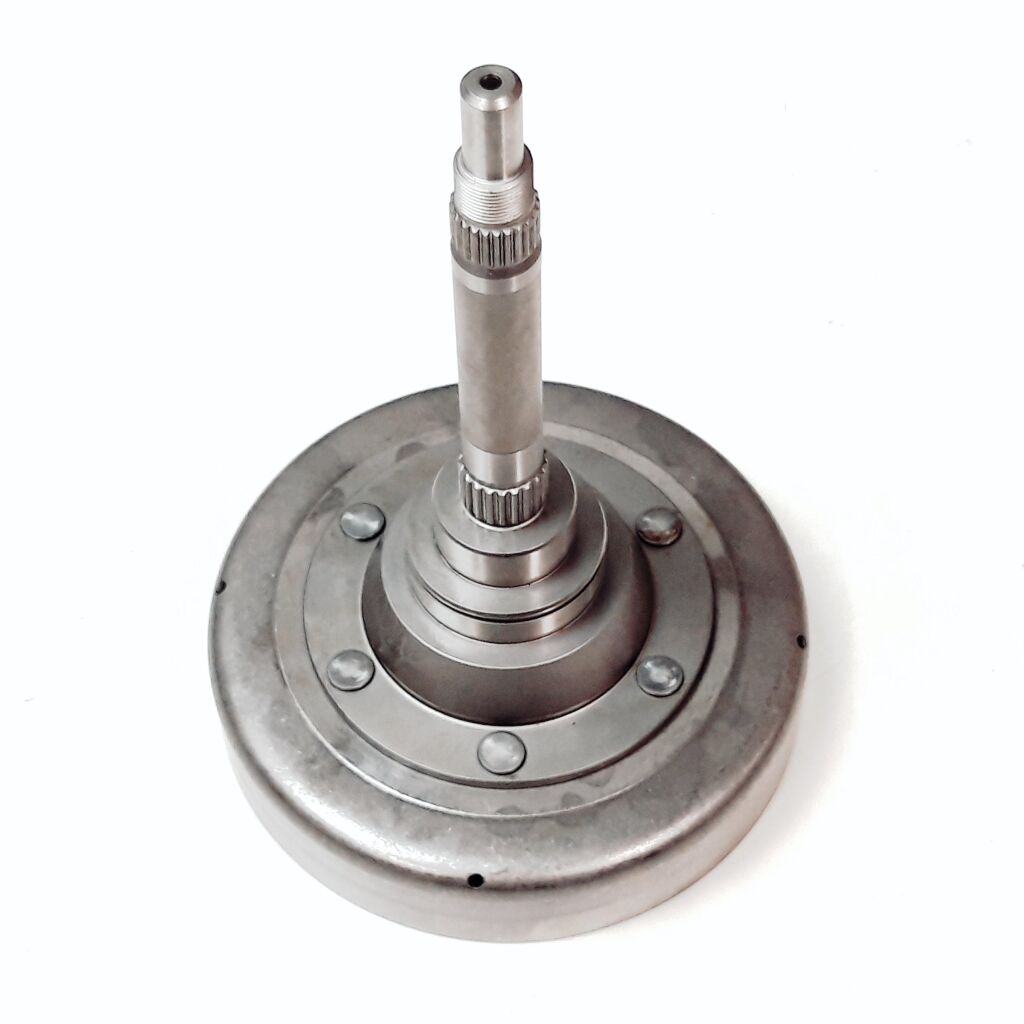

11 Carrier Ass'y, Clutch (Ref. č 11) 22330-E20-000 Carrier Ass'y, Clutch  1 11 854,55 Kč 14 344 Kč
SKLADEM

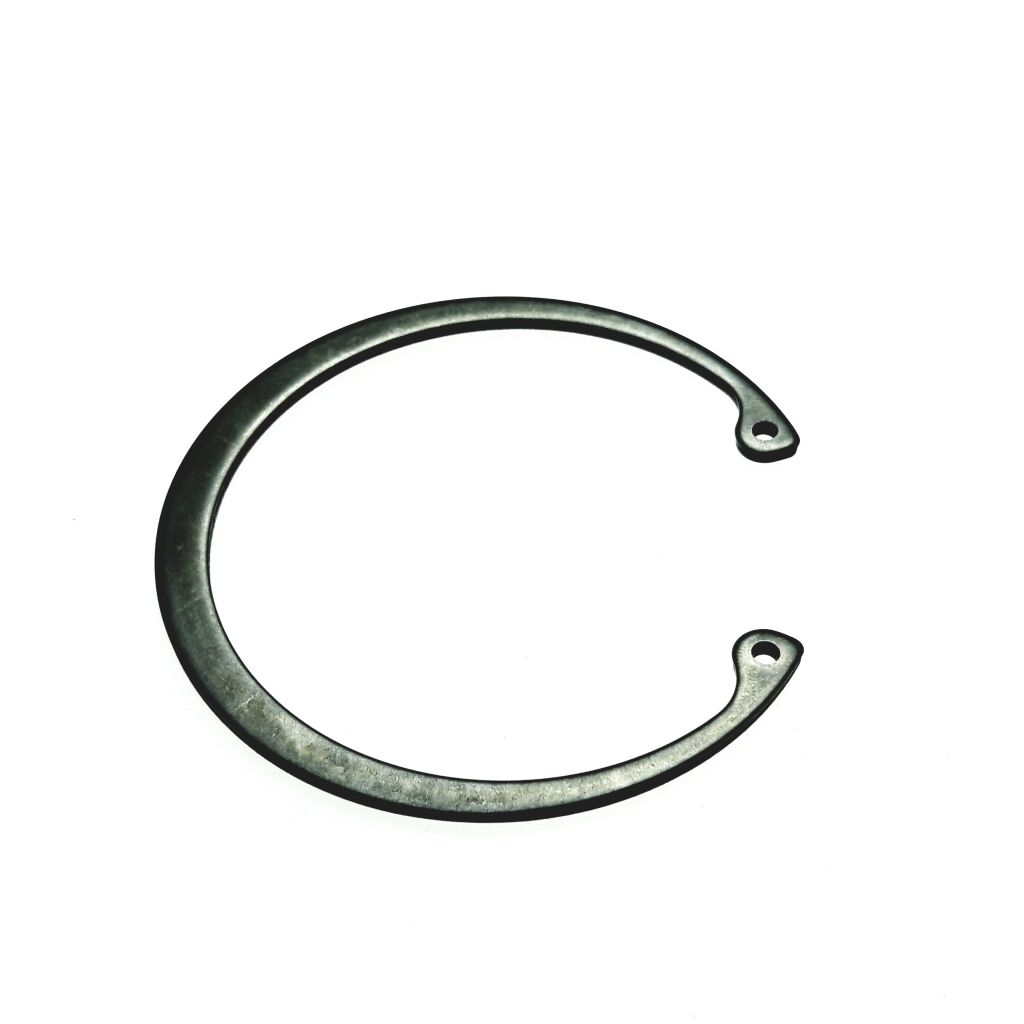

19 93405-RTW80 Clip, Inner, RTW-80  1 85,12 Kč 103 Kč
NA DOTAZ
18 92205-E20-000 R/B 92205-E24-000 Nut Lock M22*P1,0-27 mm  1 167,77 Kč 203 Kč
NA DOTAZ
17 Spacer tube (Ref. č 17) 93300-2730-07 Spacer tube  1 133,88 Kč 162 Kč
NA DOTAZ
16 Bearing, Ball (Ref. č 16) 95100-6806 Bearing, Ball  1 527,27 Kč 638 Kč
SKLADEM
15 Pin Holder, ONE WAY (Ref. č 15) 22105-E20-000 Pin Holder, ONE WAY  1 1 974,38 Kč 2 389 Kč
NA DOTAZ
14 93405-IRTW24 Clip, Inner  1 45,45 Kč 55 Kč
NA DOTAZ
13 Bearing, Needle (Ref. č 13) 95200-HK1812-2 Bearing, Needle  1 180,99 Kč 219 Kč
NA DOTAZ
12 Housing(unavailable) or change 22340-E24-010+11000-E31-001+13200-E24-010+11320-E20-000+93405-E24-000 (Ref. č 12) 22340-E24-000 Housing(unavailable) or change 22340-E24-010+11000-E31-001+13200-E24-010+11320-E20-000+93405-E24-000  1 4 477,69 Kč 5 418 Kč
NA DOTAZ
40 Washer , Plate(SK5) (Ref. č 40) 93107-34142-10 Washer , Plate(SK5)  1 56,20 Kč 68 Kč
SKLADEM
