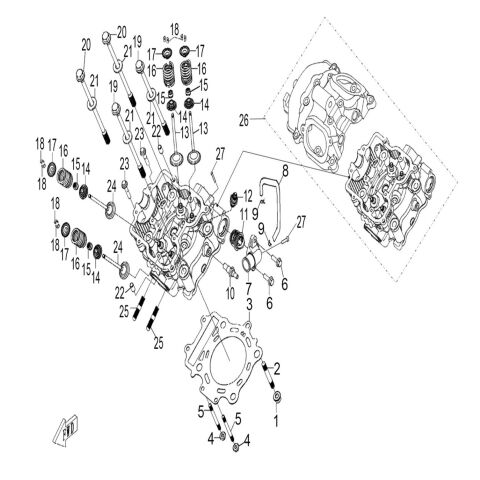

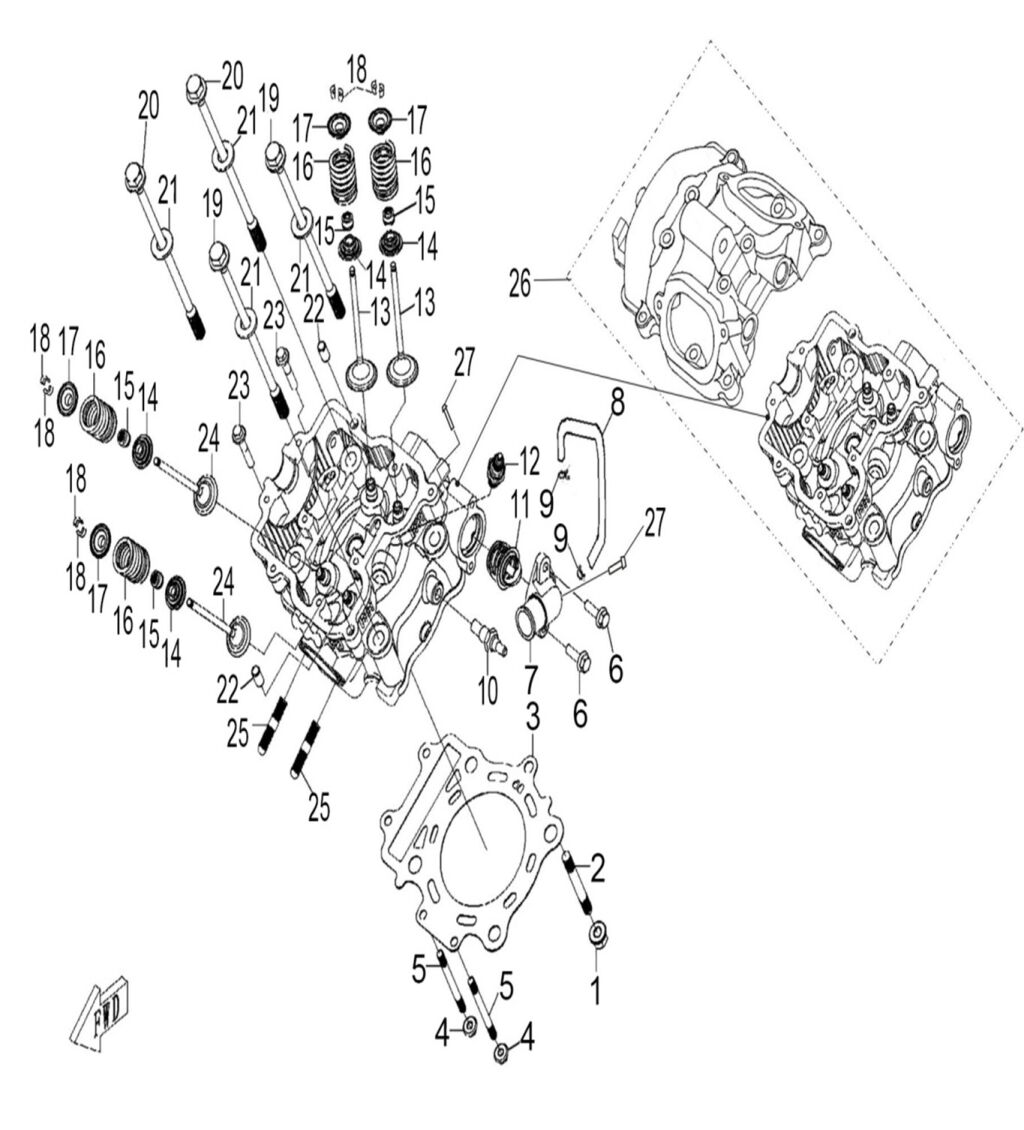

CYLINDER HEAD

LINHAI
Výrobce: LINHAI
Kód produktu: LINHAI_1_127_M550_E4
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 NUT M8 (Ref. č 1) 10067 NUT M8  1 56,20 Kč 68 Kč
SKLADEM
16 SPRING VALVE (Ref. č 16) 35136 SPRING VALVE  4 96,69 Kč 117 Kč
SKLADEM
17 RETAINER SPRING VALVE (Ref. č 17) 35138 RETAINER SPRING VALVE  4 56,20 Kč 68 Kč
SKLADEM
18 COTTER VALVE (Ref. č 18) 35139 COTTER VALVE  8 56,20 Kč 68 Kč
SKLADEM
19 CYLINDER BOLT M10X1.25X190 (Ref. č 19) 35100 CYLINDER BOLT M10X1.25X190  2 255,37 Kč 309 Kč
NA DOTAZ
20 CYLINDER BOLT M10X1.25X200 (Ref. č 20) 35101 CYLINDER BOLT M10X1.25X200  2 282,64 Kč 342 Kč
NA CESTĚ
21 WASHER, CYLINDER BOLT (Ref. č 21) 35102 WASHER, CYLINDER BOLT  4 56,20 Kč 68 Kč
SKLADEM
22 DOWEL PIN 8X14 (Ref. č 22) 50076 DOWEL PIN 8X14  2 56,20 Kč 68 Kč
NA DOTAZ
23 10186 BOLT M6X35  2 51,24 Kč 62 Kč
NA DOTAZ
24 EXHAUST VALVE (Ref. č 24) 35141 EXHAUST VALVE  2 271,90 Kč 329 Kč
SKLADEM
25 STUD M8X42 (Ref. č 25) 35099 STUD M8X42  2 56,20 Kč 68 Kč
SKLADEM
26 R/B 35864 CYLINDER HEAD - COMPLETE (Ref. č 26) 35096e R/B 35864 CYLINDER HEAD - COMPLETE  1 8 814,05 Kč 10 665 Kč
NA DOTAZ
26 CYLINDER HEAD AND CYLINDER HEAD COVER ASSEMBLY (Ref. č 26) 35864 CYLINDER HEAD AND CYLINDER HEAD COVER ASSEMBLY  1 7 586,78 Kč 9 180 Kč
NA CESTĚ
15 SEAL VALVE STEM (Ref. č 15) 35140 SEAL VALVE STEM  4 47,11 Kč 57 Kč
SKLADEM
14 SEAT SPRING VALVE (Ref. č 14) 35137 SEAT SPRING VALVE  4 109,09 Kč 132 Kč
SKLADEM
2 STUD M8X68 (Ref. č 2) 35097 STUD M8X68  1 56,20 Kč 68 Kč
SKLADEM
3 GASKET, CYLINDER HEAD (Ref. č 3) 35106 GASKET, CYLINDER HEAD  1 757,85 Kč 917 Kč
SKLADEM
4 NUT M10X1.25 (Ref. č 4) 10004 NUT M10X1.25  2 56,20 Kč 68 Kč
NA DOTAZ
5 STUD M6X72 (Ref. č 5) 35098 STUD M6X72  2 56,20 Kč 68 Kč
SKLADEM
6 BOLT M6X22 (Ref. č 6) 10278 BOLT M6X22  2 51,24 Kč 62 Kč
SKLADEM
7 WATER OUTLET JOINT, CYLINDER HEAD (Ref. č 7) 35103 WATER OUTLET JOINT, CYLINDER HEAD  1 248,76 Kč 301 Kč
SKLADEM
8 PIPE, CYLINDER HEAD (Ref. č 8) 35104 PIPE, CYLINDER HEAD  1 56,20 Kč 68 Kč
SKLADEM
9 CLIP 7.5 (Ref. č 9) 35109 CLIP 7.5  2 56,20 Kč 68 Kč
SKLADEM
10 WATER TEMPERATURE SENSOR (Ref. č 10) 35095e WATER TEMPERATURE SENSOR  1 730,58 Kč 884 Kč
SKLADEM
11 THERMOSTAT (Ref. č 11) 35171 THERMOSTAT  1 575,21 Kč 696 Kč
SKLADEM
12 R/B 900182 SPARK PLUG DPR7EA-9(NGK) (5129) (Ref. č 12) 35105 R/B 900182 SPARK PLUG DPR7EA-9(NGK) (5129)  1 398,35 Kč 482 Kč
NA DOTAZ
13 INTAKE VALVE (Ref. č 13) 35135 INTAKE VALVE  2 178,51 Kč 216 Kč
SKLADEM
27 HOSE CONNECTOR OF M550L E4 (Ref. č 27) 35851 HOSE CONNECTOR OF M550L E4  1 366,94 Kč 444 Kč
SKLADEM
