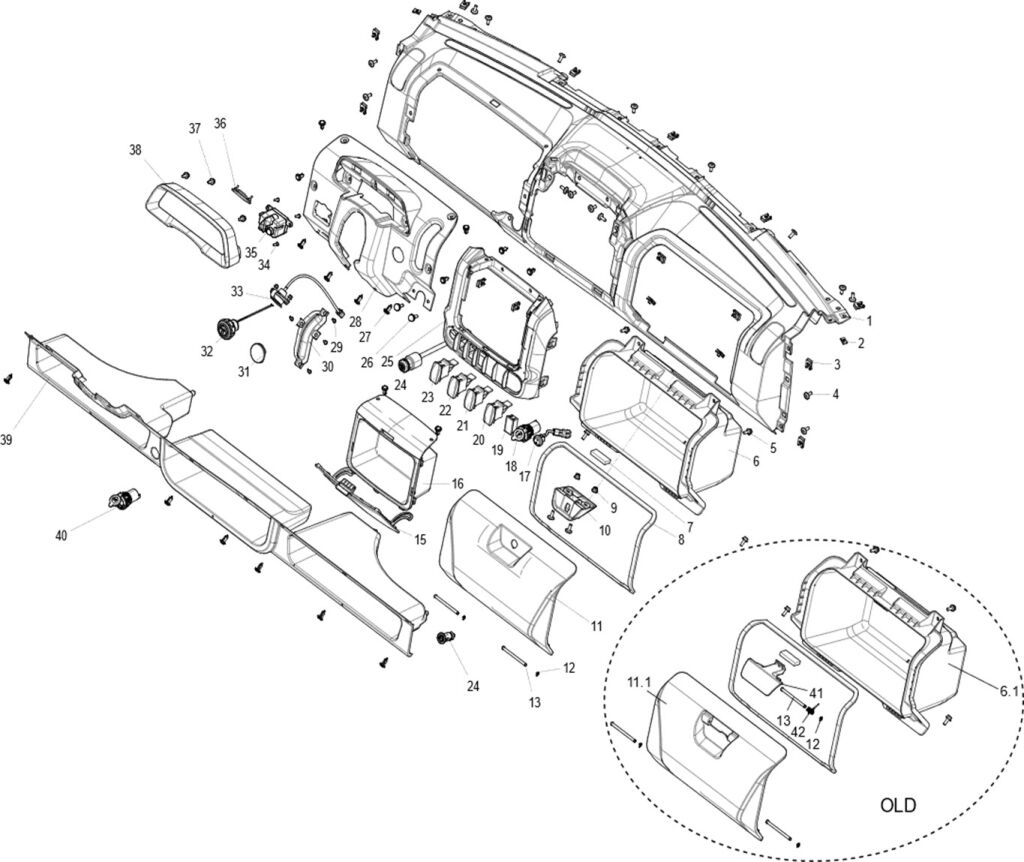

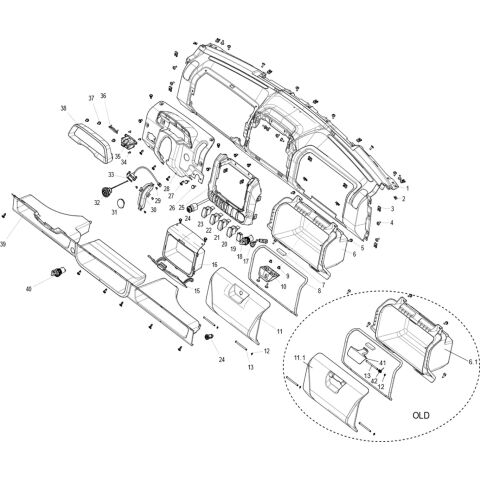

Dashboard

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_4_452_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
40 12V POWER OUTPUT (Ref. č 40) U01M04200001 12V POWER OUTPUT  1 648,76 Kč 785 Kč
SKLADEM
29 SCREW ST4.2×13 (Ref. č 29) GBT000845009 SCREW ST4.2×13  4 57,02 Kč 69 Kč
SKLADEM
28,2 INSTRUMENT COVER (Ref. č 28,2) U01-H211001-0B0-01 INSTRUMENT COVER  1
NA DOTAZ
Detail
28,1 INSTRUMENT COVER (Ref. č 28,1) U01-H211001-0B0-00 INSTRUMENT COVER  1 268,60 Kč 325 Kč
NA DOTAZ
28 U01H21111001 U01 INSTRUMENT COVER PP BLACK  1 323,14 Kč 391 Kč
NA DOTAZ
27 Expansion buckle component (Ref. č 27) T04000003001 Expansion buckle component  18 57,02 Kč 69 Kč
SKLADEM
26 BOLT M6×20 (Ref. č 26) T03000007001 BOLT M6×20  2 57,02 Kč 69 Kč
SKLADEM
25 U01H21401001 U01_SWITCH PANEL  1 198,35 Kč 240 Kč
NA DOTAZ
24 SET OF LOCK COMPONENTS-EUROPEAN STANDARD_WITH START BUTTON (Ref. č 24) U09M57000002 SET OF LOCK COMPONENTS-EUROPEAN STANDARD_WITH START BUTTON  1 520,66 Kč 630 Kč
NA DOTAZ
24 SET OF LOCK COMPONENTS-EUROPEAN STANDARD_WITHOUT START BUTTON (Ref. č 24) U09M57000001 SET OF LOCK COMPONENTS-EUROPEAN STANDARD_WITHOUT START BUTTON  1 500,83 Kč 606 Kč
SKLADEM
24 POWER LOCK KIT,EU (Ref. č 24) U09-M570011-000-00 POWER LOCK KIT,EU  1 742,98 Kč 899 Kč
NA DOTAZ
24 IGNITION LOCK KIT,EU (Ref. č 24) U09-M570012-000-00 IGNITION LOCK KIT,EU  1 742,98 Kč 899 Kč
NA DOTAZ
30 U01H21112001 U01 WATERROOF RUBBER OF GEAR LEVER PP BLACK  1 57,02 Kč 69 Kč
NA DOTAZ
31 U01H21113001 U01 STAR BUTTON Plug  1 57,02 Kč 69 Kč
NA DOTAZ
39 U01H21201001 U01 LOWER COMPARTMENT OF CENTRAL CONTROL PANEL  1 728,93 Kč 882 Kč
NA DOTAZ
38 INSTRUMENT ASSY TFT (Ref. č 38) U03-M310001-000-00 INSTRUMENT ASSY TFT  1 9 421,49 Kč 11 400 Kč
NA DOTAZ
37 Bolt M6×12 (Ref. č 37) GBT005789006 Bolt M6×12  3 57,02 Kč 69 Kč
SKLADEM
36 Capstan socket plug (Ref. č 36) U01H21114001 Capstan socket plug  1 54,55 Kč 66 Kč
NA DOTAZ
35,1 2/4 WD SWITCH (Ref. č 35,1) U01-M550000-000-00 2/4 WD SWITCH  1
NA DOTAZ
Detail
35,1 2/4 WD AND REAR DIFF SWITCH (Ref. č 35,1) U01-M550000-000-01 2/4 WD AND REAR DIFF SWITCH  1 864,46 Kč 1 046 Kč
NA DOTAZ
35 REAR DIFF SWITCH (Ref. č 35) U01M52300001 REAR DIFF SWITCH  1
NA DOTAZ
Detail
35 U01 2/4 SWITCH (Ref. č 35) U01M55000002 U01 2/4 SWITCH  1 490,91 Kč 594 Kč
SKLADEM
34 SCREW ST4.2×16 (Ref. č 34) GBT000845010 SCREW ST4.2×16  3 57,02 Kč 69 Kč
SKLADEM
33 U01M05300001 U01 WINCH SWITCH SOCKET BLACK  1 90,08 Kč 109 Kč
NA DOTAZ
32 U01 STAR BUTTON ASSY (Ref. č 32) U01M56000001 U01 STAR BUTTON ASSY  1 930,58 Kč 1 126 Kč
SKLADEM
24 POWER LOCK KIT EPA (Ref. č 24) U09-M570013-000-00 POWER LOCK KIT EPA  1 428,10 Kč 518 Kč
NA DOTAZ
24 POWER LOCK_ STARTING FUNCTION WITH STAR (Ref. č 24) U09M57100001 POWER LOCK_ STARTING FUNCTION WITH STAR  1 350,41 Kč 424 Kč
SKLADEM
10 LATCH (Ref. č 10) U09-H213001-0B0-00 LATCH  1 54,55 Kč 66 Kč
NA DOTAZ
9 GBT061831002 NUT M6  2 57,02 Kč 69 Kč
NA CESTĚ
8 U01H21308001 U01 PASSENGER COMPARTMENT SEAL  1 57,02 Kč 69 Kč
NA DOTAZ
7 U01H21307001 U01 USB FIXING RUBBER STRIP FOR PASSENGER COMPARTMENT  1 57,02 Kč 69 Kč
NA DOTAZ
6 GLOVE BOX (Ref. č 6) U01-H213001-0B0-00 GLOVE BOX  1 398,35 Kč 482 Kč
NA DOTAZ
6,1 U01H21301001 U01 PASSENGER COMPARTMENT BODY PP BLACK  1 426,45 Kč 516 Kč
NA DOTAZ
5 Bolt M6×16 (Ref. č 5) GBT005789007 Bolt M6×16  4 57,02 Kč 69 Kč
SKLADEM
4 Inner hexagon screws M10×1.25×25 (Ref. č 4) T03000007002 Inner hexagon screws M10×1.25×25  20 57,02 Kč 69 Kč
SKLADEM
3 M6 nut clip (Ref. č 3) T04000002001 M6 nut clip  15 57,02 Kč 69 Kč
SKLADEM
2 T04000002003 4.2 SELF-TAPPING NAIL SPLINT  2 57,02 Kč 69 Kč
NA CESTĚ
1 DASHBOARD PANEL (Ref. č 1) U01-H111010-0B0-00 DASHBOARD PANEL  1 871,90 Kč 1 055 Kč
NA DOTAZ
11 GLOVE BOX COVER (Ref. č 11) U01-H213002-0B0-00 GLOVE BOX COVER  1 233,06 Kč 282 Kč
NA DOTAZ
11,1 U01H21302001 U01 COVER OF PASSENGER COMPARTMENT  1 252,89 Kč 306 Kč
NA DOTAZ
23 IGNITION OFF SWITCH (Ref. č 23) S01M51600001 IGNITION OFF SWITCH  1 201,65 Kč 244 Kč
NA DOTAZ
22 EMERGENCY SWITCH (Ref. č 22) S01M51400001 EMERGENCY SWITCH  1 201,65 Kč 244 Kč
SKLADEM
21 MODEL SWITCH (Ref. č 21) S01M51800001 MODEL SWITCH  1 271,90 Kč 329 Kč
NA DOTAZ
20 RELEASE SWITCH (Ref. č 20) S01M51500001 RELEASE SWITCH  1 276,86 Kč 335 Kč
SKLADEM
19 BLOCKING COVER (Ref. č 19) S01H11000001 BLOCKING COVER  1 225,62 Kč 273 Kč
SKLADEM
18 USB POWER OUTPUT (Ref. č 18) U01M04300001 USB POWER OUTPUT  1 704,96 Kč 853 Kč
SKLADEM
17 REAR FOG LIGHT SWITCH (Ref. č 17) A01M52300001 REAR FOG LIGHT SWITCH  1 369,42 Kč 447 Kč
SKLADEM
16 U01 BODY OR MEDIUM STORAGE BOX PP BLACK (Ref. č 16) U01H21601001 U01 BODY OR MEDIUM STORAGE BOX PP BLACK  1 134,71 Kč 163 Kč
NA CESTĚ
15 U01H21602001 U01 COVER OR MEDIUM STORAGE BOX PP BLACK  1 145,45 Kč 176 Kč
NA DOTAZ
13 U01H21303001 U01 ROTATING SHAFT OF PASSENGER COMPARTMENT  2 57,02 Kč 69 Kč
NA DOTAZ
12 GB0000896001 CIRCLIP 5  2 57,02 Kč 69 Kč
NA DOTAZ
