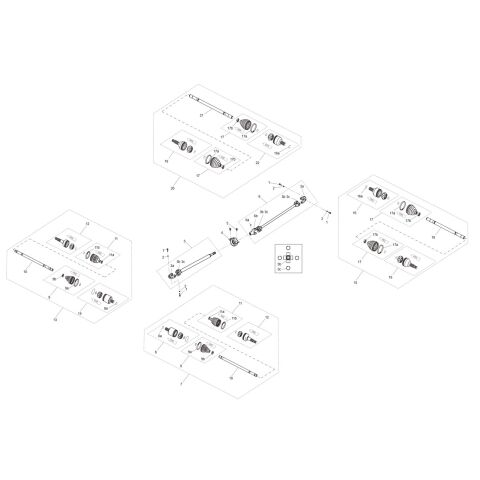

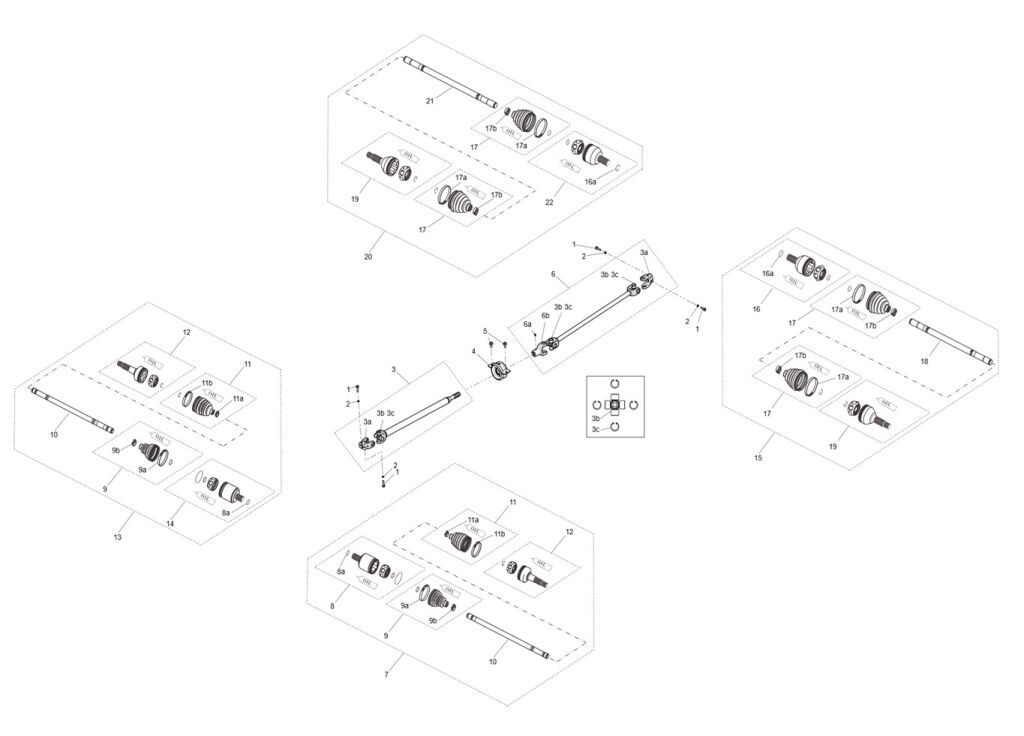

Drive shaft assembly

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_2_266_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 A03F11001101 BOLT M8×35  4 54,55 Kč 66 Kč
NA CESTĚ
11a U01P11004001 SMALL CLAMPING BAND  1 57,02 Kč 69 Kč
NA DOTAZ
11b U01P11002001 BIG CLAMPING BAND  1 57,02 Kč 69 Kč
NA DOTAZ
12 OUTSIDE BALL CAGE ASSY (Ref. č 12) U01P11020001 OUTSIDE BALL CAGE ASSY  1 1 290,08 Kč 1 561 Kč
SKLADEM
13 U01_CONSTANT VELOCITY DRIVE SHAFT FR (Ref. č 13) U01P12000001 U01_CONSTANT VELOCITY DRIVE SHAFT FR  1 3 378,51 Kč 4 088 Kč
SKLADEM
14 U01P12030001 FR INNER BALL CAGE ASSY  1 1 290,08 Kč 1 561 Kč
NA DOTAZ
15 U09_CONSTANT VELOCITY DRIVE SHAFT RL (Ref. č 15) U09P14000001 U09_CONSTANT VELOCITY DRIVE SHAFT RL  1 3 819,01 Kč 4 621 Kč
SKLADEM
16 U09P14020001 RL INNER BALL CAGE ASSY  1 442,98 Kč 536 Kč
NA DOTAZ
16a U09P13006001 CIRCLIP  1 57,02 Kč 69 Kč
NA DOTAZ
17 MAINTENANCE KIT FOR REAR SHAFT ASSY (Ref. č 17) U09P13030001 MAINTENANCE KIT FOR REAR SHAFT ASSY  2 442,98 Kč 536 Kč
SKLADEM
17a U09P13002001 BIG CLAMPING BAND  2 57,02 Kč 69 Kč
NA DOTAZ
17b U09P13004001 SMALL CLAMPING BAND  2 57,02 Kč 69 Kč
NA DOTAZ
18 U09P14005001 RL SHAFT  1 811,57 Kč 982 Kč
NA DOTAZ
19 U09P13010001 OUTSIDE BALL CAGE ASSY  1 1 383,47 Kč 1 674 Kč
NA DOTAZ
20 U09_CONSTANT VELOCITY DRIVE SHAFT RR (Ref. č 20) U09P13000001 U09_CONSTANT VELOCITY DRIVE SHAFT RR  1 3 837,19 Kč 4 643 Kč
SKLADEM
21 U09P13005001 RR SHAFT  1 811,57 Kč 982 Kč
NA DOTAZ
11 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY (Ref. č 11) U01P11050001 MAINTENANCE KIT FOR OUTSIDE BALL CAGE ASSY  1 339,67 Kč 411 Kč
SKLADEM
10 U01P11005001 SHAFT  1 738,02 Kč 893 Kč
NA DOTAZ
9b U01P11006001 SMALL CLAMPING BAND  1 57,02 Kč 69 Kč
NA DOTAZ
2 WASHER 8 (Ref. č 2) GB0000093004 WASHER 8  4 57,02 Kč 69 Kč
SKLADEM
3 U09_FRONT TRANSMISSION SHAFT FRONT SECTION (Ref. č 3) U09P21100001 U09_FRONT TRANSMISSION SHAFT FRONT SECTION  1 3 241,32 Kč 3 922 Kč
SKLADEM
3a U01P21101001 TRANSMISSION SHAFT MOUNTING SPLINE FORK  2 704,96 Kč 853 Kč
NA DOTAZ
3b UNIVERRSAL CROSS SHAFT ASSY (Ref. č 3b) U01P22010001 UNIVERRSAL CROSS SHAFT ASSY  3 543,80 Kč 658 Kč
SKLADEM
3c CIRCLIP 25 (Ref. č 3c) GBT000893007 CIRCLIP 25  12 57,02 Kč 69 Kč
SKLADEM
4 INTERMEDIATE SUPPORT SEAT (Ref. č 4) U01P21400001 INTERMEDIATE SUPPORT SEAT  1 800,83 Kč 969 Kč
SKLADEM
5 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 5) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  2 57,02 Kč 69 Kč
SKLADEM
6 U09 REAR SECTION FRONT TRANSMISSION SHAFT (Ref. č 6) U09P21300001 U09 REAR SECTION FRONT TRANSMISSION SHAFT  1 2 632,23 Kč 3 185 Kč
SKLADEM
6a Straight pressure oil cup (Ref. č 6a) GBT001152001 Straight pressure oil cup  1 114,88 Kč 139 Kč
SKLADEM
6b U09P21301001 TRANSMISSION SHAFT SLIDING SPLINE FORK  1 814,88 Kč 986 Kč
NA DOTAZ
7 U01_CONSTANT VELOCITY DRIVE SHAFT FL (Ref. č 7) U01P11000001 U01_CONSTANT VELOCITY DRIVE SHAFT FL  1 3 386,78 Kč 4 098 Kč
SKLADEM
8 U01P11030001 FL INNER BALL CAGE ASSY  1 1 308,26 Kč 1 583 Kč
NA DOTAZ
8a CIRCLIP (Ref. č 8a) U01P11011001 CIRCLIP  1 57,02 Kč 69 Kč
SKLADEM
9 MAINTENANCE KIT FOR INNER BALL CAGE ASSY (Ref. č 9) U01P11040001 MAINTENANCE KIT FOR INNER BALL CAGE ASSY  1 461,98 Kč 559 Kč
SKLADEM
9a U01P11008001 BIG CLAMPING BAND  1 57,02 Kč 69 Kč
NA DOTAZ
22 U09P13020001 RR INNER BALL CAGE ASSY  1 1 401,65 Kč 1 696 Kč
NA DOTAZ
