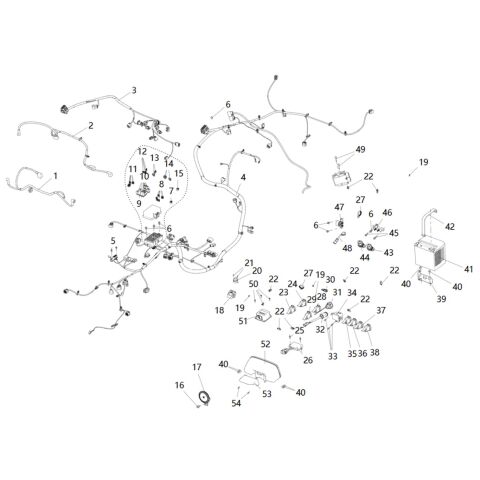

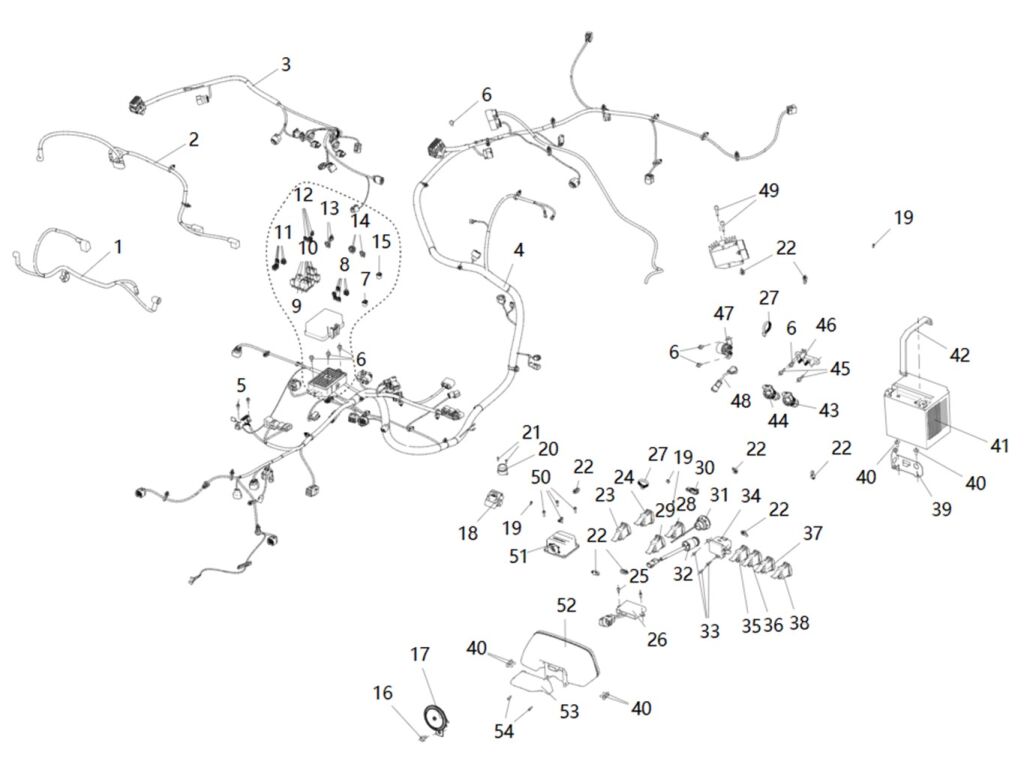

ELECTRICAL ASSEMBLY (EU)

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_3_348_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
54 SCREW ST4.2×16 (Ref. č 54) GBT000845010 SCREW ST4.2×16  2 57,02 Kč 69 Kč
SKLADEM
44 12V POWER OUTPUT (Ref. č 44) U01M04200001 12V POWER OUTPUT  1 648,76 Kč 785 Kč
SKLADEM
43 USB POWER OUTPUT (Ref. č 43) U01M04300001 USB POWER OUTPUT  1 704,96 Kč 853 Kč
SKLADEM
42 S03H20200001 BATTERY PULL STRAP  1 66,12 Kč 80 Kč
NA DOTAZ
41 A01M04500001 BATTERY 32AH (unavailable)  1 4 707,44 Kč 5 696 Kč
NA DOTAZ
40 Inner hexagon screws M10×1.25×25 (Ref. č 40) T03000007002 Inner hexagon screws M10×1.25×25  6 57,02 Kč 69 Kč
SKLADEM
39 S01C03600002 BATTERY BAFFLE ASSEMBLY  1 301,65 Kč 365 Kč
NA DOTAZ
38 S01M51200001 HIGH AND LOW BEAM SWITCH  1 218,18 Kč 264 Kč
NA DOTAZ
37 S01M51300001 TURN SIGNAL SWITCH  1 218,18 Kč 264 Kč
NA DOTAZ
36 RELEASE SWITCH (Ref. č 36) S01M51500001 RELEASE SWITCH  1 276,86 Kč 335 Kč
SKLADEM
35 S01M51100001 HEADLIGHT SWITCH  1 228,10 Kč 276 Kč
NA DOTAZ
34 U01 2/4 SWITCH (Ref. č 34) U01M55000002 U01 2/4 SWITCH  1 490,91 Kč 594 Kč
SKLADEM
33 QCT000602009 CROSS RECESSED ROUND HEAD TAPPING SCREWS ST4.2×13  3 57,02 Kč 69 Kč
NA DOTAZ
32 POWER LOCK_ STARTING FUNCTION (Ref. č 32) S01M57100001 POWER LOCK_ STARTING FUNCTION  1 332,23 Kč 402 Kč
NA DOTAZ
45 HEXAGON FLANGE BOLT M6×20 (Ref. č 45) GBT005789008 HEXAGON FLANGE BOLT M6×20  2 57,02 Kč 69 Kč
SKLADEM
46 WIRING TERMINAL (Ref. č 46) U01M04400001 WIRING TERMINAL  1 331,40 Kč 401 Kč
SKLADEM
53 S01H17400001 INSTRUMENT CABLE GUARD  1 57,02 Kč 69 Kč
NA DOTAZ
52 DASHBOARD (Ref. č 52) S05M31000001 DASHBOARD  1 12 763,64 Kč 15 444 Kč
SKLADEM
51 S01M34000007 T-BOX(CHINA.INDIA)  1 7 803,31 Kč 9 442 Kč
NA DOTAZ
51 S01M34000006 T-BOX(KOREA)  1 7 803,31 Kč 9 442 Kč
NA DOTAZ
51 S01M34000005 T-BOX(JAPAN)  1 7 803,31 Kč 9 442 Kč
NA DOTAZ
51 S01M34000004 T-BOX (AUSTRALIA, SOUTH AMERICA)  1 7 803,31 Kč 9 442 Kč
NA DOTAZ
51 S01M34000003 T-BOX (MEXICO)  1 6 157,85 Kč 7 451 Kč
NA DOTAZ
51 S01M34000002 T-BOX (NORTH AMERICAN)  1 6 072,73 Kč 7 348 Kč
NA DOTAZ
51 T-BOX Segway (Ref. č 51) S01M34000001 T-BOX Segway  1 8 669,42 Kč 10 490 Kč
SKLADEM
50 CROSS RECESSED HEXAGON BOLTS M5×16 (Ref. č 50) GBT000818005 CROSS RECESSED HEXAGON BOLTS M5×16  4 57,02 Kč 69 Kč
SKLADEM
49 HEXAGON FLANGE BOLT M6×35 (Ref. č 49) GBT005789011 HEXAGON FLANGE BOLT M6×35  2 57,02 Kč 69 Kč
SKLADEM
48 REAR FOG LIGHT SWITCH (Ref. č 48) A01M52300001 REAR FOG LIGHT SWITCH  1 369,42 Kč 447 Kč
SKLADEM
47 STARTING RELAY (Ref. č 47) A01M04200001 STARTING RELAY  1 822,31 Kč 995 Kč
SKLADEM
31 U01 STAR BUTTON ASSY (Ref. č 31) U01M56000001 U01 STAR BUTTON ASSY  1 930,58 Kč 1 126 Kč
SKLADEM
30 S01M51900001 INTERCOM SWITCH  1 146,28 Kč 177 Kč
NA DOTAZ
14 Fuse 15A (Ref. č 14) T10100001013 Fuse 15A  3 57,02 Kč 69 Kč
SKLADEM
13 CLIP FUSE 20A (Ref. č 13) T10100001014 CLIP FUSE 20A  2 57,02 Kč 69 Kč
SKLADEM
12 mini-fuse15A (Ref. č 12) T10100001004 mini-fuse15A  4 57,02 Kč 69 Kč
SKLADEM
11 mini-fuse10A (Ref. č 11) T10100001003 mini-fuse10A  6 57,02 Kč 69 Kč
SKLADEM
10 relay (Ref. č 10) T10100001016 relay  9 223,14 Kč 270 Kč
SKLADEM
9 Normally closed relay (Ref. č 9) T10100001018 Normally closed relay  2 223,14 Kč 270 Kč
SKLADEM
8 mini-fuse7.5A (Ref. č 8) T10100001002 mini-fuse7.5A  6 57,02 Kč 69 Kč
SKLADEM
7 FUSE PROTECTOR 40A (Ref. č 7) T10100001007 FUSE PROTECTOR 40A  1 57,02 Kč 69 Kč
SKLADEM
6 Bolt M6×12 (Ref. č 6) GBT005789006 Bolt M6×12  7 57,02 Kč 69 Kč
SKLADEM
5 GBT005789001 HEXAGON SOCKET PAN HEAD SCREW M5×12  2 45,45 Kč 55 Kč
NA DOTAZ
4 S05M11100001 MAIN CABLE  1 15 162,81 Kč 18 347 Kč
NA DOTAZ
3 S05M12100001 EFI AUXILIARY CABLE  1 4 184,30 Kč 5 063 Kč
NA DOTAZ
2 S03M14600001 BATTERY POSITIVE AND NEGATIVE WIRE  1 1 114,88 Kč 1 349 Kč
NA DOTAZ
15 slow-fuse50A (Ref. č 15) T10100001008 slow-fuse50A  1 100 Kč 121 Kč
SKLADEM
16 Bolt M8×16 (Ref. č 16) GBT005789014 Bolt M8×16  1 57,02 Kč 69 Kč
SKLADEM
29 S01M51700001 HORN SWITCH  1 256,20 Kč 310 Kč
NA DOTAZ
28 MODEL SWITCH (Ref. č 28) S01M51800001 MODEL SWITCH  1 271,90 Kč 329 Kč
NA DOTAZ
27 T05000001006 LIVE BUCKLE CABLE TIE 250×5  2 57,02 Kč 69 Kč
NA DOTAZ
26 S03M31100001 INSTRUMENT CONTROL MODULE  2 3 347,93 Kč 4 051 Kč
NA DOTAZ
25 CROSS RECESSED HEXAGON SCREW ST4.8×16 (Ref. č 25) GBT000845014 CROSS RECESSED HEXAGON SCREW ST4.8×16  2 57,02 Kč 69 Kč
SKLADEM
24 EMERGENCY SWITCH (Ref. č 24) S01M51400001 EMERGENCY SWITCH  1 201,65 Kč 244 Kč
SKLADEM
23 IGNITION OFF SWITCH (Ref. č 23) S01M51600001 IGNITION OFF SWITCH  1 201,65 Kč 244 Kč
NA DOTAZ
22 CLIP,ROUND 200 (Ref. č 22) T05000001004 CLIP,ROUND 200  8 57,02 Kč 69 Kč
SKLADEM
21 QCT000602001 R/B GBT000845003 CROSS RECESSED ROUND HEAD TAPPING SCREW ST2.9×13  2 57,02 Kč 69 Kč
NA DOTAZ
20 BUZZER (Ref. č 20) U01M33000001 BUZZER  1 1 583,47 Kč 1 916 Kč
SKLADEM
19 RIBBON 2×120 (Ref. č 19) T05000001007 RIBBON 2×120  4 57,02 Kč 69 Kč
SKLADEM
18 R/B S01-M041000-000-00 FLASHER (Ref. č 18) S01M04100001 R/B S01-M041000-000-00 FLASHER  1 1 300 Kč 1 573 Kč
SKLADEM
17 HORN (Ref. č 17) U01M02200001 HORN  1 323,97 Kč 392 Kč
SKLADEM
1 S03M14100001 STARTER MOTOR POSITIVE AND NEGATIVE WIRE  1 914,88 Kč 1 107 Kč
NA DOTAZ
