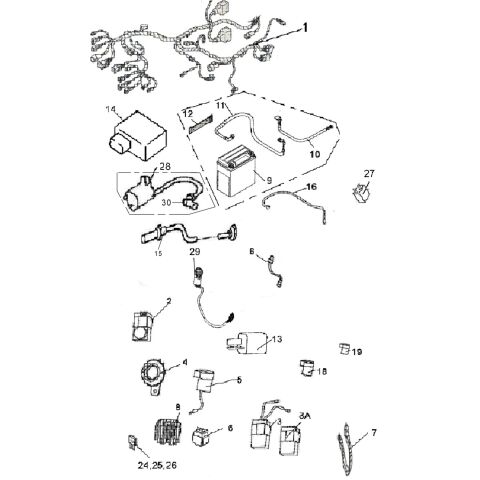

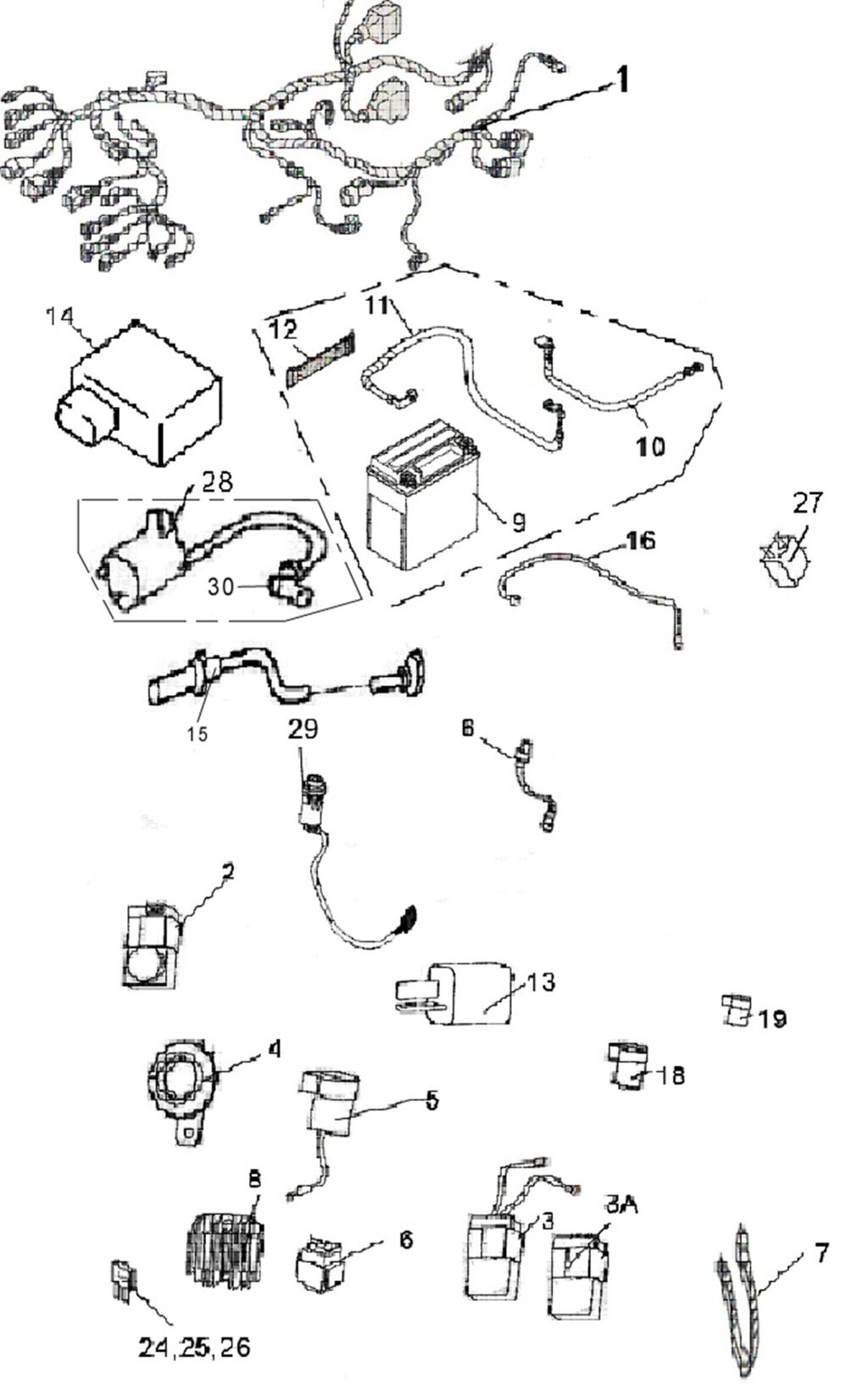

ELECTRICAL SYSTEM

LINHAI
Výrobce: LINHAI
Kód produktu: LINHAI_3_317_ATV400-2D
Vybrat MODEL:
400 E2 400 E2
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost

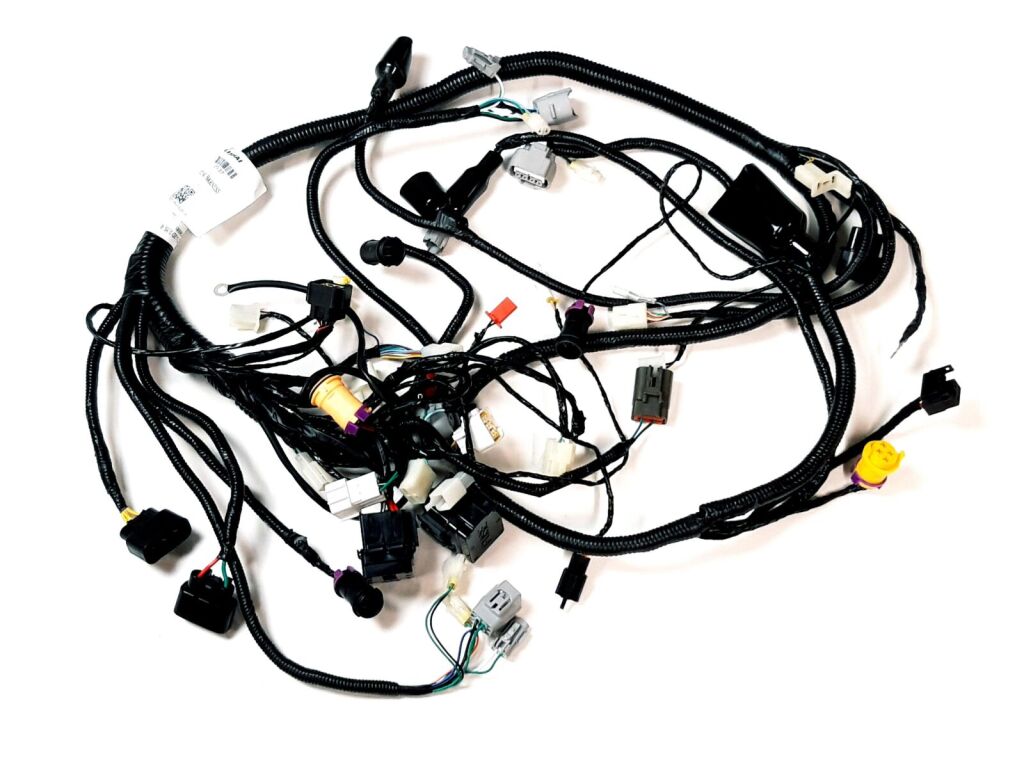

1 WIRING HARNESS (Ref. č 1) 27437 WIRING HARNESS  1 2 837,19 Kč 3 433 Kč
NA DOTAZ
24 22019 7.5 AMP FUSE  1 281,82 Kč 341 Kč
NA DOTAZ
25 22020 15AMP FUSE  2 281,82 Kč 341 Kč
NA DOTAZ
26 22021 3 AMP FUSE  1 281,82 Kč 341 Kč
NA DOTAZ
28 IGNITION COIL AND WIRE (Ref. č 28) 22012 IGNITION COIL AND WIRE  1 519,83 Kč 629 Kč
SKLADEM
29 ACCESSORY SOCKET ASSY (Ref. č 29) 70400 ACCESSORY SOCKET ASSY  1 452,89 Kč 548 Kč
SKLADEM
30 CAP, IGNITION COIL (Ref. č 30) 22024 CAP, IGNITION COIL  1 158,68 Kč 192 Kč
SKLADEM
31 BRAKE SWITCH (USED FOR WATERPROOF PLUG IN UNIT) (Ref. č 31) 70405A BRAKE SWITCH (USED FOR WATERPROOF PLUG IN UNIT)  1 153,72 Kč 186 Kč
SKLADEM
9 22005 BATTERY(BATTERY COVER IS ON PAGE 3) (unavailable)  1
NA DOTAZ
Detail
10 32003 BATTERY CABLE POSITIVE  1
NA DOTAZ
Detail
11 32006 BATTERY CABLE GROUND  1 185,95 Kč 225 Kč
NA DOTAZ
18 25517 RUBBER SHEATH 1 OF M550 E4  1
NA DOTAZ
Detail
23 WARNING BUZZER (Ref. č 23) 22008 WARNING BUZZER  1 1 323,14 Kč 1 601 Kč
SKLADEM
16 GEAR SENSOR HARNESS (USED WITH GEAR SENSOR 1a) (Ref. č 16) 25602 GEAR SENSOR HARNESS (USED WITH GEAR SENSOR 1a)  1 628,10 Kč 760 Kč
SKLADEM
15 SPEED SENSOR(FIX AT TRANSMISSION) (Ref. č 15) 25601 SPEED SENSOR(FIX AT TRANSMISSION)  1 2 464,46 Kč 2 982 Kč
SKLADEM
2 REVERSE GEAR WARNING (FOR AWD) (Ref. č 2) 32038 REVERSE GEAR WARNING (FOR AWD)  1 831,40 Kč 1 006 Kč
SKLADEM
3 REVERSE SPEED LIMITER （ FOR 50TH MODEL） (Ref. č 3) 22002a REVERSE SPEED LIMITER （ FOR 50TH MODEL）  1 1 123,14 Kč 1 359 Kč
SKLADEM
4 HORN (Ref. č 4) 32029 HORN  1 448,76 Kč 543 Kč
NA DOTAZ
5 FLASHER RELAY ASSY (Ref. č 5) 27438 FLASHER RELAY ASSY  1 295,87 Kč 358 Kč
SKLADEM
6 STARTER RELAY (Ref. č 6) 22004 STARTER RELAY  1 461,16 Kč 558 Kč
NA CESTĚ
7 25530 TIE  20 169,42 Kč 205 Kč
NA DOTAZ
8 R/B 22007b REGULATOR RECTIIFIER (different connector) (Ref. č 8) 22007 R/B 22007b REGULATOR RECTIIFIER (different connector)  1 1 127,27 Kč 1 364 Kč
SKLADEM
8a REGULATOR RECTIFIER WATERPROOF CONNECTOR R/B 27747 (Ref. č 8a) 22007b REGULATOR RECTIFIER WATERPROOF CONNECTOR R/B 27747  1 1 664,46 Kč 2 014 Kč
SKLADEM
12 BATTERY BELL (Ref. č 12) 22018 BATTERY BELL  1 56,20 Kč 68 Kč
SKLADEM
13 CAPACITOR (Ref. č 13) 32021 CAPACITOR  1 511,57 Kč 619 Kč
NA CESTĚ
14 CDI (Ref. č 14) 27340 CDI  1 1 149,59 Kč 1 391 Kč
SKLADEM
19 25519 RUBBER SHEATH 2 OF M550 E4  1
NA DOTAZ
Detail
