Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 EPS STEERING SHAFT (Ref. č 1) A03F14000001 EPS STEERING SHAFT  1 1 995,04 Kč 2 414 Kč
NA DOTAZ

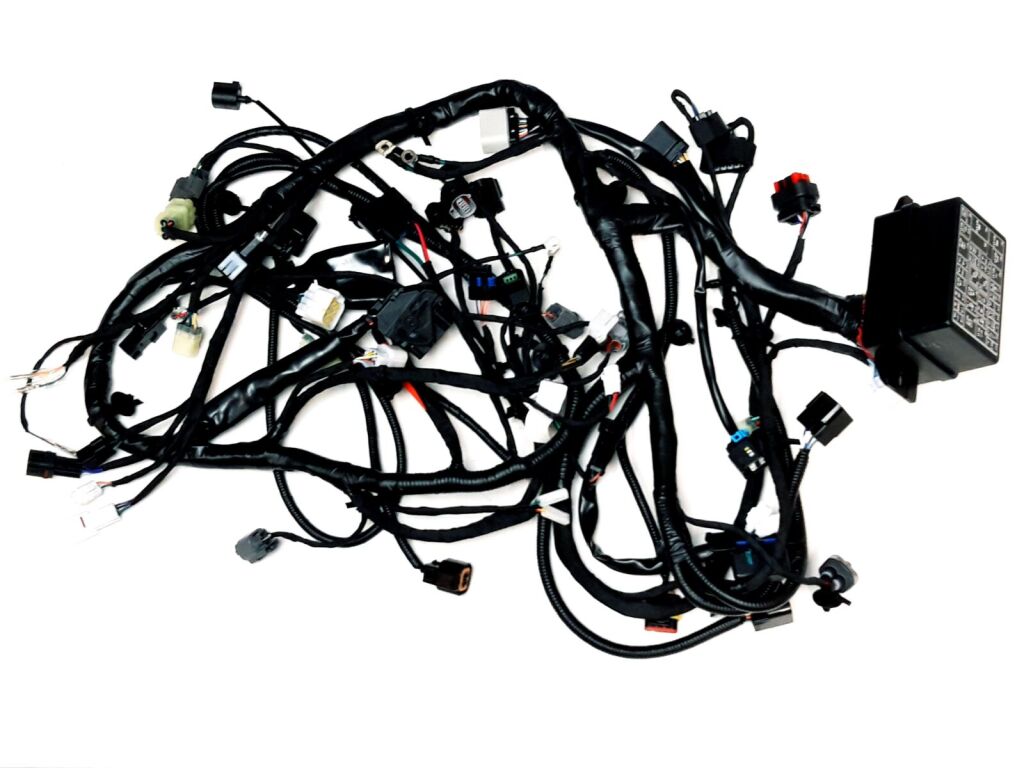

15 MAIN CABLE（WITH REAR DIFFERENTIAL) (Ref. č 15) A01M11100005 MAIN CABLE（WITH REAR DIFFERENTIAL)  1 14 242,98 Kč 17 234 Kč
SKLADEM
15 A02M11100004 R/B A02M11100005 MAIN CABLE  1 15 750,41 Kč 19 058 Kč
SKLADEM
15 MAIN CABLE（WITH REAR DIFFERENTIAL) (Ref. č 15) A02M11100005 MAIN CABLE（WITH REAR DIFFERENTIAL)  1 14 333,06 Kč 17 343 Kč
SKLADEM
14 A02B10000008 FRAME WELDING COMPONENTS（BRUSHLESS, LONG VEHICLE）  1 78 132,23 Kč 94 540 Kč
NA DOTAZ
14 A01B10000008 FRAME WELDING COMPONENTS（BRUSHLESS, SHORT VEHICLE）  1 78 958,68 Kč 95 540 Kč
NA DOTAZ
13 1-Hexagon slotted nut M10 (Ref. č 13) GBT009457001 1-Hexagon slotted nut M10  1 60,33 Kč 73 Kč
SKLADEM
12 Cotter pin 2.5 x 25 (Ref. č 12) GBT000091006 Cotter pin 2.5 x 25  1 60,33 Kč 73 Kč
SKLADEM
11 STEERING ARM GASKET (Ref. č 11) T02000004001 STEERING ARM GASKET  1 64,46 Kč 78 Kč
SKLADEM
10 STEERING ARM (Ref. č 10) A03F11001001 STEERING ARM  1 770,25 Kč 932 Kč
SKLADEM
9 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 9) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  4 54,55 Kč 66 Kč
SKLADEM

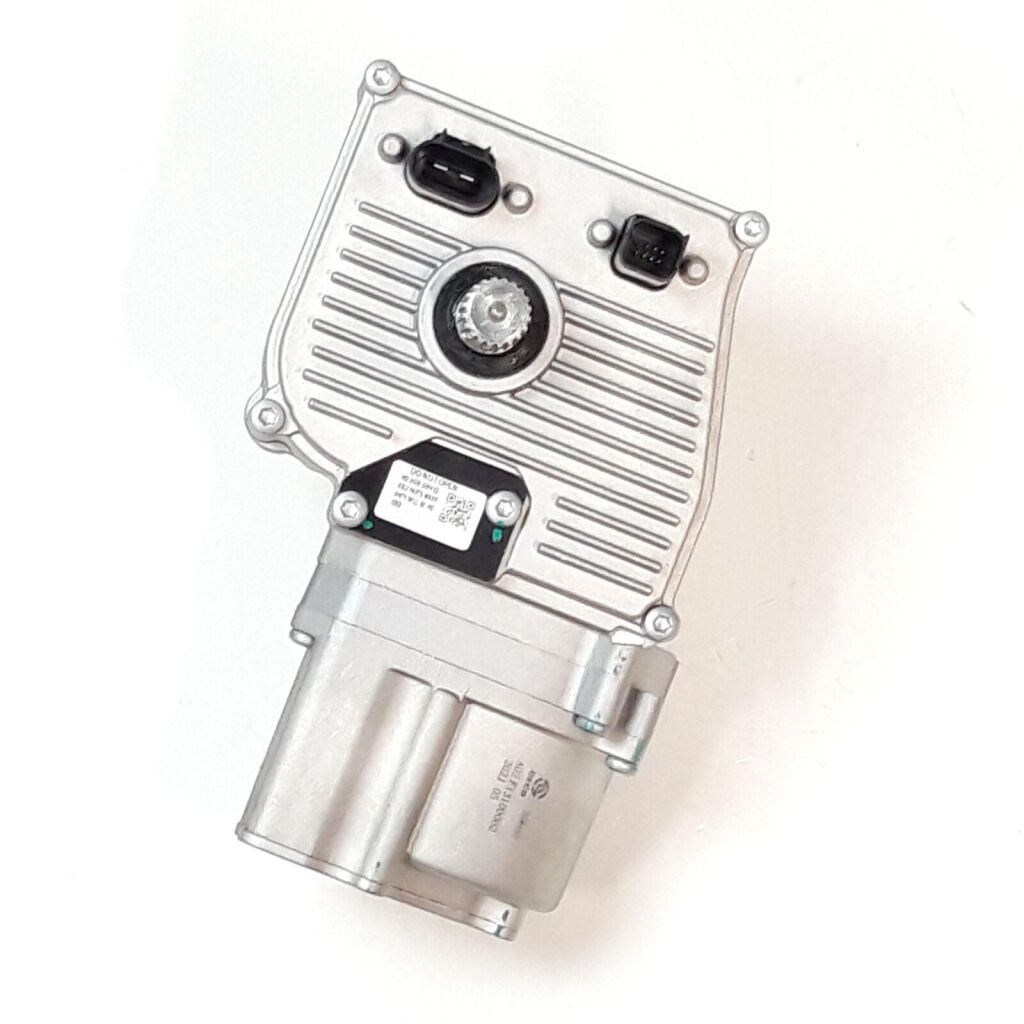

8 R/B A02F13100004 EPS (BRUSHLESS) (Ref. č 8) A02F13100002 R/B A02F13100004 EPS (BRUSHLESS)  1 22 957,85 Kč 27 779 Kč
NA DOTAZ
7 HEXAGON FLANGE BOLT M8×30 (Ref. č 7) GBT005789017 HEXAGON FLANGE BOLT M8×30  3 54,55 Kč 66 Kč
SKLADEM
6 R/B A03-F140001-000-00, STEERING KNUCKLE COMPONENT (Ref. č 6) A03F14100001 R/B A03-F140001-000-00, STEERING KNUCKLE COMPONENT  1 2 439,67 Kč 2 952 Kč
NA DOTAZ
5 Bolt M8×16 (Ref. č 5) GBT005789014 Bolt M8×16  2 54,55 Kč 66 Kč
SKLADEM
4 HARNESS STORAGE WIRE (Ref. č 4) A03F16101001 HARNESS STORAGE WIRE  1 57,02 Kč 69 Kč
SKLADEM
3 LOCKING PLATE SPHERE (Ref. č 3) A03F16100001 LOCKING PLATE SPHERE  1 80,17 Kč 97 Kč
SKLADEM
2 R/B A01-F162001-000-00 STEERING SPHERE (Ref. č 2) A03F16200001 R/B A01-F162001-000-00 STEERING SPHERE  2 297,52 Kč 360 Kč
SKLADEM

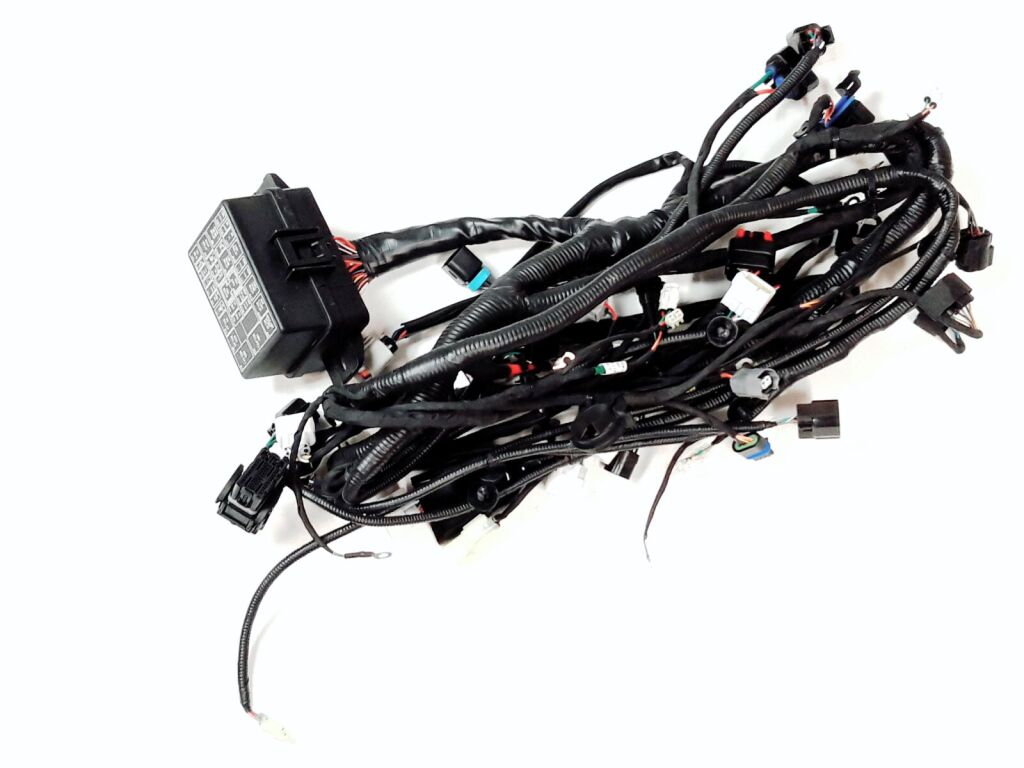

15 MAIN CABLE (Ref. č 15) A01M11100004 MAIN CABLE  1 15 691,74 Kč 18 987 Kč
SKLADEM
Kód produktu SGW_3_380_ATV570F-A2

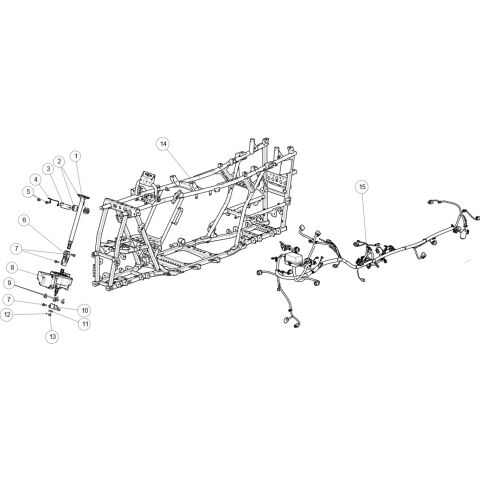

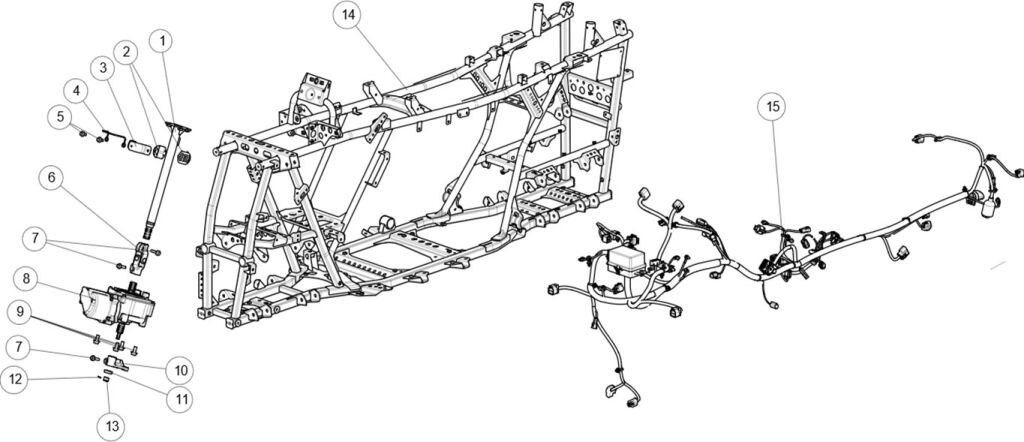

TYP ROZKRESU: ELECTRICAL PARTS
Vybrat ZNAČKU: SEGWAY
Vybrat TYP: AT6
Vybrat MODEL: Snarler AT6 S T3b, Snarler AT6 L T3b, Snarler AT6 S E5, Snarler AT6 L E5
