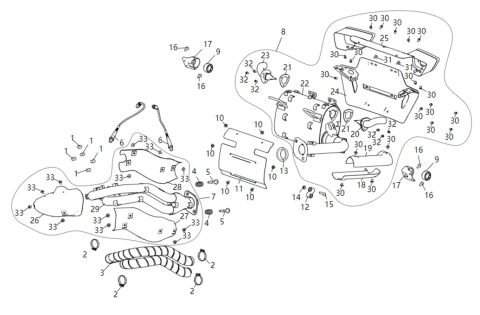

EXHAUST SYSTEM

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_126_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 NUT (Ref. č 1) A03A30007001 NUT  5 57,02 Kč 69 Kč
SKLADEM
19 S03A31003001 R/B S03-A310003-000-00 EXHAUST PIPE REAR SECTION UPPER HEAT INSULATION BOARD  1 230,58 Kč 279 Kč
NA DOTAZ
20 S03A31300001 LEFT SPARK ARRESTER  1 639,67 Kč 774 Kč
NA DOTAZ
21 S03A31001001 TRIANGULAR GRAPHITE PAD  2 115,70 Kč 140 Kč
NA DOTAZ
22 S03A31200001 MUFFLER BARREL  1 7 257,85 Kč 8 782 Kč
NA DOTAZ
23 S03A31400001 RIGHT SPARK ARRESTER  1 639,67 Kč 774 Kč
NA DOTAZ
24 S03A32000001 MUFFLER REAR DECORATIVE BOARD  1 1 416,53 Kč 1 714 Kč
NA DOTAZ
25 S03A31700001 TAIL DECORATION COVER ASSEMBLY  1 3 226,45 Kč 3 904 Kč
NA DOTAZ
26 S05A31005001 R/B S05-A310050-000-00 EXHAUST PIPE FRONT,FRONT HEAT INSULATION BOARD  1 639,67 Kč 774 Kč
NA DOTAZ
27 S05A31006001 R/B S05-A310060-000-00 EXHAUST PIPE FRONT,REAR HEAT INSULATION BOARD  1 533,88 Kč 646 Kč
NA DOTAZ
28 S05A31007001 EXHAUST PIPE FRONT,INNER HEAT INSULATION BOARD  1 533,88 Kč 646 Kč
NA DOTAZ
29 S03A31100001 EXHAUST PIPE FRONT ASSEMBLY  1 4 032,23 Kč 4 879 Kč
NA DOTAZ
30 T03000012001 HEXAGON SOCKET FLAT HEAD COMBINATION SCREW M6×12  19 63,64 Kč 77 Kč
NA DOTAZ
31 HEXAGON FLANGE BOLT M6×20 (Ref. č 31) GBT005789008 HEXAGON FLANGE BOLT M6×20  2 57,02 Kč 69 Kč
SKLADEM
32 COMBINATION BOLT M6×16 (Ref. č 32) T03000006002 COMBINATION BOLT M6×16  6 57,02 Kč 69 Kč
SKLADEM
18 S03A31009001 R/B S03-A310003-000-00 EXHAUST PIPE REAR SECTION LOWER HEAT INSULATION BOARD  1 230,58 Kč 279 Kč
NA DOTAZ
17 S01C02900002 ENGINE UPPER SHOCK ABSORBER LOWER MOUNTING SEAT  2 332,23 Kč 402 Kč
NA DOTAZ
16 Bolt M8×16 (Ref. č 16) GBT005789014 Bolt M8×16  4 57,02 Kč 69 Kč
SKLADEM

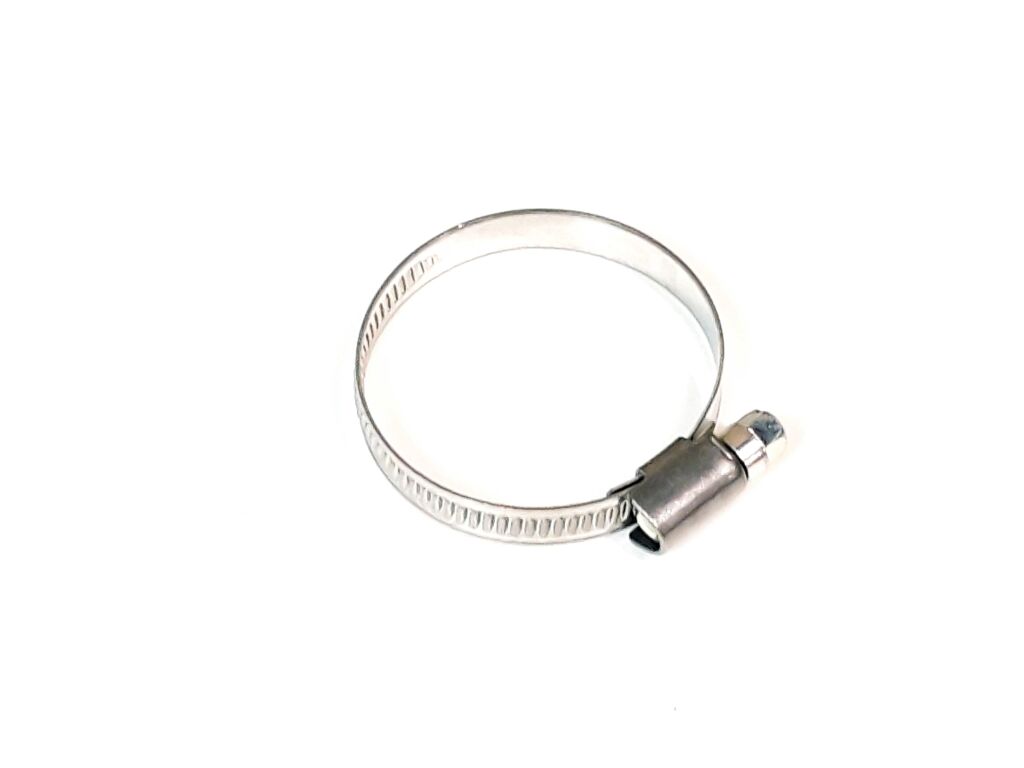

2 A TYPE WORM DRIVE HOSE HOOP 50 (Ref. č 2) QCT000620004 A TYPE WORM DRIVE HOSE HOOP 50  4 57,02 Kč 69 Kč
SKLADEM
3 S05A31008001 INSULATION TAPE  1 368,60 Kč 446 Kč
NA DOTAZ
4 Spring,exhaust pipe install (Ref. č 4) A01A32005001 Spring,exhaust pipe install  2 202,48 Kč 245 Kč
SKLADEM
5 Bolt,exhaust pipe connect (Ref. č 5) A01A32004001 Bolt,exhaust pipe connect  2 147,93 Kč 179 Kč
SKLADEM
6 OXYGEN SENSOR (Ref. č 6) U01M44000001 OXYGEN SENSOR  2 2 853,72 Kč 3 453 Kč
SKLADEM

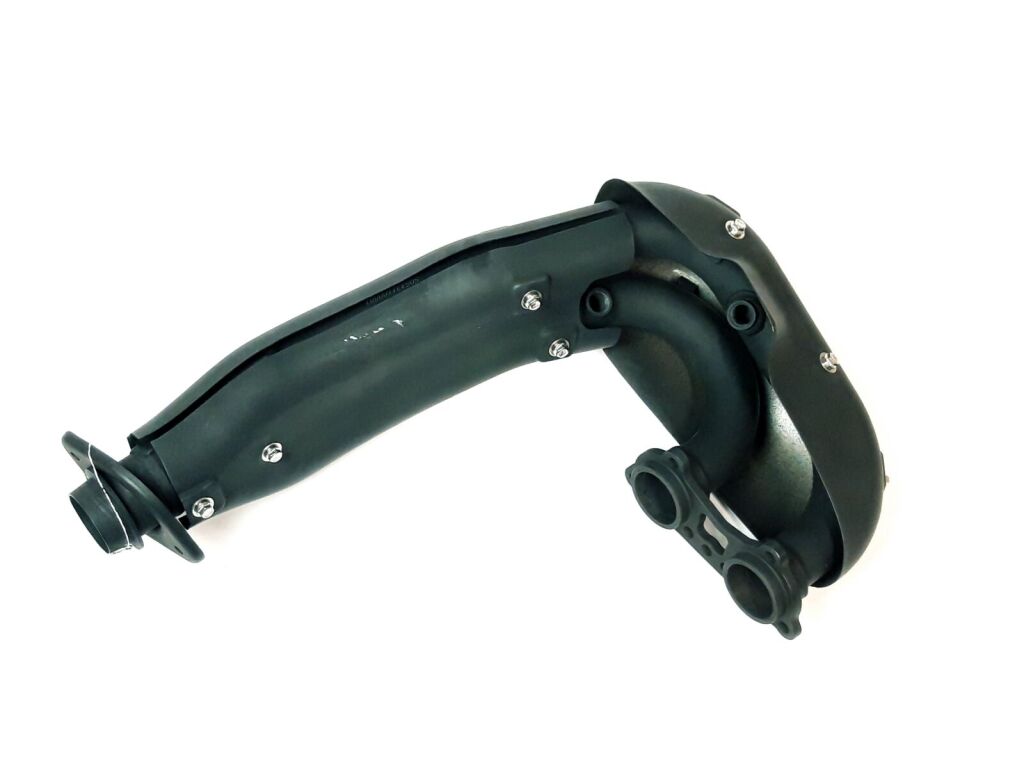

7 EXHAUST PIPE FRONT ASSEMBLY COMBINATION (Ref. č 7) S05A31800001 EXHAUST PIPE FRONT ASSEMBLY COMBINATION  1 5 595,87 Kč 6 771 Kč
SKLADEM
8 S05A31900001 MUFFLER BARREL ASSEMBLY COMBINATION  1 10 462,81 Kč 12 660 Kč
SKLADEM
9 ENGINE UPPER DAMPING (Ref. č 9) S01H205A0001 ENGINE UPPER DAMPING  2 157,85 Kč 191 Kč
SKLADEM
10 Bolt M6×12 (Ref. č 10) GBT005789006 Bolt M6×12  6 57,02 Kč 69 Kč
SKLADEM
11 S03A31007001 R/B S03-A310070-000-00 FRONT HEAT SHIELD  1 350,41 Kč 424 Kč
NA DOTAZ
12 R/B U01-A3A3010-000-01 HANGING BUFFER SLEEVE (Ref. č 12) U01A30100001 R/B U01-A3A3010-000-01 HANGING BUFFER SLEEVE  1 344,63 Kč 417 Kč
SKLADEM
13 U05 GRAPHITE SEAL SLEEVE (Ref. č 13) U05A31001001 U05 GRAPHITE SEAL SLEEVE  1 149,59 Kč 181 Kč
SKLADEM
14 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 14) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  1 57,02 Kč 69 Kč
SKLADEM
15 HEXAGON FLANGE BOLT M8×40 (Ref. č 15) GBT005789019 HEXAGON FLANGE BOLT M8×40  1 57,02 Kč 69 Kč
SKLADEM

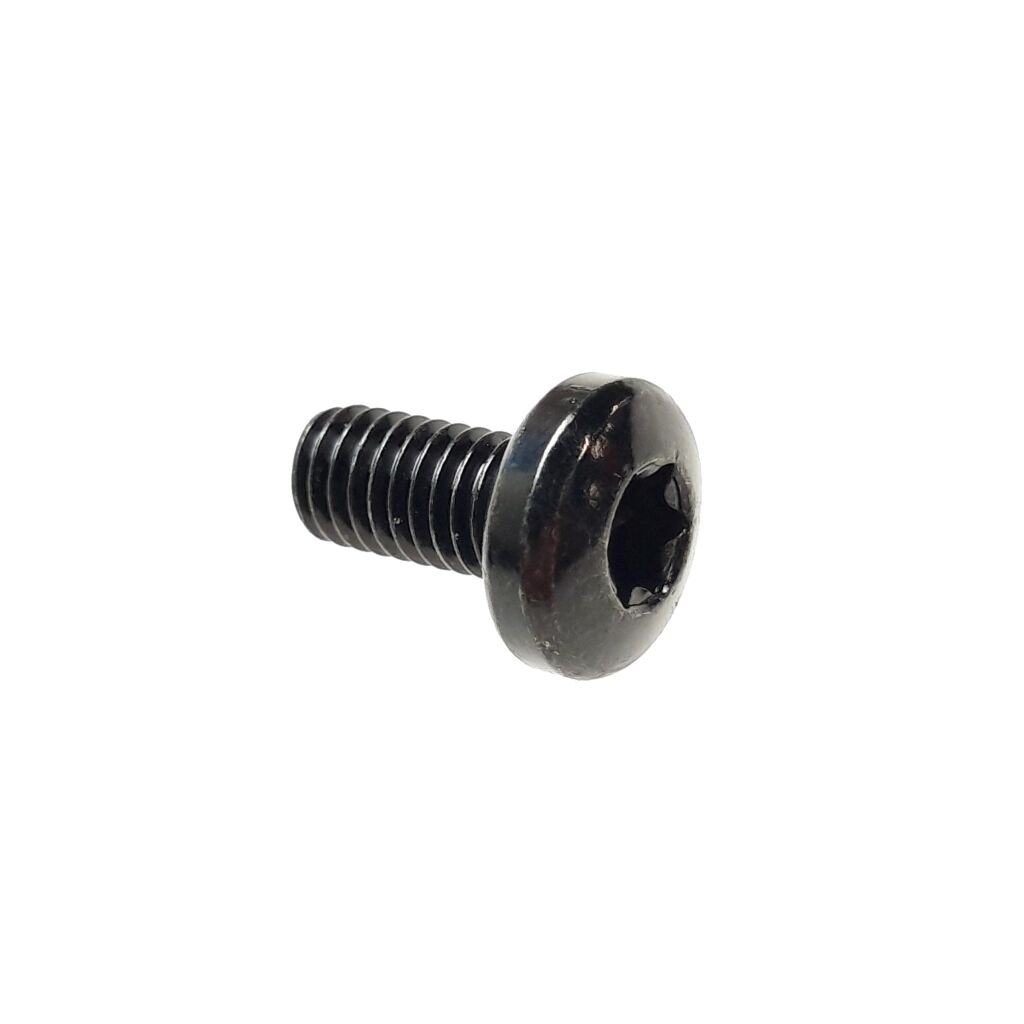

33 HEXAGON SOCKET PAN HEAD SCREW M6×12 (Ref. č 33) GBT002672005 HEXAGON SOCKET PAN HEAD SCREW M6×12  12 57,02 Kč 69 Kč
SKLADEM
