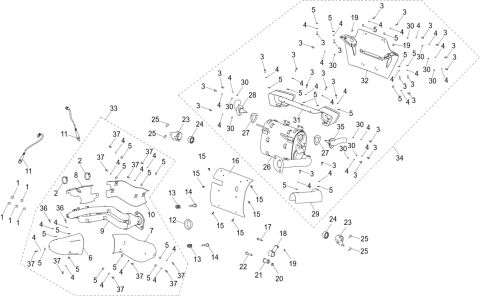

EXHAUST SYSTEM 2023MODEL

Výrobce SEGWAY
Kód produktu SEGWAY_1_129_UTV1000F-S3-23

Ref. č	Kód p.	Popis	Počet v daném rozkresu	Cena za 1 ks	dostupnost
1	A03A30007001	NUT	5	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
21	A03A30001001	ROCKER ARM BRACKET BUFFER BUSHING	1	Cena bez DPH 64,46 Kč Cena s DPH 78 Kč	SKLADEM
22	GBT005789062	BOLT M10×1.25×70	1	Cena bez DPH 57,02 Kč Cena s DPH 69 Kč	SKLADEM
23	S01C02900002	ENGINE UPPER SHOCK ABSORBER LOWER MOUNTING SEAT	2	Cena bez DPH 323,37 Kč Cena s DPH 391 Kč	SKLADEM
24	S05-A380100-000-00	ENGINE UPPER DAMPING	2	Cena bez DPH 152,26 Kč Cena s DPH 184 Kč	NA DOTAZ
25	GBT005789014	Bolt M8×16	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
26	S03-A312000-000-00	MUFFLER BARREL	1	Cena bez DPH 5 886,78 Kč Cena s DPH 7 123 Kč	NA DOTAZ
27	S03A31001001	TRIANGULAR GRAPHITE PAD	2	Cena bez DPH 121,49 Kč Cena s DPH 147 Kč	NA DOTAZ
28	S03A31400001	RIGHT SPARK ARRESTER	1	Cena bez DPH 671,07 Kč Cena s DPH 812 Kč	NA DOTAZ
29	S03-A310003-000-00	EXHAUST TAIL PIPE HEAT SHIELD	1	Cena bez DPH 231,40 Kč Cena s DPH 280 Kč	NA DOTAZ
30	GBT000971003	FLAT WASHER 6	10		NA DOTAZ	Detail
31	S03A31700001	TAIL DECORATION COVER ASSEMBLY	1	Cena bez DPH 3 387,60 Kč Cena s DPH 4 099 Kč	NA CESTĚ
32	S03A32000001	MUFFLER REAR DECORATIVE BOARD	1	Cena bez DPH 1 486,78 Kč Cena s DPH 1 799 Kč	NA CESTĚ
33	S05-A318000-000-00	EXHAUST PIPE FRONT ASSEMBLY	1	Cena bez DPH 6 101,65 Kč Cena s DPH 7 383 Kč	NA DOTAZ
34	S05-A319000-000-00	MUFFLER BARREL ASSEMBLY	1	Cena bez DPH 14 395,87 Kč Cena s DPH 17 419 Kč	NA DOTAZ
35	S03A31300001	LEFT SPARK ARRESTER	1	Cena bez DPH 671,07 Kč Cena s DPH 812 Kč	NA DOTAZ
36	GBT005789143	HEXAGON FLANGE BOLT M6×14	2		NA DOTAZ	Detail
20	GBT061832001	2-non-metallic insert hexagon flange bolt M10×1.25	1	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
19	GBT061871002	All metal hexagonal flange lock nut M6	3	Cena bez DPH 49,59 Kč Cena s DPH 60 Kč	SKLADEM
18	S05-C008000-DB0-00	HANGING BUFFER BRACKET	1	Cena bez DPH 211,57 Kč Cena s DPH 256 Kč	NA DOTAZ
2	QCT000620004	A TYPE WORM DRIVE HOSE HOOP 50	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
3	GBT005789007	Bolt M6×16	25	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
4	GB0000093001	WASHER 6	37	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
5	GBT000961007	WASHER 6	27	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
6	S05-A310050-000-00	HEADER PIPE FRONT HEAT SHIELD	1	Cena bez DPH 1 006,61 Kč Cena s DPH 1 218 Kč	NA DOTAZ
7	S05-A310060-000-00	REAR HEAT SHIELD OF EXHAUST FRONT PIPE	1	Cena bez DPH 905,79 Kč Cena s DPH 1 096 Kč	NA DOTAZ
8	S05-A310100-000-00	EXHAUST PIPE INNER GUARD	1	Cena bez DPH 784,30 Kč Cena s DPH 949 Kč	NA DOTAZ
9	S05A31100001	EXHAUST PIPE FRONT SECTION ASSEMBLY	1		NA DOTAZ	Detail
10	S05A31007001	EXHAUST PIPE FRONT,INNER HEAT INSULATION BOARD	1	Cena bez DPH 560,33 Kč Cena s DPH 678 Kč	NA DOTAZ
11	U01M44000001	OXYGEN SENSOR	2	Cena bez DPH 2 997,52 Kč Cena s DPH 3 627 Kč	SKLADEM
12	U05A31001001	U05 GRAPHITE SEAL SLEEVE	1	Cena bez DPH 144,63 Kč Cena s DPH 175 Kč	SKLADEM
13	A01A32005001	Spring,exhaust pipe install	2	Cena bez DPH 83,12 Kč Cena s DPH 101 Kč	SKLADEM
14	A01A32004001	Bolt,exhaust pipe connect	2	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
15	T03000006002	COMBINATION BOLT M6×16	6	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
16	S03-A310070-000-00	MUFFLER FRONT HEAT SHIELD	1	Cena bez DPH 345,45 Kč Cena s DPH 418 Kč	NA CESTĚ
17	T03000006003	BOLT M6×40×10	1	Cena bez DPH 42,98 Kč Cena s DPH 52 Kč	SKLADEM
37	GBT005789006	Bolt M6×12	10	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
