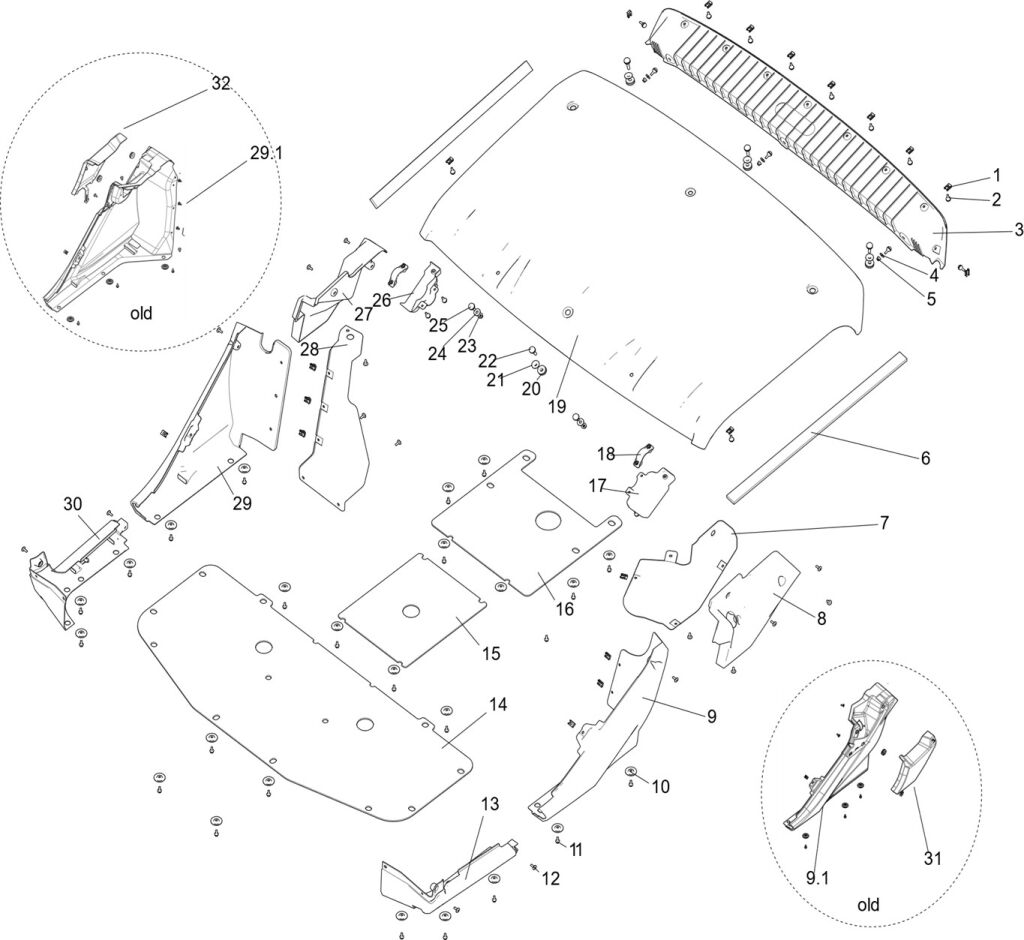

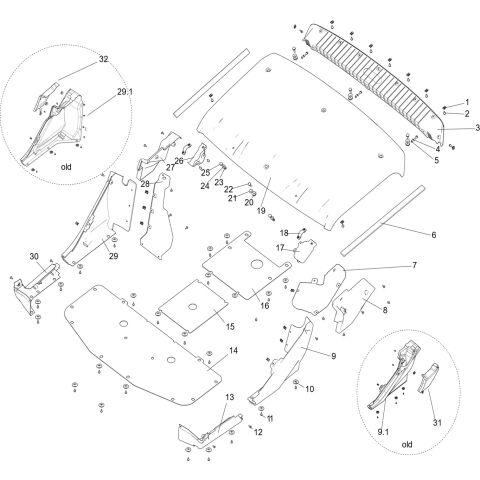

External plastic parts

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_4_450_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 M6 nut clip (Ref. č 1) T04000002001 M6 nut clip  13 57,02 Kč 69 Kč
SKLADEM
18 ROOF INNER COVER CLAMP (Ref. č 18) U09-H101003-0B0-00 ROOF INNER COVER CLAMP  2 54,55 Kč 66 Kč
NA DOTAZ
19 U01H13201001 U01 ROOF COVER PP BLACK  1 3 338,84 Kč 4 040 Kč
SKLADEM
20 U01H13204001 U01 ROOF RUBBER RING  4 57,02 Kč 69 Kč
NA CESTĚ
21 T02000008001 ROOF BUSH  4 57,02 Kč 69 Kč
NA DOTAZ
22 T03000008001 BOLT M8×35  4 57,02 Kč 69 Kč
NA CESTĚ
23 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 23) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  2 57,02 Kč 69 Kč
SKLADEM
24 GBT000961003 LARGE WASHER A GRADE 8  2 57,02 Kč 69 Kč
SKLADEM ZA 23 dnů
25 BOLT M8×25 (Ref. č 25) T03000008003 BOLT M8×25  2 57,02 Kč 69 Kč
SKLADEM
26 ROOF RIGHT INNER COVER (Ref. č 26) U09-H101002-0B0-00 ROOF RIGHT INNER COVER  1 54,55 Kč 66 Kč
NA DOTAZ
27 RIGHT HANDLE SHIELD (Ref. č 27) U01-H142110-0B0-00 RIGHT HANDLE SHIELD  1 171,07 Kč 207 Kč
NA DOTAZ
28 RR INNER PLATE COVER (Ref. č 28) U01-H124130-0B0-00 RR INNER PLATE COVER  1 166,94 Kč 202 Kč
NA DOTAZ
29 RR SIDE PLATE COVER (Ref. č 29) U09-H124120-0B0-01 RR SIDE PLATE COVER  1 390,91 Kč 473 Kč
NA DOTAZ
29,1 RR SIDE PLATE COVER PP BLACK (Ref. č 29,1) U09-H124120-0B0-00 RR SIDE PLATE COVER PP BLACK  1 742,15 Kč 898 Kč
NA DOTAZ
30 U01H12411001 U01 RF SIDE PLATE COVER PP BLACK  1 240,50 Kč 291 Kč
NA DOTAZ
31 OIL FILLER COVER PP BLACK (Ref. č 31) U09-H127100-0B0-00 OIL FILLER COVER PP BLACK  1 115,70 Kč 140 Kč
SKLADEM
17 ROOF LEFT INNER COVER (Ref. č 17) U09-H101001-0B0-00 ROOF LEFT INNER COVER  1 54,55 Kč 66 Kč
NA DOTAZ
2 BOLT M6×20 (Ref. č 2) T03000007001 BOLT M6×20  18 57,02 Kč 69 Kč
SKLADEM
3 U01H13203001 U01 ROOF EMPENNAGE COVER PP BLACK  1 717,36 Kč 868 Kč
NA DOTAZ
4 WASHER Φ6 (Ref. č 4) GBT000961002 WASHER Φ6  3 57,02 Kč 69 Kč
SKLADEM
5 GBT061831002 NUT M6  3 57,02 Kč 69 Kč
NA CESTĚ
6 U01H13205001 U01 ROOF COVER SEALING STRIP  2 57,02 Kč 69 Kč
NA DOTAZ
7 FUEL FILLER BAFFLE (Ref. č 7) U01-H232030-0B0-01 FUEL FILLER BAFFLE  1 146,28 Kč 177 Kč
NA DOTAZ
8 LEFT HANDLE SHIELD (Ref. č 8) U01-H143110-0B0-00 LEFT HANDLE SHIELD  1 171,07 Kč 207 Kč
NA DOTAZ
9 LR SIDE PLATE COVER (Ref. č 9) U09-H123120-0B0-01 LR SIDE PLATE COVER  1 362,81 Kč 439 Kč
NA DOTAZ
9,1 LR SIDE PLATE COVER (Ref. č 9,1) U09-H123120-0B0-00 LR SIDE PLATE COVER  1 743,80 Kč 900 Kč
NA DOTAZ
10 U01R10001001 WASHER  24 57,02 Kč 69 Kč
NA DOTAZ
11 Bolt M6×16 (Ref. č 11) GBT005789007 Bolt M6×16  24 57,02 Kč 69 Kč
SKLADEM
12 Inner hexagon screws M10×1.25×25 (Ref. č 12) T03000007002 Inner hexagon screws M10×1.25×25  16 57,02 Kč 69 Kč
SKLADEM
13 U01H12311001 U01 LF SIDE PLATE COVER PP BLACK  1 240,50 Kč 291 Kč
NA DOTAZ
15 MIDDLE SKID PIATE (Ref. č 15) U09-H101002-0K0-00 MIDDLE SKID PIATE  1 232,23 Kč 281 Kč
NA DOTAZ
32 U01H12810001 U01 CHARGING PORT COVER PP BLACK  1 163,64 Kč 198 Kč
NA DOTAZ
