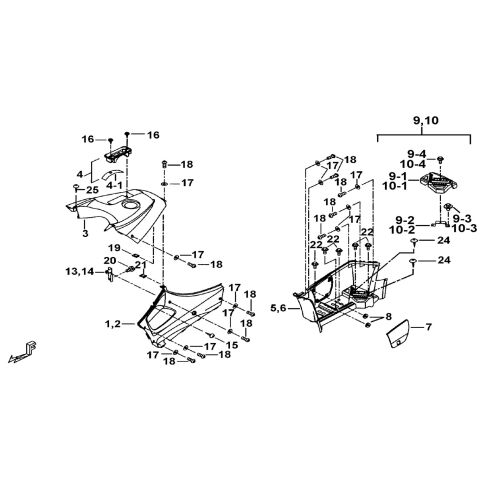

FOOT BOARD

TGB
Výrobce: TGB
Kód produktu: TGB_4_446_FBH-JJDLE
Vybrat MODEL:
BLADE 600LTX MAX E5
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
10.3 BOLT, FLANGE (Ref. č 10-3) S07601 BOLT, FLANGE

OPTION

2 56,20 Kč 68 Kč
SKLADEM
09.3 BOLT, FLANGE (Ref. č 09-3) S07601 BOLT, FLANGE

OPTION

2 56,20 Kč 68 Kč
SKLADEM
10.4 BOLT M6X16L (Ref. č 10-4) S25602 BOLT M6X16L

OPTION

1 56,20 Kč 68 Kč
SKLADEM
13 511531 BRKT., SIDE COVER, LH  1
NA DOTAZ
Detail
14 511532 BRKT., SIDE COVER, RH  1
NA DOTAZ
Detail
15 SCREW, TAPPING (Ref. č 15) S50406 SCREW, TAPPING  2 56,20 Kč 68 Kč
NA DOTAZ
16 SCREW , OVAL HEAD M6X50 (Ref. č 16) S50501 SCREW , OVAL HEAD M6X50  2 56,20 Kč 68 Kč
SKLADEM
17 WASHER (Ref. č 17) GA555WS02 WASHER  22 56,20 Kč 68 Kč
SKLADEM
18 BOLT, HEX HEAD M6X16 (Ref. č 18) S72605 BOLT, HEX HEAD M6X16  22 56,20 Kč 68 Kč
SKLADEM
19 NUT, SPRING (Ref. č 19) GA552NT01 NUT, SPRING  2 56,20 Kč 68 Kč
SKLADEM
20 BOLT, FLANGE M6X12 (Ref. č 20) GA556SC01 BOLT, FLANGE M6X12  2 56,20 Kč 68 Kč
SKLADEM
21 NUT, SPRING M6X1.0 (Ref. č 21) N32601 NUT, SPRING M6X1.0  2 56,20 Kč 68 Kč
NA CESTĚ
24 SCREW, AN HEAD (Ref. č 24) GA555SC02 SCREW, AN HEAD  4 56,20 Kč 68 Kč
SKLADEM
10.2 FOOT REST ADAPTER (RH) (Ref. č 10-2) 512561 FOOT REST ADAPTER (RH)

OPTION

1 277,69 Kč 336 Kč
SKLADEM
10.1 PASSENGER FOOT REST (RH) (Ref. č 10-1) 512559 PASSENGER FOOT REST (RH)

OPTION

1 526,45 Kč 637 Kč
SKLADEM
10 PASSENGER FOOT REST (RH) ASSY (Ref. č 10) 512559A PASSENGER FOOT REST (RH) ASSY

OPTION

1 825,62 Kč 999 Kč
SKLADEM
04 GEAR CHANCE INDICATOR SUPPORT (Ref. č 04) 512553 GEAR CHANCE INDICATOR SUPPORT  1 285,12 Kč 345 Kč
SKLADEM
04.1 PROTECTOR (Ref. č 04-1) 515411 PROTECTOR  1 106,61 Kč 129 Kč
SKLADEM
05 FOOT BOARD, LH (Ref. č 05) 512548A FOOT BOARD, LH  1 1 700 Kč 2 057 Kč
SKLADEM
06 511506A FOOT BOARD, RH.(BROACH)  1 1 700 Kč 2 057 Kč
SKLADEM
07 COVER, OIL LEVEL CHECKING (Ref. č 07) 512550 COVER, OIL LEVEL CHECKING  1 386,78 Kč 468 Kč
SKLADEM
22 BOLT M6X16L (Ref. č 22) S25602 BOLT M6X16L  10 56,20 Kč 68 Kč
SKLADEM
09.4 BOLT M6X16L (Ref. č 09-4) S25602 BOLT M6X16L

OPTION

1 56,20 Kč 68 Kč
SKLADEM
08 RUBBER PLUG (Ref. č 08) 512543 RUBBER PLUG  4 56,20 Kč 68 Kč
SKLADEM
09 PASSENGER FOOT REST (LH) ASSY (Ref. č 09) 512558A PASSENGER FOOT REST (LH) ASSY

OPTION

1 825,62 Kč 999 Kč
SKLADEM
09.1 PASSENGER FOOT REST (LH) (Ref. č 09-1) 512558 PASSENGER FOOT REST (LH)

OPTION

1 605,79 Kč 733 Kč
SKLADEM
09.2 FOOT REST ADAPTER (LH) (Ref. č 09-2) 512560 FOOT REST ADAPTER (LH)

OPTION

1 277,69 Kč 336 Kč
SKLADEM
25 SCREW, CROSS RECESSED, PAN HEA (Ref. č 25) S50509 SCREW, CROSS RECESSED, PAN HEA  2 56,20 Kč 68 Kč
SKLADEM
