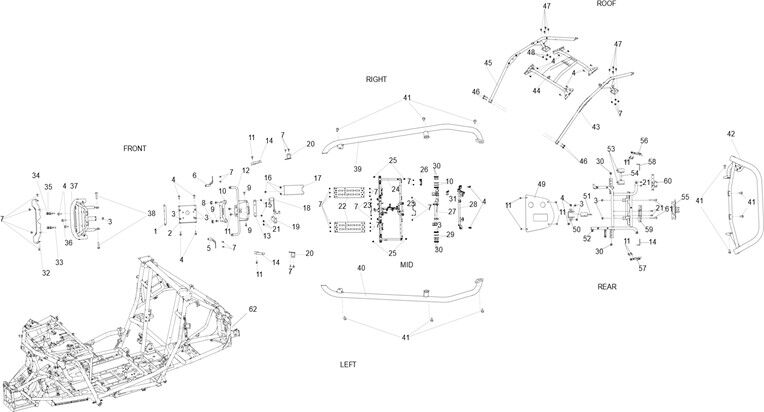

FRAME ASSEMBLY.

Výrobce SEGWAY
Kód produktu SEGWAY_2_233_UTV1000F-S8-24

Ref. č	Kód p.	Popis	Počet v daném rozkresu	Cena za 1 ks	dostupnost
62	S05-B000000-FG0-04	FRAME (GREEN)	1	Cena bez DPH 77 985,92 Kč Cena s DPH 94 363 Kč	NA DOTAZ
42	S05-C031000-FR0-00	REAR BUMPER(RED)	1	Cena bez DPH 2 484,18 Kč Cena s DPH 3 006 Kč	NA DOTAZ
43	S03-C111000-FB0-01	TOP BEAM LEFT(BLACK）	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	NA CESTĚ
43	S03-C111000-FG0-01	TOP BEAM LEFT(GREEN)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	SKLADEM
43	S03-C111000-FR0-01	TOP BEAM LEFT(RED)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	NA CESTĚ
44	S03-C112000-FB0-01	TOP BEAM UPPER (BLACK)	1	Cena bez DPH 7 215,70 Kč Cena s DPH 8 731 Kč	NA CESTĚ
44	S03-C112000-FG0-01	TOP BEAM UPPER (GREEN)	1	Cena bez DPH 6 969,42 Kč Cena s DPH 8 433 Kč	NA DOTAZ
44	S03-C112000-FR0-01	TOP BEAM UPPER（RED）	1	Cena bez DPH 7 215,70 Kč Cena s DPH 8 731 Kč	NA DOTAZ
45	S03-C113000-FB0-01	TOP BEAM RIGHT(BLACK)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	NA CESTĚ
42	S05-C031000-FG0-00	REAR BUMPER(GREEN)	1	Cena bez DPH 2 484,18 Kč Cena s DPH 3 006 Kč	NA DOTAZ
42	S05-C031000-FB0-00	REAR BUMPER(BLACK)	10	Cena bez DPH 2 484,18 Kč Cena s DPH 3 006 Kč	NA DOTAZ
38	GBT005789030	BOLT M10×1.25×45	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
39	S01-C024000-FB0-01	RIGHT GUARD BAR (BLACK)	2	Cena bez DPH 2 193,87 Kč Cena s DPH 2 655 Kč	NA DOTAZ
39	S01-C024000-FG0-01	RIGHT GUARD BAR (GREEN)	1	Cena bez DPH 2 193,87 Kč Cena s DPH 2 655 Kč	NA DOTAZ
39	S01-C024000-FR0-01	RIGHT GUARD BAR (RED)	1	Cena bez DPH 2 193,87 Kč Cena s DPH 2 655 Kč	NA DOTAZ
40	S01-C023000-FB0-01	LEFT GUARD BAR(BLACK)	1	Cena bez DPH 2 193,87 Kč Cena s DPH 2 655 Kč	NA DOTAZ
40	S01-C023000-FG0-01	LEFT GUARD BAR(GREEN)	1	Cena bez DPH 2 198,35 Kč Cena s DPH 2 660 Kč	SKLADEM
40	S01-C023000-FR0-01	LEFT GUARD BAR(RED)	1	Cena bez DPH 2 193,87 Kč Cena s DPH 2 655 Kč	NA CESTĚ
41	GBT005789025	HEXAGON FLANGE BOLT M10×1.25×20	1	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
45	S03-C113000-FG0-01	TOP BEAM RIGHT(GREEN)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	NA DOTAZ
45	S03-C113000-FR0-01	TOP BEAM RIGHT(RED)	1	Cena bez DPH 5 983,47 Kč Cena s DPH 7 240 Kč	SKLADEM
56	S01C03800002	MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX	1	Cena bez DPH 297,52 Kč Cena s DPH 360 Kč	SKLADEM
57	S01C03700002	MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX	1	Cena bez DPH 297,52 Kč Cena s DPH 360 Kč	SKLADEM
58	S05-C012000-DB0-00	REFLECTOR BRACKET	1	Cena bez DPH 94,21 Kč Cena s DPH 114 Kč	NA DOTAZ
59	S05-C028100-DB0-00	AIR FILTER INSTALLATION BRACKET	2	Cena bez DPH 127,40 Kč Cena s DPH 154 Kč	NA DOTAZ
60	S05-C028200-DB0-00	AIR FILTER INSTALLATION BRACKET 1	1	Cena bez DPH 125,07 Kč Cena s DPH 151 Kč	NA DOTAZ
61	GBT005789086	HEXAGON FLANGE BOLT M10×1.25×75	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM ZA 26 dnů
62	S05-B000000-FB0-04	FRAME (BLACK)	2	Cena bez DPH 77 985,92 Kč Cena s DPH 94 363 Kč	NA DOTAZ
62	S05-B000000-FR0-04	FRAME（RED)	1	Cena bez DPH 77 985,92 Kč Cena s DPH 94 363 Kč	NA DOTAZ
55	S03-C001000-DB0-00	REAR ARM MOUNTING PLATE	1	Cena bez DPH 626,61 Kč Cena s DPH 758 Kč	NA DOTAZ
54	S05C00206002	ENGINE REAR LINER	2	Cena bez DPH 289,26 Kč Cena s DPH 350 Kč	NA DOTAZ
46	GBT005789102	HEX FLANGE BOLT M12×1.25×75	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
47	GBT005789054	BOLT M12×1.25×30	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	NA DOTAZ
48	GBT061832002	NUT M12×1.25	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
49	S05-C051000-DB0-00	ENGINE LOWER GUARD	8	Cena bez DPH 603,31 Kč Cena s DPH 730 Kč	NA DOTAZ
50	S05C00500002	ENGINE LOWER MOUNTING SEAT	1	Cena bez DPH 283,47 Kč Cena s DPH 343 Kč	NA DOTAZ
51	S05C00400002	ENGINE LOWER BRACKET ASSEMBLY	1	Cena bez DPH 579,34 Kč Cena s DPH 701 Kč	NA DOTAZ
52	S05-C028000-DB0-01	REAR CARGO BOX BRACKET	1	Cena bez DPH 1 088,67 Kč Cena s DPH 1 317 Kč	NA DOTAZ
53	S05C00200002	ENGINE REAR LEFT BRACKET ASSEMBLY	1	Cena bez DPH 542,98 Kč Cena s DPH 657 Kč	NA DOTAZ
37	S05-C009000-FG0-00	FRONT BUMPER (GREEN)	1	Cena bez DPH 2 547,93 Kč Cena s DPH 3 083 Kč	NA DOTAZ
37	S05-C009000-FR0-00	FRONT BUMPER (RED)	1	Cena bez DPH 2 547,93 Kč Cena s DPH 3 083 Kč	NA DOTAZ
37	S05-C009000-FB0-00	FRONT BUMPER (BLACK)	1	Cena bez DPH 2 547,93 Kč Cena s DPH 3 083 Kč	SKLADEM ZA 10 dnů
11	GBT005789014	Bolt M8×16	12	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
12	S05-C021000-DB0-00	FRAME FRONT SUPPORT ASSEMBLY (BLACK)	1	Cena bez DPH 828,10 Kč Cena s DPH 1 002 Kč	SKLADEM
13	S01C00806002	STEERING CONTROLLER BRACKET	1	Cena bez DPH 278,51 Kč Cena s DPH 337 Kč	NA DOTAZ
14	S05B30050003	A-PILLAR DECORATION（GREEN）	2	Cena bez DPH 1 004,96 Kč Cena s DPH 1 216 Kč	NA DOTAZ
14	S05B30050004	A-PILLAR DECORATION（BLACK）	2	Cena bez DPH 84,68 Kč Cena s DPH 102 Kč	NA DOTAZ
14	S05B30050005	A-PILLAR DECORATION（BLACK）	2	Cena bez DPH 149,59 Kč Cena s DPH 181 Kč	NA DOTAZ
15	GBT005789008	HEXAGON FLANGE BOLT M6×20	2	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
16	GBT061831003	HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8	3	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
10	S01C005A1002	FRONT SUPPORT UPPER CONNECTING PLATE（RED）	1	Cena bez DPH 547,11 Kč Cena s DPH 662 Kč	NA DOTAZ
10	S01C005A1003	FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）	1	Cena bez DPH 547,11 Kč Cena s DPH 662 Kč	NA DOTAZ
2	S05-C005000-DB0-00	LOWER BRACKET OF FRONT AXLE	1	Cena bez DPH 536,36 Kč Cena s DPH 649 Kč	NA DOTAZ
3	GBT061832001	2-non-metallic insert hexagon flange bolt M10×1.25	9	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
4	GBT005789026	Hexagon flange bolt M10×1.25×25	20	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
5	S01C04400002	HEADLAMP UPPER LEFT BRACKET ASSEMBLY	1	Cena bez DPH 257,85 Kč Cena s DPH 312 Kč	SKLADEM
6	S01C04500002	HEADLAMP UPPER RIGHT BRACKET ASSEMBLY	1	Cena bez DPH 257,85 Kč Cena s DPH 312 Kč	NA DOTAZ
7	T03000007002	Inner hexagon screws M6×1.6	30	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
8	S01H21000001	DECORATIVE PLUG	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
9	GBT005789015	BOLT M8×20	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
17	S01C05400002	FRONT PASSENGER SEAT PEDAL ASSEMBLY	1	Cena bez DPH 404,96 Kč Cena s DPH 490 Kč	NA DOTAZ
19	S01-R090450-DB0-00	POWER DISTRIBUTOR BRACKET	1	Cena bez DPH 131,29 Kč Cena s DPH 159 Kč	NA DOTAZ
30	GBT005789029	HEXAGON FLANGE BOLT M10×1.25×40	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
31	S05-C022000-DB0-00	STARTING RELAY BRACKET	12	Cena bez DPH 97,88 Kč Cena s DPH 118 Kč	NA DOTAZ
32	S05-C030000-PH1-00	BUMPER TRIM PANEL（FROSTED SILVER）	1	Cena bez DPH 546,28 Kč Cena s DPH 661 Kč	NA DOTAZ
32	S05-C030000-PW2-00	BUMPER TRIM PANEL（SILVER GRAY）	1	Cena bez DPH 546,28 Kč Cena s DPH 661 Kč	SKLADEM
33	GBT005789021	HEXAGON FLANGE BOLT M8×50	1	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM

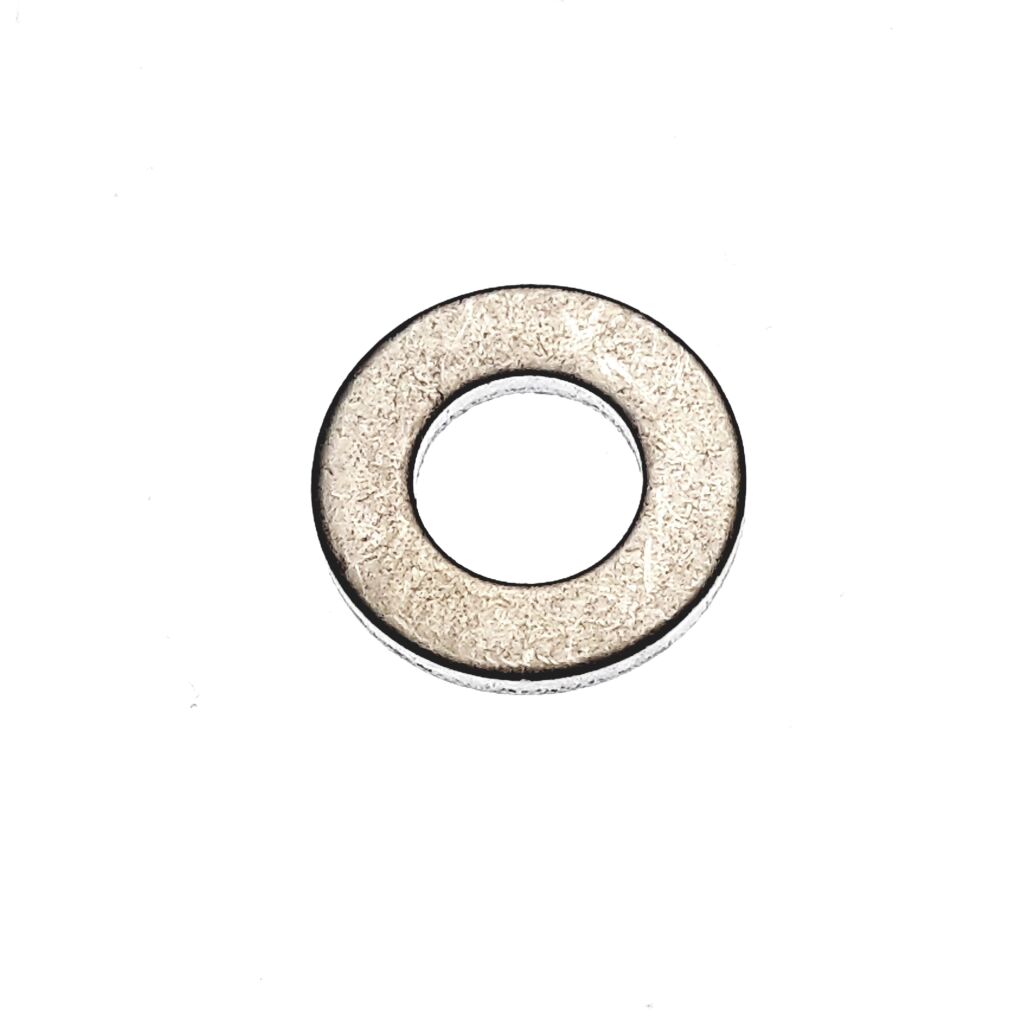

34	GB0000093004	WASHER 8	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
35	GBT000971010	GASKET 8	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
36	GBT005789027	HEXAGON FLANGE BOLT M10×1.25×30	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
29	S05-C006001-DB0-00	ENGINE CONNECTING PLATE	1	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	NA DOTAZ
28	S05-C032000-DB0-00	SAFETY BELT FIXING BRACKET	1	Cena bez DPH 1 251,79 Kč Cena s DPH 1 515 Kč	NA DOTAZ
20	S01C02000002	LOCK CATCH, DOOR (BLACK)	2	Cena bez DPH 59,04 Kč Cena s DPH 71 Kč	NA DOTAZ
21	GBT005789007	Bolt M6×16	6	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
22	S01B37200002	MIDDLE BOTTOM GUARD COMBINATION(BLACK)	16	Cena bez DPH 742,15 Kč Cena s DPH 898 Kč	NA DOTAZ
23	S01C02613002	WATER PIPE (BLACK)	2	Cena bez DPH 62,93 Kč Cena s DPH 76 Kč	NA DOTAZ
24	S03-C026002-DB0-01	SEAT MOUNTING BRACKET	2	Cena bez DPH 3 109,87 Kč Cena s DPH 3 763 Kč	NA DOTAZ
25	GBT005789019	HEXAGON FLANGE BOLT M8×40	1	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
26	S01C03600002	BATTERY BAFFLE ASSEMBLY	4	Cena bez DPH 317,36 Kč Cena s DPH 384 Kč	NA DOTAZ
27	S05-C006100-DB0-01	ENGINE FRONT BRACKET	1	Cena bez DPH 1 600,31 Kč Cena s DPH 1 936 Kč	NA DOTAZ
1	S01-C010010-DB0-01	FRONT UPPER A-ARM PLATE	1	Cena bez DPH 184,30 Kč Cena s DPH 223 Kč	NA DOTAZ

Kód produktu	SEGWAY_2_233_UTV1000F-S8-24
TYP ROZKRESU:	FRAME PARTS
Vybrat ZNAČKU:	SEGWAY
Vybrat TYP:	Villain SxS
Vybrat MODEL:	Villain SX10 DIFF (2024-xxxxx)

FRAME ASSEMBLY.
