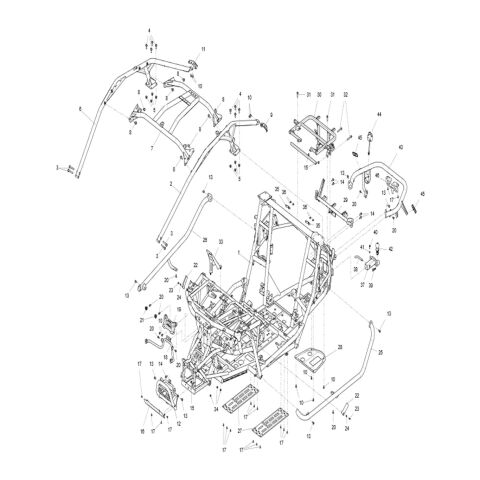

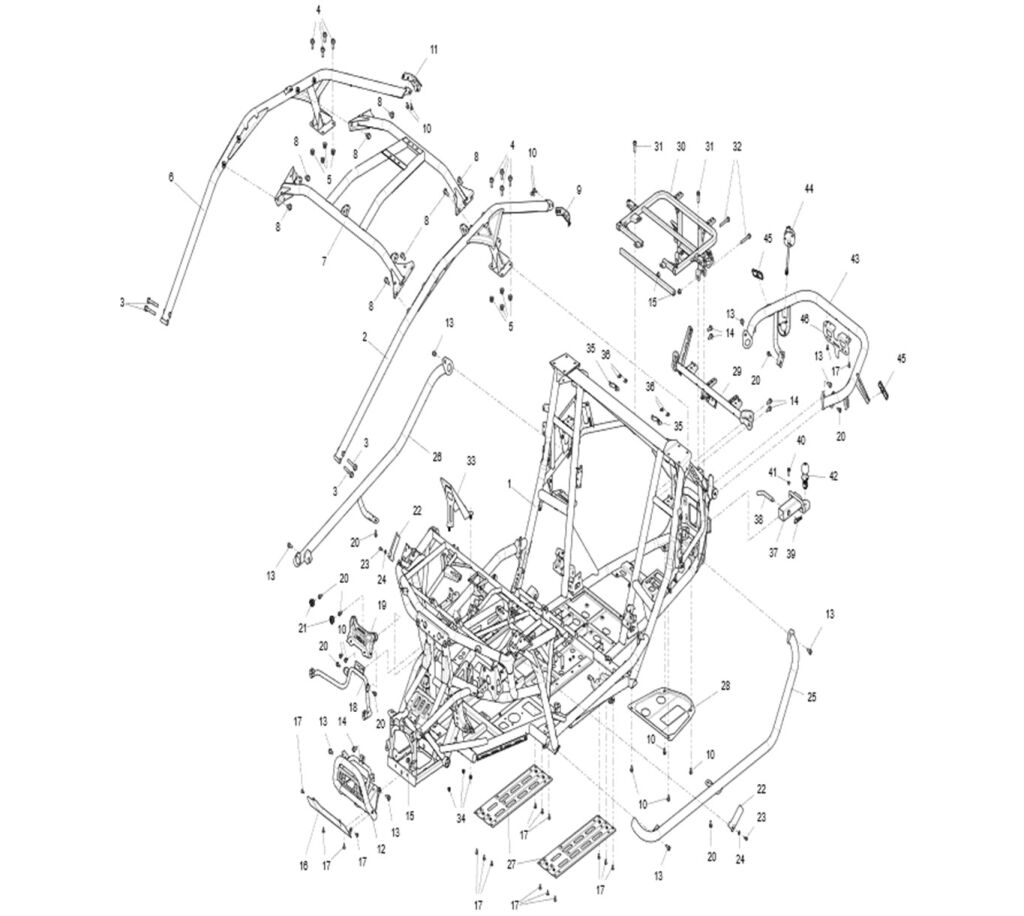

FRAME ASSEMBLY (EU NARROW VEHICLE VERSION)

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_2_229_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
46 S01C02505002 REAR LICENSE PLATE LIGHT BRACKET  1 323,97 Kč 392 Kč
NA DOTAZ
35 S05C02812002 REAR CARGO BOX UPPER BRACKET  2 264,46 Kč 320 Kč
NA DOTAZ
34 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 34) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  3 57,02 Kč 69 Kč
SKLADEM
33 S01C05400002 FRONT PASSENGER SEAT PEDAL ASSEMBLY  1 385,12 Kč 466 Kč
NA DOTAZ
32 HEXAGON FLANGE BOLT M10×1.25×75 (Ref. č 32) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  2 57,02 Kč 69 Kč
SKLADEM
31 HEXAGON FLANGE BOLT M10×1.25×40 (Ref. č 31) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  2 57,02 Kč 69 Kč
SKLADEM
30 S05C02800002 ENGINE UPPER BRACKET ASSEMBLY  1 1 300 Kč 1 573 Kč
NA DOTAZ
29 S05B00300002 SAFETY BELT FIXING BRACKET COMBINATION  1 1 254,55 Kč 1 518 Kč
NA DOTAZ
28 ENGINE LOWER GUARD (Ref. č 28) S05C05101002 ENGINE LOWER GUARD  1 472,73 Kč 572 Kč
SKLADEM
27 S01B37200002 MIDDLE BOTTOM GUARD COMBINATION(BLACK)  2 706,61 Kč 855 Kč
NA DOTAZ
26 S01C02400003 RIGHT GUARD BAR (GREEN)  1 3 374,38 Kč 4 083 Kč
SKLADEM
26 S01C02400002 RIGHT GUARD BAR (RED)  1 2 547,11 Kč 3 082 Kč
SKLADEM
25 S01C02300003 LEFT GUARD BAR(GREEN)  1 2 546,28 Kč 3 081 Kč
NA DOTAZ
25 S01C02300002 LEFT GUARD BAR(RED)  1 2 547,11 Kč 3 082 Kč
SKLADEM
36 Bolt M6×16 (Ref. č 36) GBT005789007 Bolt M6×16  4 57,02 Kč 69 Kč
SKLADEM
37 S01C20300002 TRAILER WELDING COMBINATION GENERAL TYPE)  1 1 046,28 Kč 1 266 Kč
NA DOTAZ
45 SQUARE REFLECTOR (Ref. č 45) T10000001003 SQUARE REFLECTOR  2 57,02 Kč 69 Kč
SKLADEM
44 U01M04500003 LOF TRAILER POWER SOCKET  1 880,99 Kč 1 066 Kč
NA DOTAZ
44 U01M04500004 U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)  1 594,21 Kč 719 Kč
NA DOTAZ
43 S01C07400003 REAR BUMPER（GREEN，NARROW VEHICLE，LOF）  1 3 124,79 Kč 3 781 Kč
NA DOTAZ
43 S01C07400002 REAR BUMPER（RED，NARROW VEHICLE，LOF）  1 3 124,79 Kč 3 781 Kč
NA DOTAZ
43 S01C06600003 R/B S05-C025500-FG0-01 REAR BUMPER（GREEN，NARROW VEHICLE）  1 3 158,68 Kč 3 822 Kč
NA DOTAZ
43 S01C06600002 R/B S05-C025500-FR0-01 REAR BUMPER（RED，NARROW VEHICLE）  1 3 158,68 Kč 3 822 Kč
SKLADEM
42 TRAILER BALL（EU） (Ref. č 42) U01R21100001 TRAILER BALL（EU）  1 1 077,69 Kč 1 304 Kč
NA CESTĚ
41 GBT006170004 TYPE 1 HEXAGON NUT M8  1 57,02 Kč 69 Kč
NA DOTAZ
40 Hexagon flange bolt M8×25 (Ref. č 40) GBT005789016 Hexagon flange bolt M8×25  1 57,02 Kč 69 Kč
SKLADEM
39 LOCKING PIN 12 (Ref. č 39) QCT000623002 LOCKING PIN 12  1 57,02 Kč 69 Kč
SKLADEM
38 U01 TOWING HOOK BOLT 16 (Ref. č 38) U01R21300002 U01 TOWING HOOK BOLT 16  1 345,45 Kč 418 Kč
SKLADEM
37 U01R21200004 TRAILER WELDING COMBINATION FOR LOF  1 1 017,36 Kč 1 231 Kč
NA DOTAZ
24 GBT000971001 GASKET 8  2 57,02 Kč 69 Kč
NA DOTAZ
23 GBT000701013 HEXAGON SOCKET HEAD CAP SCREW M8×12  2 57,02 Kč 69 Kč
NA DOTAZ
22 S05B30050003 A-PILLAR DECORATION（GREEN）  2 957,02 Kč 1 158 Kč
NA DOTAZ
10 Bolt M8×16 (Ref. č 10) GBT005789014 Bolt M8×16  4 57,02 Kč 69 Kč
SKLADEM
9 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX (Ref. č 9) S01C03700002 MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX  1 282,64 Kč 342 Kč
SKLADEM
8 GBT005789045 HEXAGON FLANGE BOLT M12×1.25×25  8 57,02 Kč 69 Kč
NA DOTAZ
7 S01C10500003 TOP BEAM UPPER (GREEN)  1 5 889,26 Kč 7 126 Kč
SKLADEM
7 S01C10500002 TOP BEAM UPPER（RED）  1 5 889,26 Kč 7 126 Kč
SKLADEM
6 S01C10300003 TOP BEAM RIGHT(GREEN)  1 6 566,12 Kč 7 945 Kč
SKLADEM
6 S01C10300002 TOP BEAM RIGHT(RED)  1 4 955,37 Kč 5 996 Kč
NA DOTAZ
5 NUT M12×1.25 (Ref. č 5) GBT061832002 NUT M12×1.25  8 57,02 Kč 69 Kč
SKLADEM
4 BOLT M12×1.25×30 (Ref. č 4) GBT005789054 BOLT M12×1.25×30  8 61,98 Kč 75 Kč
SKLADEM
3 HEX FLANGE BOLT M12×1.25×75 (Ref. č 3) GBT005789102 HEX FLANGE BOLT M12×1.25×75  4 57,02 Kč 69 Kč
SKLADEM
2 S01C10100003 TOP BEAM LEFT(GREEN)  1 4 956,20 Kč 5 997 Kč
SKLADEM
2 S01C10100002 TOP BEAM LEFT(RED)  1 4 957,02 Kč 5 998 Kč
SKLADEM
1 S05B01000003 FRAME (GREEN)  1 88 396,69 Kč 106 960 Kč
NA DOTAZ
11 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX (Ref. č 11) S01C03800002 MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX  1 282,64 Kč 342 Kč
SKLADEM
12 S01C00600002 FRONT BUMPER (RED)  1 2 742,98 Kč 3 319 Kč
SKLADEM
22 S05B30050002 A-PILLAR DECORATION（RED）  2 957,02 Kč 1 158 Kč
NA DOTAZ
21 S01H21000001 DECORATIVE PLUG  2 57,02 Kč 69 Kč
NA DOTAZ
20 BOLT M8×20 (Ref. č 20) GBT005789015 BOLT M8×20  8 57,02 Kč 69 Kč
SKLADEM
19 S01C005A1003 FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）  1 520,66 Kč 630 Kč
NA DOTAZ
19 S01C005A1002 FRONT SUPPORT UPPER CONNECTING PLATE（RED）  1 520,66 Kč 630 Kč
NA DOTAZ
18 S01C00500002 FRAME FRONT SUPPORT ASSEMBLY (BLACK)  1 614,05 Kč 743 Kč
NA CESTĚ
17 Inner hexagon screws M10×1.25×25 (Ref. č 17) T03000007002 Inner hexagon screws M10×1.25×25  18 57,02 Kč 69 Kč
SKLADEM
16 S01C00700003 BUMPER TRIM PANEL（SILVER GRAY）  1 1 055,37 Kč 1 277 Kč
NA DOTAZ
16 S01C00700002 BUMPER TRIM PANEL（FROSTED SILVER）  1 1 055,37 Kč 1 277 Kč
NA DOTAZ
15 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 15) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  3 57,02 Kč 69 Kč
SKLADEM
14 Hexagon flange bolt M10×1.25×25 (Ref. č 14) GBT005789026 Hexagon flange bolt M10×1.25×25  5 57,02 Kč 69 Kč
SKLADEM
13 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 13) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  8 57,02 Kč 69 Kč
SKLADEM
12 S01C00600003 FRONT BUMPER (GREEN)  1 2 742,98 Kč 3 319 Kč
NA DOTAZ
1_ S05B01000002 FRAME（RED)  1 88 396,69 Kč 106 960 Kč
SKLADEM
