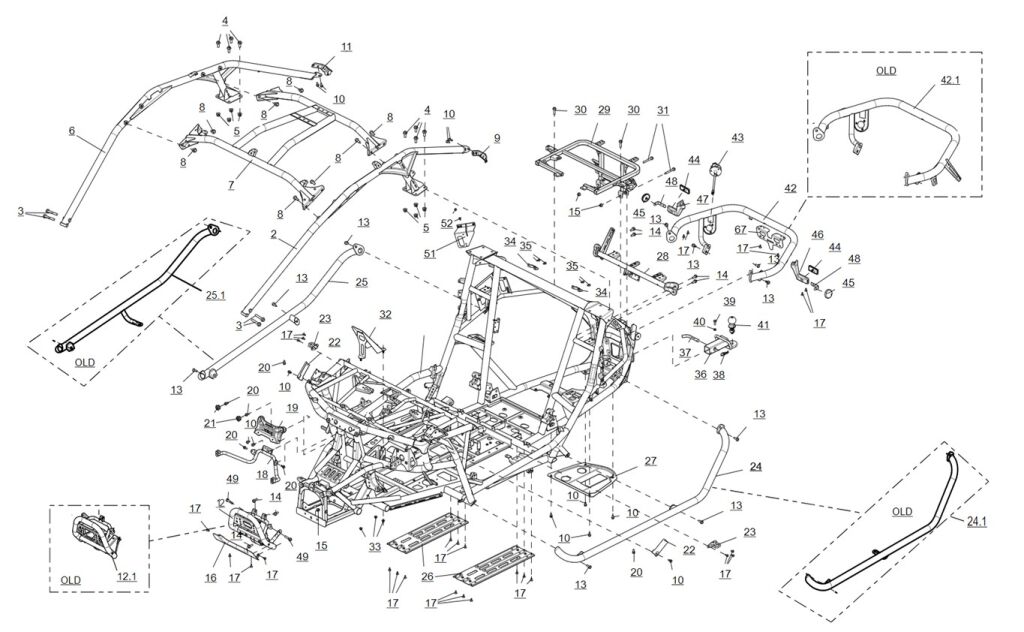

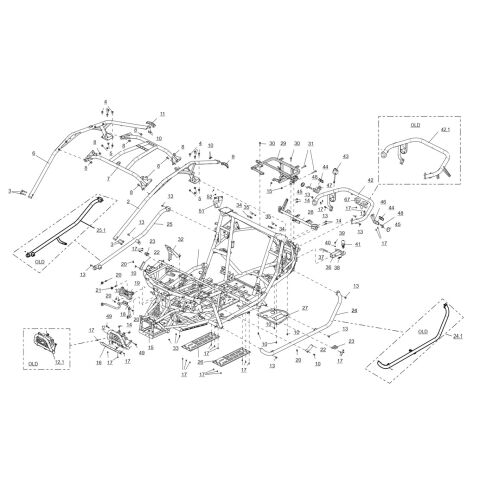

FRAME ASSEMBLY (EU NARROW VEHICLE VERSION)

Výrobce SEGWAY
Kód produktu SEGWAY_2_232_UTV1000F-S3-23

Ref. č	Kód p.	Popis	Počet v daném rozkresu	Cena za 1 ks	dostupnost
24	S01-C023000-FB0-00	LEFT GUARD BAR(BLACK)	1	Cena bez DPH 2 001,65 Kč Cena s DPH 2 422 Kč	NA DOTAZ
27	S05-C051000-DB0-00	ENGINE LOWER GUARD	1	Cena bez DPH 603,31 Kč Cena s DPH 730 Kč	NA DOTAZ
28	S05B00300002	SAFETY BELT FIXING BRACKET COMBINATION	1	Cena bez DPH 1 317,36 Kč Cena s DPH 1 594 Kč	NA DOTAZ
29	S05-C028000-DB0-00	REAR CARGO BOX BRACKET ASSEMBLY	1	Cena bez DPH 1 478,51 Kč Cena s DPH 1 789 Kč	NA DOTAZ
30	GBT005789029	HEXAGON FLANGE BOLT M10×1.25×40	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
31	GBT005789086	HEXAGON FLANGE BOLT M10×1.25×75	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
32	S01C05400002	FRONT PASSENGER SEAT PEDAL ASSEMBLY	1	Cena bez DPH 404,96 Kč Cena s DPH 490 Kč	NA DOTAZ
33	GBT061831003	HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8	3	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
34	S05C02812002	REAR CARGO BOX UPPER BRACKET	2	Cena bez DPH 278,51 Kč Cena s DPH 337 Kč	NA DOTAZ
26	S01B37200002	MIDDLE BOTTOM GUARD COMBINATION(BLACK)	2	Cena bez DPH 742,15 Kč Cena s DPH 898 Kč	NA DOTAZ
25,1	S01C02400005	RIGHT GUARD BAR (BLACK)	1	Cena bez DPH 1 941,32 Kč Cena s DPH 2 349 Kč	SKLADEM ZA 19 dnů
25,1	S01C02400003	RIGHT GUARD BAR (GREEN)	1	Cena bez DPH 3 543,80 Kč Cena s DPH 4 288 Kč	SKLADEM
24	S01-C023000-FG0-00	LEFT GUARD BAR(GREEN)	1	Cena bez DPH 2 001,65 Kč Cena s DPH 2 422 Kč	SKLADEM
24	S01-C023000-FR0-00	LEFT GUARD BAR(RED)	1	Cena bez DPH 2 001,65 Kč Cena s DPH 2 422 Kč	SKLADEM
24,1	S01C02300002	LEFT GUARD BAR(RED)	1	Cena bez DPH 2 674,38 Kč Cena s DPH 3 236 Kč	NA DOTAZ
24,1	S01C02300003	LEFT GUARD BAR(GREEN)	1	Cena bez DPH 2 672,73 Kč Cena s DPH 3 234 Kč	SKLADEM
24,1	S01C02300005	LEFT GUARD BAR(BLACK)	1	Cena bez DPH 1 941,32 Kč Cena s DPH 2 349 Kč	NA DOTAZ
25	S01-C024000-FB0-00	RIGHT GUARD BAR (BLACK)	1	Cena bez DPH 2 001,65 Kč Cena s DPH 2 422 Kč	NA DOTAZ
25	S01-C024000-FR0-00	RIGHT GUARD BAR (RED)	1	Cena bez DPH 2 001,65 Kč Cena s DPH 2 422 Kč	NA DOTAZ
25,1	S01C02400002	RIGHT GUARD BAR (RED)	1	Cena bez DPH 2 674,38 Kč Cena s DPH 3 236 Kč	SKLADEM
35	GBT005789007	Bolt M6×16	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
36	S01C20300002	TRAILER WELDING COMBINATION GENERAL TYPE)	1	Cena bez DPH 1 099,17 Kč Cena s DPH 1 330 Kč	SKLADEM
46	S05-H162020-0B0-00	REAR LEFT REFLECTOR SEAT	1	Cena bez DPH 42,98 Kč Cena s DPH 52 Kč	NA DOTAZ
47	S05-H162021-0B0-00	REAR RIGHT REFLECTOR SEAT	1	Cena bez DPH 42,98 Kč Cena s DPH 52 Kč	NA DOTAZ
48	S05-C012000-DB0-00	REFLECTOR BRACKET	1	Cena bez DPH 94,21 Kč Cena s DPH 114 Kč	NA DOTAZ
49	GBT005789030	BOLT M10×1.25×45	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
50	GBT005789027	HEXAGON FLANGE BOLT M10×1.25×30	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
51	S05-C011000-DB0-00	RECTIFIER BRACKET	1	Cena bez DPH 137,19 Kč Cena s DPH 166 Kč	NA DOTAZ
52	GBT005789065	HEXAGON FLANGE BOLT M6×30	1	Cena bez DPH 200 Kč Cena s DPH 242 Kč	SKLADEM
53	S01C02505002	REAR LICENSE PLATE LIGHT BRACKET	1	Cena bez DPH 339,67 Kč Cena s DPH 411 Kč	SKLADEM
45	T10000001002	CIRCULAR REFLECTOR	2	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
44	T10000001003	SQUARE REFLECTOR	2	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	NA DOTAZ
43	U01M04500004	U01 POWER OUTPUT SEAT OF REAR TRAILER (GENERAL TYPE)	1	Cena bez DPH 577,75 Kč Cena s DPH 699 Kč	SKLADEM
37	U01R21300002	U01 TOWING HOOK BOLT 16	1	Cena bez DPH 362,81 Kč Cena s DPH 439 Kč	SKLADEM
38	QCT000623002	LOCKING PIN 12	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA CESTĚ
39	GBT005789016	Hexagon flange bolt M8×25	1	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
40	GBT006170004	TYPE 1 HEXAGON NUT M8	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
41	U01R21100001	TRAILER BALL（EU）	1	Cena bez DPH 1 132,23 Kč Cena s DPH 1 370 Kč	SKLADEM
42	S05-C025500-FB0-01	REAR BUMPER(BLACK)	1	Cena bez DPH 2 303,31 Kč Cena s DPH 2 787 Kč	NA DOTAZ
42	S05-C025500-FG0-01	REAR BUMPER(GREEN)	1	Cena bez DPH 2 303,31 Kč Cena s DPH 2 787 Kč	NA DOTAZ
42	S05-C025500-FR0-01	REAR BUMPER(RED)	1	Cena bez DPH 2 303,31 Kč Cena s DPH 2 787 Kč	NA DOTAZ
25	S01-C024000-FG0-00	R/B S01-C024000-FG0-01 RIGHT GUARD BAR (GREEN)	1	Cena bez DPH 2 043,80 Kč Cena s DPH 2 473 Kč	NA DOTAZ
23	S01C02000001	DOOR LATCH	1	Cena bez DPH 48,76 Kč Cena s DPH 59 Kč	NA DOTAZ
1	S05B01000002	FRAME（RED)	1	Cena bez DPH 92 817,36 Kč Cena s DPH 112 309 Kč	SKLADEM
7	S03-C112000-FR0-01	TOP BEAM UPPER（RED）	1	Cena bez DPH 7 215,70 Kč Cena s DPH 8 731 Kč	NA DOTAZ
7	S03-C112000-FG0-01	TOP BEAM UPPER (GREEN)	1	Cena bez DPH 6 969,42 Kč Cena s DPH 8 433 Kč	SKLADEM ZA 19 dnů
7	S03-C112000-FB0-01	TOP BEAM UPPER (BLACK)	1	Cena bez DPH 7 215,70 Kč Cena s DPH 8 731 Kč	SKLADEM
8	GBT005789045	HEXAGON FLANGE BOLT M12×1.25×25	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	NA DOTAZ
9	S01C03700002	MOUNTING BRACKET ASSEMBLY ON THE UPPER LEFT OF THE CARGO BOX	1	Cena bez DPH 297,52 Kč Cena s DPH 360 Kč	SKLADEM
10	GBT005789014	Bolt M8×16	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
11	S01C03800002	MOUNTING BRACKET ASSEMBLY ON THE UPPER RIGHT OF THE CARGO BOX	1	Cena bez DPH 297,52 Kč Cena s DPH 360 Kč	SKLADEM
12	S05-C009000-FB0-00	FRONT BUMPER (BLACK)	1	Cena bez DPH 2 547,93 Kč Cena s DPH 3 083 Kč	SKLADEM
6	S03-C113000-FB0-01	TOP BEAM RIGHT(BLACK)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	SKLADEM
6	S03-C113000-FG0-01	TOP BEAM RIGHT(GREEN)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	SKLADEM ZA 19 dnů
6	S03-C113000-FR0-01	TOP BEAM RIGHT(RED)	1	Cena bez DPH 5 983,47 Kč Cena s DPH 7 240 Kč	SKLADEM
1	S05B01000003	FRAME (GREEN)	1	Cena bez DPH 92 817,36 Kč Cena s DPH 112 309 Kč	NA DOTAZ
1	S05B01000005	FRAME (BLACK)	1	Cena bez DPH 98 186,78 Kč Cena s DPH 118 806 Kč	NA DOTAZ
2	S03-C111000-FR0-01	TOP BEAM LEFT(RED)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	NA DOTAZ
2	S03-C111000-FG0-01	TOP BEAM LEFT(GREEN)	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	SKLADEM
2	S03-C111000-FB0-01	TOP BEAM LEFT(BLACK）	1	Cena bez DPH 6 367,77 Kč Cena s DPH 7 705 Kč	SKLADEM
3	GBT005789102	HEX FLANGE BOLT M12×1.25×75	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
4	GBT005789054	BOLT M12×1.25×30	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	NA CESTĚ
5	GBT061832002	NUT M12×1.25	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	NA DOTAZ
12	S05-C009000-FG0-00	FRONT BUMPER (GREEN)	1	Cena bez DPH 2 547,93 Kč Cena s DPH 3 083 Kč	NA DOTAZ
12	S05-C009000-FR0-00	FRONT BUMPER (RED)	1	Cena bez DPH 2 547,93 Kč Cena s DPH 3 083 Kč	NA DOTAZ
18	S05-C021000-DB0-00	FRAME FRONT SUPPORT ASSEMBLY (BLACK)	1	Cena bez DPH 828,10 Kč Cena s DPH 1 002 Kč	SKLADEM
19	S01C005A1002	FRONT SUPPORT UPPER CONNECTING PLATE（RED）	1	Cena bez DPH 547,11 Kč Cena s DPH 662 Kč	NA DOTAZ
19	S01C005A1003	FRONT SUPPORT UPPER CONNECTING PLATE（GREEN）	1	Cena bez DPH 547,11 Kč Cena s DPH 662 Kč	NA DOTAZ
20	GBT005789015	BOLT M8×20	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	NA DOTAZ
21	S01H21000001	DECORATIVE PLUG	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
22	S05B30050002	A-PILLAR DECORATION（RED）	2	Cena bez DPH 153,72 Kč Cena s DPH 186 Kč	NA DOTAZ
22	S05B30050003	A-PILLAR DECORATION（GREEN）	2	Cena bez DPH 1 004,96 Kč Cena s DPH 1 216 Kč	NA DOTAZ
22	S05B30050005	A-PILLAR DECORATION（BLACK）	1	Cena bez DPH 149,59 Kč Cena s DPH 181 Kč	NA DOTAZ
17	T03000007002	Inner hexagon screws M6×1.6	16	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
16	S05-C030000-PW2-00	BUMPER TRIM PANEL（SILVER GRAY）	1	Cena bez DPH 546,28 Kč Cena s DPH 661 Kč	SKLADEM
16	S05-C030000-PH1-00	BUMPER TRIM PANEL（FROSTED SILVER）	1	Cena bez DPH 546,28 Kč Cena s DPH 661 Kč	NA DOTAZ
12,1	S01C00600002	FRONT BUMPER (RED)	1	Cena bez DPH 2 880,17 Kč Cena s DPH 3 485 Kč	SKLADEM
12,1	S01C00600003	FRONT BUMPER (GREEN)	1	Cena bez DPH 2 880,17 Kč Cena s DPH 3 485 Kč	NA DOTAZ
12,1	S01C00600005	FRONT BUMPER (BLACK)	1	Cena bez DPH 2 509,92 Kč Cena s DPH 3 037 Kč	NA DOTAZ
13	GBT005789025	HEXAGON FLANGE BOLT M10×1.25×20	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
14	GBT005789026	Hexagon flange bolt M10×1.25×25	5	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
15	GBT061832001	2-non-metallic insert hexagon flange bolt M10×1.25	3	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
16	S01C00700002	BUMPER TRIM PANEL（FROSTED SILVER）	1	Cena bez DPH 1 108,26 Kč Cena s DPH 1 341 Kč	NA DOTAZ
16	S01C00700003	R/B S05-C030000-PH1-00 BUMPER TRIM PANEL（SILVER GRAY）	1	Cena bez DPH 1 108,26 Kč Cena s DPH 1 341 Kč	NA DOTAZ
23	GBT000701013	HEXAGON SOCKET HEAD CAP SCREW M8×12	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
