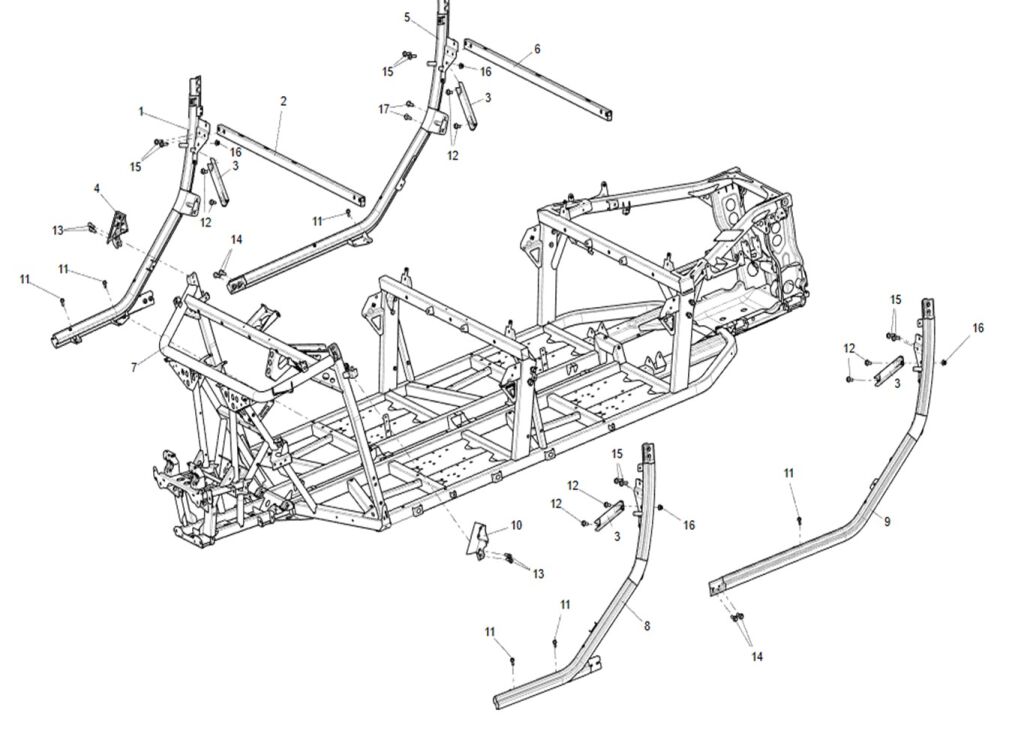

FRAME BODY

Výrobce SEGWAY
Kód produktu SEGWAY_2_232_UT10_CREW_U5

Ref. č	Kód p.	Popis	Počet v daném rozkresu	Cena za 1 ks	dostupnost
1	U03-C112000-FB0-00	TOP BEAM LOWER FRONT RIGHT WELD ASSY-BLACK	1	Cena bez DPH 3 890,91 Kč Cena s DPH 4 708 Kč	NA DOTAZ
9	U03-C113000-FB0-01	TOP BEAM LOWER REAR LEFT ASSY-BLACK	1	Cena bez DPH 4 489,26 Kč Cena s DPH 5 432 Kč	NA DOTAZ
9	U03-C113000-FG0-01	TOP BEAM LOWER REAR LEFT ASSY-GREEN	1	Cena bez DPH 4 571,90 Kč Cena s DPH 5 532 Kč	SKLADEM ZA 24 dnů
9	U03-C113000-FR0-01	TOP BEAM LOWER REAR LEFT ASSY-RED	1	Cena bez DPH 4 571,90 Kč Cena s DPH 5 532 Kč	NA DOTAZ

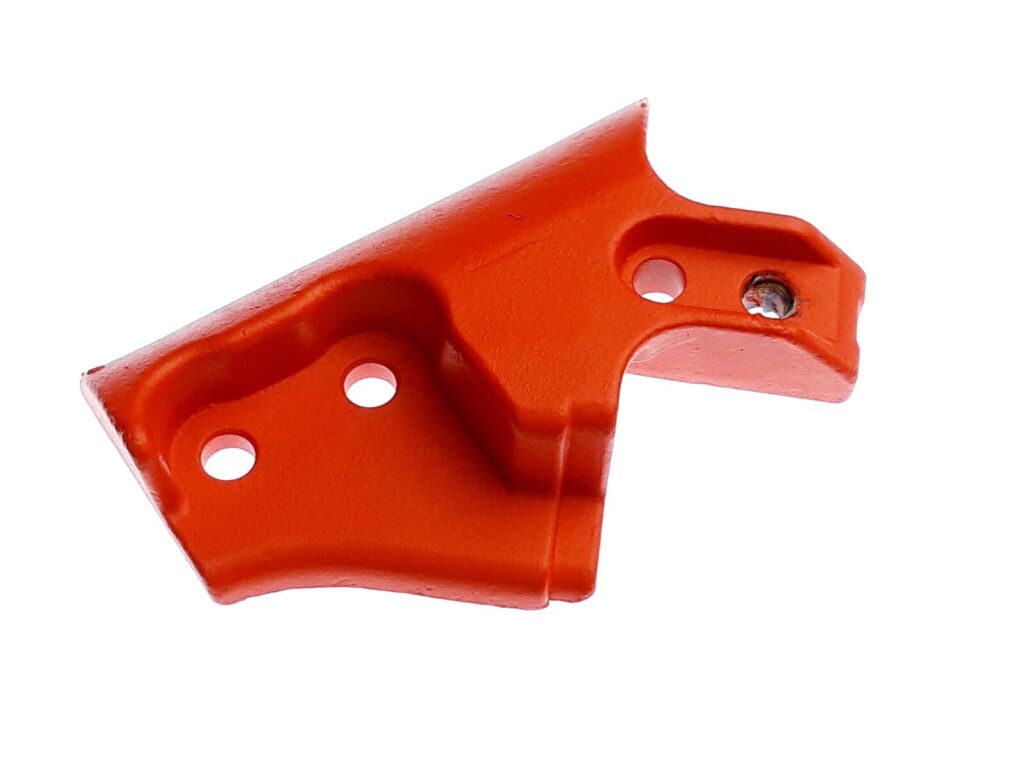

10	U05C00002003	U05 A-PILLAR LOWER LEFT SOLEPLATE-RED	1	Cena bez DPH 1 610,74 Kč Cena s DPH 1 949 Kč	NA DOTAZ

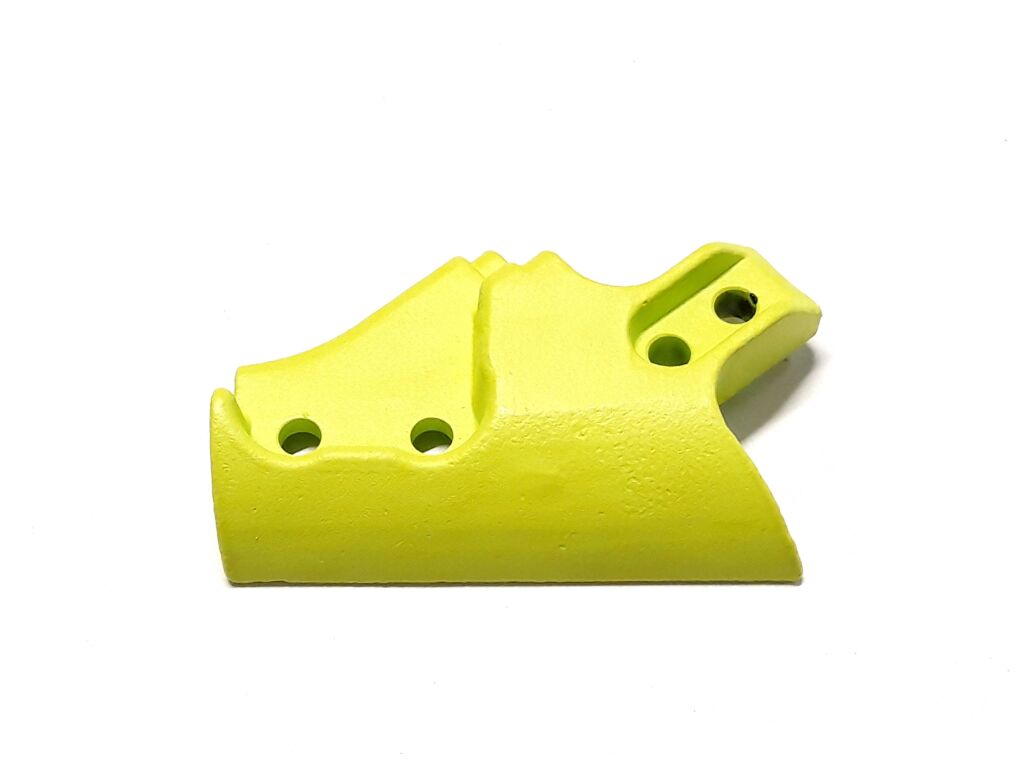

10	U05C00002004	U05 A-PILLAR LOWER LEFT SOLEPLATE-GREEN	1	Cena bez DPH 1 610,74 Kč Cena s DPH 1 949 Kč	NA DOTAZ
10	U05C00002005	U05 A-PILLAR LOWER LEFT SOLEPLATE-BLACK	1	Cena bez DPH 1 610,74 Kč Cena s DPH 1 949 Kč	NA DOTAZ
11	GBT005789015	BOLT M8×20	6	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
12	GBT005789025	HEXAGON FLANGE BOLT M10×1.25×20	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM

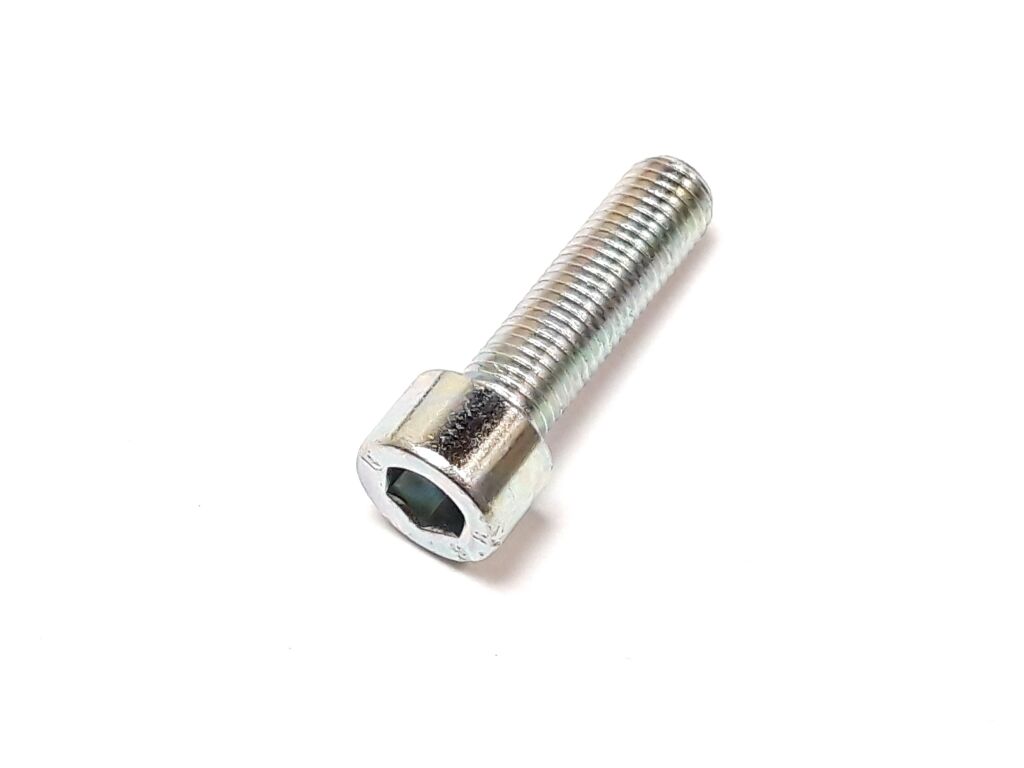

13	GBT000701005	SCREWS M10×1.25×35	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
14	GBT005789028	BOLT M10×1.25×35	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
15	GBT005789027	HEXAGON FLANGE BOLT M10×1.25×30	8	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
16	GBT061832001	2-non-metallic insert hexagon flange bolt M10×1.25	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
8	U03-C111000-FR0-00	TOP BEAM LOWER FRONT LEFT ASSY-RED	1	Cena bez DPH 3 890,91 Kč Cena s DPH 4 708 Kč	NA DOTAZ
8	U03-C111000-FG0-00	TOP BEAM LOWER FRONT LEFT ASSY-GREEN	1	Cena bez DPH 3 890,91 Kč Cena s DPH 4 708 Kč	NA DOTAZ
8	U03-C111000-FB0-00	TOP BEAM LOWER FRONT LEFT ASSY-BLACK	1	Cena bez DPH 3 890,91 Kč Cena s DPH 4 708 Kč	NA DOTAZ
1	U03-C112000-FG0-00	TOP BEAM LOWER FRONT RIGHT WELD ASSY-GREEN	1	Cena bez DPH 3 890,91 Kč Cena s DPH 4 708 Kč	NA DOTAZ
1	U03-C112000-FR0-00	TOP BEAM LOWER FRONT RIGHT WELD ASSY-RED	1	Cena bez DPH 3 890,91 Kč Cena s DPH 4 708 Kč	NA DOTAZ
2	U03-C117000-DB0-00	B-PILLAR CONNECTION ASSY(BLACK)	1	Cena bez DPH 949,59 Kč Cena s DPH 1 149 Kč	NA DOTAZ
3	U01C10001002	U01 TOP BAR REAR LOWER SUPPORT PIPE	4	Cena bez DPH 396,69 Kč Cena s DPH 480 Kč	NA DOTAZ

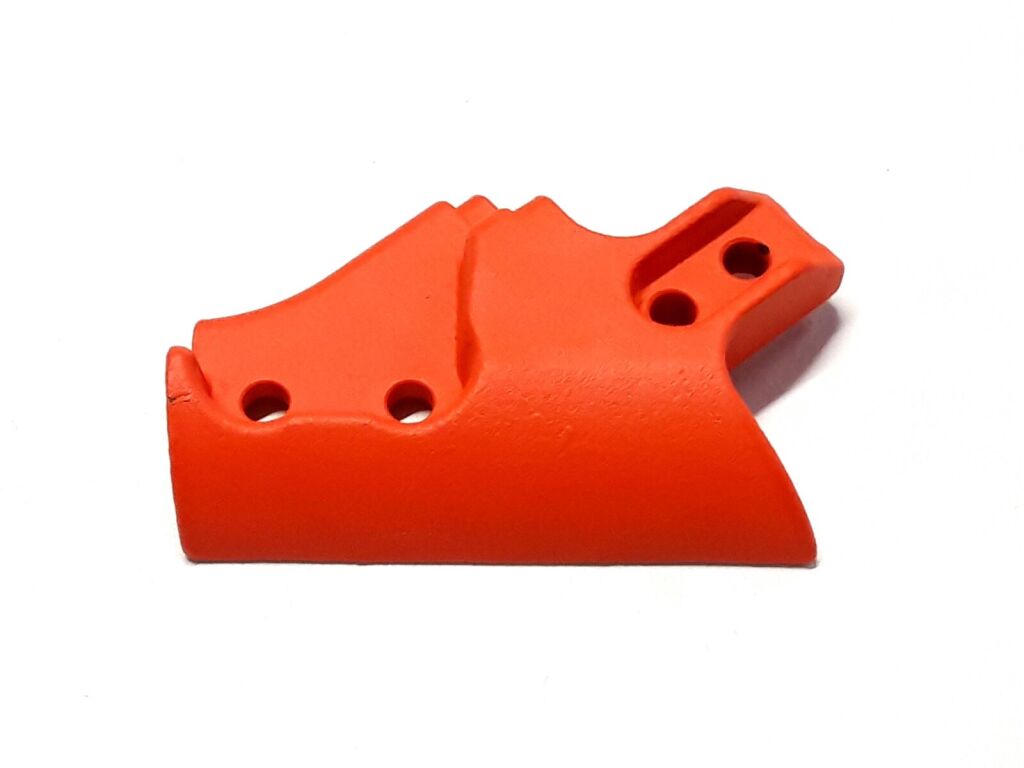

4	U05C00001003	U05 A-PILLAR LOWER RIGNT SOLEPLATE-RED	1	Cena bez DPH 1 715,70 Kč Cena s DPH 2 076 Kč	NA DOTAZ

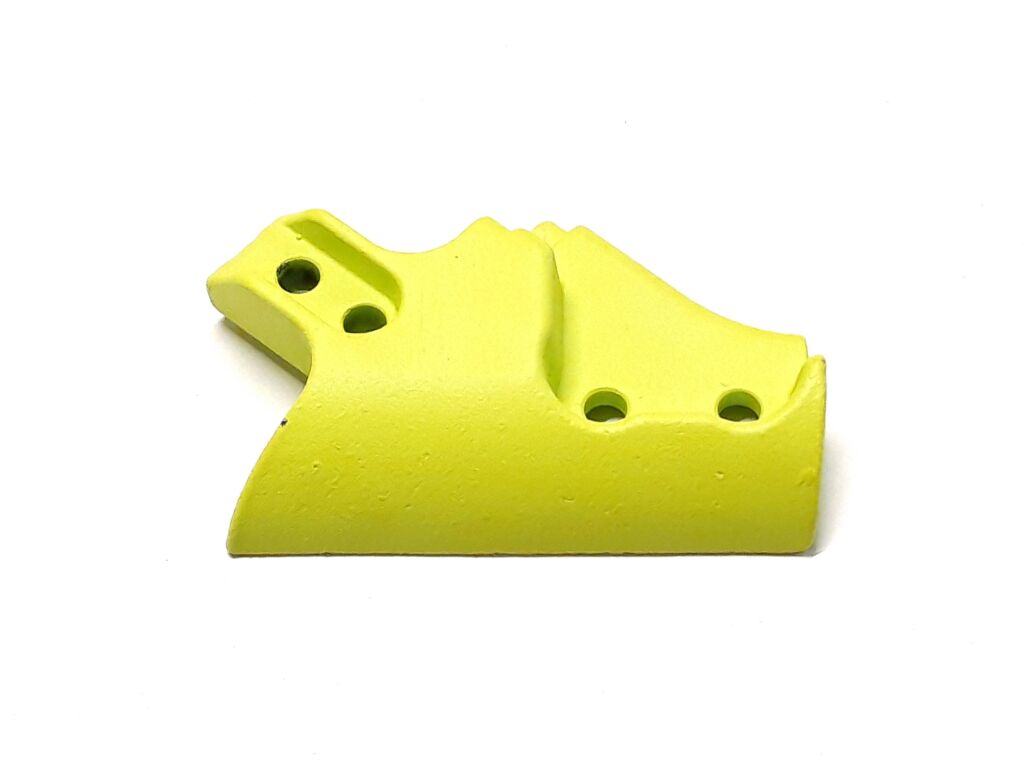

4	U05C00001004	U05 A-PILLAR LOWER RIGNT SOLEPLATE-GREEN	1	Cena bez DPH 1 715,70 Kč Cena s DPH 2 076 Kč	NA DOTAZ
4	U05C00001005	U05 A-PILLAR LOWER RIGNT SOLEPLATE-BLACK	1	Cena bez DPH 1 715,70 Kč Cena s DPH 2 076 Kč	NA DOTAZ
5	U03-C114000-FB0-01	TOP BEAM LOWER REAR RIGHT ASSY-BLACK	1	Cena bez DPH 4 489,26 Kč Cena s DPH 5 432 Kč	NA DOTAZ
5	U03-C114000-FG0-01	TOP BEAM LOWER REAR RIGHT ASSY-GREEN	1	Cena bez DPH 4 571,90 Kč Cena s DPH 5 532 Kč	NA DOTAZ
5	U03-C114000-FR0-01	TOP BEAM LOWER REAR RIGHT ASSY-RED	1	Cena bez DPH 4 571,90 Kč Cena s DPH 5 532 Kč	NA DOTAZ
6	U03-C118000-DB0-00	C-PILLAR CONNECTION ASSY(BLACK)	1	Cena bez DPH 1 209,09 Kč Cena s DPH 1 463 Kč	NA DOTAZ
7	U03-B010000-DB0-00	FRAME WELDING ASSY(BLACK)	1	Cena bez DPH 89 123,97 Kč Cena s DPH 107 840 Kč	NA DOTAZ
17	GBT005789029	HEXAGON FLANGE BOLT M10×1.25×40	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
