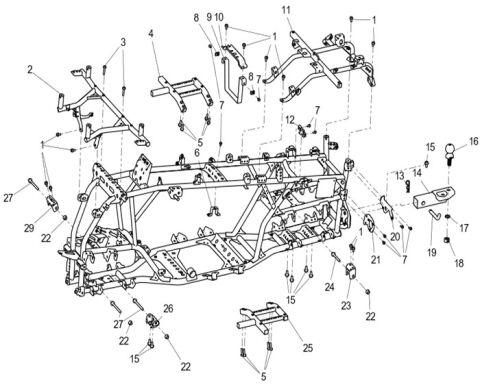

FRAME COMPONENTS(SHORT VERSION)

Kód produktu: SEGWAY_2_254_AT5_T3b
Vybrat MODEL:
AT5 S T3b AT5 S T3b
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 Bolt M8×16 (Ref. č 1) GBT005789014 Bolt M8×16  12 57,02 Kč 69 Kč
SKLADEM
16 TRAILER BALL (Ref. č 16) A02R21100001 TRAILER BALL  1 590,91 Kč 715 Kč
SKLADEM
19 R/B U01R21300002 TRAILER PIN (Ref. č 19) U01R21300001 R/B U01R21300002 TRAILER PIN  1 146,28 Kč 177 Kč
NA DOTAZ
20 A10-C017000-DB0-00 FOG LIGHT MOUNTING BRACKET  1 123,14 Kč 149 Kč
NA DOTAZ
21 TRAILER POWER SOCKET BRACKET (Ref. č 21) A02C07000002 TRAILER POWER SOCKET BRACKET  1 368,60 Kč 446 Kč
SKLADEM
22 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 22) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  3 57,02 Kč 69 Kč
SKLADEM
23 A10-C004000-DB0-00 UPPER MOUNT OF REAR AXLE  1 128,51 Kč 155,50 Kč
NA CESTĚ
24 HEXAGON FLANGE BOLT M10×1.25×75 (Ref. č 24) GBT005789086 HEXAGON FLANGE BOLT M10×1.25×75  1 57,02 Kč 69 Kč
SKLADEM
25 A10-C011000-DB0-00 LEFT PEDAL  1 600,66 Kč 726,80 Kč
NA DOTAZ
26 A10-C002000-DB0-00 LOWER MOUNT OF FRONT AXLE  1 151,32 Kč 183,10 Kč
NA CESTĚ
27 HEXAGON FLANGE BOLT M10×1.25×100 (Ref. č 27) GBT005789038 HEXAGON FLANGE BOLT M10×1.25×100  3 71,90 Kč 87 Kč
SKLADEM
28 A10-B000000-DB0-00 FRAME BOBY SHORT VERSION  1 17 721,98 Kč 21 443,60 Kč
NA DOTAZ
15 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 15) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  7 57,02 Kč 69 Kč
SKLADEM
14 TRAILER SQUARE TUBE (Ref. č 14) A02C09000002 TRAILER SQUARE TUBE  1 985,95 Kč 1 193 Kč
SKLADEM
13 LOCKING PIN 12 (Ref. č 13) QCT000623002 LOCKING PIN 12  1 57,02 Kč 69 Kč
SKLADEM
2 A10-C015000-DB0-00 FRONT SHELF SUPPORT  1 993,80 Kč 1 202,50 Kč
NA DOTAZ
3 HEXAGON FLANGE BOLT M8×40 (Ref. č 3) GBT005789019 HEXAGON FLANGE BOLT M8×40  2 57,02 Kč 69 Kč
SKLADEM
4 A10-C012000-DB0-00 RIGHT PEDAL  1 600,66 Kč 726,80 Kč
NA DOTAZ
5 HEXAGON FLANGE BOLT M8×30 (Ref. č 5) GBT005789017 HEXAGON FLANGE BOLT M8×30  8 57,02 Kč 69 Kč
SKLADEM
6 A10-C013000-DB0-00 STARTER RELAY BRACKET  1 69,17 Kč 83,70 Kč
NA CESTĚ
7 Bolt M6×12 (Ref. č 7) GBT005789006 Bolt M6×12  9 57,02 Kč 69 Kč
SKLADEM
8 M6 nut clip (Ref. č 8) T04000002001 M6 nut clip  2 57,02 Kč 69 Kč
SKLADEM
9 A10-C016000-DB0-00 BATTERY BRACKET  1 119,34 Kč 144,40 Kč
NA CESTĚ
10 A02C00003002 BATTERY PRESS PLATE  1 375,54 Kč 454,40 Kč
NA DOTAZ
11 A10-C006000-DB0-00 REAR SHELF SUPPORT  1 1 131,65 Kč 1 369,30 Kč
NA DOTAZ
12 A10-C005000-DB0-00 CARBON TANK MOUNTING BRACKET  1 60,08 Kč 72,70 Kč
NA DOTAZ
29 A10-C001000-DB0-00 UPPER MOUNT OF FRONT AXLE  1 130 Kč 157,30 Kč
NA CESTĚ
