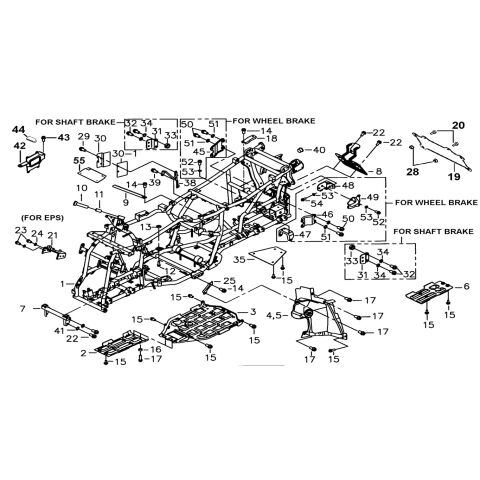

FRAME

TGB
Výrobce: TGB
Kód produktu: TGB_2_204_FTH-JDLE
Vybrat MODEL:
BLADE 600LTX T3b BLADE 600LTX T3b
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
49 517954 MOTOR BRACKET

FOR WHEEL BRAKE

1 191,74 Kč 232 Kč
NA DOTAZ
07 BRACKET (Ref. č 07) 511315 BRACKET  1 471,90 Kč 571 Kč
NA DOTAZ
55 514931 SEAT STEADY  1 583,47 Kč 706 Kč
NA DOTAZ
54 BOLT, SOCKET M8X20L (Ref. č 54) S72805 BOLT, SOCKET M8X20L

FOR WHEEL BRAKE

2 56,20 Kč 68 Kč
SKLADEM
53 SPRING WASHER (Ref. č 53) GA556WS04 SPRING WASHER

FOR WHEEL BRAKE

7 56,20 Kč 68 Kč
SKLADEM
52 BOLT (Ref. č 52) S21809 BOLT

FOR WHEEL BRAKE

5 56,20 Kč 68 Kč
SKLADEM
51 SPRING WASHER 10X18X2,5 (Ref. č 51) GA556WS06 SPRING WASHER 10X18X2,5

FOR WHEEL BRAKE

4 56,20 Kč 68 Kč
SKLADEM
50 BOLT M10X20 (Ref. č 50) S21008 BOLT M10X20

FOR WHEEL BRAKE

4 56,20 Kč 68 Kč
SKLADEM
42 BRACKET FOR EPS (BRUSH MOTOR) (Ref. č 42) 519802 BRACKET FOR EPS (BRUSH MOTOR)

FOR EPS (BRUSH MOTOR)

1 830,58 Kč 1 005 Kč
SKLADEM
18 511318 BRACKET  1 92,56 Kč 112 Kč
NA DOTAZ
19 515949 EXTENSION BRACKET, NUMBER PLATE  1 282,64 Kč 342 Kč
NA DOTAZ
21 511369 BRACKET, EPS

FOR W/EPS

1 817,36 Kč 989 Kč
NA DOTAZ
48 517999 BRACKET

FOR WHEEL BRAKE

1 223,14 Kč 270 Kč
NA DOTAZ
47 REAR DIFFERENTIAL BRACKET(UPPER) (Ref. č 47) 517972 REAR DIFFERENTIAL BRACKET(UPPER)

FOR WHEEL BRAKE

1 421,49 Kč 510 Kč
SKLADEM
46 REAR DIFFERENTIAL BRACKET, LH. (Ref. č 46) 517948 REAR DIFFERENTIAL BRACKET, LH.

FOR WHEEL BRAKE

1 445,45 Kč 539 Kč
NA CESTĚ
45 REAR DIFFERENTIAL BRACKET, RH. (Ref. č 45) 517953 REAR DIFFERENTIAL BRACKET, RH.

FOR WHEEL BRAKE

1 180,17 Kč 218 Kč
NA CESTĚ
44 926897 BUSH, RUBBER

FOR EPS (BRUSH MOTOR)

1 47,11 Kč 57 Kč
NA DOTAZ
38 511367 BRACKET  1 385,95 Kč 467 Kč
NA DOTAZ
35 511370 PROTECTOR COVER  1 603,31 Kč 730 Kč
NA DOTAZ
31 BRACKET (Ref. č 31) 511364 BRACKET

FOR SHAFT BRAKE

2 223,14 Kč 270 Kč
NA DOTAZ
30.1 511371 HEAT INSULATION  1 47,11 Kč 57 Kč
NA DOTAZ
25 517969 FRONT INTERNAL FENDER  1 132,23 Kč 160 Kč
NA DOTAZ
40 PLUG CAP (Ref. č 40) 512072 PLUG CAP  2 56,20 Kč 68 Kč
NA CESTĚ
39 BOLT, FLANGE M8X16 (Ref. č 39) S20817 BOLT, FLANGE M8X16  1 56,20 Kč 68 Kč
SKLADEM
12 BOLT, FLANGE (Ref. č 12) S20004 BOLT, FLANGE  1 56,20 Kč 68 Kč
SKLADEM
32 BOLT, FLANGE (Ref. č 32) S20004 BOLT, FLANGE

FOR SHAFT BRAKE

4 56,20 Kč 68 Kč
SKLADEM
11 SPRING, STEERING LOCK (Ref. č 11) 511946 SPRING, STEERING LOCK  1 56,20 Kč 68 Kč
SKLADEM
10 PIN, STEERING LOCK (Ref. č 10) 511953 PIN, STEERING LOCK  1 187,60 Kč 227 Kč
NA DOTAZ
09 SEAT STEADY, FRONT (Ref. č 09) 511950 SEAT STEADY, FRONT  1 139,67 Kč 169 Kč
SKLADEM
08 BRACKET ASSY., NUMBER-PLATE (Ref. č 08) 511991 BRACKET ASSY., NUMBER-PLATE  1 680,99 Kč 824 Kč
SKLADEM
06 511986-M1 PROTECTOR, REAR (PLASTIC)

OPTION

1 357,85 Kč 433 Kč
NA DOTAZ
05 511994 FRONT INTERNAL FENDER, RH.  1 953,72 Kč 1 154 Kč
SKLADEM
04 FRONT INTERNAL FENDER, LH (Ref. č 04) 511301 FRONT INTERNAL FENDER, LH  1 953,72 Kč 1 154 Kč
NA DOTAZ
03 511926 REAR BOTTOM PLATE R/B 519807

OPTION

1 526,45 Kč 637 Kč
NA DOTAZ
02 PROTECTOR, FRONT (Ref. č 02) 511394 PROTECTOR, FRONT

OPTION

1 520,66 Kč 630 Kč
NA DOTAZ
13 NUT (Ref. č 13) GA501NT01 NUT  1 56,20 Kč 68 Kč
SKLADEM
14 BOLT, FLANGE M6X16 (Ref. č 14) GA555SC05 BOLT, FLANGE M6X16  4 56,20 Kč 68 Kč
SKLADEM
29 BOLT, FLANGE M6X16 (Ref. č 29) GA555SC05 BOLT, FLANGE M6X16  1 56,20 Kč 68 Kč
SKLADEM
20 BOLT, FLANGE M6X16 (Ref. č 20) GA555SC05 BOLT, FLANGE M6X16  2 56,20 Kč 68 Kč
SKLADEM
15 BOLT M6X16L (Ref. č 15) S25602 BOLT M6X16L  16 56,20 Kč 68 Kč
SKLADEM
33 NUT, SELF LOCK (Ref. č 33) GA551NT01 NUT, SELF LOCK

FOR SHAFT BRAKE

4 56,20 Kč 68 Kč
SKLADEM
28 NUT (Ref. č 28) N10604 NUT  2 56,20 Kč 68 Kč
SKLADEM
23 BOLT, FLANGE (Ref. č 23) S20814 BOLT, FLANGE

FOR W/EPS

4 56,20 Kč 68 Kč
SKLADEM
17 BOLT, FLANGE (Ref. č 17) S07601 BOLT, FLANGE  10 56,20 Kč 68 Kč
SKLADEM
16 SPACER (Ref. č 16) GA554BS02 SPACER

OPTION

2 56,20 Kč 68 Kč
SKLADEM
01 511319 MAIN FRAME  1 27 887,60 Kč 33 744 Kč
NA DOTAZ
41 SPRING WASHER (Ref. č 41) GA556WS04 SPRING WASHER  2 56,20 Kč 68 Kč
SKLADEM
24 SPRING WASHER (Ref. č 24) GA556WS04 SPRING WASHER

FOR W/EPS

4 56,20 Kč 68 Kč
SKLADEM
22 BOLT (Ref. č 22) S21809 BOLT  6 56,20 Kč 68 Kč
SKLADEM
43 BOLT (Ref. č 43) S21809 BOLT

FOR EPS (BRUSH MOTOR)

1 56,20 Kč 68 Kč
SKLADEM
34 SPRING WASHER 10X18X2,5 (Ref. č 34) GA556WS06 SPRING WASHER 10X18X2,5

FOR SHAFT BRAKE

4 56,20 Kč 68 Kč
SKLADEM
