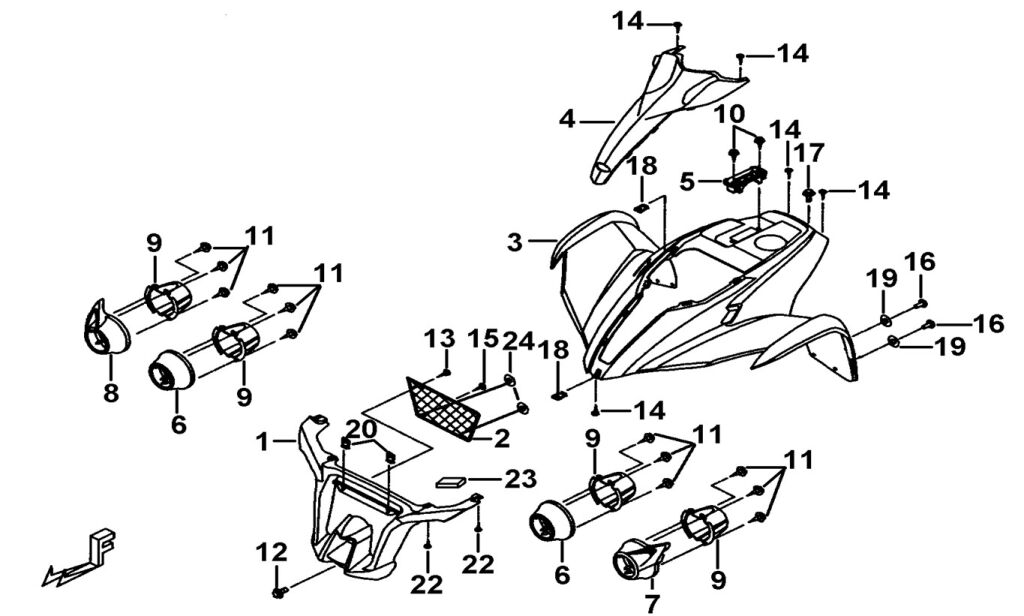

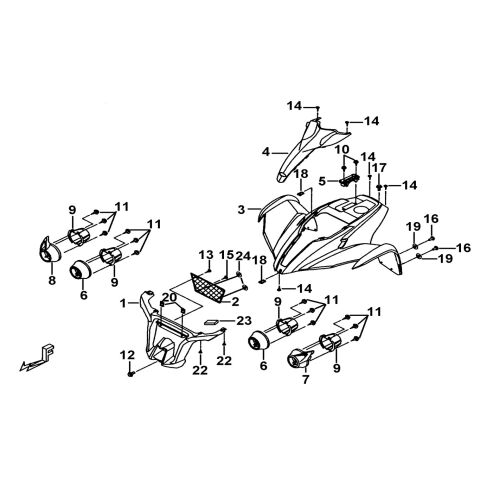

FRONT BODY COVER

TGB
Výrobce: TGB
Kód produktu: TGB_4_220_VSF
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
01 FIRST HOUSING (Ref. č 01) 512470 FIRST HOUSING  1 714,05 Kč 864 Kč
SKLADEM
14 SCREW, TAPPING M4X16 (Ref. č 14) GA552SC11 SCREW, TAPPING M4X16  5 56,20 Kč 68 Kč
SKLADEM
15 SCREW, PAN HEAD (Ref. č 15) S50402 SCREW, PAN HEAD  2 56,20 Kč 68 Kč
SKLADEM
16 BOLT, HEX HEAD M6X16 (Ref. č 16) S72605 BOLT, HEX HEAD M6X16  4 56,20 Kč 68 Kč
SKLADEM
17 BOLT, FLANGE (Ref. č 17) S07601 BOLT, FLANGE  1 56,20 Kč 68 Kč
SKLADEM
18 NUT, SPRING (Ref. č 18) GA552NT01 NUT, SPRING  3 56,20 Kč 68 Kč
SKLADEM
19 WASHER (Ref. č 19) GA555WS02 WASHER  4 56,20 Kč 68 Kč
SKLADEM
20 NUT, SPRING (Ref. č 20) N32501 NUT, SPRING  2 56,20 Kč 68 Kč
SKLADEM
22 SCREW, TAPPING (Ref. č 22) S50507 SCREW, TAPPING  4 56,20 Kč 68 Kč
SKLADEM
23 512476 CUSHION  4 70,25 Kč 85 Kč
NA DOTAZ
13 SCREW, PAN HEAD (Ref. č 13) GA552SC06 SCREW, PAN HEAD  2 56,20 Kč 68 Kč
SKLADEM
12 BOLT M6X16L (Ref. č 12) S25602 BOLT M6X16L  1 56,20 Kč 68 Kč
SKLADEM
02 NET (Ref. č 02) 512459 NET  1 596,69 Kč 722 Kč
SKLADEM

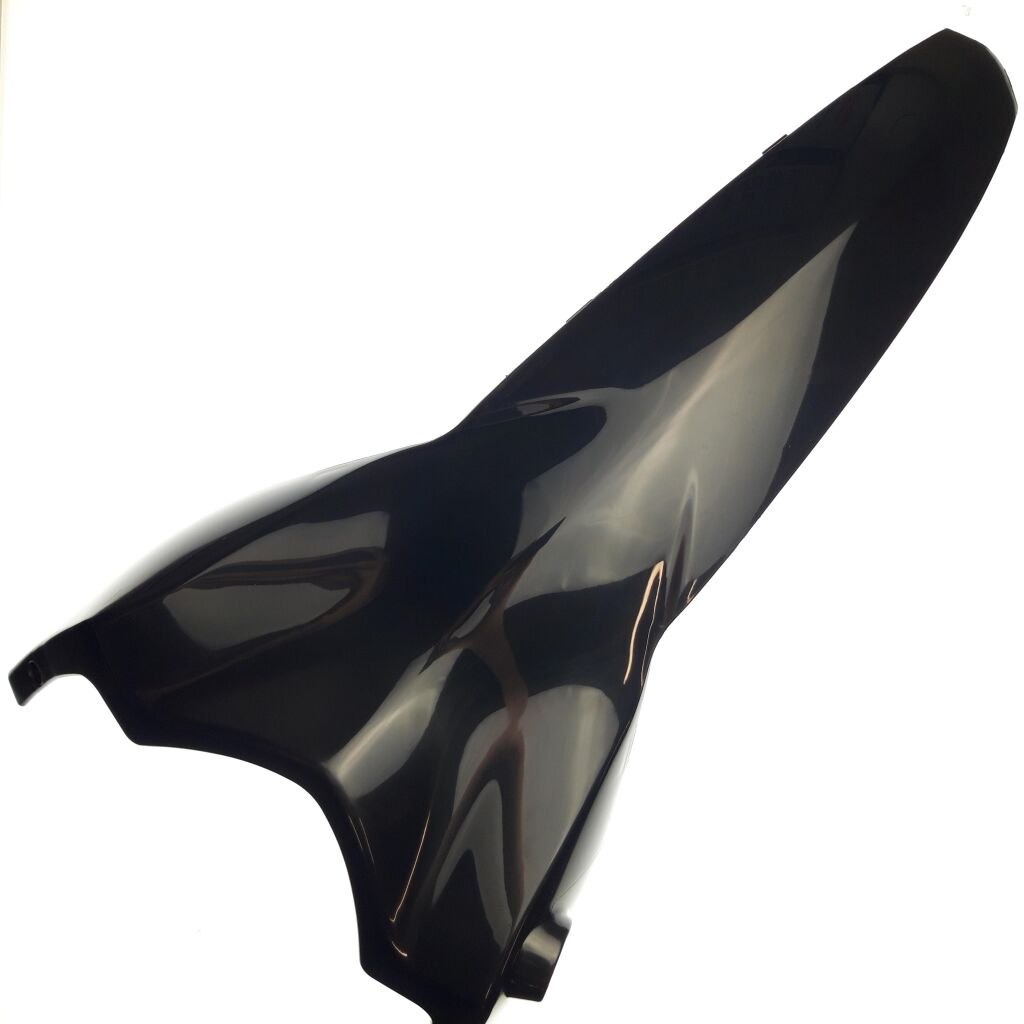

04 ORNAMENTAL, FORNT COVER (Ref. č 04) 512445BL ORNAMENTAL, FORNT COVER  1 1 374,38 Kč 1 663 Kč
SKLADEM
05 GEAR CHANGE INDICATOR SUPPORT(SILVER GRAY) (Ref. č 05) 512535MW GEAR CHANGE INDICATOR SUPPORT(SILVER GRAY)  1 190,08 Kč 230 Kč
SKLADEM
06 ORNAMENTAL COVER, MAIN-BEAM HEAD LAMP. (Ref. č 06) 512471 ORNAMENTAL COVER, MAIN-BEAM HEAD LAMP.  2 169,42 Kč 205 Kč
NA DOTAZ
07 ORNAMENTAL COVER LH., DIPPED-BEAM HEAD LAMP (Ref. č 07) 512472 ORNAMENTAL COVER LH., DIPPED-BEAM HEAD LAMP  1 204,96 Kč 248 Kč
SKLADEM
08 ORNAMENTAL COVER RH., DIPPED-BEAM HEAD LAMP (Ref. č 08) 512473 ORNAMENTAL COVER RH., DIPPED-BEAM HEAD LAMP  1 185,95 Kč 225 Kč
SKLADEM
09 ORNAMENTAL COVER (REAR), HEAD LAMP (Ref. č 09) 512469 ORNAMENTAL COVER (REAR), HEAD LAMP  4 248,76 Kč 301 Kč
SKLADEM
11 SCREW, TAPPING M4X16 (Ref. č 11) GA552SC11 SCREW, TAPPING M4X16  12 56,20 Kč 68 Kč
SKLADEM
24 WASHER (Ref. č 24) GA555WS02 WASHER  2 56,20 Kč 68 Kč
SKLADEM
10 SCREW, TAPPING (Ref. č 10) S50507 SCREW, TAPPING  2 56,20 Kč 68 Kč
SKLADEM
