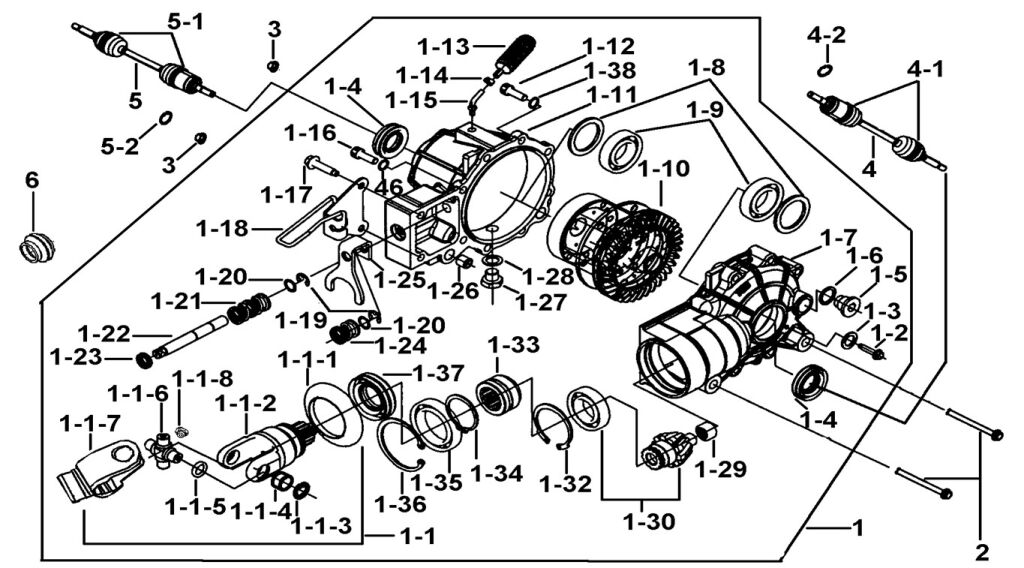

FRONT DIFFERENTIAL ASSY.(FOR NONE LOCK)

TGB
Výrobce: TGB
Kód produktu: TGB_1_11301_FBG-HFE
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
02 S20060 BOLT, FLANGE  2 111,57 Kč 135 Kč
NA DOTAZ
01.33 SLEEVE, SHIFT (14T) (Ref. č 01-33) 924398 SLEEVE, SHIFT (14T)  1 520,66 Kč 630 Kč
SKLADEM
01.32 CLIP (Ref. č 01-32) 924606 CLIP  1 108,26 Kč 131 Kč
SKLADEM
01.24A INSIDE SPRING (Ref. č 01-24A) 924970 INSIDE SPRING

010139→

1 59,50 Kč 72 Kč
SKLADEM
01.24 SPRING, SHIFT (Ref. č 01-24) 924615 SPRING, SHIFT

←010138

1 56,20 Kč 68 Kč
SKLADEM
01.23 OIL SEAL?12X?20X5 (Ref. č 01-23) 924381 OIL SEAL?12X?20X5  1 56,20 Kč 68 Kč
SKLADEM
01.22A ROD, SHIFT (Ref. č 01-22A) 927078 ROD, SHIFT

010139→

1 509,92 Kč 617 Kč
SKLADEM
01.34 CLIP (Ref. č 01-34) R00105 CLIP  1 95,04 Kč 115 Kč
SKLADEM

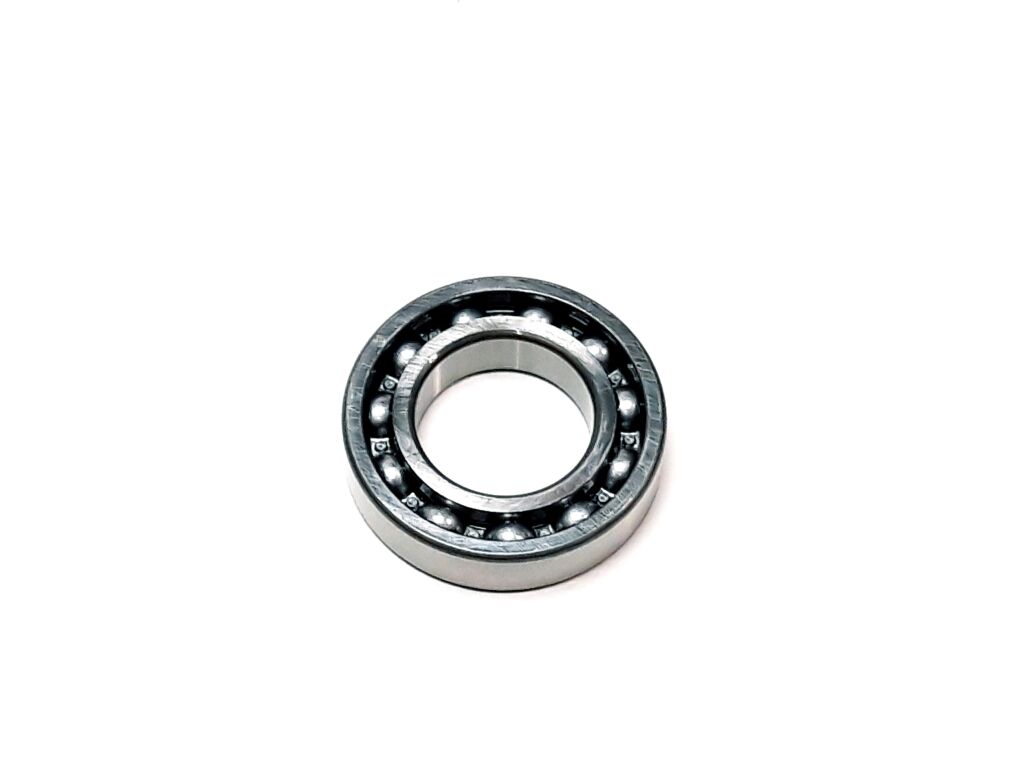

01.35 BEARING ?45X?68X12 (Ref. č 01-35) 924382 BEARING ?45X?68X12  1 1 550,41 Kč 1 876 Kč
SKLADEM
01.36 CLIP (Ref. č 01-36) R01301 CLIP  1 239,67 Kč 290 Kč
SKLADEM
01.09 927381 BEARING  2 410,74 Kč 497 Kč
NA DOTAZ
06 BOOT, PROPELLER SHAFT (Ref. č 06) 924224 BOOT, PROPELLER SHAFT  1 120,66 Kč 146 Kč
SKLADEM
05A 925215A FRONT TRANSMISSION SHAFT (L) (unavailable)

011786→

1 5 831,40 Kč 7 056 Kč
NA DOTAZ
05.2 C CLIP (Ref. č 05-2) 924785 C CLIP  1 56,20 Kč 68 Kč
SKLADEM
04.2 C CLIP (Ref. č 04-2) 924785 C CLIP  1 56,20 Kč 68 Kč
SKLADEM
05.1 R/B 927395Y BOOT FIX BAG (Ref. č 05-1) 927278 R/B 927395Y BOOT FIX BAG  1 1 519,01 Kč 1 838 Kč
NA DOTAZ
04.1 R/B 927395Y BOOT FIX BAG (Ref. č 04-1) 927278 R/B 927395Y BOOT FIX BAG  1 1 519,01 Kč 1 838 Kč
NA DOTAZ
01.30 PINION, DRIVE (Ref. č 01-30) 925703A PINION, DRIVE  1 4 121,49 Kč 4 987 Kč
NA DOTAZ
01.29 BEARING ?15X?21X12 (Ref. č 01-29) 924384 BEARING ?15X?21X12  1 244,63 Kč 296 Kč
SKLADEM
01.28 WASHER 14.2X 1.5 (Ref. č 01-28) W99433 WASHER 14.2X 1.5  1 56,20 Kč 68 Kč
SKLADEM
01.27 DRAIN PLUG BOLT (Ref. č 01-27) 924326 DRAIN PLUG BOLT  1 204,13 Kč 247 Kč
SKLADEM
01.26 PIN, DOWEL (Ref. č 01-26) P40301 PIN, DOWEL  2 56,20 Kč 68 Kč
SKLADEM
01.25A FORK, SHIFT (Ref. č 01-25A) 927106 FORK, SHIFT

010139→

1 295,04 Kč 357 Kč
SKLADEM
01.25 FORK, SHIFT (Ref. č 01-25) 924613 FORK, SHIFT

←010138

1 234,71 Kč 284 Kč
SKLADEM
05 927053 R/B 927053Y SHAFT, DRIVE 17T

←011785

1 7 345,45 Kč 8 888 Kč
NA DOTAZ
04A FRONT TRANSMISSION SHAFT (R) (Ref. č 04A) 925216A FRONT TRANSMISSION SHAFT (R)

011786→

1 6 876,03 Kč 8 320 Kč
SKLADEM
04 TRANSMISSION SHAFT (R) (Ref. č 04) 927054 TRANSMISSION SHAFT (R)

←011785

1 7 147,11 Kč 8 648 Kč
SKLADEM
03 NUT, SELF LOCK (Ref. č 03) GA551NT01 NUT, SELF LOCK  2 56,20 Kč 68 Kč
SKLADEM
01.38 SPRING WASHER (Ref. č 01-38) GA556WS04 SPRING WASHER  8 56,20 Kč 68 Kč
SKLADEM
01.37 OIL SEAL ?52X?73X14 (Ref. č 01-37) 924380 OIL SEAL ?52X?73X14  1 172,73 Kč 209 Kč
SKLADEM
01.22 ROD SHIFT (Ref. č 01-22) 925675 ROD SHIFT

←010138

1 519,01 Kč 628 Kč
NA DOTAZ
01.21 SPRING RETURN (Ref. č 01-21) 925673 SPRING RETURN  1 149,59 Kč 181 Kč
NA DOTAZ
01.20 WASHER (Ref. č 01-20) W99218 WASHER  2 56,20 Kč 68 Kč
NA CESTĚ
01.1.2 YOKE, PROP SHAFT JOINT REAR (Ref. č 01-1-2) 924386 YOKE, PROP SHAFT JOINT REAR  1 3 100,83 Kč 3 752 Kč
NA DOTAZ
01.1.1 924387 DUST GUARD COVER  1 112,40 Kč 136 Kč
NA DOTAZ
01.08C SHIM ?45.5X?54X0.5t (Ref. č 01-08C) W99531 SHIM ?45.5X?54X0.5t  2 80,17 Kč 97 Kč
SKLADEM
01.08B SHIM ?45.5X?54X0.3t (Ref. č 01-08B) W99528 SHIM ?45.5X?54X0.3t  2 95,04 Kč 115 Kč
SKLADEM
01.08A SHIM ?45.5X?54X0.1t (Ref. č 01-08A) W99529 SHIM ?45.5X?54X0.1t  2 78,51 Kč 95 Kč
SKLADEM
01.08 SHIM ?45.5X?54X0.05t (Ref. č 01-08) W99530 SHIM ?45.5X?54X0.05t  2 69,42 Kč 84 Kč
SKLADEM
HOUSING FINAL DRIVE, FRONT (Ref. č ) 924629 HOUSING FINAL DRIVE, FRONT  2 338,02 Kč 2 829 Kč
NA DOTAZ
WASHER (Ref. č ) W99823 WASHER  56,20 Kč 68 Kč
SKLADEM
BOLT M18X1.5X16L (Ref. č ) S96808 BOLT M18X1.5X16L  136,36 Kč 165 Kč
SKLADEM
OIL SEAL (Ref. č ) 924379 OIL SEAL  77,69 Kč 94 Kč
SKLADEM
WASHER ?6.5X?13.2X1.3t (Ref. č ) W99621 WASHER ?6.5X?13.2X1.3t  56,20 Kč 68 Kč
SKLADEM
BOLT, FLANGE (Ref. č ) S21605 BOLT, FLANGE  56,20 Kč 68 Kč
SKLADEM
UNIVERSAL JOINT ASSY (Ref. č ) 925496 UNIVERSAL JOINT ASSY  4 899,17 Kč 5 928 Kč
SKLADEM
01.1.3 “C” CLIP (Ref. č 01-1-3) 924212 “C” CLIP  4 56,20 Kč 68 Kč
SKLADEM
01.1.4 BEARING (Ref. č 01-1-4) 924647 BEARING  4 248,76 Kč 301 Kč
SKLADEM
01.1.5 OIL SEAL (Ref. č 01-1-5) 927108 OIL SEAL  4 56,20 Kč 68 Kč
SKLADEM
01.19 R10702 E RING  2 51,24 Kč 62 Kč
NA DOTAZ
01.18 924611 BRACKET ASSY, SHIFT  1 234,71 Kč 284 Kč
NA DOTAZ
01.17 S21815 BOLT, FLANGE M8X1.25X50L  2 51,24 Kč 62 Kč
NA DOTAZ
01.16 S70810 SCREW, SOCKET HEAD M8X1.25X36L  2 51,24 Kč 62 Kč
NA DOTAZ
01.15 EXHAUST PIPE, BREATHE (Ref. č 01-15) 924261 EXHAUST PIPE, BREATHE  1 157,02 Kč 190 Kč
NA DOTAZ
01.14 CLIP (Ref. č 01-14) R40802 CLIP  1 56,20 Kč 68 Kč
NA DOTAZ
01.13 CASE, BREATHER (Ref. č 01-13) 924264 CASE, BREATHER  1 219,83 Kč 266 Kč
SKLADEM
01.12 SCREW, SOCKET HEAD M8X1.25X40L (Ref. č 01-12) S70809 SCREW, SOCKET HEAD M8X1.25X40L  6 56,20 Kč 68 Kč
SKLADEM
01.11 COVER, FINAL DRIVE (Ref. č 01-11) 924628 COVER, FINAL DRIVE  1 1 742,98 Kč 2 109 Kč
NA DOTAZ
01.10 SLIP LIMITED GEAR ASSY. (Ref. č 01-10) 924617 SLIP LIMITED GEAR ASSY.  1 12 350,41 Kč 14 944 Kč
NA DOTAZ
01.1.8 GREASE NIPPLE (Ref. č 01-1-8) 925494 GREASE NIPPLE  1 56,20 Kč 68 Kč
SKLADEM
01.1.7 925347 YOKE, PROP SHAFT JOINT REAR  1 1 337,19 Kč 1 618 Kč
NA DOTAZ
01.1.6 JOINT SET UNIVERSAL (Ref. č 01-1-6) 925467 JOINT SET UNIVERSAL  1 813,22 Kč 984 Kč
SKLADEM
FRONT DIFFERENTIAL ASSY. (Ref. č ) 924655B FRONT DIFFERENTIAL ASSY.  22 309,09 Kč 26 994 Kč
SKLADEM
