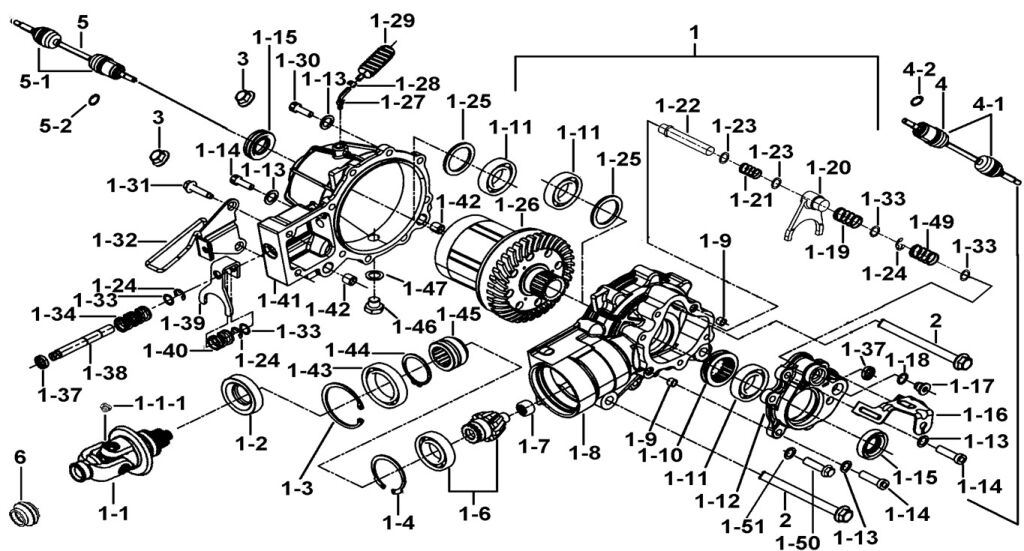

FRONT DIFFERENTIAL ASSY.(LOCK)

TGB
Výrobce: TGB
Kód produktu: TGB_1_113_FTG-HDLE
Vybrat MODEL:
BLADE 550 BLADE 550
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
BOOT, PROPELLER SHAFT (Ref. č ) 924224 BOOT, PROPELLER SHAFT  120,66 Kč 146 Kč
SKLADEM
PIN, DOWEL (Ref. č ) P40301 PIN, DOWEL  56,20 Kč 68 Kč
SKLADEM
COVER, FRONT DRIVE (Ref. č ) 924981 COVER, FRONT DRIVE  1 351,24 Kč 1 635 Kč
SKLADEM
INSIDE SPRING (Ref. č ) 924970 INSIDE SPRING  59,50 Kč 72 Kč
SKLADEM
FORK, SHIFT (Ref. č ) 927106 FORK, SHIFT  295,04 Kč 357 Kč
SKLADEM
ROD, SHIFT (Ref. č ) 927078 ROD, SHIFT  509,92 Kč 617 Kč
SKLADEM
OIL SEAL?12X?20X5 (Ref. č ) 924381 OIL SEAL?12X?20X5  56,20 Kč 68 Kč
SKLADEM
SPRING RETURN (Ref. č ) 925673 SPRING RETURN  149,59 Kč 181 Kč
NA DOTAZ
WASHER (Ref. č ) W99218 WASHER  56,20 Kč 68 Kč
NA CESTĚ
924611 BRACKET ASSY, SHIFT  234,71 Kč 284 Kč
NA DOTAZ
S21815 BOLT, FLANGE M8X1.25X50L  51,24 Kč 62 Kč
NA DOTAZ
SCREW, SOCKET HEAD M8X1.25X40L (Ref. č ) S70809 SCREW, SOCKET HEAD M8X1.25X40L  56,20 Kč 68 Kč
SKLADEM
CASE, BREATHER (Ref. č ) 924264 CASE, BREATHER  219,83 Kč 266 Kč
SKLADEM
BEARING ?45X?68X12 (Ref. č ) 924382 BEARING ?45X?68X12  1 550,41 Kč 1 876 Kč
SKLADEM
CLIP (Ref. č ) R00105 CLIP  95,04 Kč 115 Kč
SKLADEM
SLEEVE, SHIFT (14T) (Ref. č ) 924398 SLEEVE, SHIFT (14T)  520,66 Kč 630 Kč
SKLADEM
R/B 911606 C CLIP (Ref. č ) 925685 R/B 911606 C CLIP  81,82 Kč 99 Kč
NA DOTAZ
R/B 911606 C CLIP (Ref. č ) 925685 R/B 911606 C CLIP  81,82 Kč 99 Kč
NA DOTAZ
R/B 927395Y BOOT FIX BAG (Ref. č ) 927278 R/B 927395Y BOOT FIX BAG  1 519,01 Kč 1 838 Kč
NA DOTAZ
R/B 927395Y BOOT FIX BAG (Ref. č ) 927278 R/B 927395Y BOOT FIX BAG  1 519,01 Kč 1 838 Kč
NA DOTAZ
TRANSMISSION SHAFT (LH) (Ref. č ) 925441Y TRANSMISSION SHAFT (LH)  7 434,71 Kč 8 996 Kč
NA CESTĚ
TRANSMISSION SHAFT (R)(BLACK) (Ref. č ) 925442Y TRANSMISSION SHAFT (R)(BLACK)  7 183,47 Kč 8 692 Kč
SKLADEM
NUT, SELF LOCK (Ref. č ) GA551NT01 NUT, SELF LOCK  56,20 Kč 68 Kč
SKLADEM
WASHER ?6.5X?13.2X1.3t (Ref. č ) W99621 WASHER ?6.5X?13.2X1.3t  56,20 Kč 68 Kč
SKLADEM
S20623 BOLT M6X1.0X14  64,46 Kč 78 Kč
NA DOTAZ
925354 SPRING  66,12 Kč 80 Kč
NA DOTAZ
WASHER 14.2X 1.5 (Ref. č ) W99433 WASHER 14.2X 1.5  56,20 Kč 68 Kč
SKLADEM
DRAIN PLUG BOLT (Ref. č ) 924326 DRAIN PLUG BOLT  204,13 Kč 247 Kč
SKLADEM
CLIP (Ref. č ) R40802 CLIP  56,20 Kč 68 Kč
NA DOTAZ
EXHAUST PIPE, BREATHE (Ref. č ) 924261 EXHAUST PIPE, BREATHE  157,02 Kč 190 Kč
NA DOTAZ
SLIP LIMITED GEAR ASSY. (Ref. č ) 910589A SLIP LIMITED GEAR ASSY.  17 876,03 Kč 21 630 Kč
NA DOTAZ
BEARING (Ref. č ) 925337 BEARING  1 018,18 Kč 1 232 Kč
SKLADEM
LOCK SLEEVE (19T) (Ref. č ) 924886 LOCK SLEEVE (19T)  642,15 Kč 777 Kč
SKLADEM
GREASE NIPPLE (Ref. č ) 925494 GREASE NIPPLE  56,20 Kč 68 Kč
SKLADEM
P40102 PIN, DOWEL  110,74 Kč 134 Kč
NA DOTAZ
GEAR BOX (Ref. č ) 910654 GEAR BOX  2 238,84 Kč 2 709 Kč
NA CESTĚ
BEARING ?15X?21X12 (Ref. č ) 924384 BEARING ?15X?21X12  244,63 Kč 296 Kč
SKLADEM
PINION, DRIVE. (CONTAIN BEARING) (Ref. č ) 927025A PINION, DRIVE. (CONTAIN BEARING)  3 409,92 Kč 4 126 Kč
SKLADEM
PINION, DRIVE (Ref. č ) 925703A PINION, DRIVE  4 121,49 Kč 4 987 Kč
NA DOTAZ
CLIP (Ref. č ) 924606 CLIP  108,26 Kč 131 Kč
SKLADEM
CLIP (Ref. č ) R01301 CLIP  239,67 Kč 290 Kč
SKLADEM
OIL SEAL ?52X?73X14 (Ref. č ) 924380 OIL SEAL ?52X?73X14  172,73 Kč 209 Kč
SKLADEM
INSIDE SPRING (Ref. č ) 924970 INSIDE SPRING  59,50 Kč 72 Kč
SKLADEM
UNIVERSAL JOINT ASSY (Ref. č ) 925496 UNIVERSAL JOINT ASSY  4 899,17 Kč 5 928 Kč
SKLADEM
HOUSING FRONT DRIVE (Ref. č ) 910522 HOUSING FRONT DRIVE  1 233,06 Kč 1 492 Kč
SKLADEM
SPRING WASHER (Ref. č ) GA556WS04 SPRING WASHER  56,20 Kč 68 Kč
SKLADEM
S70810 SCREW, SOCKET HEAD M8X1.25X36L  51,24 Kč 62 Kč
NA DOTAZ
SLIP LIMITED GEAR ASSY. (Ref. č ) 924983 SLIP LIMITED GEAR ASSY.  14 817,36 Kč 17 929 Kč
SKLADEM
SHIM 0.3t (Ref. č ) W99308 SHIM 0.3t  56,20 Kč 68 Kč
SKLADEM
SHIM 0,1t (Ref. č ) W99307 SHIM 0,1t  56,20 Kč 68 Kč
SKLADEM
R10702 E RING  51,24 Kč 62 Kč
NA DOTAZ
924971 WASHER 1t  51,24 Kč 62 Kč
NA DOTAZ
924871 ROD, SHIFT  537,19 Kč 650 Kč
NA DOTAZ
FORK, SHIFT (Ref. č ) 924887 FORK, SHIFT  1 155,37 Kč 1 398 Kč
SKLADEM
925353 SPRING  66,12 Kč 80 Kč
NA DOTAZ
SCREW (Ref. č ) 924339 SCREW  136,36 Kč 165 Kč
SKLADEM
STEEL ROPE BRACKET (Ref. č ) 924982 STEEL ROPE BRACKET  207,44 Kč 251 Kč
SKLADEM
OIL SEAL (Ref. č ) 925010 OIL SEAL  380,99 Kč 461 Kč
SKLADEM
FRONT DIFFERENTIAL ASSY. (Ref. č ) 926220 FRONT DIFFERENTIAL ASSY.  21 986,78 Kč 26 604 Kč
SKLADEM
