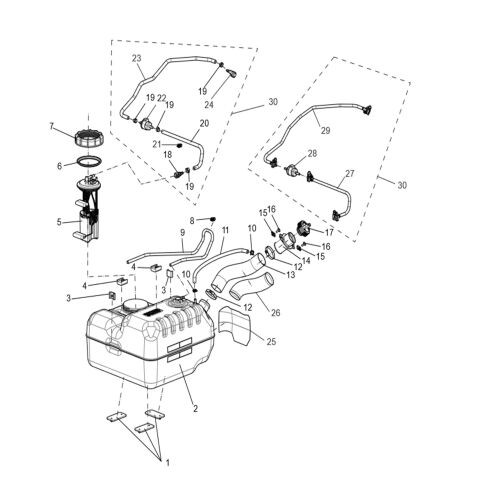

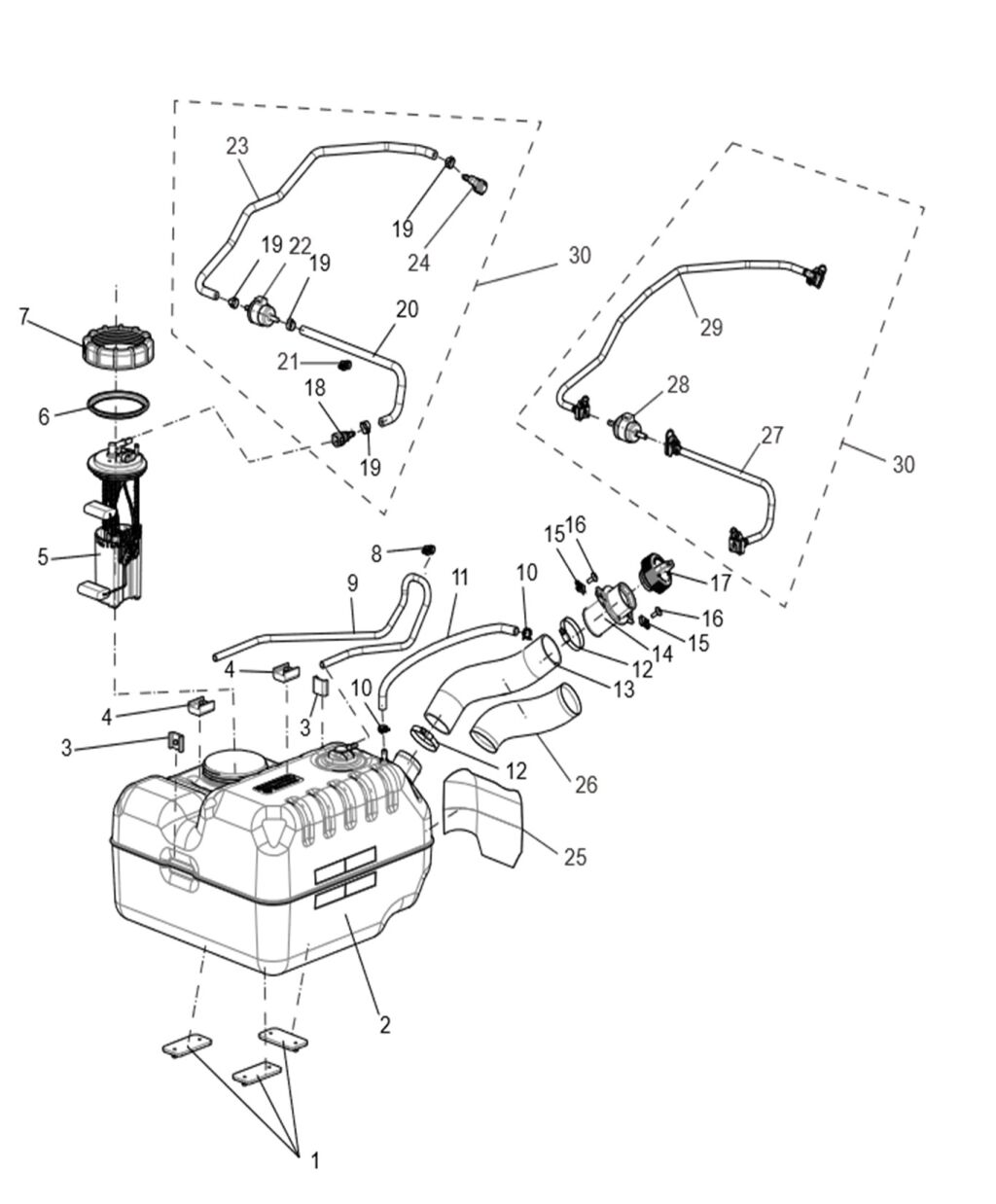

Fuel supply system-European standard

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_134_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 Fuel tank protection pad (Ref. č 1) S01A50106001 Fuel tank protection pad  3 89,26 Kč 108 Kč
SKLADEM
16 Inner hexagon screws M10×1.25×25 (Ref. č 16) T03000007002 Inner hexagon screws M10×1.25×25  2 57,02 Kč 69 Kč
SKLADEM
17 OIL TANK CAP（UNLOCK) (Ref. č 17) S01A50105001 OIL TANK CAP（UNLOCK)  1 159,50 Kč 193 Kč
SKLADEM
18 PUSH-BUTTON QUICK INSTALL PLUG 9.49-I(A) (Ref. č 18) T07000001003 PUSH-BUTTON QUICK INSTALL PLUG 9.49-I(A)  1 422,31 Kč 511 Kč
SKLADEM
19 Clamp,aingle ear continuously variable 16.5 (Ref. č 19) T05000006001 Clamp,aingle ear continuously variable 16.5  1 57,02 Kč 69 Kč
SKLADEM
20 U09 HIGH-PRESSURE OIL PIPE 1 (Ref. č 20) U09A52001001 U09 HIGH-PRESSURE OIL PIPE 1  1 294,21 Kč 356 Kč
NA DOTAZ
21 CLIP,ROUND 200 (Ref. č 21) T05000001004 CLIP,ROUND 200  3 57,02 Kč 69 Kč
SKLADEM
22 Fuel filter component (Ref. č 22) U01A52010001 Fuel filter component  1 359,50 Kč 435 Kč
SKLADEM
23 U09 HIGH-PRESSURE OIL PIPE 2 (Ref. č 23) U09A52003001 U09 HIGH-PRESSURE OIL PIPE 2  2 780,99 Kč 945 Kč
SKLADEM
24 7.89 QUICK CONNECTION PLUG(90 DEGREES) (Ref. č 24) T07000001006 7.89 QUICK CONNECTION PLUG(90 DEGREES)  1 80,17 Kč 97 Kč
SKLADEM
25 U01 FUEL TANK HEAT-INSULATING FILM (Ref. č 25) U01A51305001 U01 FUEL TANK HEAT-INSULATING FILM  2 57,02 Kč 69 Kč
SKLADEM
26 U01 OIL FILLING PIPE HEAT-INSULATING FILM (Ref. č 26) U01A51304001 U01 OIL FILLING PIPE HEAT-INSULATING FILM  1 57,02 Kč 69 Kč
SKLADEM
15 M6 nut clip (Ref. č 15) T04000002001 M6 nut clip  2 57,02 Kč 69 Kč
SKLADEM
14 U01 OIL FILLER (Ref. č 14) U01A51302002 U01 OIL FILLER  1 229,75 Kč 278 Kč
SKLADEM
13 U01 OIL FILLING PIPE (Ref. č 13) U01A51301001 U01 OIL FILLING PIPE  1 1 938,84 Kč 2 346 Kč
SKLADEM
2 U01 PLASTIC FUEL TANK ASSY EPA (Ref. č 2) U01A51100001 U01 PLASTIC FUEL TANK ASSY EPA  1 3 174,38 Kč 3 841 Kč
SKLADEM
3 U01 OIL TANK FRONT AND REAR SHOCK PAD (Ref. č 3) U01A50009001 U01 OIL TANK FRONT AND REAR SHOCK PAD  2 57,02 Kč 69 Kč
SKLADEM
4 U01 FUEL OIL TANK UP SHOCK PAD (Ref. č 4) U01A50005001 U01 FUEL OIL TANK UP SHOCK PAD  2 57,02 Kč 69 Kč
SKLADEM
5 U01 OIL PUMP ASSY (Ref. č 5) U01M43000001 U01 OIL PUMP ASSY  1 2 452,07 Kč 2 967 Kč
SKLADEM
6 GASKET,OIL PUMP (Ref. č 6) U01A51400001 GASKET,OIL PUMP  1 756,20 Kč 915 Kč
SKLADEM
7 CAP,INSTALL OIL PUMP (Ref. č 7) U01A51500001 CAP,INSTALL OIL PUMP  1 282,64 Kč 342 Kč
SKLADEM
9 U05 ADSORPTION PIPE (Ref. č 9) U05A53002001 U05 ADSORPTION PIPE  1 333,88 Kč 404 Kč
SKLADEM
10 CLAMP,SPRINGBAND 16 (Ref. č 10) QCT006211005 CLAMP,SPRINGBAND 16  2 57,02 Kč 69 Kč
SKLADEM
11 U05 FUEL FILLER BREATHER PIPE (Ref. č 11) U05A51400001 U05 FUEL FILLER BREATHER PIPE  2 417,36 Kč 505 Kč
SKLADEM
12 A-BAND, TRANSMISSION HOSE 70 (Ref. č 12) QCT000620006 A-BAND, TRANSMISSION HOSE 70  1 90,08 Kč 109 Kč
SKLADEM
30 U09 ELECTRIC FUEL INJECTION CIRCUIT ASSY(RUBBER) (Ref. č 30) U09A52000001 U09 ELECTRIC FUEL INJECTION CIRCUIT ASSY(RUBBER)  1 3 022,31 Kč 3 657 Kč
SKLADEM
8 CLIP,ROUND 200 (Ref. č 8) T05000001004 CLIP,ROUND 200  1 57,02 Kč 69 Kč
SKLADEM
