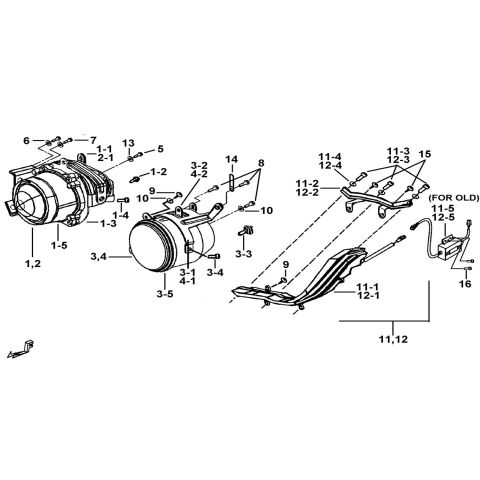

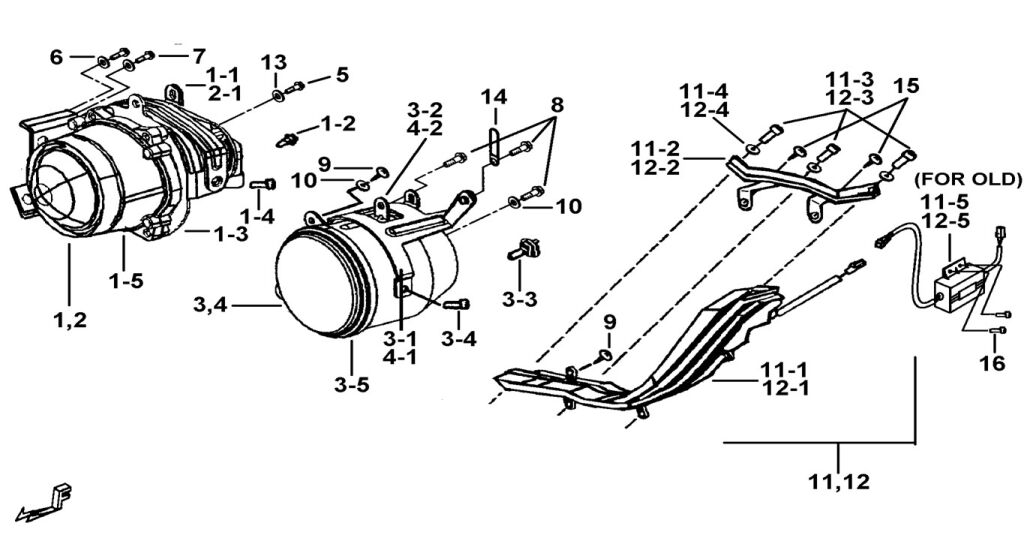

HEAD LAMP ASSY.

TGB
Výrobce: TGB
Kód produktu: TGB_3_202_EST
Vybrat MODEL:
BLADE 1000LT E4 BLADE 1000LT E4
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost

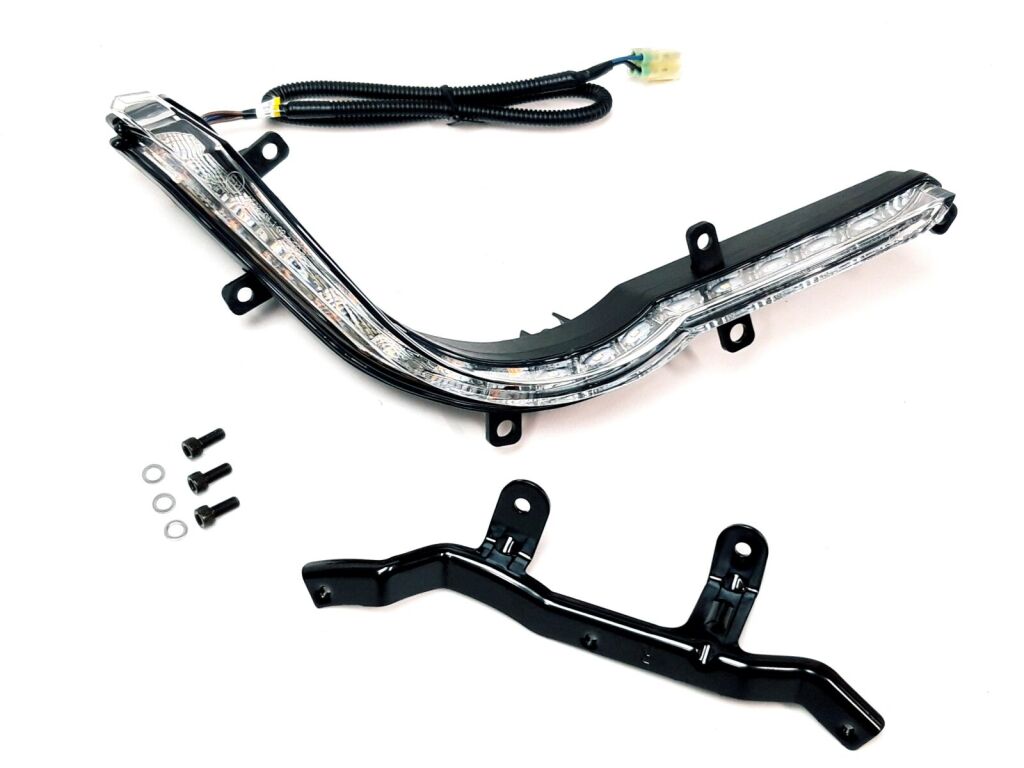

12B DRL/SIGNAL LIGHTS COMP.(RH.) (Ref. č 12B) 910773JA DRL/SIGNAL LIGHTS COMP.(RH.)  1 4 389,26 Kč 5 311 Kč
SKLADEM

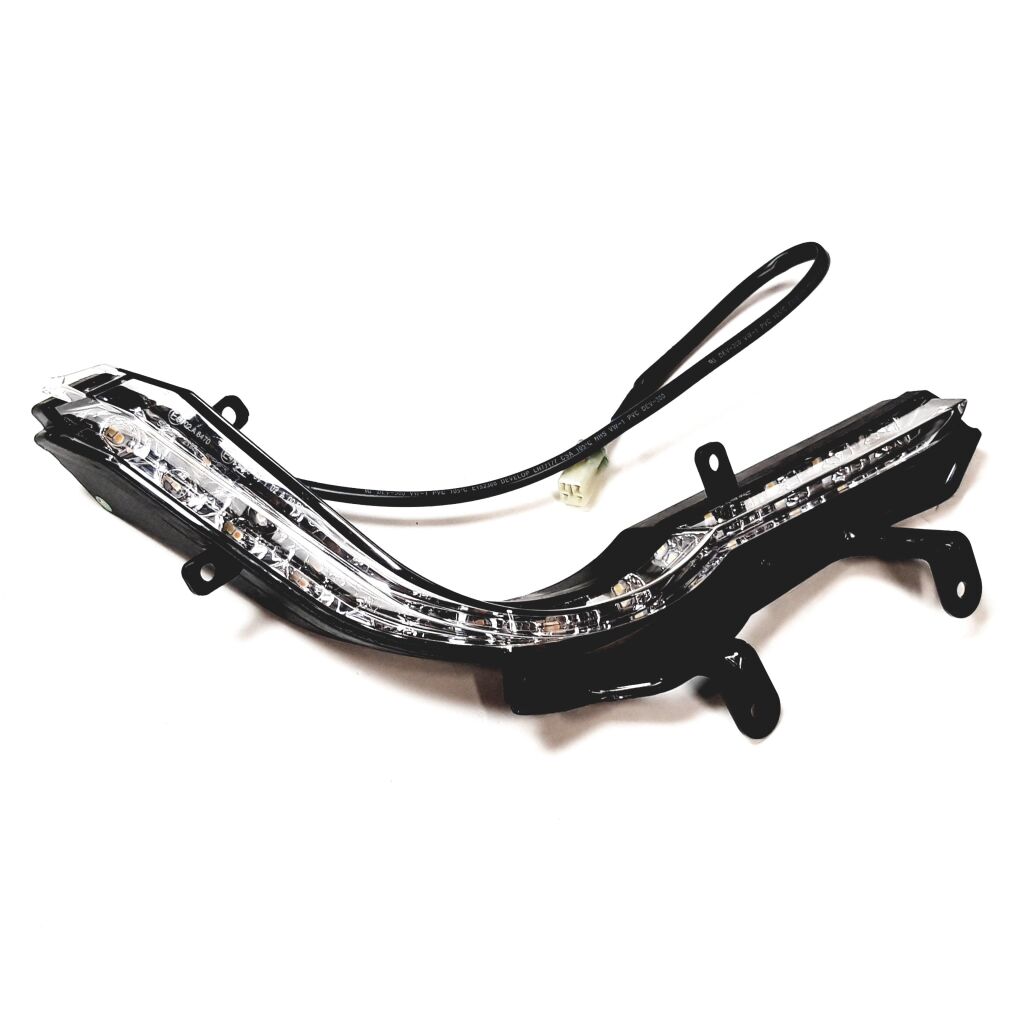

12.1B DRL/SIGNAL LAMP RH.(LED) (Ref. č 12-1B) 910773J DRL/SIGNAL LAMP RH.(LED)  1 5 255,37 Kč 6 359 Kč
SKLADEM
12.1A DRL/SIGNAL LAMP RH.(LED) (Ref. č 12-1A) 910773 DRL/SIGNAL LAMP RH.(LED)  1 4 263,64 Kč 5 159 Kč
SKLADEM
12.1 R/B 910773J DRL/SIGNAL LAMP RH. (Ref. č 12-1) 910748 R/B 910773J DRL/SIGNAL LAMP RH.

←101108

1 6 890,91 Kč 8 338 Kč
NA DOTAZ
11B DRL/SIGNAL LIGHTS COMP.(RH.) (Ref. č 11B) 910772JA DRL/SIGNAL LIGHTS COMP.(RH.)  1 5 722,31 Kč 6 924 Kč
SKLADEM
11.5 DRL. CONTROLLER (LH) (Ref. č 11-5) 910687 DRL. CONTROLLER (LH)

←101108

1 1 715,70 Kč 2 076 Kč
SKLADEM
11.4 W99525 WASHER   3 70,25 Kč 85 Kč
NA DOTAZ
11.2 FIXED SEAT LH. (Ref. č 11-2) 511787 FIXED SEAT LH.  1 423,14 Kč 512 Kč
NA DOTAZ
11.1B DRL/SIGNAL LAMP LH. (Ref. č 11-1B) 910772J DRL/SIGNAL LAMP LH.  1 5 331,40 Kč 6 451 Kč
SKLADEM
12.2 FIXED SEAT RH. (Ref. č 12-2) 511788 FIXED SEAT RH.  1 459,50 Kč 556 Kč
SKLADEM
12.5 DRL. CONTROLLER (RH) (Ref. č 12-5) 910688 DRL. CONTROLLER (RH)

←101108

1 1 604,13 Kč 1 941 Kč
NA DOTAZ
12A DRL/SIGNAL LIGHTS COMP.(RH.) (Ref. č 12A) 910773A DRL/SIGNAL LIGHTS COMP.(RH.)  1 5 255,37 Kč 6 359 Kč
SKLADEM
12 R/B 910773JS DRL/SIGNAL LIGHTS COMP.(RH.) (Ref. č 12) 910748A R/B 910773JS DRL/SIGNAL LIGHTS COMP.(RH.)

←101108

1 5 966,12 Kč 7 219 Kč
SKLADEM
11A 910772A DRL/SIGNAL LIGHTS COMP.(LH.)  1 4 031,40 Kč 4 878 Kč
NA DOTAZ
02.1 FIXED SEAT RH. (Ref. č 02-1) 910565 FIXED SEAT RH.  1 472,73 Kč 572 Kč
SKLADEM
01.3 910566 ADJUST SEAT  2 472,73 Kč 572 Kč
NA DOTAZ
01.1 910564 FIXED SEAT LH.  1 538,84 Kč 652 Kč
NA DOTAZ
16 S45401 STUD

←101108

4 62,81 Kč 76 Kč
NA DOTAZ
15 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 15) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 56,20 Kč 68 Kč
SKLADEM
14 CLAMP (Ref. č 14) 514410 CLAMP  2 56,20 Kč 68 Kč
SKLADEM
11.1A DRL/SIGNAL LAMP LH.(LED) (Ref. č 11-1A) 910772 DRL/SIGNAL LAMP LH.(LED)  1 5 037,19 Kč 6 095 Kč
NA DOTAZ
11.1 DRL/SIGNAL LAMP LH. (Ref. č 11-1) 910747 DRL/SIGNAL LAMP LH.

←101108

1 7 740,50 Kč 9 366 Kč
NA DOTAZ
11 DRL/SIGNAL LIGHTS COMP (LH.) (Ref. č 11) 910747A DRL/SIGNAL LIGHTS COMP (LH.)

←101108

1 7 066,12 Kč 8 550 Kč
NA DOTAZ
03.3 BULB (Ref. č 03-3) 514029 BULB  2 880,17 Kč 1 065 Kč
SKLADEM
03.2 929710 ADJUST SEAT LH.  1 802,48 Kč 971 Kč
NA DOTAZ
03.1 929704 FIXED SEAT LH.  1 338,02 Kč 409 Kč
NA DOTAZ
03 MAIN-BEAM HEAD LAMP COMP., LH (Ref. č 03) 929702 MAIN-BEAM HEAD LAMP COMP., LH  1 3 162,81 Kč 3 827 Kč
SKLADEM
02 DIPPED-BEAM HEAD LAMP ASSY., RH (Ref. č 02) 910737 DIPPED-BEAM HEAD LAMP ASSY., RH  1 4 101,65 Kč 4 963 Kč
NA DOTAZ
01.5 DIPPED-BEAM HEAD LAMP. (L&R) (Ref. č 01-5) 929726 DIPPED-BEAM HEAD LAMP. (L&R)  2 3 560,33 Kč 4 308 Kč
NA DOTAZ
01.4 S47602 SCREW,RECESSED PAN HEAD  2 147,93 Kč 179 Kč
NA DOTAZ
01.2 BULB 60W (Ref. č 01-2) 929743 BULB 60W  2 612,40 Kč 741 Kč
SKLADEM
03.4 S47603 SCREW,RECESSED PAN HEAD  2 51,24 Kč 62 Kč
NA DOTAZ
03.5 MAIN-BEAM HEAD LAMP. (L&R) (Ref. č 03-5) 929727 MAIN-BEAM HEAD LAMP. (L&R)  2 2 643,80 Kč 3 199 Kč
SKLADEM
04 MAIN-BEAM HEAD LAMP COMP., RH (Ref. č 04) 929714 MAIN-BEAM HEAD LAMP COMP., RH  1 3 065,29 Kč 3 709 Kč
SKLADEM
10 WASHER (Ref. č 10) W99541 WASHER  4 56,20 Kč 68 Kč
SKLADEM
09 SCREW , OVAL HEAD M6X50 (Ref. č 09) S50501 SCREW , OVAL HEAD M6X50  4 56,20 Kč 68 Kč
SKLADEM
08 S70504 SCREW, SOCKET HEAD  6 85,12 Kč 103 Kč
NA DOTAZ
07 SCREW, SOCKET HEAD M6X16 (Ref. č 07) S70609 SCREW, SOCKET HEAD M6X16  4 56,20 Kč 68 Kč
SKLADEM
06 WASHER (Ref. č 06) GA555WS02 WASHER  4 56,20 Kč 68 Kč
SKLADEM
05 SCREW, SOCKET HEAD M5x16 (Ref. č 05) S79501 SCREW, SOCKET HEAD M5x16  2 56,20 Kč 68 Kč
SKLADEM
04.2 ADJUST SEAT RH. (Ref. č 04-2) 929712 ADJUST SEAT RH.  1 802,48 Kč 971 Kč
SKLADEM
04.1 FIXED SEAT RH. (Ref. č 04-1) 929719 FIXED SEAT RH.  1 338,02 Kč 409 Kč
SKLADEM
01 DIPPED-BEAM HEAD LAMP ASSY., LH (Ref. č 01) 910736 DIPPED-BEAM HEAD LAMP ASSY., LH  1 3 852,07 Kč 4 661 Kč
SKLADEM
