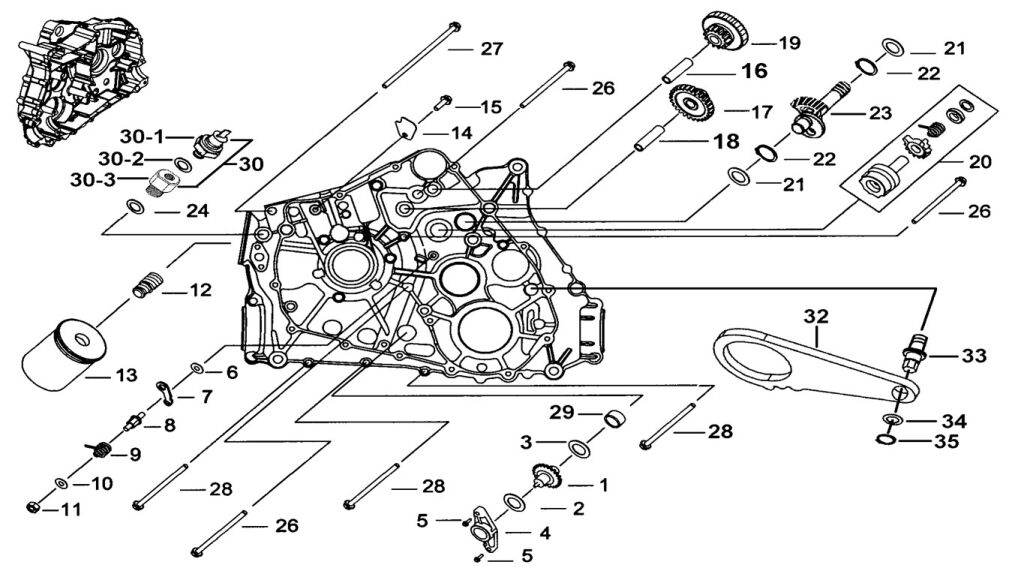

L CRANK CASE ( 1 )

TGB
Výrobce: TGB
Kód produktu: TGB_1_111_FTG-HDLE
Vybrat MODEL:
BLADE 550 BLADE 550
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
CHAIN WHEEL WATER PUMP. (Ref. č ) D9900066 CHAIN WHEEL WATER PUMP.  961,98 Kč 1 164 Kč
SKLADEM
SHIFT CAMSHAFT COMP (Ref. č ) 925690 SHIFT CAMSHAFT COMP  1 284,30 Kč 1 554 Kč
SKLADEM
WASHER (Ref. č ) W99218 WASHER  56,20 Kč 68 Kč
NA CESTĚ
"C" RING (Ref. č ) R00703 "C" RING  56,20 Kč 68 Kč
NA CESTĚ
925742 SECONDARY DIAL POLE  958,68 Kč 1 160 Kč
NA DOTAZ
WASHER 14.2X 1.5 (Ref. č ) W99433 WASHER 14.2X 1.5  56,20 Kč 68 Kč
SKLADEM
BOLT, FLANGEM6X74L (Ref. č ) S24627 BOLT, FLANGEM6X74L  56,20 Kč 68 Kč
SKLADEM
S21812 BOLT, FLANGE M8X97.5L  55,37 Kč 67 Kč
NA DOTAZ
BOLT, FLANGE 6X50 (Ref. č ) S24602 BOLT, FLANGE 6X50  56,20 Kč 68 Kč
SKLADEM
BUSHING (Ref. č ) 924739 BUSHING  56,20 Kč 68 Kč
SKLADEM
OIL PRESSURE SENSOR COMP. (Ref. č ) 925826A OIL PRESSURE SENSOR COMP.  986,78 Kč 1 194 Kč
SKLADEM
925826 R/B 925826A OIL PRESSURE SENSOR  1 000 Kč 1 210 Kč
NA DOTAZ
WASHER (Ref. č ) W99020 WASHER  56,20 Kč 68 Kč
SKLADEM
BOLT M14-1.25X12L (Ref. č ) S96201 BOLT M14-1.25X12L  515,70 Kč 624 Kč
NA DOTAZ
GEAR STOPPER (Ref. č ) 925741 GEAR STOPPER  289,26 Kč 350 Kč
SKLADEM
PIN, GEAR STOPPER (Ref. č ) 925737 PIN, GEAR STOPPER  430,58 Kč 521 Kč
NA CESTĚ
GEAR, STARTING IDLER (Ref. č ) 924835 GEAR, STARTING IDLER  1 847,93 Kč 2 236 Kč
SKLADEM
PIN (NO.1 STARTING IDLER) (Ref. č ) 924111 PIN (NO.1 STARTING IDLER)  75,21 Kč 91 Kč
SKLADEM
GASKET 14X32X1 (Ref. č ) W99412 GASKET 14X32X1  56,20 Kč 68 Kč
SKLADEM
WASHER 12.3x22x1t (Ref. č ) W99430 WASHER 12.3x22x1t  56,20 Kč 68 Kč
SKLADEM
RETAINER, WATER PUMP (Ref. č ) 924393 RETAINER, WATER PUMP  677,69 Kč 820 Kč
SKLADEM
SCREW, SOCKET HEAD M6X25 (Ref. č ) S70602 SCREW, SOCKET HEAD M6X25  56,20 Kč 68 Kč
SKLADEM
GASKET (Ref. č ) W99616 GASKET  56,20 Kč 68 Kč
NA DOTAZ
STOPPER, GEAR SHAFT CAM (Ref. č ) 924231 STOPPER, GEAR SHAFT CAM  95,87 Kč 116 Kč
NA DOTAZ
SET SCREW ,GEAR CAM STOP DOG (Ref. č ) 924233 SET SCREW ,GEAR CAM STOP DOG  56,20 Kč 68 Kč
NA DOTAZ
SPRING (Ref. č ) 924232 SPRING  56,20 Kč 68 Kč
SKLADEM
WASHER, SPRING ABATEMENT (Ref. č ) W99617 WASHER, SPRING ABATEMENT  56,20 Kč 68 Kč
SKLADEM
NUT, FLANGE 6mm (Ref. č ) N10601 NUT, FLANGE 6mm  56,20 Kč 68 Kč
SKLADEM
STUD, OIL FILTER (Ref. č ) 924374 STUD, OIL FILTER  122,31 Kč 148 Kč
NA DOTAZ
ENGINE OIL FILTER - TGB 425,525,550,600,600LTX (Ref. č ) 924153 ENGINE OIL FILTER - TGB 425,525,550,600,600LTX  500,83 Kč 606 Kč
SKLADEM
WASHER (Ref. č ) W99218 WASHER  56,20 Kč 68 Kč
NA CESTĚ
PLATE, OIL GUIDE (Ref. č ) 924048 PLATE, OIL GUIDE  56,20 Kč 68 Kč
SKLADEM
BOLT, FLANGE 6X12 (Ref. č ) S24604 BOLT, FLANGE 6X12  56,20 Kč 68 Kč
SKLADEM
PIN (NO.2 STARTING IDLER) (Ref. č ) 924112 PIN (NO.2 STARTING IDLER)  131,40 Kč 159 Kč
SKLADEM
GEAR (Ref. č ) 924110 GEAR  764,46 Kč 925 Kč
SKLADEM
"C" RING (Ref. č ) R00703 "C" RING  56,20 Kč 68 Kč
NA CESTĚ
