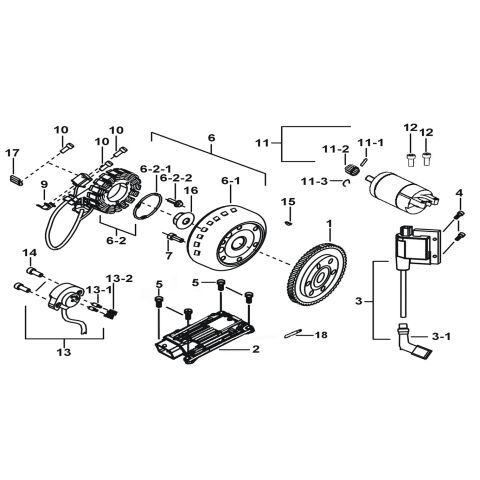

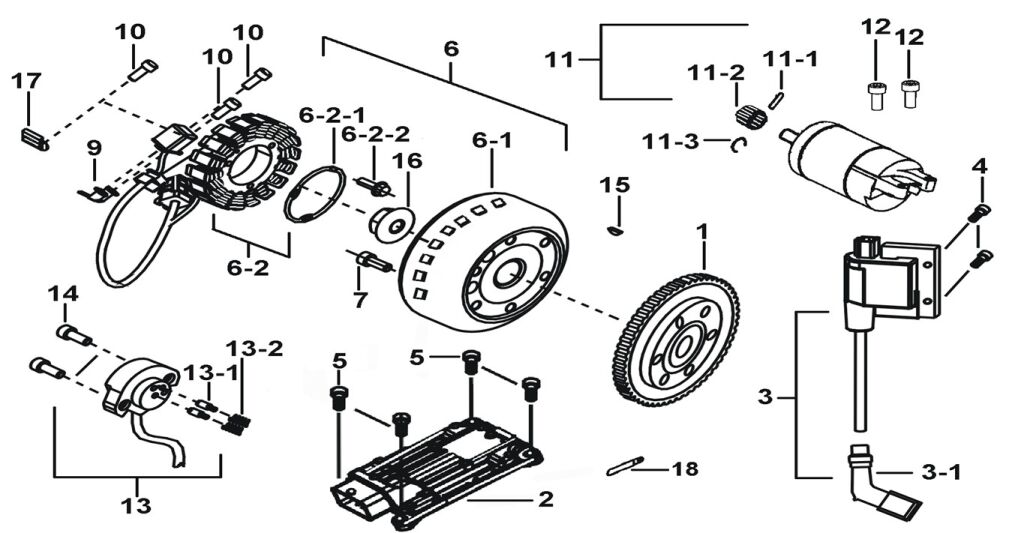

MOTOR STARTING、FLYWHEEL MAGNETO、ECU

TGB
Výrobce: TGB
Kód produktu: TGB_3_110_FBG-HFE
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
01 CLUTCH ASSY (STARTING) (Ref. č 01) 925668 CLUTCH ASSY (STARTING)  1 5 034,71 Kč 6 092 Kč
SKLADEM
11.3 SNAP RING, C TYPE (Ref. č 11-3) R00201 SNAP RING, C TYPE  1 56,20 Kč 68 Kč
SKLADEM
18 CLAMP (Ref. č 18) 514410 CLAMP  3 56,20 Kč 68 Kč
SKLADEM
03 IGNITION COIL, F. CYN..(CONTAIN SPACER) (Ref. č 03) 910715MA IGNITION COIL, F. CYN..(CONTAIN SPACER)

←009988

1 1 423,14 Kč 1 722 Kč
NA DOTAZ
03.1 910715M-10 IGNITION HIGH TENSION LINE ASSY.

←018439

1 1 938,84 Kč 2 346 Kč
NA DOTAZ
03A 910715M-10 IGNITION HIGH TENSION LINE ASSY.

009989→

1 1 938,84 Kč 2 346 Kč
NA DOTAZ
12 BOLT, FLANGE 6X32 (Ref. č 12) S24607 BOLT, FLANGE 6X32  2 56,20 Kč 68 Kč
SKLADEM
13 GEAR SENSOR ASSY (Ref. č 13) 926748 GEAR SENSOR ASSY  1 890,08 Kč 1 077 Kč
SKLADEM
13.1 CONTACT, SWITCH, GEAR SELECT (Ref. č 13-1) 924246 CONTACT, SWITCH, GEAR SELECT  2 76,03 Kč 92 Kč
SKLADEM
13.2 SPRING, SWITCH, GEAR SELECT (Ref. č 13-2) 925858 SPRING, SWITCH, GEAR SELECT  2 56,20 Kč 68 Kč
SKLADEM
14 SCREW, SOCKET HEAD M5x16 (Ref. č 14) S79501 SCREW, SOCKET HEAD M5x16  2 56,20 Kč 68 Kč
SKLADEM
15 KEY (Ref. č 15) D9900040 KEY  1 95,87 Kč 116 Kč
SKLADEM
16 NUT, FLANGE (Ref. č 16) N10803 NUT, FLANGE  1 56,20 Kč 68 Kč
SKLADEM
17 924282 NO.2 CLAMP  1 51,24 Kč 62 Kč
NA DOTAZ

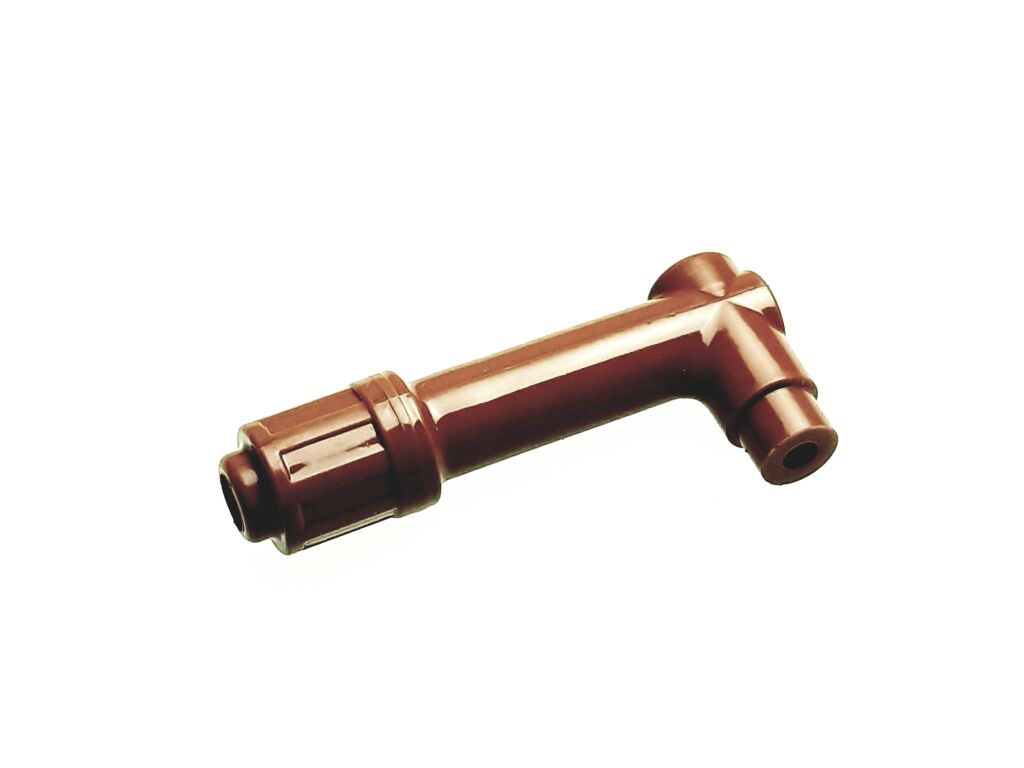

03.1A R/B 926752 SPARK PLUG ATTACHMENT (Ref. č 03-1A) 927999 R/B 926752 SPARK PLUG ATTACHMENT

018440→

1 582,64 Kč 705 Kč
SKLADEM
11.2 GEAR, STARTER (Ref. č 11-2) 925302 GEAR, STARTER  1 608,26 Kč 736 Kč
SKLADEM
11.1 PIN (Ref. č 11-1) P30405 PIN  1 67,77 Kč 82 Kč
SKLADEM
11 START MOTOR ASSY (Ref. č 11) 924470E START MOTOR ASSY  1 4 546,28 Kč 5 501 Kč
SKLADEM
02 R/B 926023YG ECU (Ref. č 02) 926023YA R/B 926023YG ECU  1 9 133,88 Kč 11 052 Kč
NA DOTAZ
04 SCREW, SOCKET HEAD M4X25 (Ref. č 04) S70402 SCREW, SOCKET HEAD M4X25  2 56,20 Kč 68 Kč
SKLADEM
05 SCREW, SOCKET HEAD M6x20 (Ref. č 05) S70607 SCREW, SOCKET HEAD M6x20  4 56,20 Kč 68 Kč
SKLADEM
06 926714A FLYWHEEL MAGNETO ASSY

←012314

1 9 823,14 Kč 11 886 Kč
NA DOTAZ
06.1 ROTOR ASSY (Ref. č 06-1) 926715 ROTOR ASSY  1 3 045,45 Kč 3 685 Kč
SKLADEM
06.2 STATOR ASSY (Ref. č 06-2) 926716A STATOR ASSY

←012314

1 4 547,11 Kč 5 502 Kč
SKLADEM
06.2.1 FIXING PLATE (Ref. č 06-2-1) 925809 FIXING PLATE  1 83,47 Kč 101 Kč
SKLADEM
06.2.2 BOLT, FLANGE M6X36 (Ref. č 06-2-2) S99616 BOLT, FLANGE M6X36  3 56,20 Kč 68 Kč
SKLADEM
06.2A STATOR ASSY. (Ref. č 06-2A) 927995A STATOR ASSY.

012315→

1 3 775,21 Kč 4 568 Kč
SKLADEM
06.2B STATOR ASSY. (Ref. č 06-2B) 927756A STATOR ASSY.

FOR W/EPS

1 3 775,21 Kč 4 568 Kč
NA DOTAZ
06B FLYWHEEL MAGNETO ASSY. (Ref. č 06B) 927755A FLYWHEEL MAGNETO ASSY.

FOR W/EPS

1 8 198,35 Kč 9 920 Kč
SKLADEM
07 BOLT (Ref. č 07) S70811 BOLT  6 56,20 Kč 68 Kč
SKLADEM
09 CLAMP (Ref. č 09) 924937 CLAMP  1 83,47 Kč 101 Kč
NA DOTAZ
10 SCREW OVAL HEAD M5X10 (Ref. č 10) S13502 SCREW OVAL HEAD M5X10  3 56,20 Kč 68 Kč
SKLADEM
06A 927991A FLYWHEEL MAGNETO ASSY.

012315→

1 5 873,55 Kč 7 107 Kč
NA DOTAZ
