POWER INSTALLATION ASSEMBLY

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_123_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10

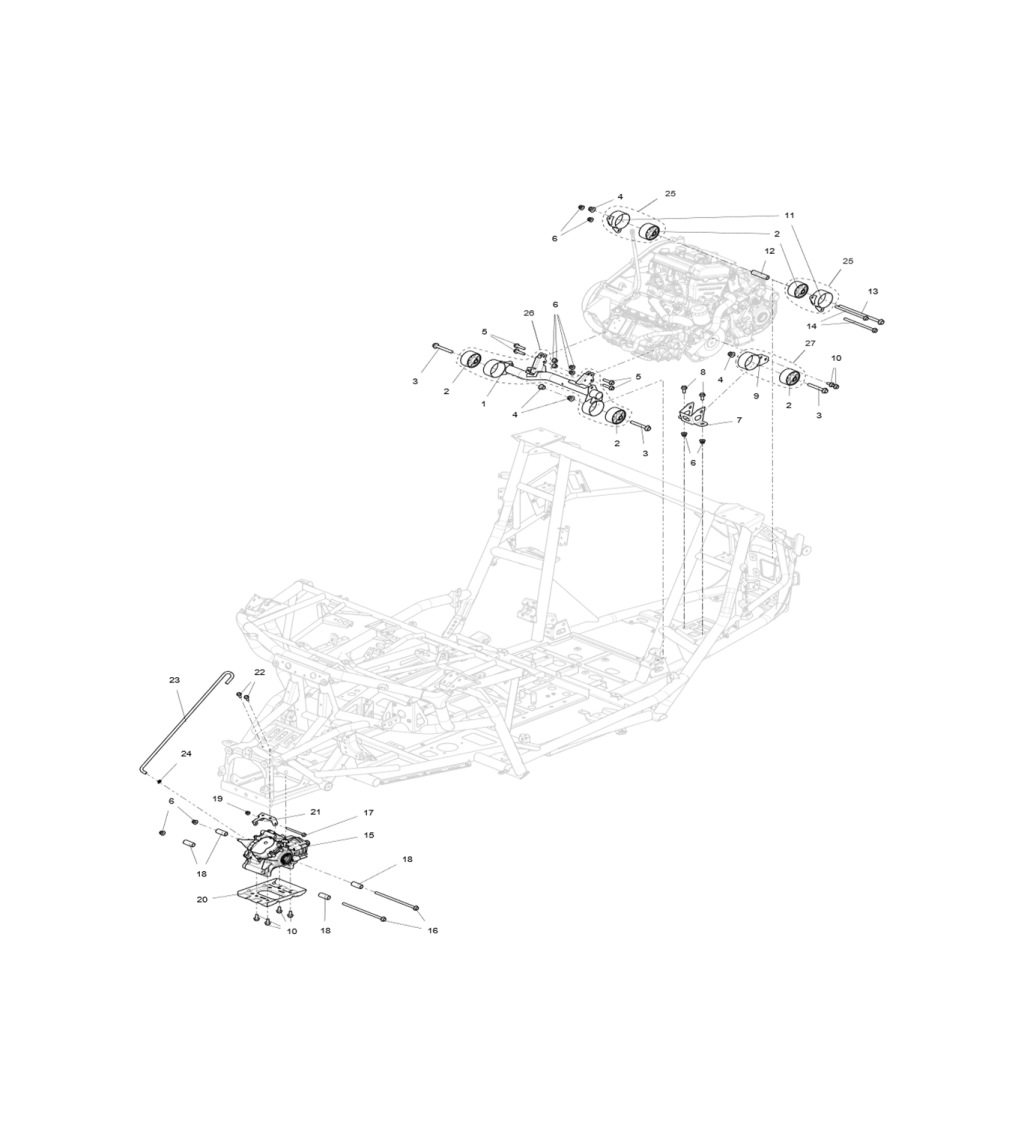

Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost

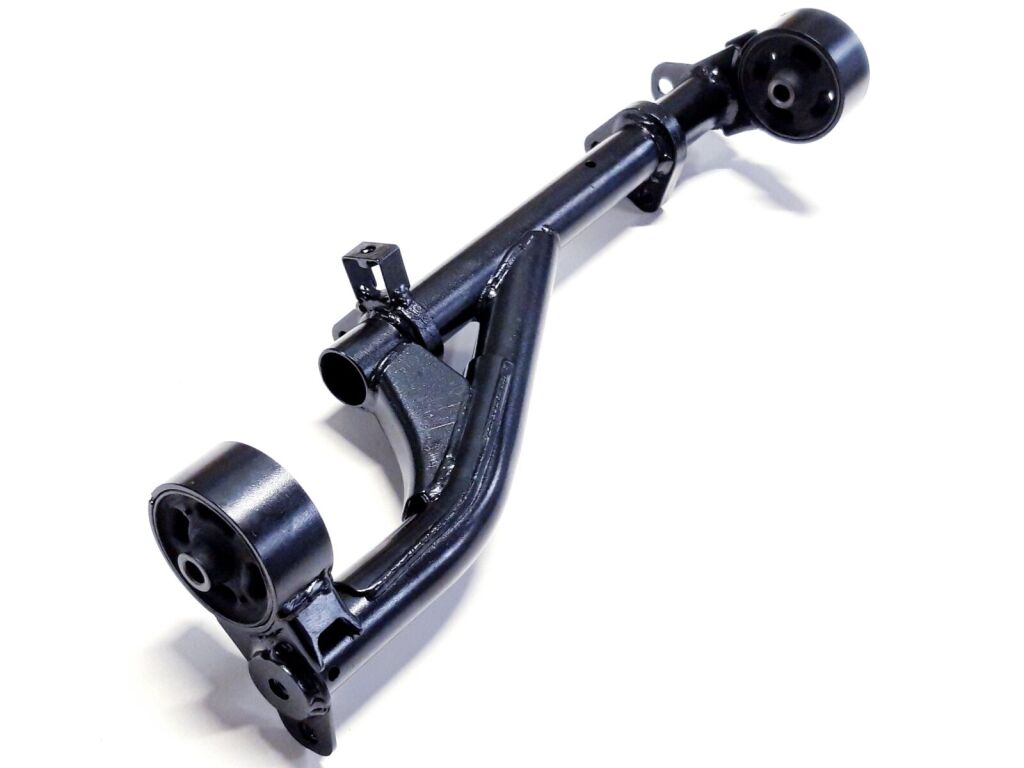

1 S05C00600002 ENGINE FRONT BRACKET ASSEMBLY  1 1 502,48 Kč 1 818 Kč
NA DOTAZ
15 FRONT AXLE ASSY (Ref. č 15) Q03F00000002 FRONT AXLE ASSY  1 23 690,08 Kč 28 665 Kč
SKLADEM
16 HEXAGON FLANGE BOLT M10×1.25×215 (Ref. č 16) GBT005789064 HEXAGON FLANGE BOLT M10×1.25×215  2 152,89 Kč 185 Kč
SKLADEM
17 BOLT M8×90 (Ref. č 17) GBT005789023 BOLT M8×90  1 57,02 Kč 69 Kč
SKLADEM
18 S05C00209002 FRONT AXLE LOWER BUSHING  4 57,02 Kč 69 Kč
NA DOTAZ
19 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 19) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  1 57,02 Kč 69 Kč
SKLADEM
20 S01C00401002 MOUNTING BRACKET UNDER FRONT AXLE (BLACK)  1 394,21 Kč 477 Kč
NA DOTAZ
21 S01C07200002 FRONT AXLE UPPER BRACKET  1 264,46 Kč 320 Kč
NA DOTAZ
22 BOLT M8×20 (Ref. č 22) GBT005789015 BOLT M8×20  2 57,02 Kč 69 Kč
SKLADEM
23 REAR AXLE SNORKEL (Ref. č 23) A02A10002001 REAR AXLE SNORKEL  1 578,51 Kč 700 Kč
SKLADEM
24 CLAMP,SPRINGBAND 11 (Ref. č 24) QCT006211003 CLAMP,SPRINGBAND 11  1 66,94 Kč 81 Kč
SKLADEM
25 S05C01100001 ENGINE REAR MOUNTING SEAT ASSEMBLY  2 1 124,79 Kč 1 361 Kč
NA DOTAZ
26 S05C00900001 ENGINE FRONT MOUNTING SEAT ASSEMBLY  1 2 449,59 Kč 2 964 Kč
NA DOTAZ
15 Q03F00000001 FRONT AXLE ASSEMBLY (WITH ABS/1000 PLANETARY DIFFERENTIAL AXLE)  1 25 213,22 Kč 30 508 Kč
NA DOTAZ
14 GBT005789101 HEX FLANGE BOLT M10×1.25×160  2 57,02 Kč 69 Kč
NA DOTAZ
2 S05 ENGINE DAMPING SET (Ref. č 2) S05H20200001 S05 ENGINE DAMPING SET  5 342,98 Kč 415 Kč
SKLADEM
3 BOLT M12×1.25×85 (Ref. č 3) GBT005789094 BOLT M12×1.25×85  3 57,02 Kč 69 Kč
SKLADEM
4 NUT M12×1.25 (Ref. č 4) GBT061832002 NUT M12×1.25  4 57,02 Kč 69 Kč
SKLADEM
5 HEXAGON FLANGE BOLT M10×1.25×40 (Ref. č 5) GBT005789029 HEXAGON FLANGE BOLT M10×1.25×40  4 57,02 Kč 69 Kč
SKLADEM
6 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 6) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  10 57,02 Kč 69 Kč
SKLADEM
7 S05C00500002 ENGINE LOWER MOUNTING SEAT  1 270,25 Kč 327 Kč
NA DOTAZ
8 Hexagon flange bolt M10×1.25×25 (Ref. č 8) GBT005789026 Hexagon flange bolt M10×1.25×25  2 57,02 Kč 69 Kč
SKLADEM
9 S05C00400002 ENGINE LOWER BRACKET ASSEMBLY  1 552,07 Kč 668 Kč
NA DOTAZ
10 HEXAGON FLANGE BOLT M10×1.25×20 (Ref. č 10) GBT005789025 HEXAGON FLANGE BOLT M10×1.25×20  6 57,02 Kč 69 Kč
SKLADEM
11 S05C00200002 ENGINE REAR LEFT BRACKET ASSEMBLY  2 517,36 Kč 626 Kč
NA DOTAZ
12 S05C00206002 ENGINE REAR LINER  1 275,21 Kč 333 Kč
NA DOTAZ
13 GBT005789093 HEX FLANGE BOLT M12×1.25×220  1 70,25 Kč 85 Kč
NA DOTAZ
27 S05C01200001 ENGINE LOWER MOUNTING SEAT ASSEMBLY  1 1 161,16 Kč 1 405 Kč
NA DOTAZ
