REAR AXLE GEAR CASE ASSY

ACCESS MOTOR
Výrobce: ACCESS MOTOR
Kód produktu: Access_F-13_MAX-750i-LT
Vybrat MODEL:
MAX 750 EFI MAX 750 EFI
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
01 R/B 33000-A27-002 Rear Axle Gear Case Ass´y (Ref. č 01) 33000-A27-001 R/B 33000-A27-002 Rear Axle Gear Case Ass´y  1 21 131,40 Kč 25 569 Kč
NA DOTAZ
33 Spring, Axle (Ref. č 33) 97214-A27-000 Spring, Axle  1 56,20 Kč 68 Kč
SKLADEM
34 Grease Valve (Ref. č 34) 91805-A01-000 Grease Valve  1 56,20 Kč 68 Kč
SKLADEM
36 Sleeve, Coupling Shaft (Ref. č 36) 33602-A27-000 Sleeve, Coupling Shaft  1 286,78 Kč 347 Kč
SKLADEM
37 Cir Clip (Ref. č 37) 93406-STW22A Cir Clip  1 56,20 Kč 68 Kč
SKLADEM
38 Cir Clip (Ref. č 38) 93406-STW19A Cir Clip  1 56,20 Kč 68 Kč
SKLADEM
39 Dust Cap, Shaft, Inner (Ref. č 39) 33354-A27-000 Dust Cap, Shaft, Inner  1 73,55 Kč 89 Kč
SKLADEM
40 Dust Cap, Shaft, Outer (Ref. č 40) 33354-A27-010 Dust Cap, Shaft, Outer  1 56,20 Kč 68 Kč
NA DOTAZ
41 15108-A06-000 Hose, Pressure Release  1 61,16 Kč 74 Kč
NA DOTAZ
42 97411-085-06 Clip  1 51,24 Kč 62 Kč
NA DOTAZ
43 Grommet (Ref. č 43) 33355-A27-000 Grommet  1 56,20 Kč 68 Kč
SKLADEM
44 Clip (Ref. č 44) 97416-271-07 Clip  1 56,20 Kč 68 Kč
SKLADEM
45 Clip (Ref. č 45) 97416-316-07 Clip  1 56,20 Kč 68 Kč
NA DOTAZ
46 Clip (Ref. č 46) 97416-500-07 Clip  1 56,20 Kč 68 Kč
SKLADEM

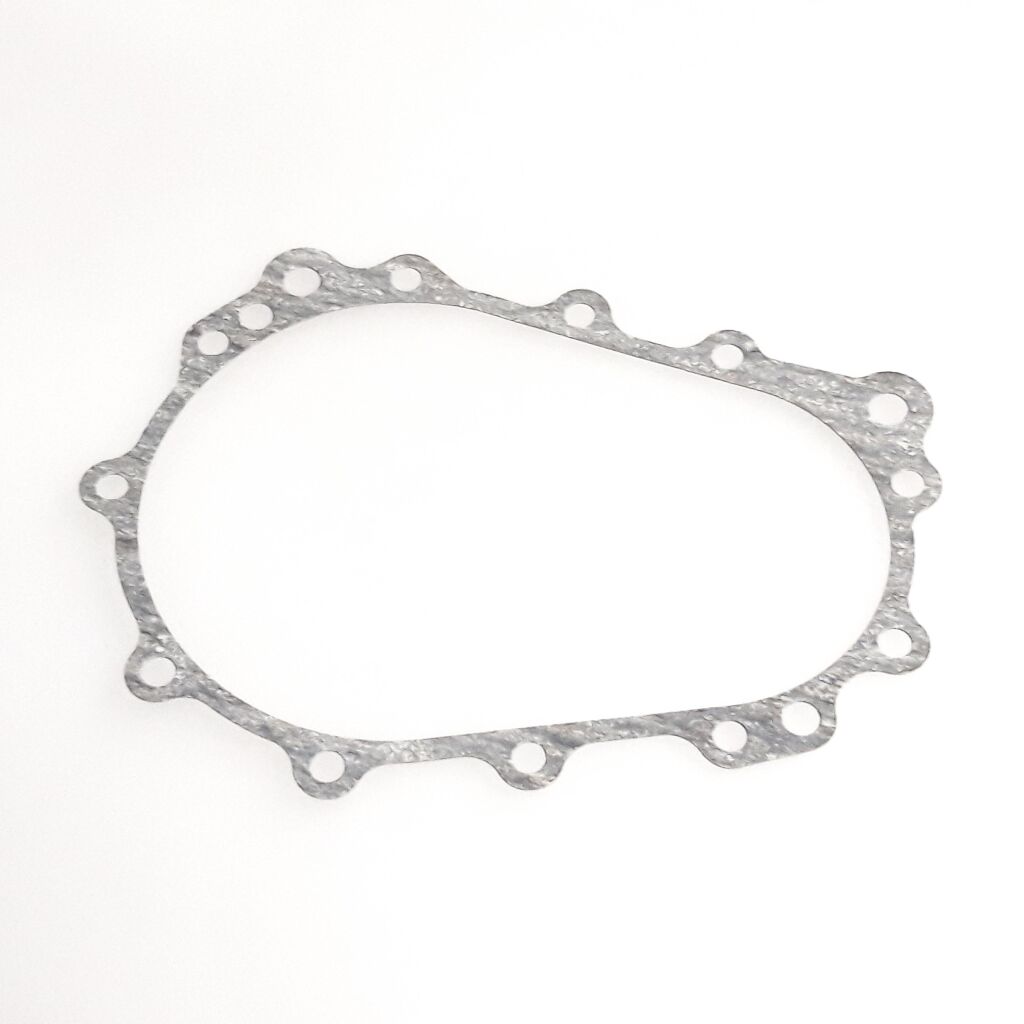

31 Gasket , Rear Axle Gear Case (Ref. č 31) 33101-A27-000 Gasket , Rear Axle Gear Case  1 126,45 Kč 153 Kč
NA DOTAZ
28 Pin, Dowel (Ref. č 28) 94001-100140 Pin, Dowel  2 56,20 Kč 68 Kč
SKLADEM

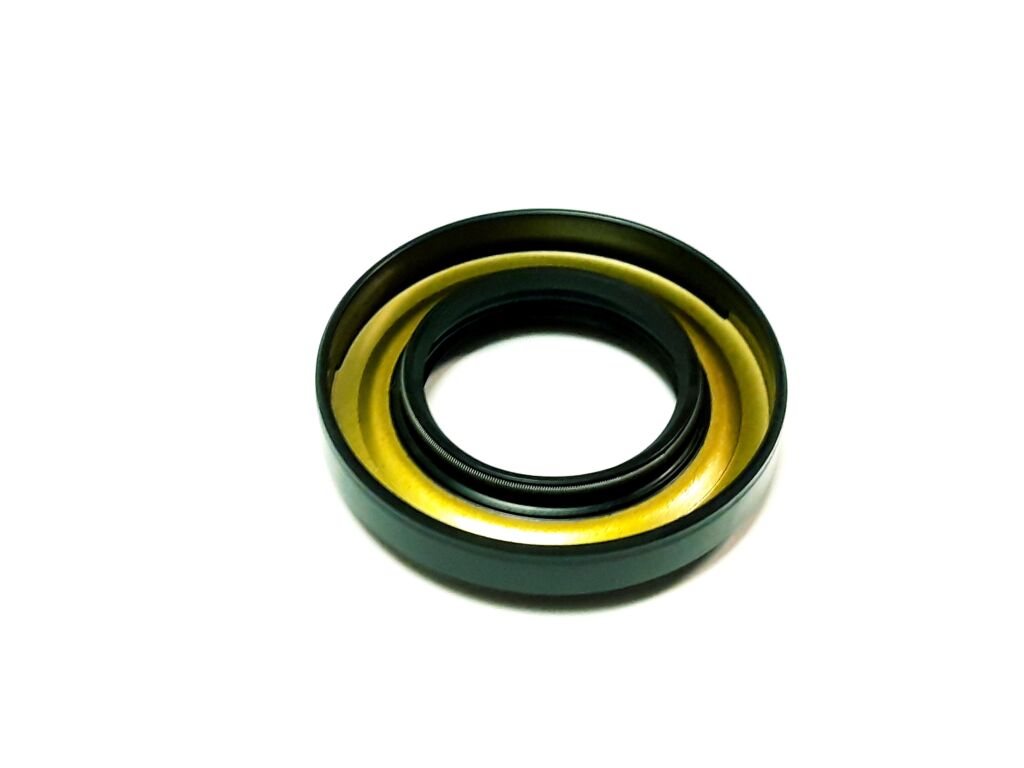

09 Oil Seal TC 35-61-09/13 (Ref. č 09) 96100-356109 Oil Seal TC 35-61-09/13  1 123,14 Kč 149 Kč
SKLADEM

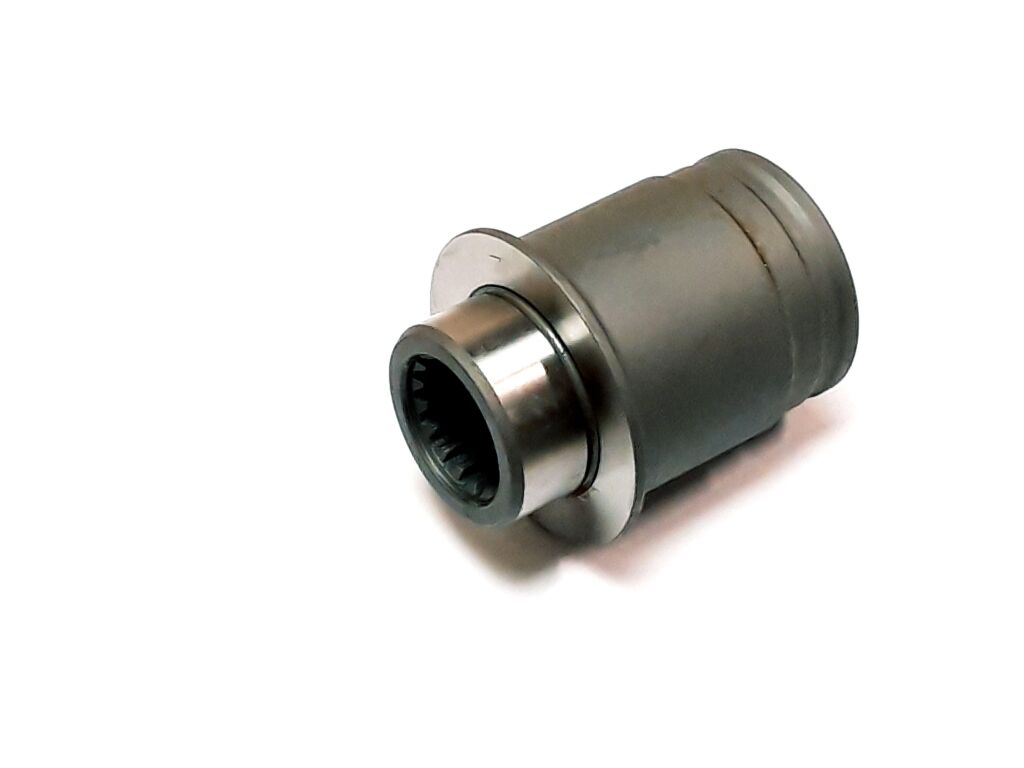

11 33405-A27-000 Shaft coupling  1 1 359,50 Kč 1 645 Kč
NA DOTAZ
12 93100-12530-30G Washer,Plate  1 59,50 Kč 72 Kč
NA DOTAZ
13 Nut, Insert Lock (Ref. č 13) 92130-12S-17G Nut, Insert Lock  1 56,20 Kč 68 Kč
SKLADEM

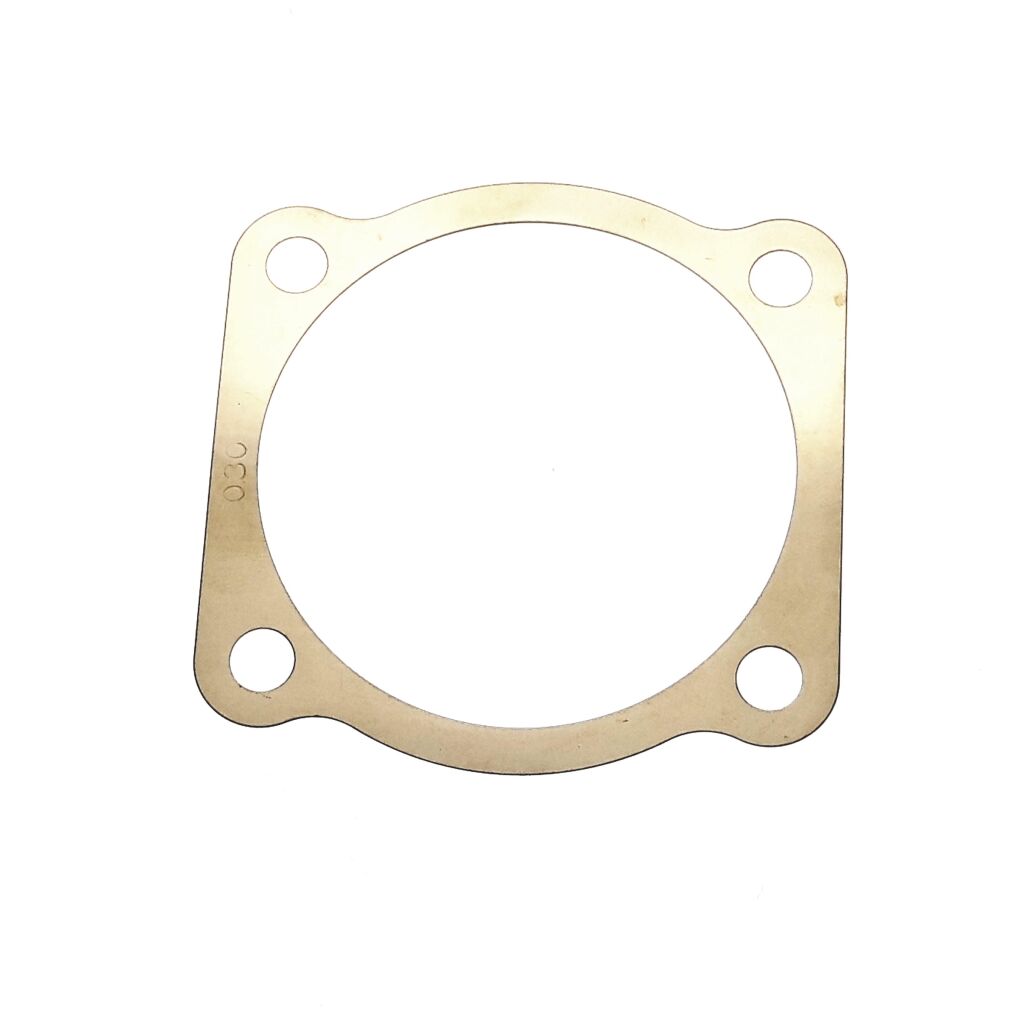

14 Gasket, Connector, Rear Axle G (Ref. č 14) 33104-A27-000 Gasket, Connector, Rear Axle G  1 56,20 Kč 68 Kč
SKLADEM
14.1 Gasket, Connector, Rear Axle G (Ref. č 14-1) 33104-A27-010 Gasket, Connector, Rear Axle G  1 56,20 Kč 68 Kč
NA DOTAZ
14.2 33104-A27-020 Gasket, Connector, Rear Axle G  1 101,65 Kč 123 Kč
NA DOTAZ
16 Bearing,Ball (Ref. č 16) 95100-T6205 Bearing,Ball  1 120,66 Kč 146 Kč
SKLADEM

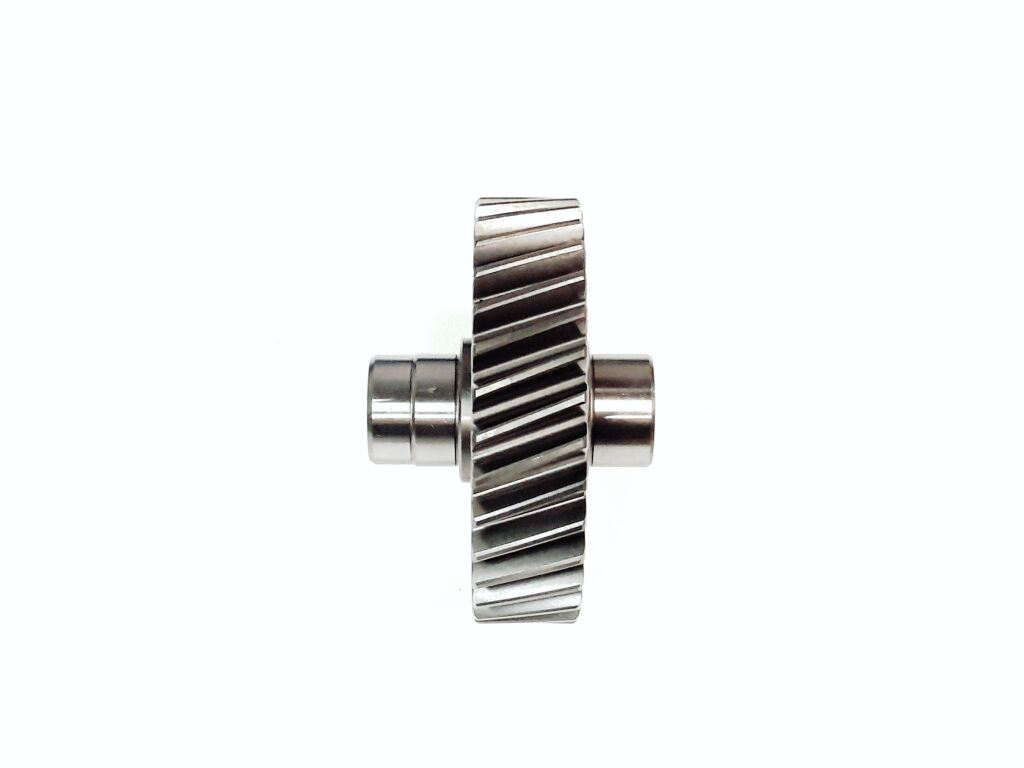

20 Shaft, Helical Gear (Ref. č 20) 33505-A27-001 Shaft, Helical Gear  1 4 242,98 Kč 5 134 Kč
SKLADEM

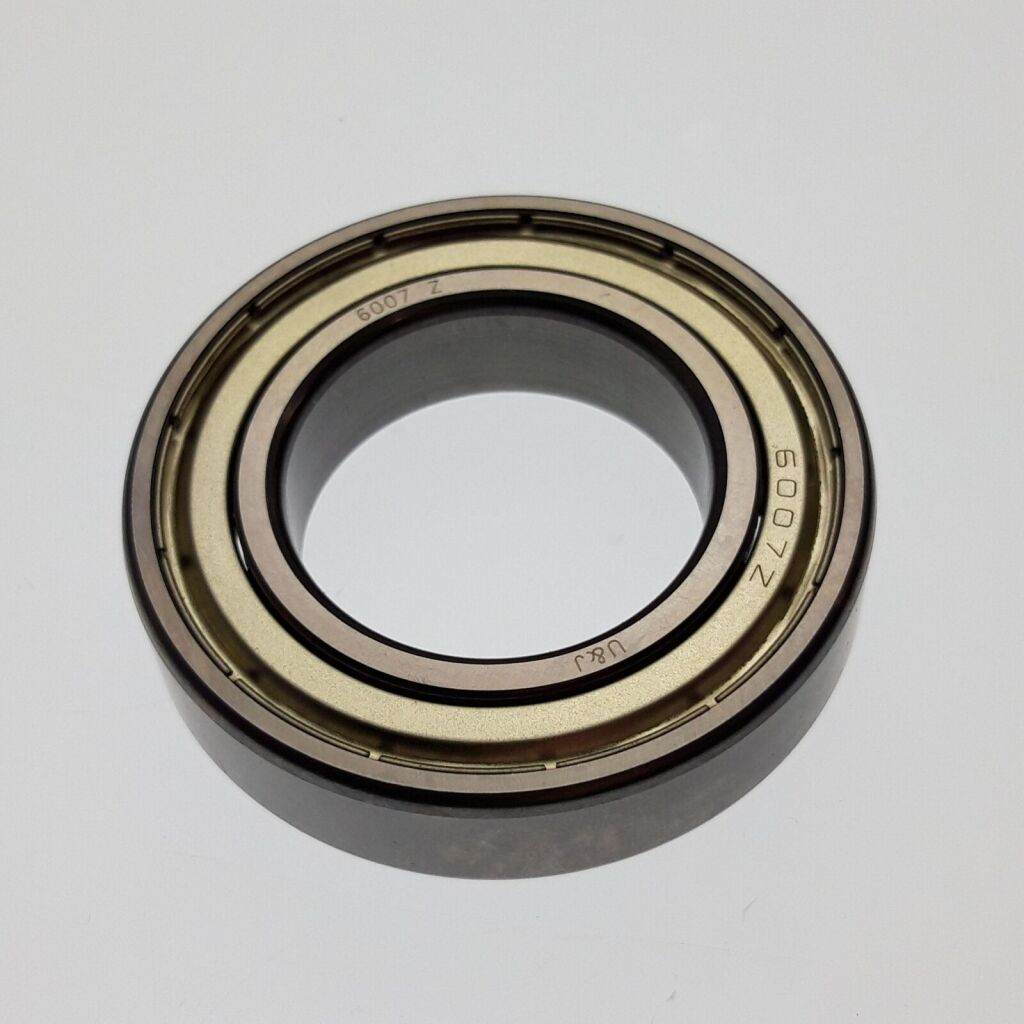

21 Bearing,Ball (Ref. č 21) 95100-6007Z Bearing,Ball  1 308,26 Kč 373 Kč
NA DOTAZ
23 Oil Seal (Ref. č 23) 96100-356212 Oil Seal  2 145,45 Kč 176 Kč
SKLADEM
25 Drain Bolt (Ref. č 25) 91833-A13-000 Drain Bolt  2 108,26 Kč 131 Kč
SKLADEM
26 Washer, Plate (AL) (Ref. č 26) 93105-14222-20 Washer, Plate (AL)  2 56,20 Kč 68 Kč
NA DOTAZ
47 Clip (Ref. č 47) 97416-535-07 Clip  1 56,20 Kč 68 Kč
SKLADEM
