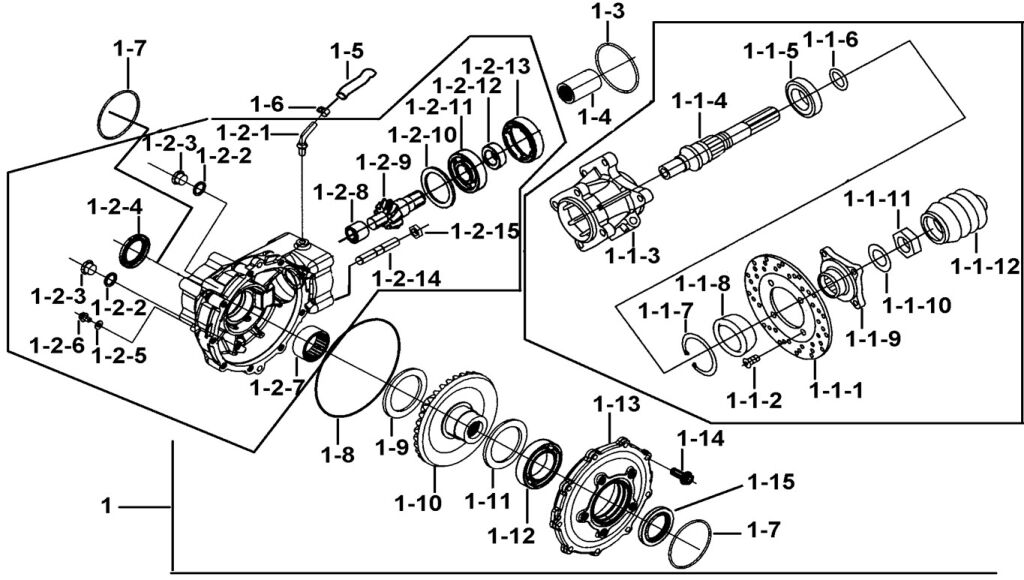

REAR DIFFERENTIAL ASSY.

TGB
Výrobce: TGB
Kód produktu: TGB_1_114_VSE
Vybrat MODEL:
TARGET 425 TARGET 425
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
925212 R/B 925451-S GEAR, SET(925451+925450) - GEAR(UMBRELLA)  3 392,56 Kč 4 105 Kč
NA DOTAZ
SHIM ?63X?68X0.5t (Ref. č ) W99622 SHIM ?63X?68X0.5t  132,23 Kč 160 Kč
SKLADEM
EXHAUST PIPE, BREATHE (Ref. č ) 924261 EXHAUST PIPE, BREATHE  157,02 Kč 190 Kč
NA DOTAZ
CASE SET, REAR FINAL GEAR (Ref. č ) 924260A CASE SET, REAR FINAL GEAR  7 485,12 Kč 9 057 Kč
SKLADEM
SEAT, LOCK (Ref. č ) 924965 SEAT, LOCK  2 325,62 Kč 2 814 Kč
SKLADEM
OIL-SEAL (Ref. č ) 924969 OIL-SEAL  280,17 Kč 339 Kč
NA CESTĚ
C CLIP (Ref. č ) R01802 C CLIP  223,97 Kč 271 Kč
SKLADEM
O-RING (Ref. č ) 924968 O-RING  56,20 Kč 68 Kč
SKLADEM
BEARING (Ref. č ) 925001 BEARING  1 104,96 Kč 1 337 Kč
SKLADEM
SHAFT, REAR FINAL DRIVE (Ref. č ) 924964 SHAFT, REAR FINAL DRIVE  2 074,38 Kč 2 510 Kč
SKLADEM
924967 HOUSING, RR FINAL DRIVE  2 665,29 Kč 3 225 Kč
NA DOTAZ
924267 R/B 925355 BEARING φ28Xφ68X18  1 076,03 Kč 1 302 Kč
NA DOTAZ
RING SNAP (Ref. č ) 924255 RING SNAP  195,87 Kč 237 Kč
SKLADEM
BEARING ?20x?28x23 (Ref. č ) 924269 BEARING ?20x?28x23  742,15 Kč 898 Kč
SKLADEM
BEARING ?40X?50X20 (Ref. č ) 924270 BEARING ?40X?50X20  968,60 Kč 1 172 Kč
SKLADEM
BOLT, FLANGE (Ref. č ) S21605 BOLT, FLANGE  56,20 Kč 68 Kč
SKLADEM
WASHER ?6.5X?13.2X1.3t (Ref. č ) W99621 WASHER ?6.5X?13.2X1.3t  56,20 Kč 68 Kč
SKLADEM
OIL SEAL ?38X?54X6 (Ref. č ) 924274 OIL SEAL ?38X?54X6  86,78 Kč 105 Kč
SKLADEM
SCREW (Ref. č ) 924339 SCREW  136,36 Kč 165 Kč
SKLADEM
WASHER, TDC ?16.2X?22.5X2t (Ref. č ) W99620 WASHER, TDC ?16.2X?22.5X2t  56,20 Kč 68 Kč
SKLADEM
N10001 NUT  51,24 Kč 62 Kč
NA DOTAZ
S95003 STUD  51,24 Kč 62 Kč
NA DOTAZ
RING SNAP (Ref. č ) 924254 RING SNAP  1 142,15 Kč 1 382 Kč
NA DOTAZ
SCREW, SOCKET (Ref. č ) S72005 SCREW, SOCKET  72,73 Kč 88 Kč
NA CESTĚ
DUST GUARD COVER (Ref. č ) 924986 DUST GUARD COVER  392,56 Kč 475 Kč
SKLADEM
NUT, HEX HEAD (Ref. č ) N33701 NUT, HEX HEAD  366,12 Kč 443 Kč
NA DOTAZ
OIL SEAL ?42x?62x9 (Ref. č ) 924275 OIL SEAL ?42x?62x9  101,65 Kč 123 Kč
SKLADEM
SCREW (Ref. č ) S21813 SCREW  56,20 Kč 68 Kč
SKLADEM
924262 R/B 925642 CASE, REAR FINAL DRIVEN RH  1 204,96 Kč 1 458 Kč
NA DOTAZ
BEARING ?45x?75x16 (Ref. č ) 924268 BEARING ?45x?75x16  1 028,10 Kč 1 244 Kč
SKLADEM
SHIM ?45.5X?54X0.05t (Ref. č ) W99530 SHIM ?45.5X?54X0.05t  69,42 Kč 84 Kč
SKLADEM
SHIM ?45.5X?54X0.1t (Ref. č ) W99529 SHIM ?45.5X?54X0.1t  78,51 Kč 95 Kč
SKLADEM
SHIM ?45.5X?54X0.3t (Ref. č ) W99528 SHIM ?45.5X?54X0.3t  95,04 Kč 115 Kč
SKLADEM
SHIM ?45.5X?54X0.5t (Ref. č ) W99531 SHIM ?45.5X?54X0.5t  80,17 Kč 97 Kč
SKLADEM

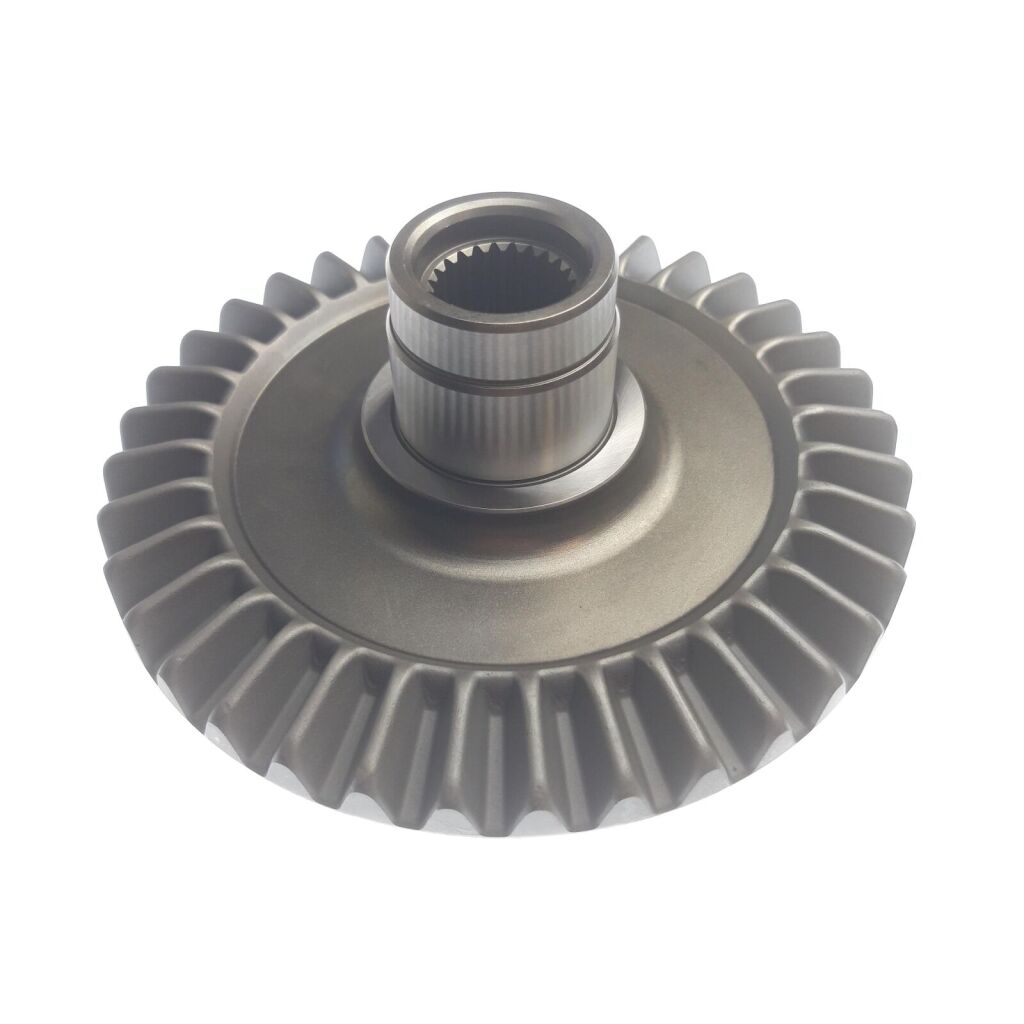

R/B 925211A GEAR, FINAL DRIVEN BEVEL (Ref. č ) 925211 R/B 925211A GEAR, FINAL DRIVEN BEVEL  4 507,44 Kč 5 454 Kč
NA DOTAZ
924967A HOUSING SET, RR FINAL DRIVE  1 987,60 Kč 2 405 Kč
NA DOTAZ
O-RING ?3.175.4 (Ref. č ) 924273 O-RING ?3.175.4  56,20 Kč 68 Kč
SKLADEM
JOINT, REAR FINAL DRIVE (Ref. č ) 924252 JOINT, REAR FINAL DRIVE  442,98 Kč 536 Kč
SKLADEM
WASHER 10,5x 22x2t (Ref. č ) W99710 WASHER 10,5x 22x2t  54,55 Kč 66 Kč
NA DOTAZ
DISC, BRAKE 180mm (Ref. č ) 513426Y DISC, BRAKE 180mm  1 419,01 Kč 1 717 Kč
SKLADEM
SHIM ?40X?50X0.05T (Ref. č ) W99426 SHIM ?40X?50X0.05T  78,51 Kč 95 Kč
SKLADEM
SHIM ?40X?50X0.1T (Ref. č ) W99425 SHIM ?40X?50X0.1T  73,55 Kč 89 Kč
SKLADEM
SHIM ?40X?50X0.3T (Ref. č ) W99424 SHIM ?40X?50X0.3T  83,47 Kč 101 Kč
SKLADEM
SHIM ?40X?50X0.5T (Ref. č ) W99427 SHIM ?40X?50X0.5T  80,99 Kč 98 Kč
SKLADEM
"O" RING ?2.3X?158.3 (Ref. č ) 924271 "O" RING ?2.3X?158.3  56,20 Kč 68 Kč
SKLADEM
O-RING ?3.1x?71.4 (Ref. č ) 924378 O-RING ?3.1x?71.4  56,20 Kč 68 Kč
SKLADEM
CLAMP (Ref. č ) R40002 CLAMP  56,20 Kč 68 Kč
SKLADEM
CASE, BREATHER (Ref. č ) 924769 CASE, BREATHER  200 Kč 242 Kč
SKLADEM
925518C R/B 925699C REAR DIFFERENTIAL ASSY.  12 347,93 Kč 14 941 Kč
NA DOTAZ
