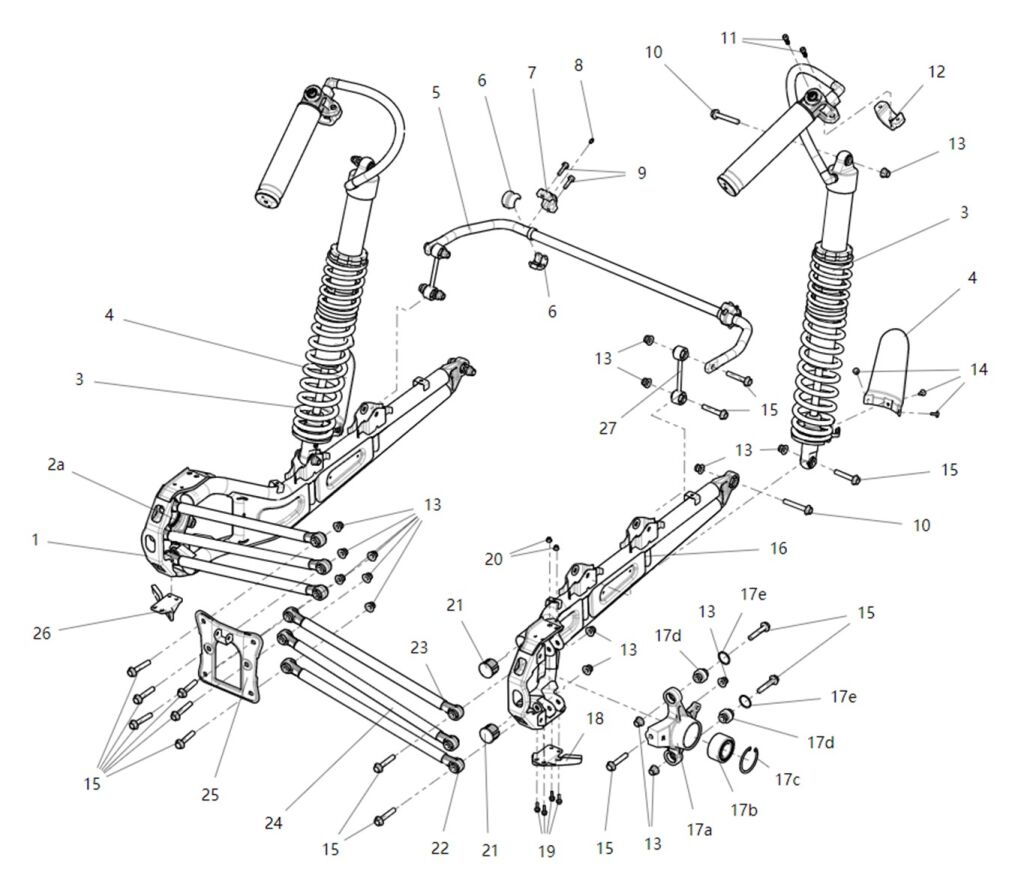

REAR SUSPENSION ASSEMBLY (NARROW VEHICLE VERSION)

Výrobce SEGWAY
Kód produktu SEGWAY_2_233_UTV1000F-S3

Ref. č	Kód p.	Popis	Počet v daném rozkresu	Cena za 1 ks	dostupnost
1_	S01D201A0002	RL TRAILING ARM（RED，NARROW VEHICLE）	1	Cena bez DPH 6 371,90 Kč Cena s DPH 7 710 Kč	NA CESTĚ
16	S01D203A0003	RR TRAILING ARM（GREEN，NARROW VEHICLE）	1	Cena bez DPH 8 053,72 Kč Cena s DPH 9 745 Kč	SKLADEM
17	S05D20400001	RIGHT REAR AXLE SUPPORT ASSEMBLY	1	Cena bez DPH 3 580,99 Kč Cena s DPH 4 333 Kč	NA DOTAZ
17a	S05D20401001	RIGHT REAR AXLE SUPPORT	1	Cena bez DPH 2 143,80 Kč Cena s DPH 2 594 Kč	SKLADEM
17b	JBT010238003	R/B JBT010238004 BEARING DAC407237-2RS	2	Cena bez DPH 733,88 Kč Cena s DPH 888 Kč	NA DOTAZ
17c	GBT000893006	CIRCLIP 72	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
17d	S01D20101001	JOINT BEARING	4	Cena bez DPH 417,36 Kč Cena s DPH 505 Kč	SKLADEM
17e	GB0008951001	WIRE RETAINING RING FOR HOLE 35	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
18	S01H14400001	RR TRAILING ARM SCRAPER SEAT	1	Cena bez DPH 133,88 Kč Cena s DPH 162 Kč	SKLADEM
19	GBT005789008	HEXAGON FLANGE BOLT M6×20	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
20	GBT061831002	NUT M6	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
21	S05H11700001	FRAME PLUG	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
22	S01D20800001	REAR BOTTOM TIE ROD ASSEMBLY	2	Cena bez DPH 1 475,21 Kč Cena s DPH 1 785 Kč	SKLADEM
23	S01D20700001	REAR UPPER TIE ROD ASSEMBLY	2	Cena bez DPH 1 447,11 Kč Cena s DPH 1 751 Kč	NA DOTAZ
24	S01D20600001	REAR SUSPENSION TOE ARM ASSEMBLY(NARROW VEHICLE)	2	Cena bez DPH 1 602,48 Kč Cena s DPH 1 939 Kč	SKLADEM
25	S01C00100002	REAR TRAILING ARM MOUNTING PLATE（BLACK）	1	Cena bez DPH 589,26 Kč Cena s DPH 713 Kč	SKLADEM
26	S01H11600001	RL TRAILING ARM SCRAPER SEAT	1	Cena bez DPH 133,88 Kč Cena s DPH 162 Kč	SKLADEM
16	S01D203A0002	RR TRAILING ARM（RED，NARROW VEHICLE）	1	Cena bez DPH 6 371,90 Kč Cena s DPH 7 710 Kč	NA DOTAZ
15	GBT005789048	HEX FLANGE BOLT M12×1.25×65	22	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
1	S01D201A0003	RL TRAILING ARM（GREEN，NARROW VEHICLE）	1	Cena bez DPH 8 053,72 Kč Cena s DPH 9 745 Kč	NA DOTAZ
2	S05D20200001	LEFT REAR AXLE SUPPORT ASSEMBLY	1	Cena bez DPH 3 580,99 Kč Cena s DPH 4 333 Kč	NA DOTAZ
2a	S05D20201001	LEFT REAR AXLE SUPPORT	1	Cena bez DPH 2 143,80 Kč Cena s DPH 2 594 Kč	NA DOTAZ
3	S01D20500001	REAR SHOCK ABSORBER（RED SPRING，NARROW VEHICLE，EXTERNAL AIRBAG）	2	Cena bez DPH 28 952,89 Kč Cena s DPH 35 033 Kč	NA DOTAZ
3	S01D20500002	R/B S01-D205000-0G0-01, REAR SHOCK ABSORBER（GREEN SPRING，NARROW VEHICLE，EXTERNAL AIRBAG）	2	Cena bez DPH 28 952,89 Kč Cena s DPH 35 033 Kč	NA DOTAZ
4	S01H11700001	REAR SHOCK ABSORBER BAFFLE	2	Cena bez DPH 133,88 Kč Cena s DPH 162 Kč	NA DOTAZ
5	S01D209A0001	REAR STABILIZER BAR COMPONENTS	1	Cena bez DPH 2 420,66 Kč Cena s DPH 2 929 Kč	NA DOTAZ
6	U01D26001001	U01 REAR BALANCE BAR BUFFER BLOCK	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
7	U01D26002001	Rear balance bar mounting seat	2	Cena bez DPH 262,81 Kč Cena s DPH 318 Kč	SKLADEM
8	GBT001152001	Straight pressure oil cup	2	Cena bez DPH 119,83 Kč Cena s DPH 145 Kč	SKLADEM
9	GBT005789017	HEXAGON FLANGE BOLT M8×30	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
10	GBT005789102	HEX FLANGE BOLT M12×1.25×75	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
11	GBT000701016	SCREWS M8×25	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
12	S01D20510001	REAR SHOCK-ABSORBING AIRBAG MOUNTING SEAT	2	Cena bez DPH 387,60 Kč Cena s DPH 469 Kč	NA DOTAZ
13	GBT061832002	NUT M12×1.25	26	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
14	T03000007002	Inner hexagon screws M6×1.6	6	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
27	S01D209B0001	REAR STABILIZER BAR LINKAGE ASSEMBLY	2	Cena bez DPH 1 042,15 Kč Cena s DPH 1 261 Kč	SKLADEM
