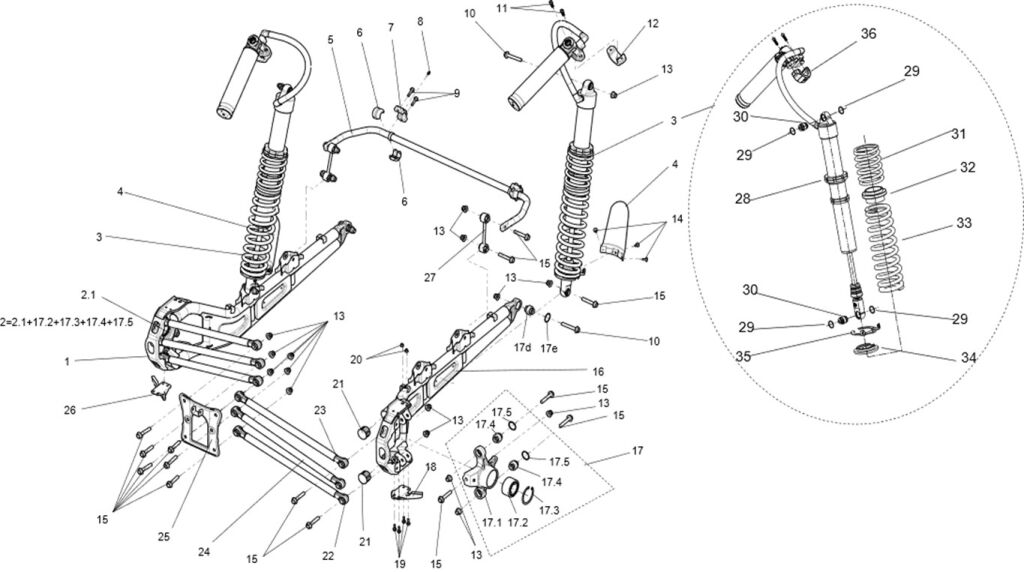

REAR SUSPENSION ASSEMBLY (NARROW VEHICLE VERSION)

Výrobce SEGWAY
Kód produktu SEGWAY_2_236_UTV1000F-S3-23

Ref. č	Kód p.	Popis	Počet v daném rozkresu	Cena za 1 ks	dostupnost
36	S01D20510001	REAR SHOCK-ABSORBING AIRBAG MOUNTING SEAT	1	Cena bez DPH 387,60 Kč Cena s DPH 469 Kč	NA DOTAZ
26	S01H11600001	RL TRAILING ARM SCRAPER SEAT	1	Cena bez DPH 133,88 Kč Cena s DPH 162 Kč	SKLADEM
25	S01C00100002	REAR TRAILING ARM MOUNTING PLATE（BLACK）	1	Cena bez DPH 589,26 Kč Cena s DPH 713 Kč	SKLADEM
24	S01D20600001	REAR SUSPENSION TOE ARM ASSEMBLY(NARROW VEHICLE)	2	Cena bez DPH 1 602,48 Kč Cena s DPH 1 939 Kč	SKLADEM
23	S01D20700001	REAR UPPER TIE ROD ASSEMBLY	2	Cena bez DPH 1 447,11 Kč Cena s DPH 1 751 Kč	NA DOTAZ
22	S01D20800001	REAR BOTTOM TIE ROD ASSEMBLY	2	Cena bez DPH 1 475,21 Kč Cena s DPH 1 785 Kč	SKLADEM
21	S05H11700001	FRAME PLUG	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
20	GBT061831002	NUT M6	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
19	GBT005789008	HEXAGON FLANGE BOLT M6×20	8	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
18	S01H14400001	RR TRAILING ARM SCRAPER SEAT	1	Cena bez DPH 133,88 Kč Cena s DPH 162 Kč	SKLADEM
17,5	GB0008951001	WIRE RETAINING RING FOR HOLE 35	6	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
17,4	S01D20101001	JOINT BEARING	6	Cena bez DPH 417,36 Kč Cena s DPH 505 Kč	SKLADEM
27	S01D209B0001	REAR STABILIZER BAR LINKAGE ASSEMBLY	2	Cena bez DPH 1 042,15 Kč Cena s DPH 1 261 Kč	SKLADEM
28	S01-D205100-000-01	REAR DAMPER ASSEMBLY	1	Cena bez DPH 13 592,56 Kč Cena s DPH 16 447 Kč	NA DOTAZ
35	S01-D205223-PB0-01	FENDER BRACKET	1		NA DOTAZ	Detail
34	S01-D107224-PB0-01	LOWER SPRING CUSHION	1	Cena bez DPH 263,64 Kč Cena s DPH 319 Kč	NA DOTAZ
33	S01-D205222-PB0-01	FRONT DAMPER SPRING 2 BLACK NARROW	1	Cena bez DPH 495,04 Kč Cena s DPH 599 Kč	NA DOTAZ
33	S01-D205222-PG0-01	FRONT DAMPER SPRING 2 GREEN NARROW	1		NA DOTAZ	Detail
33	S01-D205222-PR0-01	FRONT DAMPER SPRING 2 RED NARROW	1		NA DOTAZ	Detail
32	S01-D107223-PB0-01	SPRING SPACER	1	Cena bez DPH 95,87 Kč Cena s DPH 116 Kč	NA DOTAZ
31	S01-D205221-PB0-01	REAR DAMPER SPRING 1 BLACK NARROW	1	Cena bez DPH 170,25 Kč Cena s DPH 206 Kč	NA DOTAZ
31	S01-D205221-PG0-01	REAR DAMPER SPRING 1 GREEN NARROW	1		NA DOTAZ	Detail
31	S01-D205221-PR0-01	REAR DAMPER SPRING 1 RED NARROW	1		NA DOTAZ	Detail
30	S01-D107210-000-01	SPHERICAL BEARING ASSEMBLY	2	Cena bez DPH 263,64 Kč Cena s DPH 319 Kč	NA DOTAZ
29	S01-D107211-000-01	JOINT BEARING COMBINATION RETAINING RING	4	Cena bez DPH 42,98 Kč Cena s DPH 52 Kč	NA DOTAZ
17,3	GBT000893006	CIRCLIP 72	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
17,2	JBT010238004	BEARING DAC407237-2RS	2	Cena bez DPH 842,15 Kč Cena s DPH 1 019 Kč	SKLADEM
7	U01D26002001	Rear balance bar mounting seat	2	Cena bez DPH 262,81 Kč Cena s DPH 318 Kč	SKLADEM
6	U01D26001001	U01 REAR BALANCE BAR BUFFER BLOCK	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
5	S01D209A0001	REAR STABILIZER BAR COMPONENTS	1	Cena bez DPH 2 420,66 Kč Cena s DPH 2 929 Kč	NA DOTAZ
4	S01H11700001	REAR SHOCK ABSORBER BAFFLE	2	Cena bez DPH 133,88 Kč Cena s DPH 162 Kč	NA DOTAZ
3	S01-D205000-0B0-01	REAR SHOCK ABSORBER(BLACK,NARROW)	2	Cena bez DPH 27 945,45 Kč Cena s DPH 33 814 Kč	NA DOTAZ
3	S01-D205000-0G0-01	REAR SHOCK ABSORBER(GREEN,NARROW)	2	Cena bez DPH 27 945,45 Kč Cena s DPH 33 814 Kč	SKLADEM
3	S01-D205000-0R0-01	REAR SHOCK ABSORBER(RED,NARROW)	2	Cena bez DPH 27 945,45 Kč Cena s DPH 33 814 Kč	NA DOTAZ
2,1	S05D20201001	LEFT REAR AXLE SUPPORT	1	Cena bez DPH 2 143,80 Kč Cena s DPH 2 594 Kč	NA DOTAZ
2	S05D20200001	LEFT REAR AXLE SUPPORT ASSEMBLY	1	Cena bez DPH 3 580,99 Kč Cena s DPH 4 333 Kč	NA DOTAZ
1	S01D201A0005	RL SUPPORT ARM ASSY (BLACK,NARROW)	1	Cena bez DPH 5 951,24 Kč Cena s DPH 7 201 Kč	NA DOTAZ
1	S01D201A0003	RL TRAILING ARM（GREEN，NARROW VEHICLE）	1	Cena bez DPH 8 053,72 Kč Cena s DPH 9 745 Kč	NA DOTAZ
8	GBT001152001	Straight pressure oil cup	2	Cena bez DPH 119,83 Kč Cena s DPH 145 Kč	SKLADEM
9	GBT005789017	HEXAGON FLANGE BOLT M8×30	4	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
17,1	S05D20401001	RIGHT REAR AXLE SUPPORT	1	Cena bez DPH 2 143,80 Kč Cena s DPH 2 594 Kč	SKLADEM
17	S05D20400001	RIGHT REAR AXLE SUPPORT ASSEMBLY	1	Cena bez DPH 3 580,99 Kč Cena s DPH 4 333 Kč	NA DOTAZ
16	S01D203A0005	RR TRAILING ARM(BLACK,NARROW VERSION)	1	Cena bez DPH 5 951,24 Kč Cena s DPH 7 201 Kč	NA DOTAZ
16	S01D203A0003	RR TRAILING ARM（GREEN，NARROW VEHICLE）	1	Cena bez DPH 8 053,72 Kč Cena s DPH 9 745 Kč	SKLADEM
16	S01D203A0002	RR TRAILING ARM（RED，NARROW VEHICLE）	1	Cena bez DPH 6 371,90 Kč Cena s DPH 7 710 Kč	NA DOTAZ
15	GBT005789048	HEX FLANGE BOLT M12×1.25×65	22	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
14	T03000007002	Inner hexagon screws M6×1.6	6	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
13	GBT061832002	NUT M12×1.25	26	Cena bez DPH 54,55 Kč Cena s DPH 66 Kč	SKLADEM
11	GBT000701016	SCREWS M8×25	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
10	GBT005789102	HEX FLANGE BOLT M12×1.25×75	4	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
1	S01D201A0002	RL TRAILING ARM（RED，NARROW VEHICLE）	1	Cena bez DPH 6 371,90 Kč Cena s DPH 7 710 Kč	NA CESTĚ
