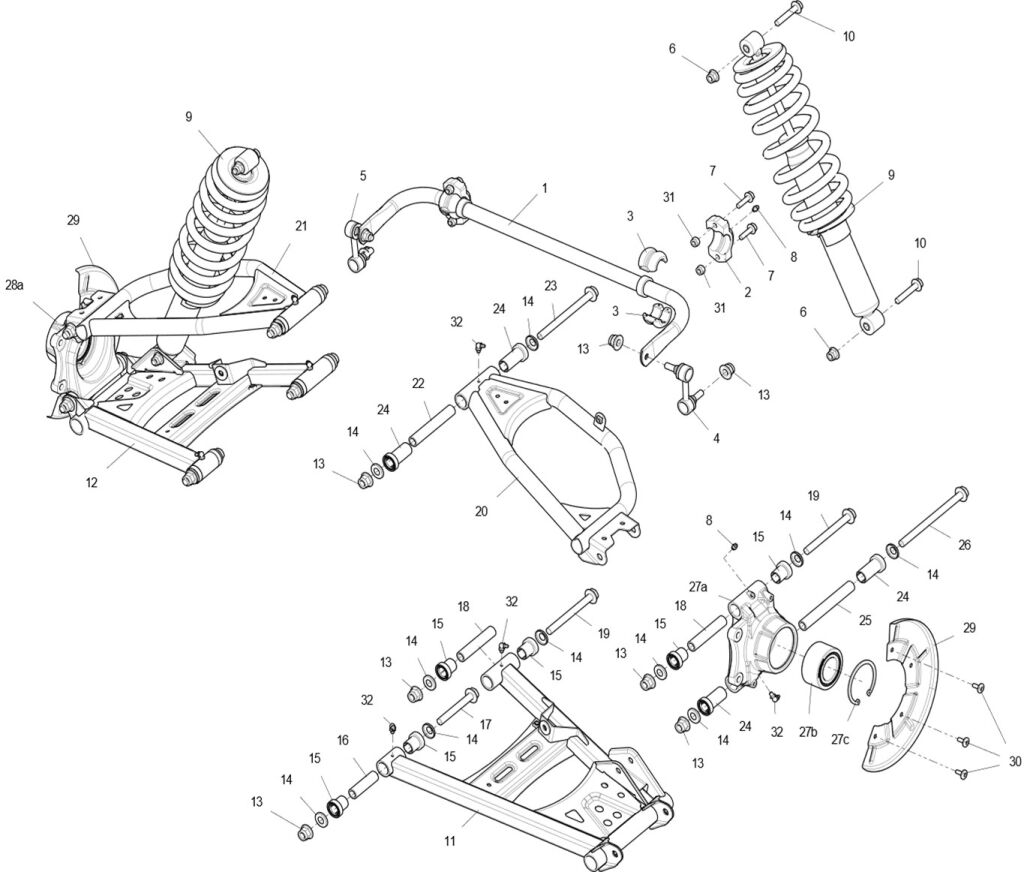

Rear suspension assembly

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_2_242_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
32 90° Connector pressure filling cup (Ref. č 32) T07000001007 90° Connector pressure filling cup  8 54,55 Kč 66 Kč
SKLADEM
23 BOLT M12×1.25×145 (Ref. č 23) GBT005789106 BOLT M12×1.25×145  2 57,02 Kč 69 Kč
SKLADEM
22 U09_REAR ROCER ARM LINERⅢ (Ref. č 22) U09D20005001 U09_REAR ROCER ARM LINERⅢ  2 75,21 Kč 91 Kč
SKLADEM

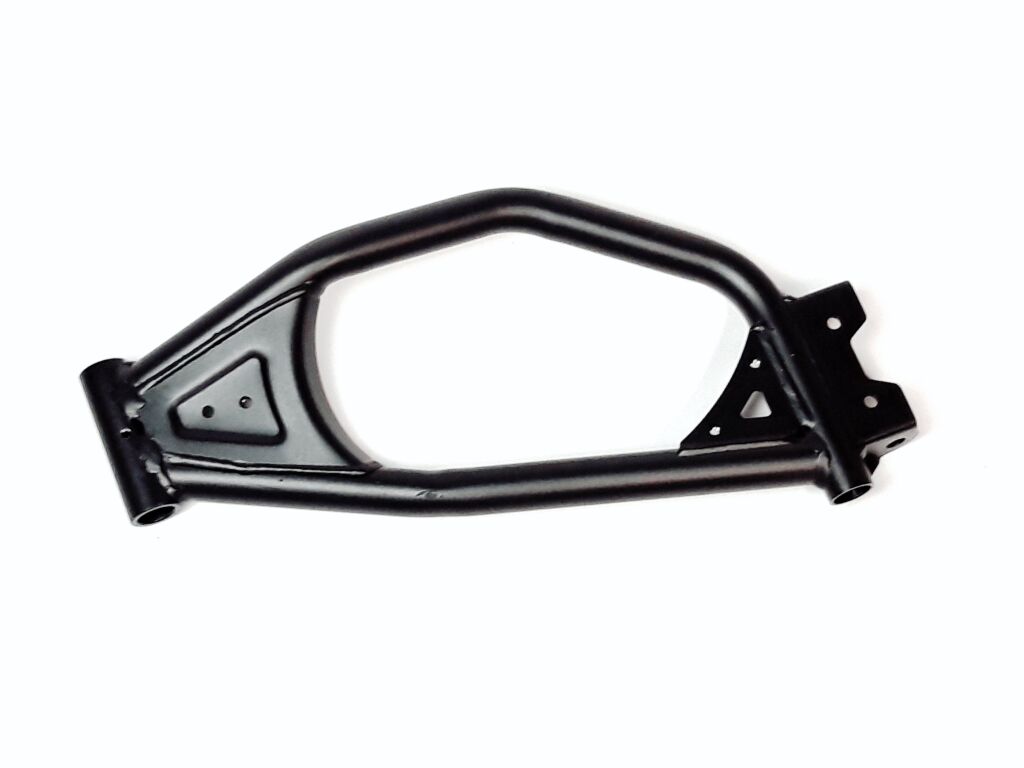

21 U09 REAR RIGHT UPPER ROCKER ARM ASSY (MATTE BLACK) (Ref. č 21) U09D22100005 U09 REAR RIGHT UPPER ROCKER ARM ASSY (MATTE BLACK)  1 1 998,35 Kč 2 418 Kč
SKLADEM

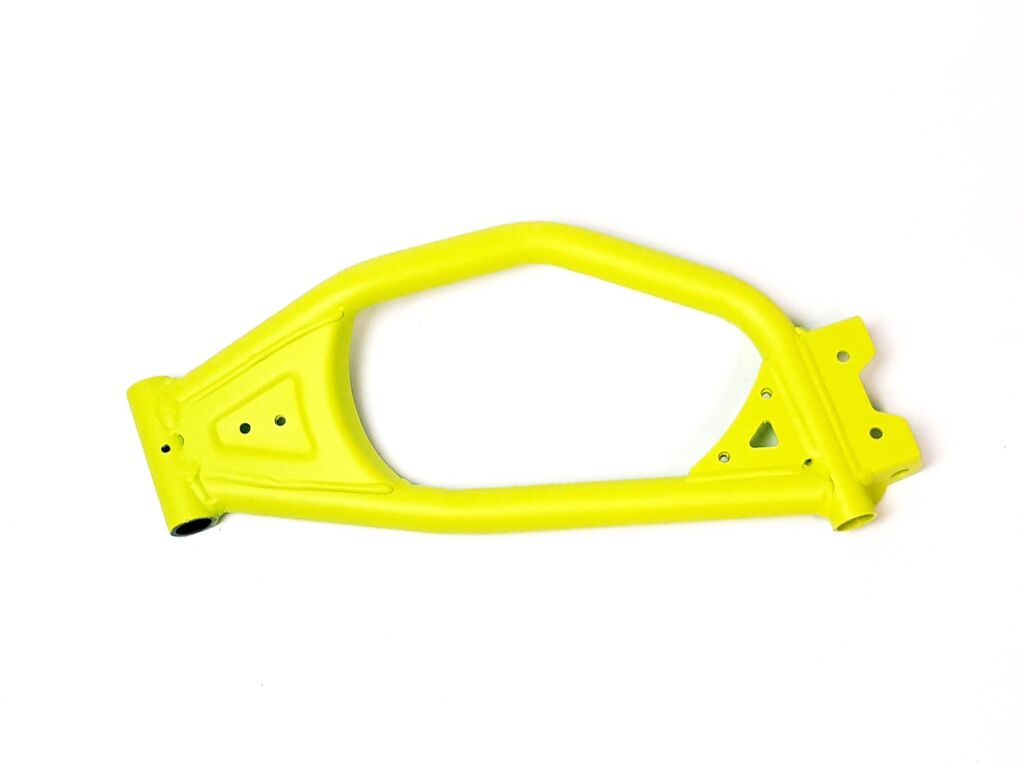

21 U09 REAR RIGHT UPPER ROCKER ARM ASSY (GREEN) (Ref. č 21) U09D22100004 U09 REAR RIGHT UPPER ROCKER ARM ASSY (GREEN)  1 1 998,35 Kč 2 418 Kč
SKLADEM

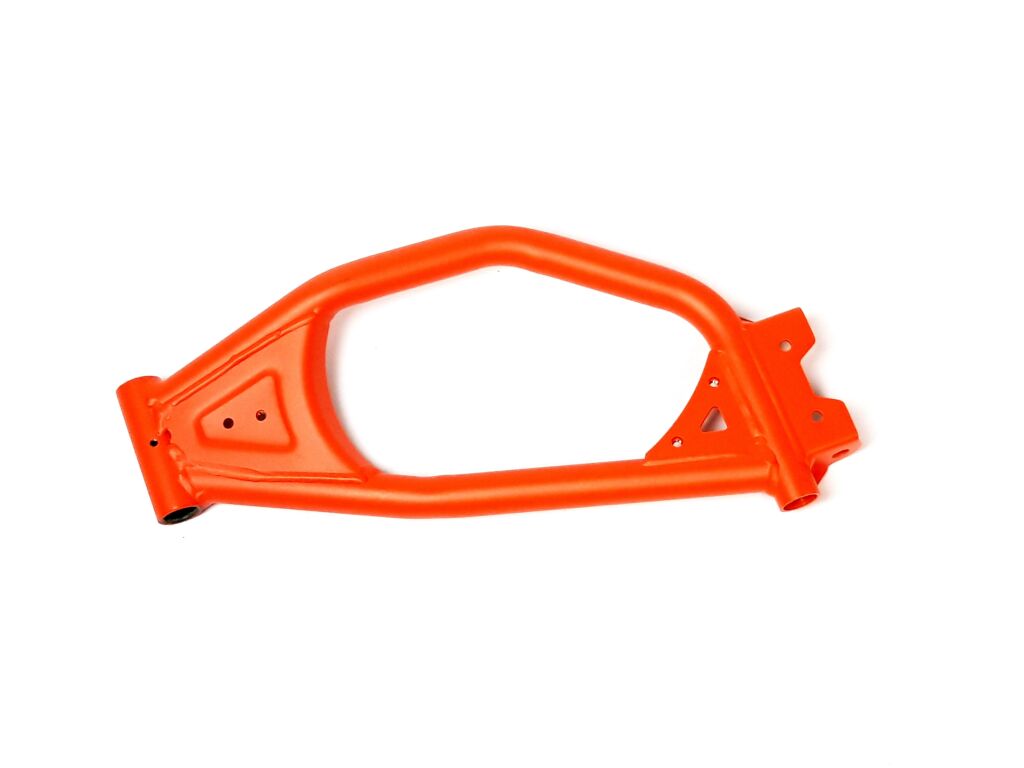

21 U09 REAR RIGHT UPPER ROCKER ARM ASSY (RED) (Ref. č 21) U09D22100003 U09 REAR RIGHT UPPER ROCKER ARM ASSY (RED)  1 1 998,35 Kč 2 418 Kč
NA DOTAZ
20 U12_RL UPPER ROCKER ARM ASSY-MATTE BLACK (Ref. č 20) U09D21100005 U12_RL UPPER ROCKER ARM ASSY-MATTE BLACK  1 1 998,35 Kč 2 418 Kč
SKLADEM

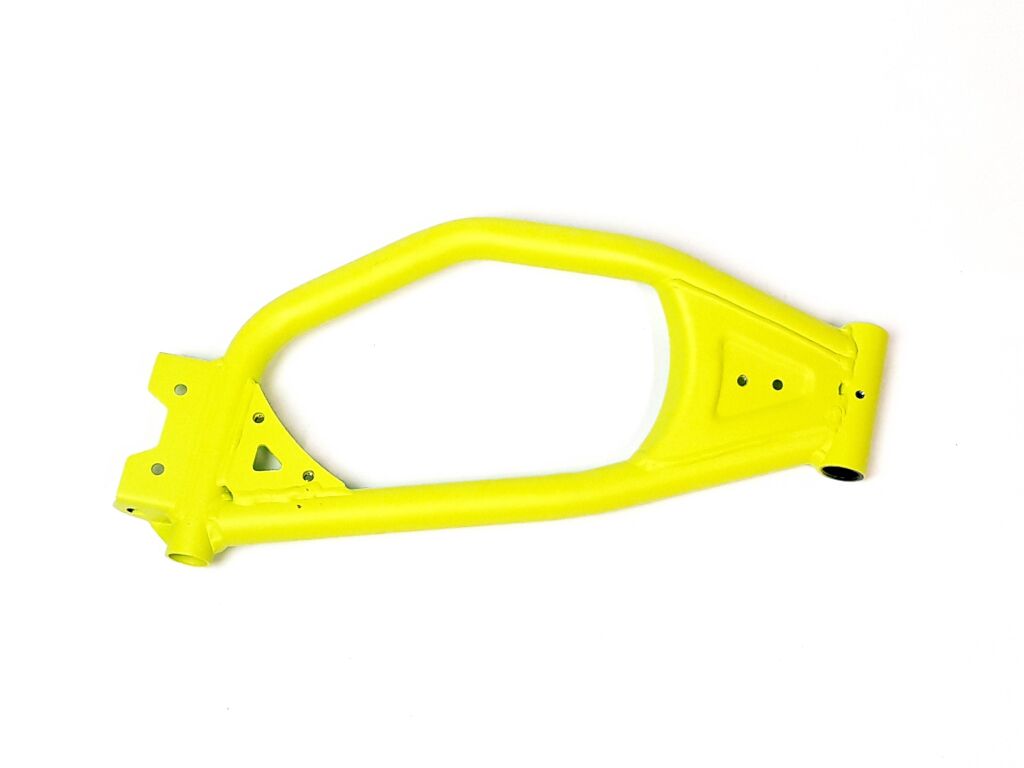

20 U11_RL UPPER ROCKER ARM ASSY-GREEN (Ref. č 20) U09D21100004 U11_RL UPPER ROCKER ARM ASSY-GREEN  1 1 998,35 Kč 2 418 Kč
SKLADEM
20 U10_RL UPPER ROCKER ARM ASSY-RED (Ref. č 20) U09D21100003 U10_RL UPPER ROCKER ARM ASSY-RED  1 1 998,35 Kč 2 418 Kč
SKLADEM
19 BOLT M12×1.25×120 (Ref. č 19) GBT005789105 BOLT M12×1.25×120  4 57,02 Kč 69 Kč
SKLADEM
24 U09_ROCEKER ARM BUFFER SLEEVEⅢ (Ref. č 24) U09D20007001 U09_ROCEKER ARM BUFFER SLEEVEⅢ  8 57,02 Kč 69 Kč
SKLADEM
25 U09_REAR ROCER ARM LINERⅡ (Ref. č 25) U09D20004001 U09_REAR ROCER ARM LINERⅡ  2 94,21 Kč 114 Kč
SKLADEM
26 BOLT M12×1.25×170 (Ref. č 26) GBT005789107 BOLT M12×1.25×170  2 61,16 Kč 74 Kč
SKLADEM
31 NUT M8 (Ref. č 31) GBT008892004 NUT M8  4 57,02 Kč 69 Kč
SKLADEM
30 Inner hexagon screws M10×1.25×25 (Ref. č 30) T03000007002 Inner hexagon screws M10×1.25×25  6 57,02 Kč 69 Kč
SKLADEM
29 U09_REAR BRAKE DISC FLAP_BLACK PAINT (Ref. č 29) U09D20001002 U09_REAR BRAKE DISC FLAP_BLACK PAINT  2 419,83 Kč 508 Kč
SKLADEM

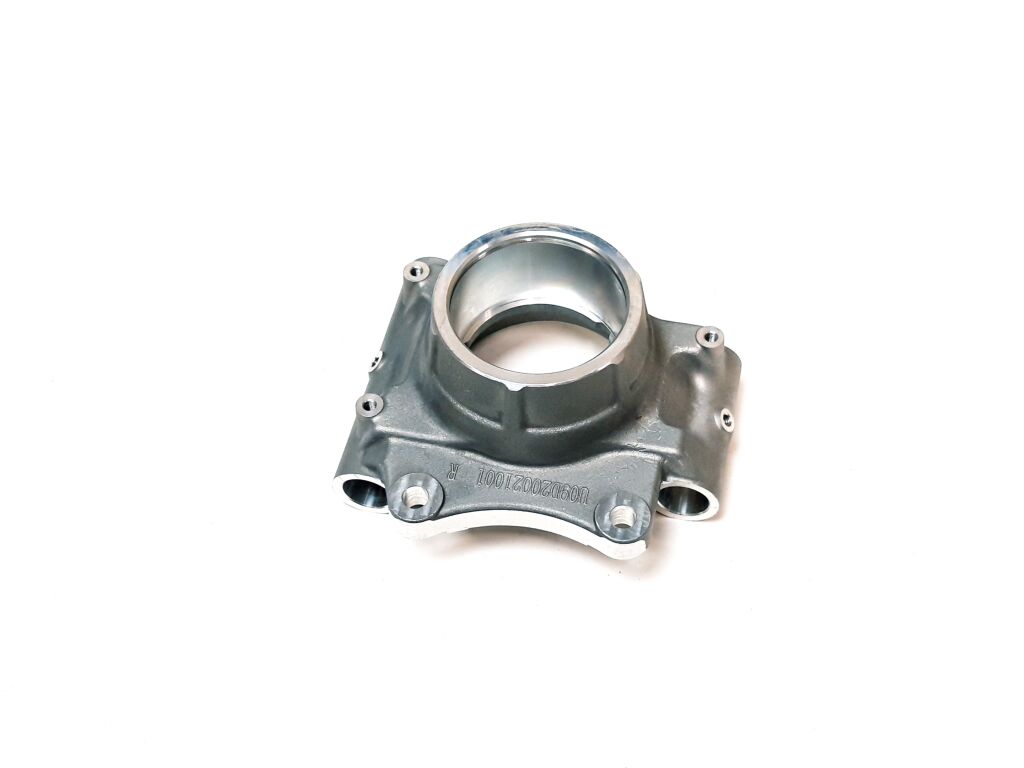

28a U09_RR HUB BODY (Ref. č 28a) U09D20021001 U09_RR HUB BODY  1 1 521,49 Kč 1 841 Kč
SKLADEM
28 U09_RR WHEEL AXLE SUPPORT ASSY (Ref. č 28) U09D20020001 U09_RR WHEEL AXLE SUPPORT ASSY  1 2 147,93 Kč 2 599 Kč
SKLADEM
27c CIRCLIP 72 (Ref. č 27c) GBT000893006 CIRCLIP 72  1 57,02 Kč 69 Kč
SKLADEM
27b BEARING DAC407237-2RS (Ref. č 27b) JBT010238004 BEARING DAC407237-2RS  1 801,65 Kč 970 Kč
SKLADEM

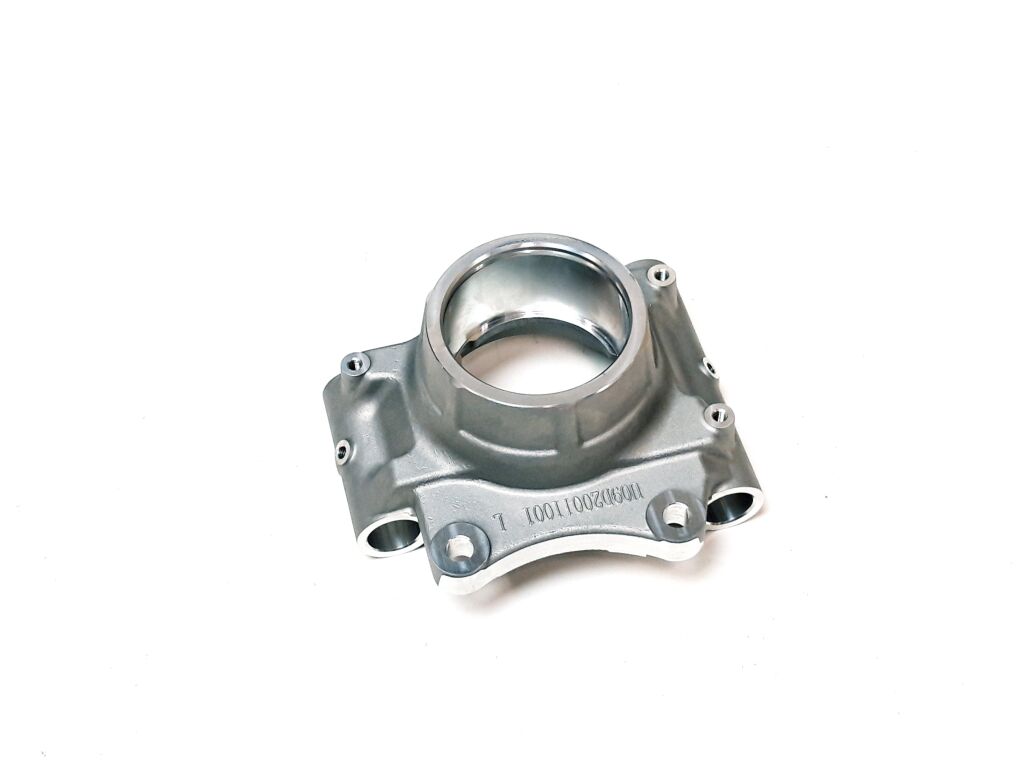

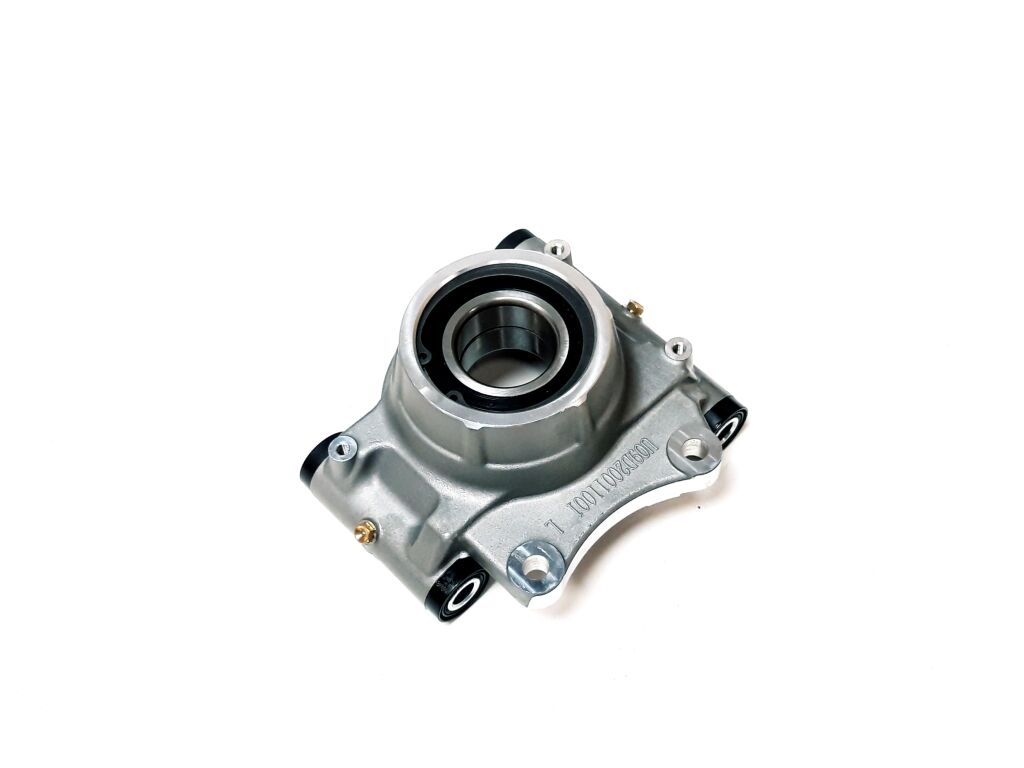

27a U09_RL HUB BODY (Ref. č 27a) U09D20011001 U09_RL HUB BODY  1 1 521,49 Kč 1 841 Kč
NA DOTAZ

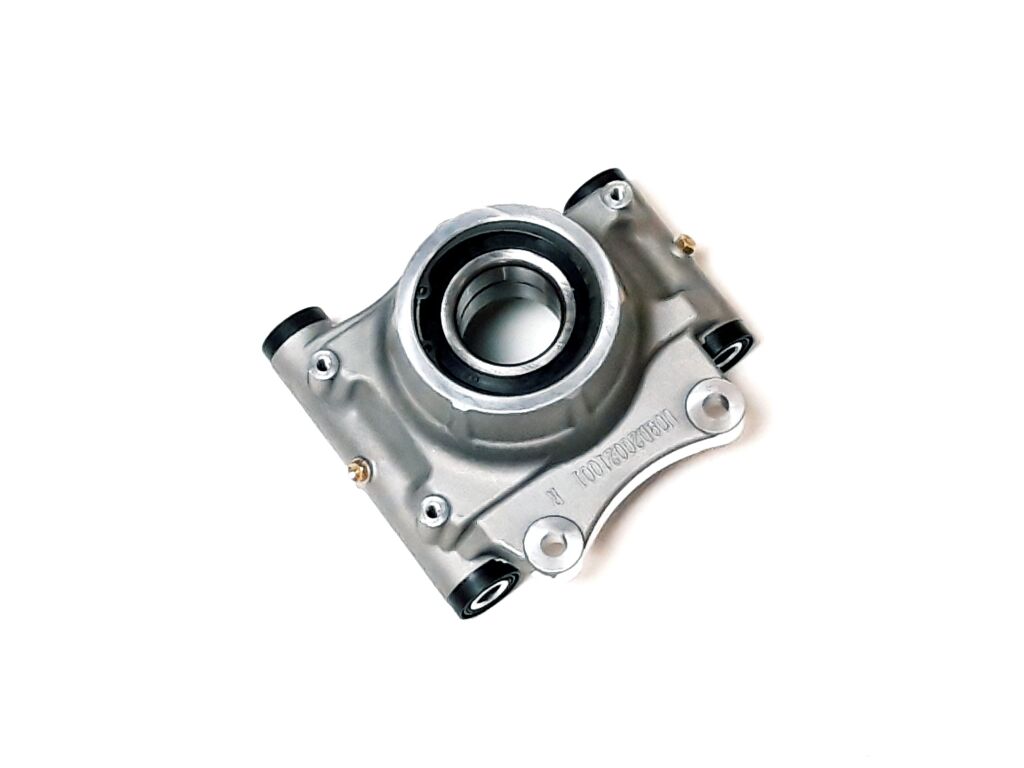

27 U09_RL WHEEL AXLE SUPPORT ASSY (Ref. č 27) U09D20010001 U09_RL WHEEL AXLE SUPPORT ASSY  1 2 147,93 Kč 2 599 Kč
SKLADEM
18 U09 REAR ROCKER ARM LINER 1 (Ref. č 18) U09D20003001 U09 REAR ROCKER ARM LINER 1  4 58,68 Kč 71 Kč
SKLADEM
17 BOLT M12×1.25×90 (Ref. č 17) GBT005789103 BOLT M12×1.25×90  2 57,02 Kč 69 Kč
SKLADEM

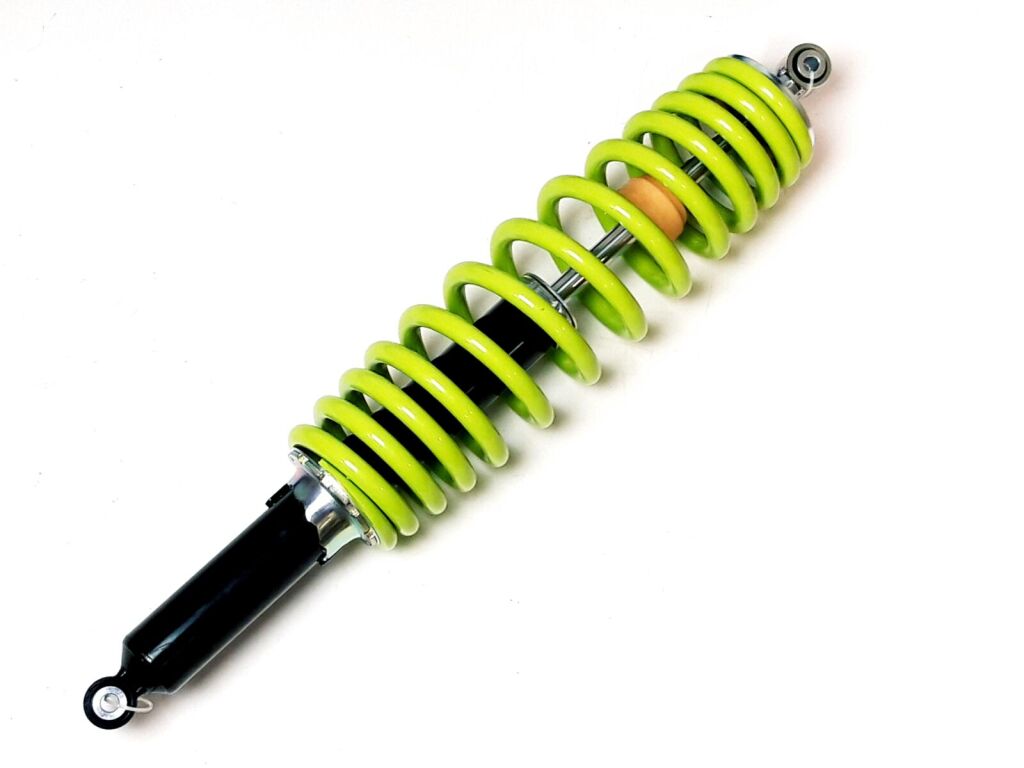

9 U01 REAR SHOCK ABSORBER GREEN (Ref. č 9) U01D25000002 U01 REAR SHOCK ABSORBER GREEN  2 4 175,21 Kč 5 052 Kč
SKLADEM
9 U01 REAR SHOCK ABSORBER RED (Ref. č 9) U01D25000001 U01 REAR SHOCK ABSORBER RED  2 4 175,21 Kč 5 052 Kč
SKLADEM
8 Straight pressure oil cup (Ref. č 8) GBT001152001 Straight pressure oil cup  4 114,88 Kč 139 Kč
SKLADEM
7 HEXAGON FLANGE BOLT M8×30 (Ref. č 7) GBT005789017 HEXAGON FLANGE BOLT M8×30  2 57,02 Kč 69 Kč
SKLADEM
6 NUT M12×1.25 (Ref. č 6) GBT061832010 NUT M12×1.25  2 57,02 Kč 69 Kč
SKLADEM
13 NUT M12×1.25 (Ref. č 13) GBT061832010 NUT M12×1.25  10 57,02 Kč 69 Kč
SKLADEM
5 LEFT STABILIZER BALL JOINT (Ref. č 5) S01D10810001 LEFT STABILIZER BALL JOINT  1 676,86 Kč 819 Kč
SKLADEM
4 RIGHT STABILIZER BALL JOINT (Ref. č 4) S01D10820001 RIGHT STABILIZER BALL JOINT  1 677,69 Kč 820 Kč
SKLADEM
3 U01 REAR BALANCE BAR BUFFER BLOCK (Ref. č 3) U01D26001001 U01 REAR BALANCE BAR BUFFER BLOCK  4 57,02 Kč 69 Kč
SKLADEM
2 Rear balance bar mounting seat (Ref. č 2) U01D26002001 Rear balance bar mounting seat  2 270,25 Kč 327 Kč
SKLADEM
9 U01 REAR SHOCK ABSORBER BLACK (Ref. č 9) U01D25000003 U01 REAR SHOCK ABSORBER BLACK  2 4 175,21 Kč 5 052 Kč
SKLADEM
10 Hexagon flange bolt M10×1.25×55 (Ref. č 10) GBT005789032 Hexagon flange bolt M10×1.25×55  4 57,02 Kč 69 Kč
SKLADEM

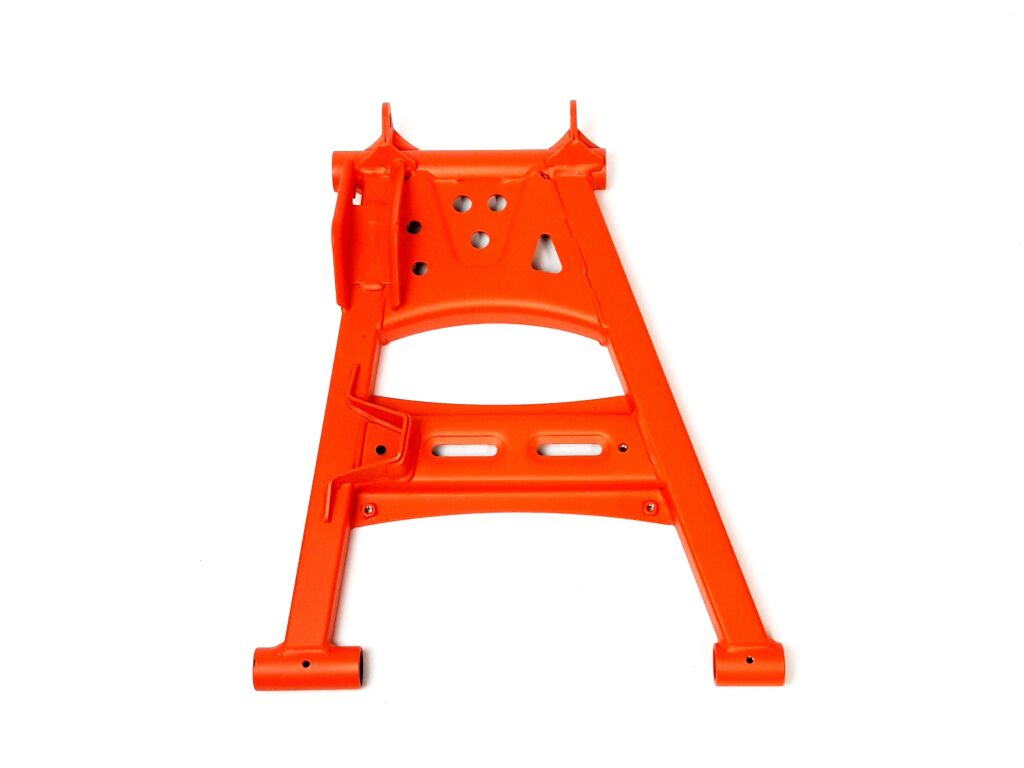

11 U09 REAR LEFT LOWER ROCKER ARM ASSY (RED) (Ref. č 11) U09D23100003 U09 REAR LEFT LOWER ROCKER ARM ASSY (RED)  1 2 615,70 Kč 3 165 Kč
SKLADEM
16 U09 FRONT ROCKER ARM LINER (Ref. č 16) U09D10001001 U09 FRONT ROCKER ARM LINER  2 57,02 Kč 69 Kč
SKLADEM
15 U09 REAR ROCKER ARM LINER Ⅱ (Ref. č 15) U09D20006001 U09 REAR ROCKER ARM LINER Ⅱ  12 57,02 Kč 69 Kč
SKLADEM
14 U09 ROCKER ARM DUST COVER 304 (Ref. č 14) U09D20008001 U09 ROCKER ARM DUST COVER 304  20 57,02 Kč 69 Kč
SKLADEM

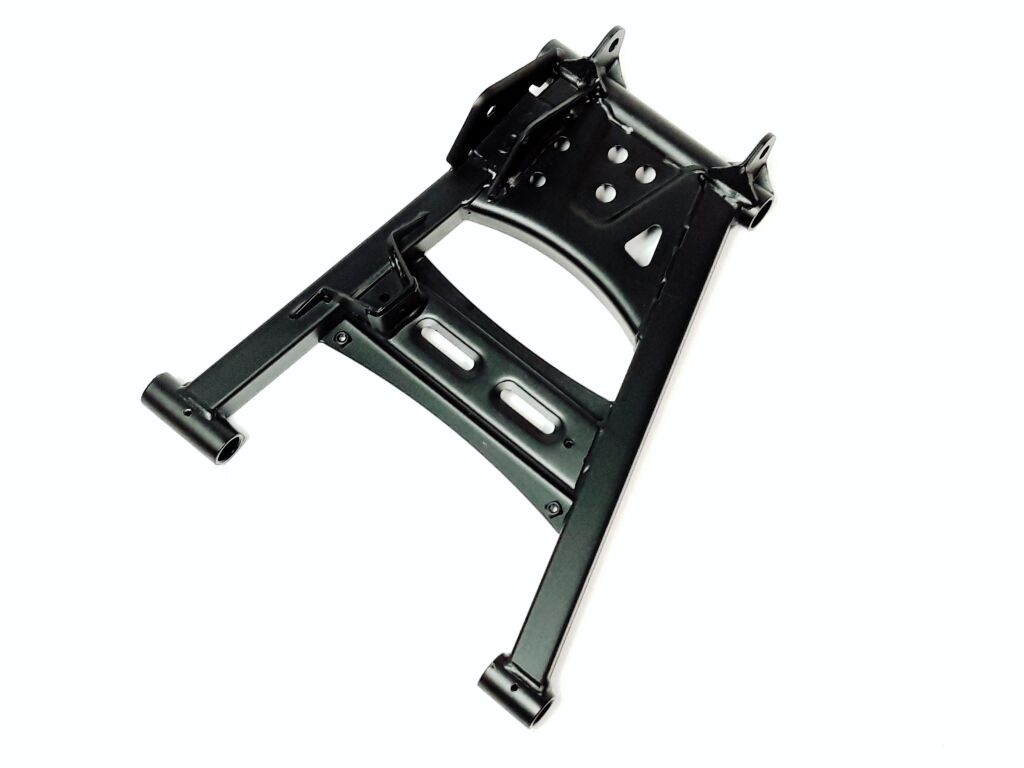

12 U09 REAR RIGHT LOWER ROCKER ARM ASSY (MATTE BLACK) (Ref. č 12) U09D24100005 U09 REAR RIGHT LOWER ROCKER ARM ASSY (MATTE BLACK)  1 2 615,70 Kč 3 165 Kč
SKLADEM

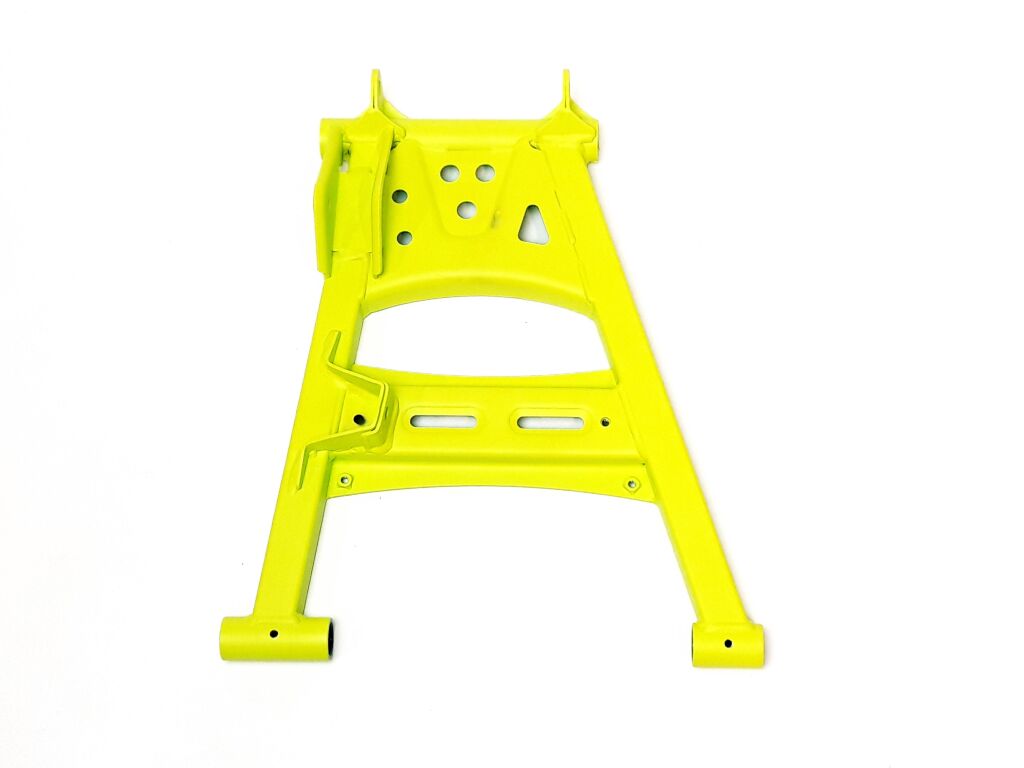

12 U09 REAR RIGHT LOWER ROCKER ARM ASSY (GREEN) (Ref. č 12) U09D24100004 U09 REAR RIGHT LOWER ROCKER ARM ASSY (GREEN)  1 2 615,70 Kč 3 165 Kč
SKLADEM

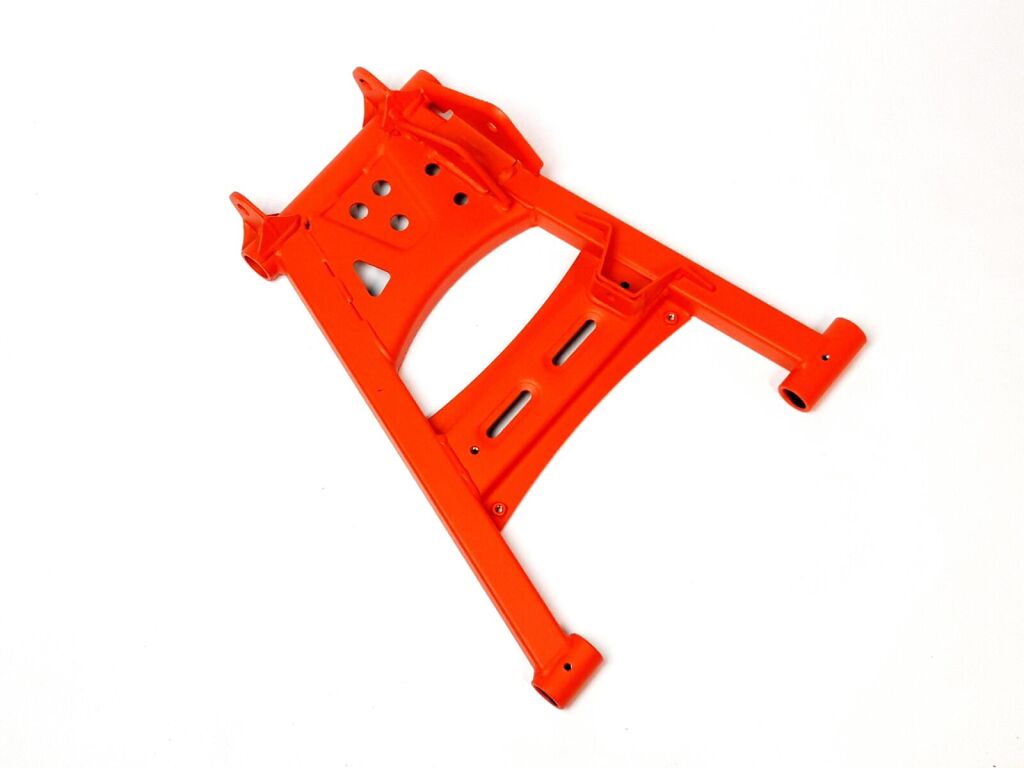

12 U09 REAR RIGHT LOWER ROCKER ARM ASSY (RED) (Ref. č 12) U09D24100003 U09 REAR RIGHT LOWER ROCKER ARM ASSY (RED)  1 2 615,70 Kč 3 165 Kč
SKLADEM
11 U09 REAR LEFT LOWER ROCKER ARM ASSY (MATTE BLACK) (Ref. č 11) U09D23100005 U09 REAR LEFT LOWER ROCKER ARM ASSY (MATTE BLACK)  1 2 615,70 Kč 3 165 Kč
SKLADEM

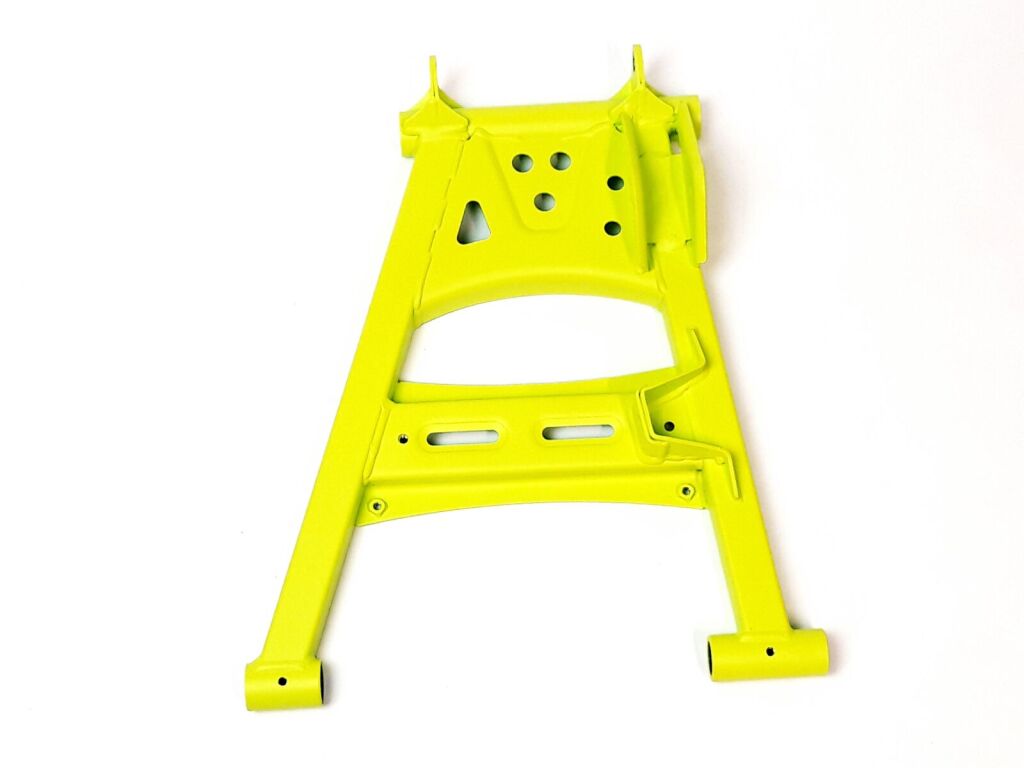

11 U09 REAR LEFT LOWER ROCKER ARM ASSY (GREEN) (Ref. č 11) U09D23100004 U09 REAR LEFT LOWER ROCKER ARM ASSY (GREEN)  1 2 615,70 Kč 3 165 Kč
SKLADEM

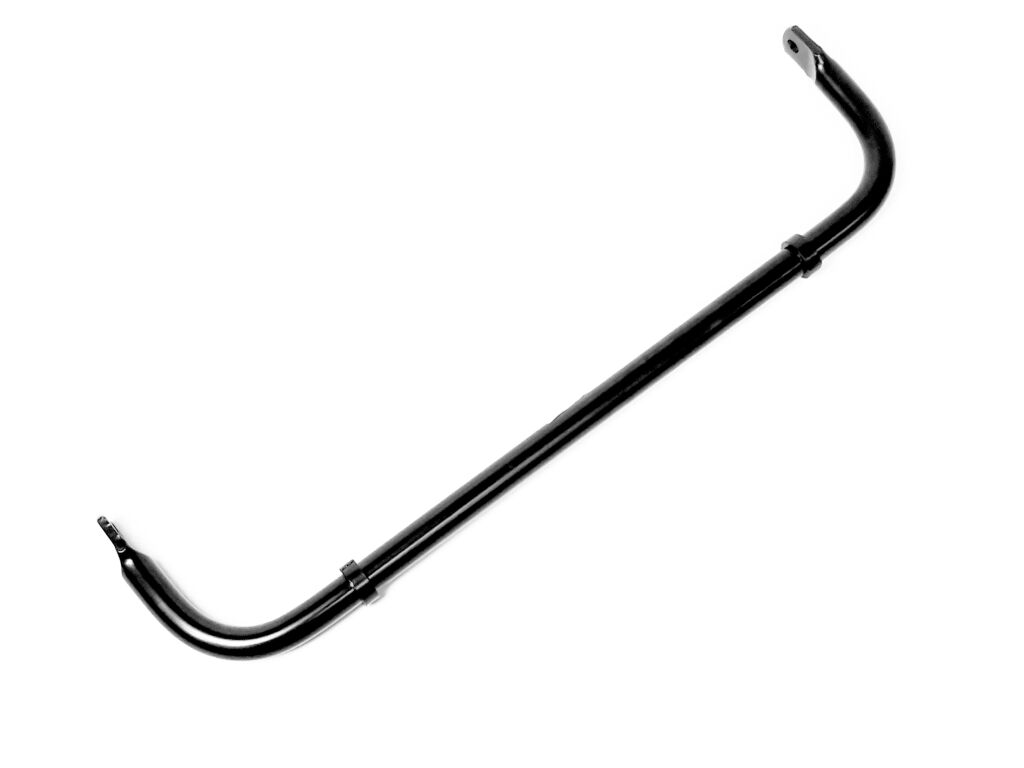

1 U01 REAR BALANCE BAR ASSY (SOLID PIECE) (Ref. č 1) U01D26100002 U01 REAR BALANCE BAR ASSY (SOLID PIECE)  1 847,93 Kč 1 026 Kč
SKLADEM
