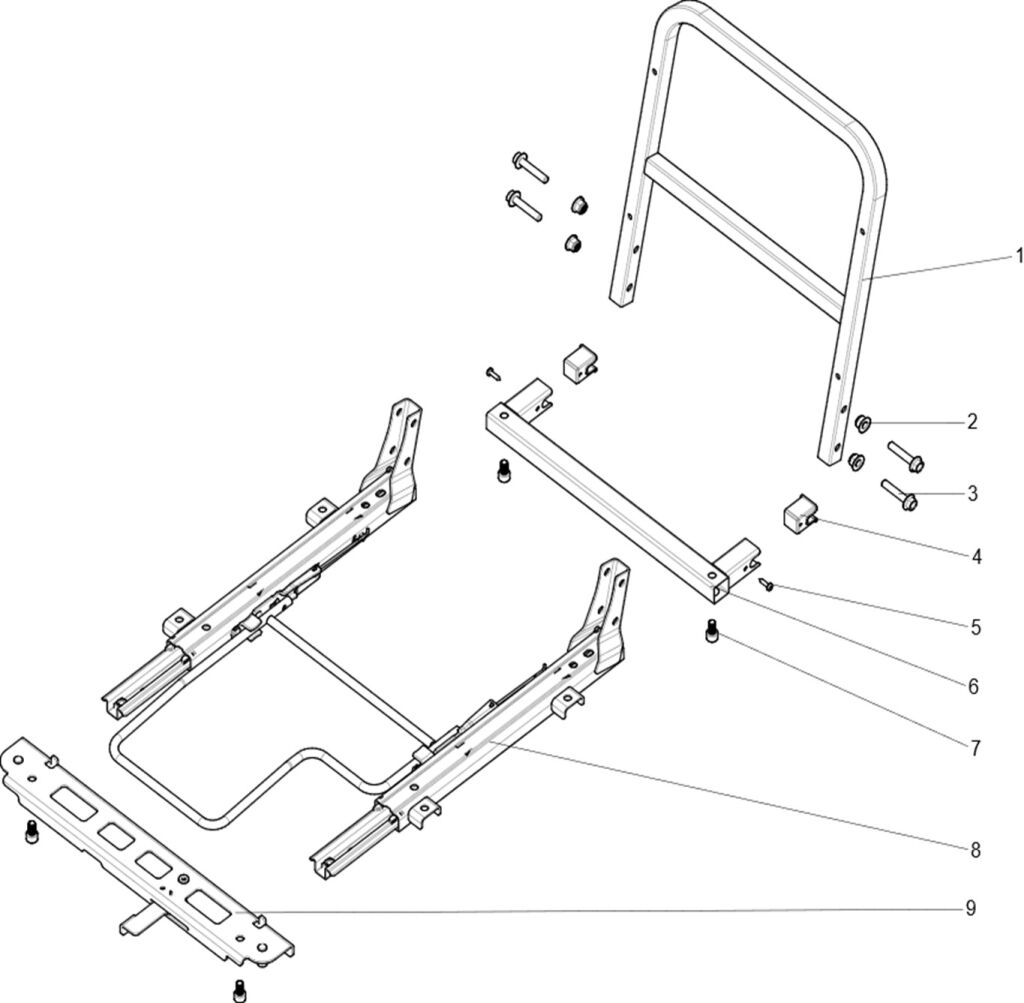

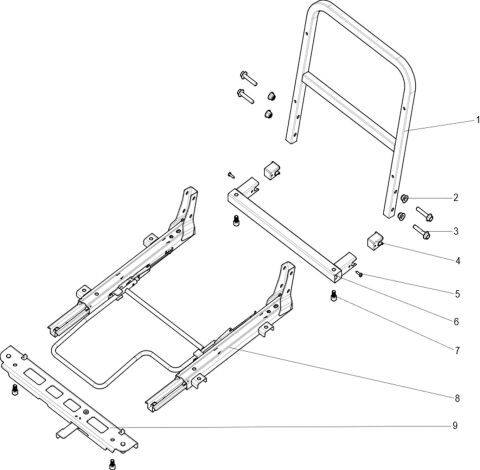

Seat bracket assembly

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_4_460_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 U01K11110001 U01 SEAT BACKREST BRACKET ASSEMBLY  1 709,09 Kč 858 Kč
NA DOTAZ
2 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 2) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  4 57,02 Kč 69 Kč
SKLADEM
3 HEXAGON FLANGE BOLT M8×40 (Ref. č 3) GBT005789019 HEXAGON FLANGE BOLT M8×40  4 57,02 Kč 69 Kč
SKLADEM
4 U01K11101001 U01 U-SHAPED BUFFER BLOCK BEHIND THE SEAT  2 71,90 Kč 87 Kč
NA DOTAZ
5 SCREW ST4.2×16 (Ref. č 5) GBT000845010 SCREW ST4.2×16  2 57,02 Kč 69 Kč
SKLADEM
6 U01K11140001 U01 SEAT RAIL REAR MOUNTING BRACKET ASSEMBLY  1 343,80 Kč 416 Kč
NA DOTAZ
7 SCREW M8×16 (Ref. č 7) GBT000701014 SCREW M8×16  4 57,02 Kč 69 Kč
SKLADEM
8 U01K11120001 U01 SEAT RAIL BRACKET ASSEMBLY  1 1 874,38 Kč 2 268 Kč
NA DOTAZ
9 U01K11130001 U01 SEAT RAIL FRONT MOUNTING BRACKET ASSEMBLY  1 520,66 Kč 630 Kč
NA DOTAZ
