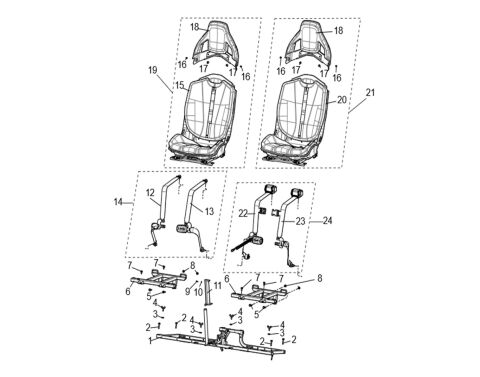

SEAT COMBINATION (EU)

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_4_430_UTV1000F-S3
Vybrat MODEL:
Villain SX10 Villain SX10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 S03C02600002 SEAT MOUNTING BRACKET ASSEMBLY (BLACK)  1 3 023,97 Kč 3 659 Kč
NA DOTAZ

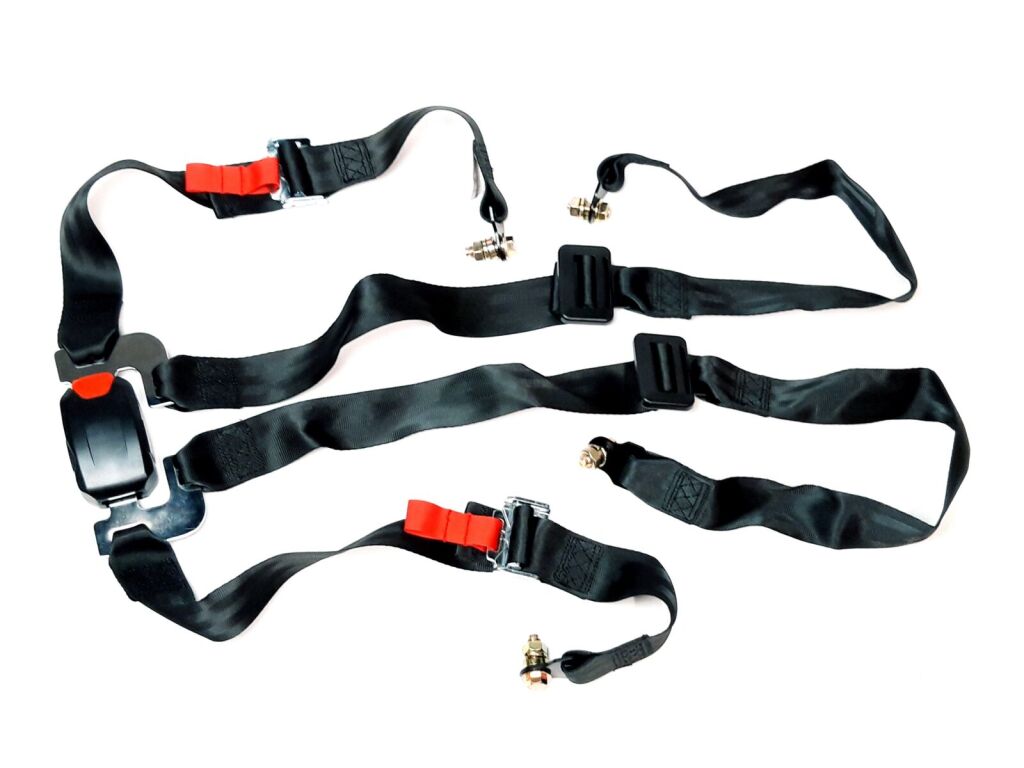

14 PASSENGER SEAT BELT ASSEMBLY_4-POINT TYPE_WITHOUT RETRACTOR (Ref. č 14) S01K20200001 PASSENGER SEAT BELT ASSEMBLY_4-POINT TYPE_WITHOUT RETRACTOR  1 776,03 Kč 939 Kč
SKLADEM
15 S01K01000301 CO-DRIVER SEAT ASSEMBLY  1 9 676,86 Kč 11 709 Kč
NA DOTAZ
16 T08000019001 SEAT CUSHION HEADREST M6 CAP NUT  4 57,02 Kč 69 Kč
NA DOTAZ
17 Inner hexagon screws M10×1.25×25 (Ref. č 17) T03000007002 Inner hexagon screws M10×1.25×25  4 57,02 Kč 69 Kč
SKLADEM
18 S01K01000101 HEADREST  2 1 474,38 Kč 1 784 Kč
NA DOTAZ
19 S01K02000001 CO-DRIVER'S SEAT(WITHOUT OFF SEAT ALARM)  1 9 457,85 Kč 11 444 Kč
NA DOTAZ
20 S01K01000201 MAIN DRIVER'S SEAT ASSEMBLY  1 10 142,15 Kč 12 272 Kč
NA DOTAZ
21 S01K01000001 MAIN DRIVER'S SEAT(WITH OFF SEAT ALARM)  1 9 912,40 Kč 11 994 Kč
NA DOTAZ
22 S01K203B0001 DRIVER LOCK ASSEMBLY  1 1 034,71 Kč 1 252 Kč
NA DOTAZ
23 S01K203C0001 DRIVER BUCKLE ASSEMBLY  1 1 034,71 Kč 1 252 Kč
NA DOTAZ
13 S01K202A0001 PASSENGER LOCK ASSEMBLY  1 517,36 Kč 626 Kč
NA DOTAZ
12 S01K201A0001 PASSENGER BUCKLE ASSEMBLY  1 517,36 Kč 626 Kč
NA DOTAZ

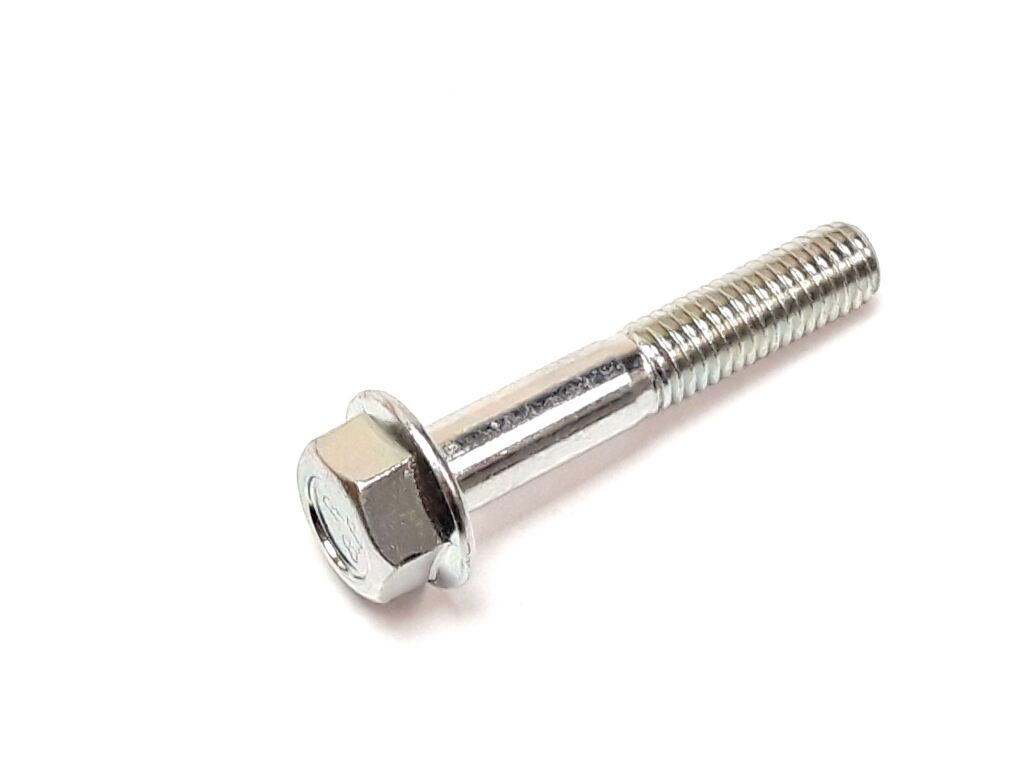

2 HEXAGON FLANGE BOLT M8×40 (Ref. č 2) GBT005789019 HEXAGON FLANGE BOLT M8×40  4 57,02 Kč 69 Kč
SKLADEM
3 WASHER 10 (Ref. č 3) GBT000971005 WASHER 10  4 57,02 Kč 69 Kč
SKLADEM
4 T03000013001 WING SCREW M8×20  4 57,02 Kč 69 Kč
NA DOTAZ
5 GBT005789020 HEXAGON FLANGE BOLT M8×45  4 57,02 Kč 69 Kč
NA DOTAZ
6 S01C05000002 SUB-SEAT BRACKET COMBINATION  2 1 265,29 Kč 1 531 Kč
NA DOTAZ
7 Bolt M8×16 (Ref. č 7) GBT005789014 Bolt M8×16  4 57,02 Kč 69 Kč
SKLADEM

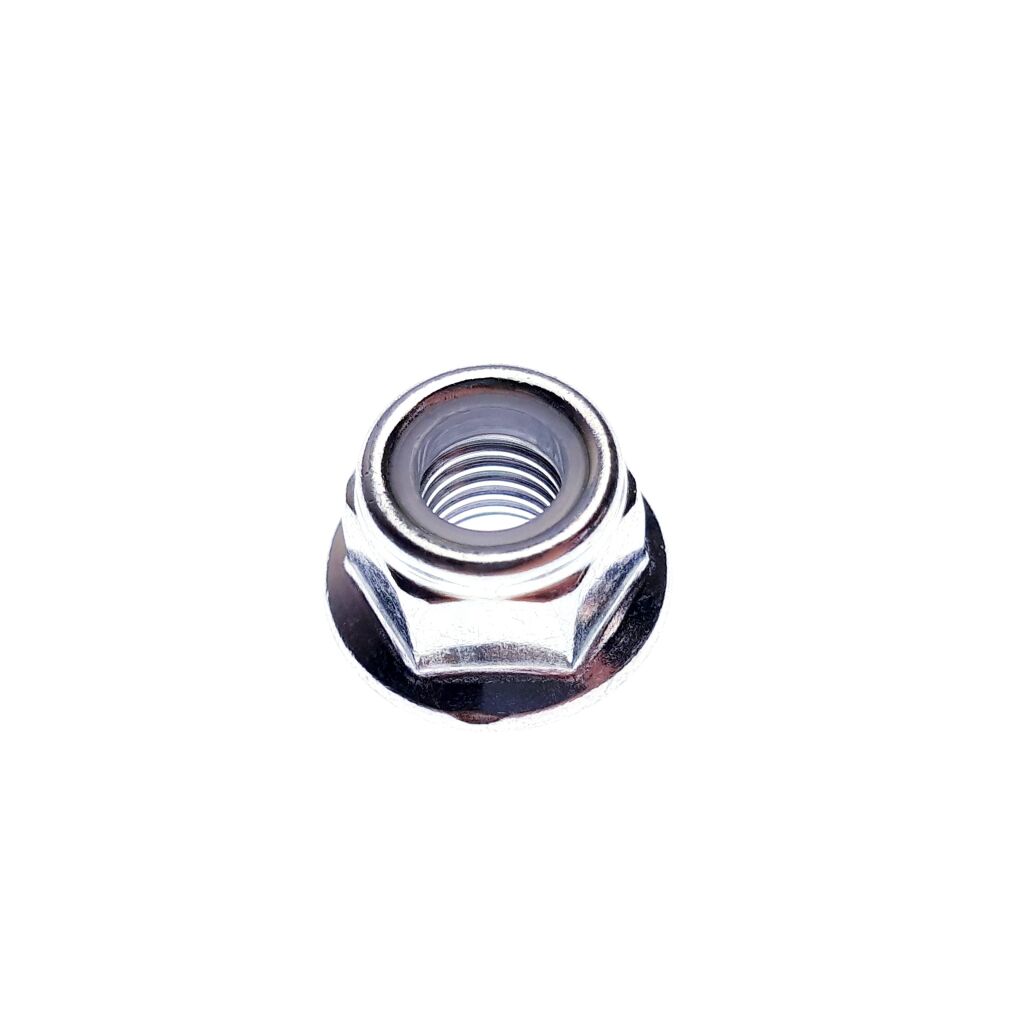

8 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8 (Ref. č 8) GBT061831003 HEXAGON FLANGE FACE LOCKING NUT WITH NON-METALLICINSERT M8  4 57,02 Kč 69 Kč
SKLADEM
9 SCREW ST4.2×16 (Ref. č 9) GBT000845010 SCREW ST4.2×16  1 57,02 Kč 69 Kč
SKLADEM
10 GBT000971012 A-SPACER 5  1 57,02 Kč 69 Kč
NA DOTAZ
11 S01H19100001 ARMREST RUBBER SLEEVE  1 233,06 Kč 282 Kč
NA DOTAZ

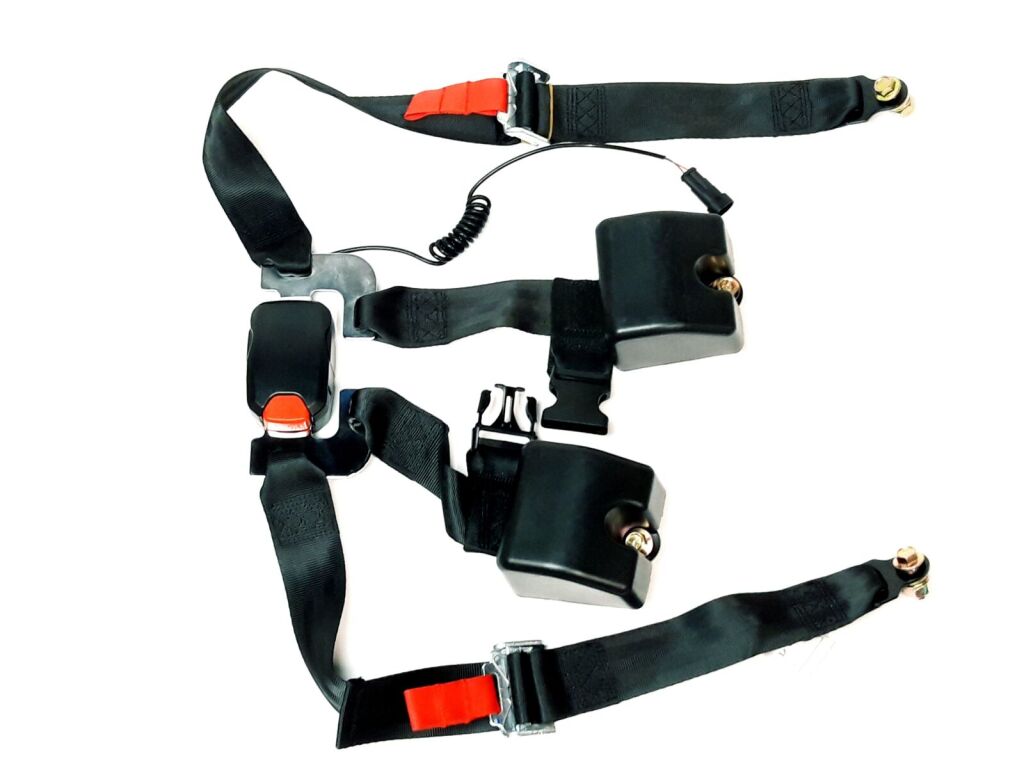

24 DRIVER'S SEAT BELT ASSEMBLY_4-POINT TYPE_WITH RETRACTOR (Ref. č 24) S01K20300001 DRIVER'S SEAT BELT ASSEMBLY_4-POINT TYPE_WITH RETRACTOR  1 1 479,34 Kč 1 790 Kč
SKLADEM
