SPEEDOMETER

TGB
Výrobce: TGB
Kód produktu: TGB_5_201_EST
Vybrat MODEL:
BLADE 1000LT E4 BLADE 1000LT E4

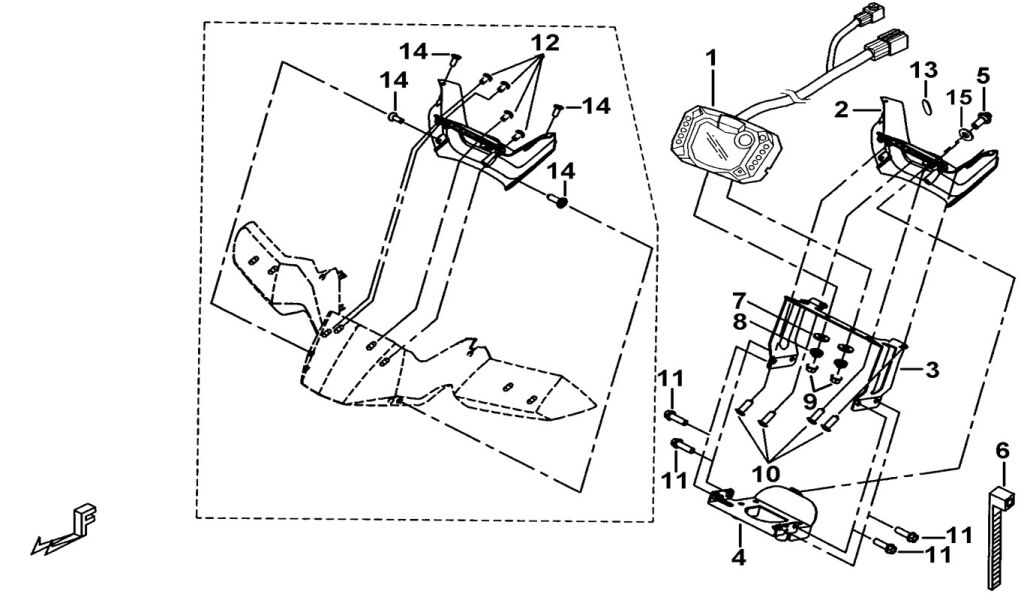

Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
06 CLAMP L200 (Ref. č 06) 518739 CLAMP L200  4 72,73 Kč 88 Kč
SKLADEM
04 BRACKET, BOTTOM (Ref. č 04) 513094 BRACKET, BOTTOM  1 664,46 Kč 804 Kč
NA DOTAZ
03 BRACKET ASSY., UPPER (Ref. č 03) 512668 BRACKET ASSY., UPPER  1 556,20 Kč 673 Kč
NA DOTAZ
02B REAR HANDLE GUARDS (BROACH) (Ref. č 02B) 519001-M3 REAR HANDLE GUARDS (BROACH)

003161→

1 512,40 Kč 620 Kč
SKLADEM
02A HANDLE GUARDS (REAR) (Ref. č 02A) 519001 HANDLE GUARDS (REAR)  1 535,54 Kč 648 Kč
SKLADEM
02 REAR HANDLE GUARDS (CONTAIN FRONT COVER) (Ref. č 02) 519001-S REAR HANDLE GUARDS (CONTAIN FRONT COVER)

←002066

1 1 013,22 Kč 1 226 Kč
SKLADEM
01 Speedometer Assy for EPS (Ref. č 01) 910898 Speedometer Assy for EPS  1 6 017,36 Kč 7 281 Kč
SKLADEM
14 SCREW TAPPING M4X12 (Ref. č 14) S50401 SCREW TAPPING M4X12  4 56,20 Kč 68 Kč
SKLADEM
13 RUBBER PLUG (Ref. č 13) 513128 RUBBER PLUG  1 73,55 Kč 89 Kč
SKLADEM
12 SCREW, TAPPING M4X16 (Ref. č 12) GA552SC11 SCREW, TAPPING M4X16  4 56,20 Kč 68 Kč
SKLADEM
11 BOLT, FLANGE M6X16 (Ref. č 11) GA555SC05 BOLT, FLANGE M6X16  4 56,20 Kč 68 Kč
SKLADEM
10 SCREW, OVAL HEAD, TAPPING M5X14 (Ref. č 10) S57501 SCREW, OVAL HEAD, TAPPING M5X14  4 56,20 Kč 68 Kč
SKLADEM
09 NUT, FLANGE M5 (Ref. č 09) GA552NT05 NUT, FLANGE M5  2 56,20 Kč 68 Kč
SKLADEM
08 WASHER, SPRING (Ref. č 08) W10501 WASHER, SPRING  2 56,20 Kč 68 Kč
SKLADEM
07 WASHER (Ref. č 07) GA552WS05 WASHER  2 56,20 Kč 68 Kč
SKLADEM
05 SCREW, SOCKET HEAD M6X16 (Ref. č 05) S70609 SCREW, SOCKET HEAD M6X16  1 56,20 Kč 68 Kč
SKLADEM
