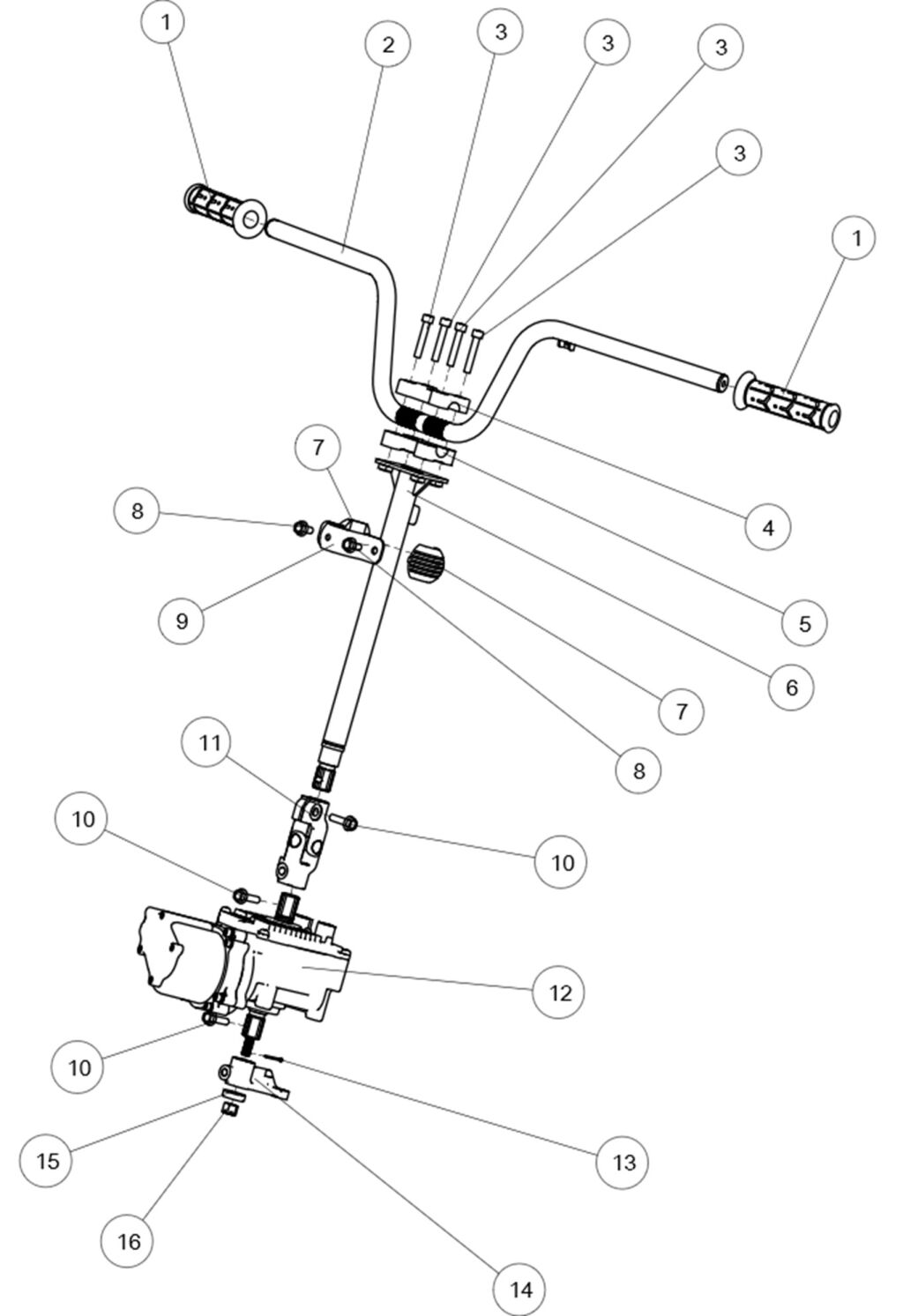

STEERING SYSTEM(EPS)

Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost

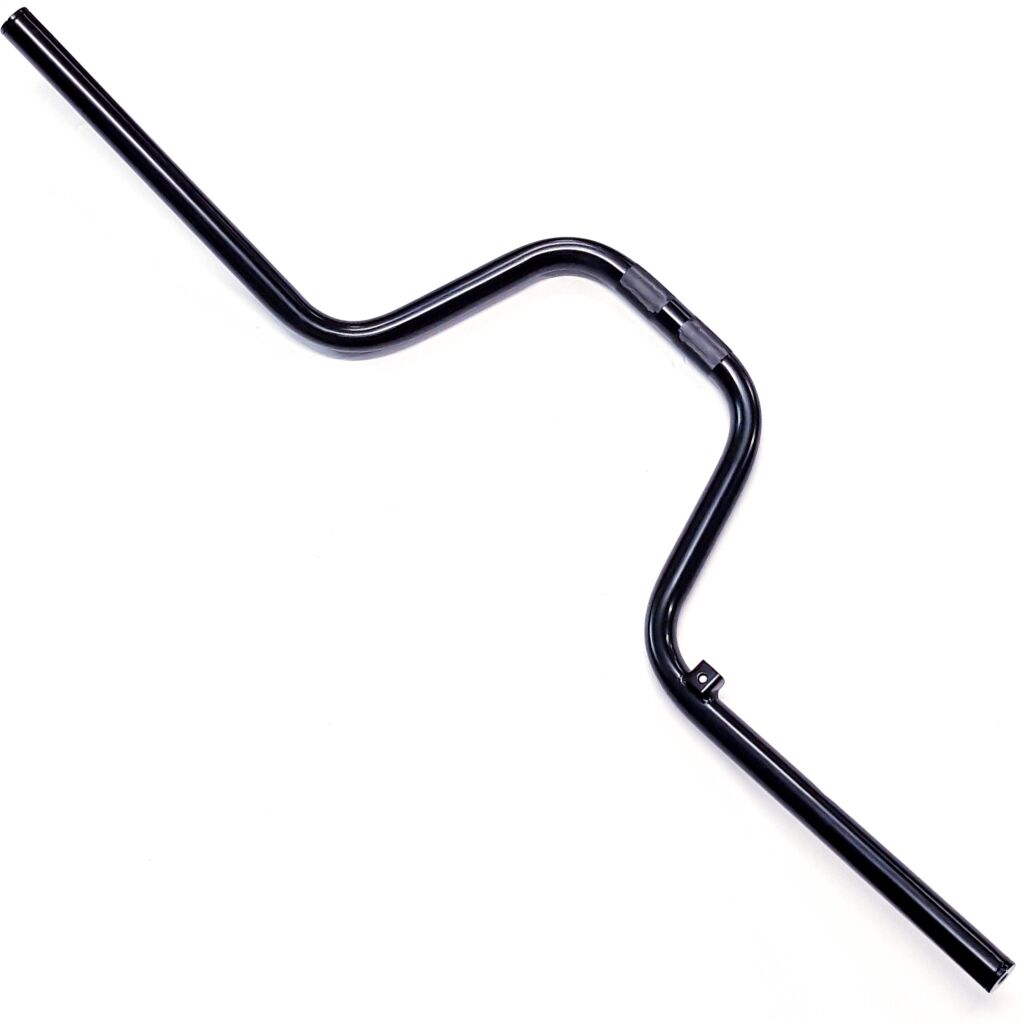

01 HANDLEBAR (Ref. č 01) A03F16600001 HANDLEBAR  2 718,18 Kč 869 Kč
SKLADEM
_15 STEERING ARM GASKET (Ref. č _15) T02000004001 STEERING ARM GASKET  1 61,98 Kč 75 Kč
SKLADEM
_14 STEERING ARM (Ref. č _14) A03F11001001 STEERING ARM  1 733,88 Kč 888 Kč
SKLADEM
_13 Cotter pin 2.5 x 25 (Ref. č _13) GBT000091006 Cotter pin 2.5 x 25  1 57,02 Kč 69 Kč
SKLADEM
_12 R/B A02F13100004 EPS (BRUSHLESS) (Ref. č _12) A02F13100002 R/B A02F13100004 EPS (BRUSHLESS)  1 21 864,46 Kč 26 456 Kč
NA DOTAZ
_11 STEERING KNUCKLE COMPONENT (Ref. č _11) A03F14100001 STEERING KNUCKLE COMPONENT  1 2 323,14 Kč 2 811 Kč
SKLADEM
_10 HEXAGON FLANGE BOLT M8×30 (Ref. č _10) GBT005789017 HEXAGON FLANGE BOLT M8×30  3 57,02 Kč 69 Kč
SKLADEM
09 LOCKING PLATE SPHERE (Ref. č 09) A03F16100001 LOCKING PLATE SPHERE  1 76,03 Kč 92 Kč
SKLADEM
08 Bolt M8×16 (Ref. č 08) GBT005789014 Bolt M8×16  2 57,02 Kč 69 Kč
SKLADEM
07 R/B A01-F162001-000-00 STEERING SPHERE (Ref. č 07) A03F16200001 R/B A01-F162001-000-00 STEERING SPHERE  2 282,64 Kč 342 Kč
NA DOTAZ
06 EPS STEERING SHAFT (Ref. č 06) A03F14000001 EPS STEERING SHAFT  1 1 899,17 Kč 2 298 Kč
SKLADEM
05 COVER HANDLEBAR LOWER (Ref. č 05) A03F16400001 COVER HANDLEBAR LOWER  1 509,92 Kč 617 Kč
SKLADEM
04 COVER HANDLEBAR UPPER (Ref. č 04) A03F16300001 COVER HANDLEBAR UPPER  1 509,92 Kč 617 Kč
SKLADEM ZA 3 dnů
03 HEXAGON SOCKET HEAD CAP SCREW M8×45 (Ref. č 03) GBT000701024 HEXAGON SOCKET HEAD CAP SCREW M8×45  4 57,02 Kč 69 Kč
SKLADEM
02 R/B A03F16500003 TUBE-HANDLEBAR (Ref. č 02) A03F16500001 R/B A03F16500003 TUBE-HANDLEBAR  1 1 326,45 Kč 1 605 Kč
NA DOTAZ
_16 1-Hexagon slotted nut M10 (Ref. č _16) GBT009457001 1-Hexagon slotted nut M10  1 57,02 Kč 69 Kč
SKLADEM
