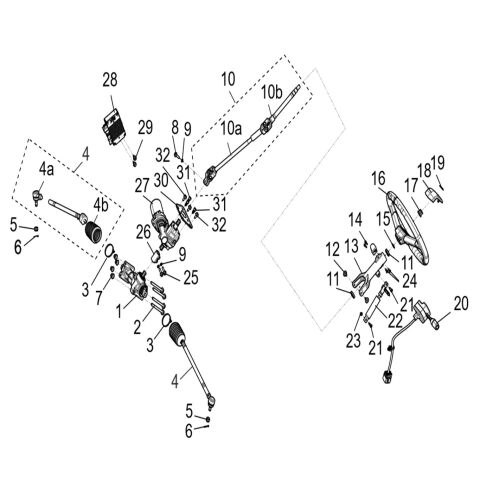

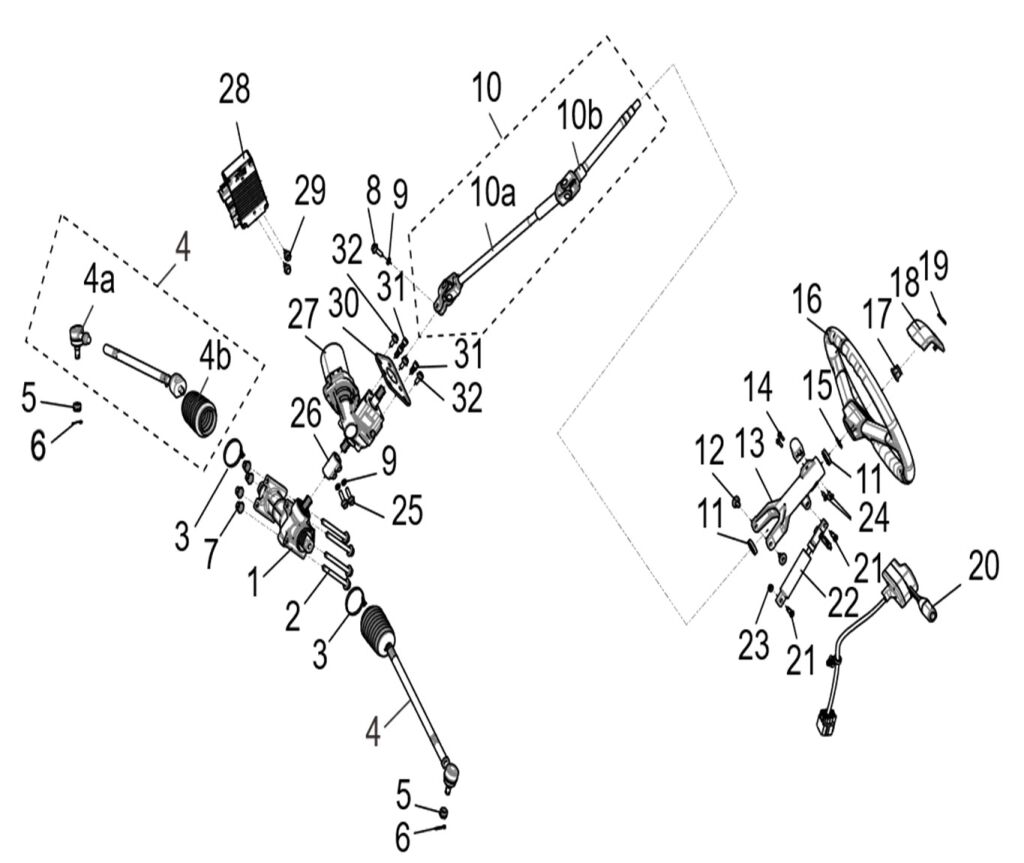

Steering system (EPS)

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_2_245_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 U05 STEERING GEAR ASSY (Ref. č 1) U05F11000001 U05 STEERING GEAR ASSY  1 2 396,69 Kč 2 900 Kč
NA DOTAZ
17 GBT061832006 2-NON-METALLIC HF NUT M14×1.5  1 57,02 Kč 69 Kč
NA DOTAZ
18 U01_STEERING WHEEL UPPER COVER (Ref. č 18) U01F16001001 U01_STEERING WHEEL UPPER COVER  1 119,83 Kč 145 Kč
SKLADEM

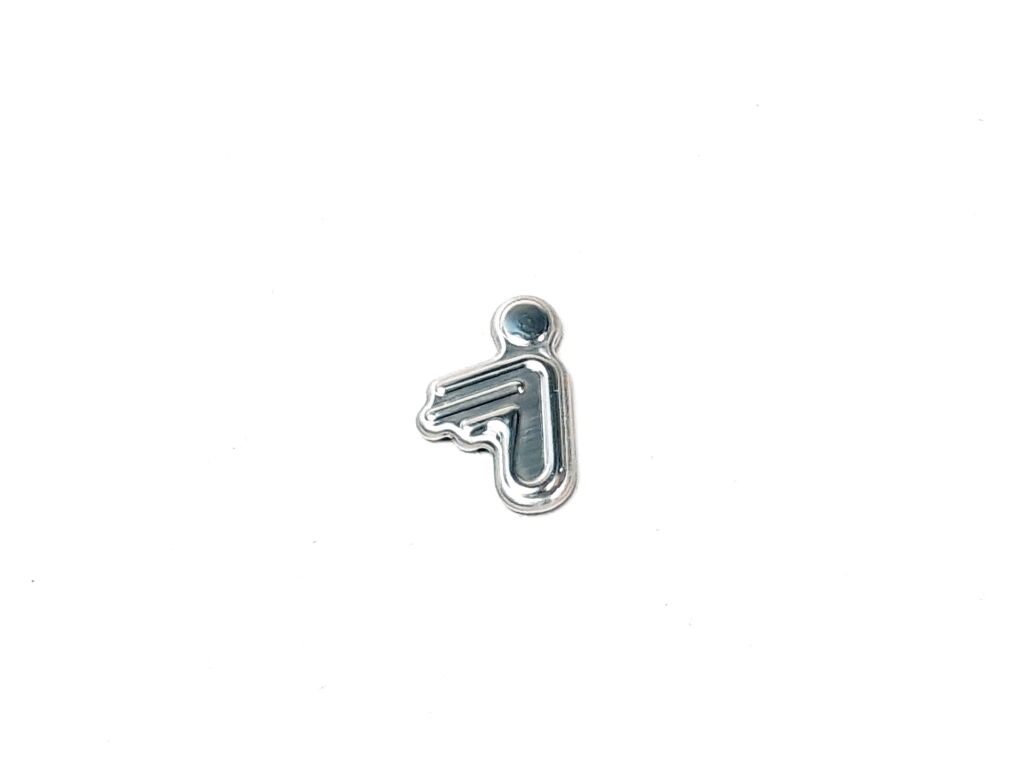

19 LOGO OF STEERING WHEEL SMALL (AL) (Ref. č 19) A01L10025001 LOGO OF STEERING WHEEL SMALL (AL)  1 104,13 Kč 126 Kč
SKLADEM
20 U01 INTEGRATED SWITCH EPA (Ref. č 20) U01M51000001 U01 INTEGRATED SWITCH EPA  1 1 151,24 Kč 1 393 Kč
SKLADEM
20 U01 INTEGRATED SWITCH EU (Ref. č 20) U01M51000002 U01 INTEGRATED SWITCH EU  1 1 151,24 Kč 1 393 Kč
SKLADEM
21 STEP BOLT M6×24 (Ref. č 21) T03000005004 STEP BOLT M6×24  2 57,02 Kč 69 Kč
SKLADEM
22 U01 AIR SPRING ASSSY (Ref. č 22) U01F17100001 U01 AIR SPRING ASSSY  1 645,45 Kč 781 Kč
SKLADEM
23 GBT061831002 NUT M6  1 57,02 Kč 69 Kč
NA CESTĚ
24 GBT008191004 SCREW M6×14  2 57,02 Kč 69 Kč
NA DOTAZ
25 HEXAGON FLANGE BOLT M8×30 (Ref. č 25) GBT005789017 HEXAGON FLANGE BOLT M8×30  2 57,02 Kč 69 Kč
SKLADEM
26 U05F13001001 U05_LOWER CONNECTION SLEEVE FOR EPS  1 438,02 Kč 530 Kč
NA DOTAZ
27 U01_EPS MOTOR (Ref. č 27) U01F13100001 U01_EPS MOTOR  1 13 810,74 Kč 16 711 Kč
NA DOTAZ
29 Bolt M6×12 (Ref. č 29) GBT005789006 Bolt M6×12  2 57,02 Kč 69 Kč
SKLADEM
30 U05F13002002 U05_MOUNTING PLATE FOR EPS  1 337,19 Kč 408 Kč
NA DOTAZ
31 SCREW M8×16 (Ref. č 31) GBT000701014 SCREW M8×16  3 57,02 Kč 69 Kč
SKLADEM
16 U01 STEERING WHEEL (Ref. č 16) U01F16100001 U01 STEERING WHEEL  1 1 161,16 Kč 1 405 Kč
SKLADEM
15 Ring,Snap 20 (Ref. č 15) GBT000894008 Ring,Snap 20  1 57,02 Kč 69 Kč
SKLADEM
14 SCREW M5×20 (Ref. č 14) GBT000818006 SCREW M5×20  2 57,02 Kč 69 Kč
SKLADEM
2 BOLT M10×1.25×95 (Ref. č 2) GBT005789037 BOLT M10×1.25×95  4 54,55 Kč 66 Kč
NA DOTAZ
3 T05000001006 LIVE BUCKLE CABLE TIE 250×5  2 57,02 Kč 69 Kč
NA DOTAZ
4 U01 STEERING TIE ROD (Ref. č 4) U01F12100001 U01 STEERING TIE ROD  2 4 341,32 Kč 5 253 Kč
SKLADEM

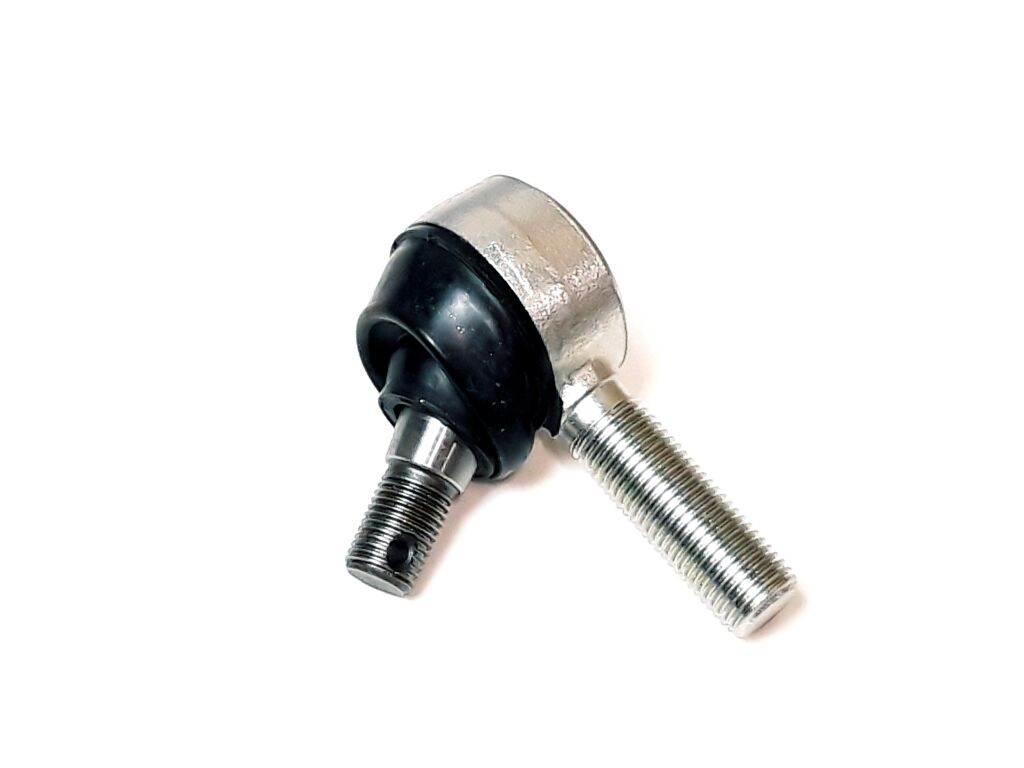

4a BALL PIN OF STEERING TIE ROD (Ref. č 4a) U01F12120001 BALL PIN OF STEERING TIE ROD  1 763,64 Kč 924 Kč
SKLADEM
4b DUST COVER (Ref. č 4b) U01F12101001 DUST COVER  1 57,02 Kč 69 Kč
SKLADEM
5 GBT009459002 HEXAGON SLOTTED THIN NUT M12  2 57,02 Kč 69 Kč
NA DOTAZ
6 GBT000091008 COTTER 3.2×25  2 57,02 Kč 69 Kč
NA DOTAZ
7 2-non-metallic insert hexagon flange bolt M10×1.25 (Ref. č 7) GBT061832001 2-non-metallic insert hexagon flange bolt M10×1.25  4 57,02 Kč 69 Kč
SKLADEM
8 BOLT M8×25 (Ref. č 8) GBT005789096 BOLT M8×25  1 57,02 Kč 69 Kč
NA CESTĚ
9 WASHER 8 (Ref. č 9) GB0000093004 WASHER 8  1 57,02 Kč 69 Kč
SKLADEM

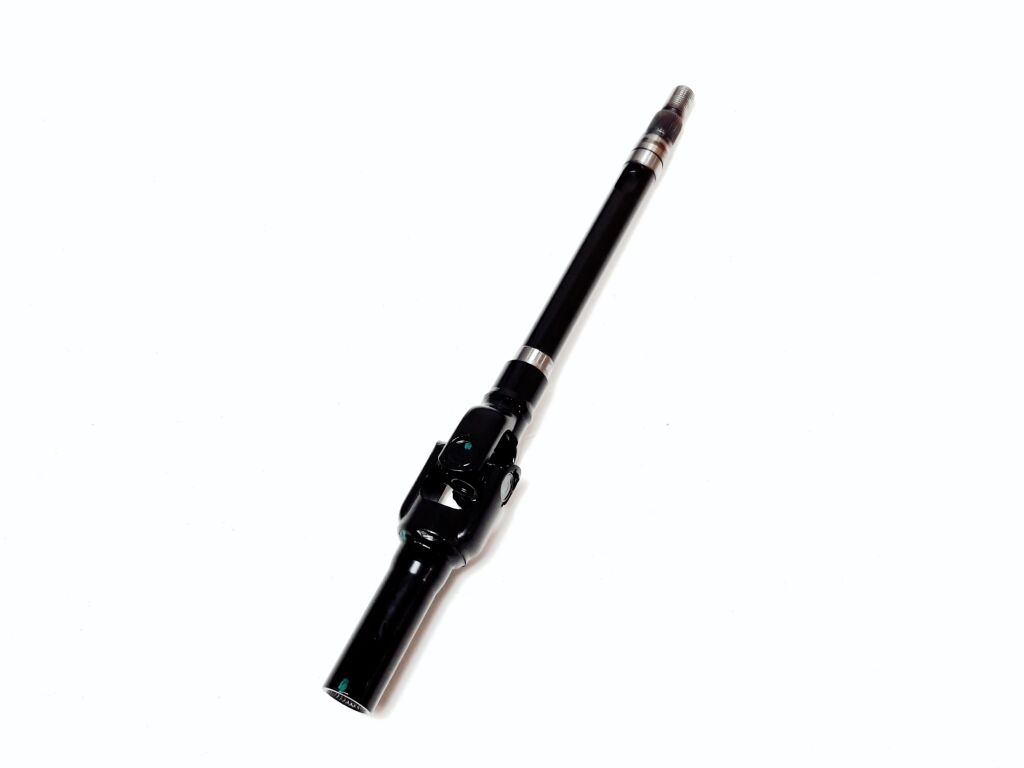

10 U01 EPS STEERING SPIDER ASSY (Ref. č 10) U01F13200001 U01 EPS STEERING SPIDER ASSY  1 2 285,12 Kč 2 765 Kč
NA DOTAZ
10a LOWER CROSS SHAFT ASSY(EPS) (Ref. č 10a) U01F13210001 LOWER CROSS SHAFT ASSY(EPS)  1 913,22 Kč 1 105 Kč
SKLADEM
10b OPPER CROSS SHAFT ASSY (Ref. č 10b) U01F13220001 OPPER CROSS SHAFT ASSY  1 1 371,90 Kč 1 660 Kč
SKLADEM
11 BEARING 61804-2RS (Ref. č 11) GBT000276001 BEARING 61804-2RS  2 138,84 Kč 168 Kč
SKLADEM
12 BOLT M8 (Ref. č 12) S01F10002001 BOLT M8  2 57,02 Kč 69 Kč
SKLADEM
13 U01_STEERING COLUMN_MATTE BLACK (Ref. č 13) U01F15001001 U01_STEERING COLUMN_MATTE BLACK  1 645,45 Kč 781 Kč
SKLADEM
32 Bolt M8×16 (Ref. č 32) GBT005789014 Bolt M8×16  3 57,02 Kč 69 Kč
SKLADEM
