Transmission components

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_115_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10

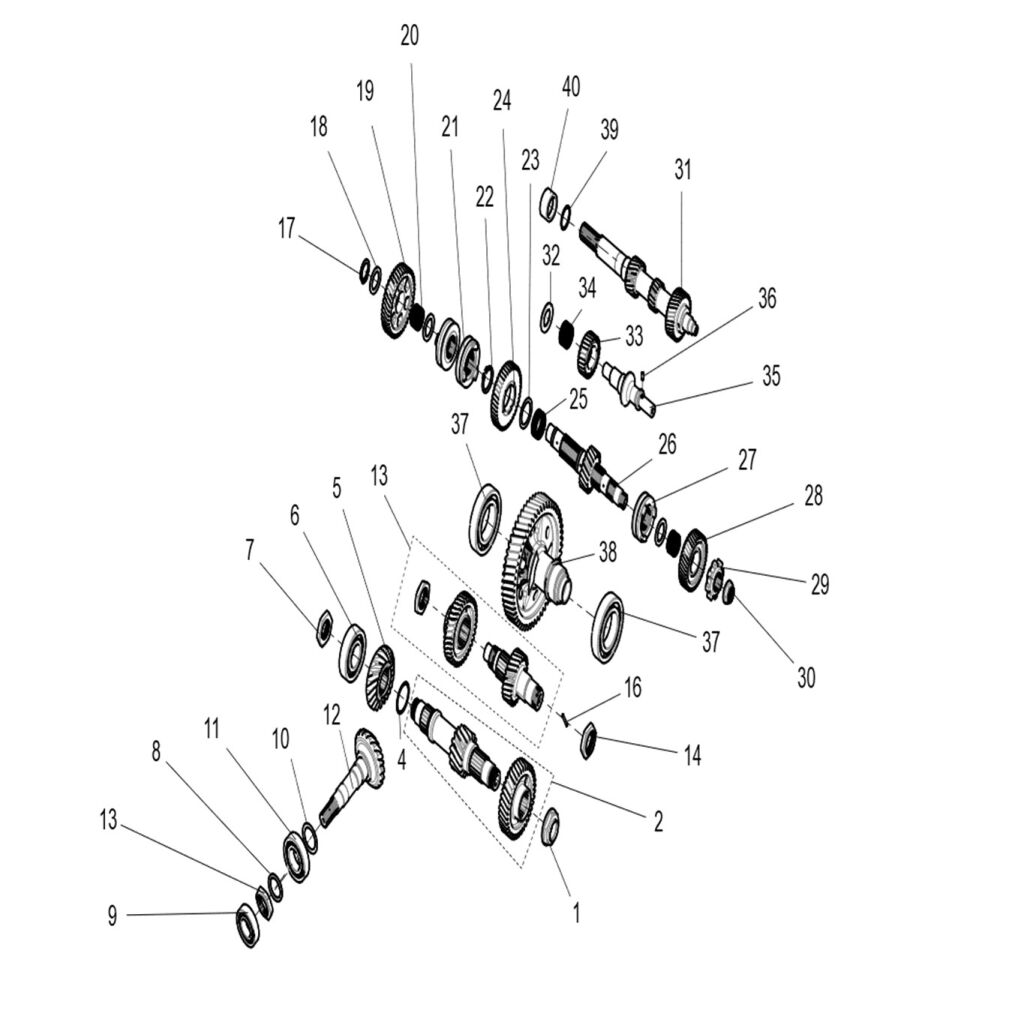

Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
1 NUT M30×1.5 (Ref. č 1) E02F24007001 NUT M30×1.5  1 62,81 Kč 76 Kč
SKLADEM
23 SPACER 35×46×1.5 (Ref. č 23) E02F22009001 SPACER 35×46×1.5  1 57,02 Kč 69 Kč
SKLADEM
24 R GEAR DRIVEN BEVEL (Ref. č 24) E02F22004001 R GEAR DRIVEN BEVEL  1 442,98 Kč 536 Kč
SKLADEM
25 NEEDLE ROLLER BEARING K35×40×13 (Ref. č 25) E02F22011001 NEEDLE ROLLER BEARING K35×40×13  1 72,73 Kč 88 Kč
SKLADEM
26 COUNTERSHAFT (Ref. č 26) E02F22001001 COUNTERSHAFT  1 1 208,26 Kč 1 462 Kč
SKLADEM
27 H GEAR ENGAGEMENT SLEEVE (Ref. č 27) E02F22007001 H GEAR ENGAGEMENT SLEEVE  1 259,50 Kč 314 Kč
SKLADEM

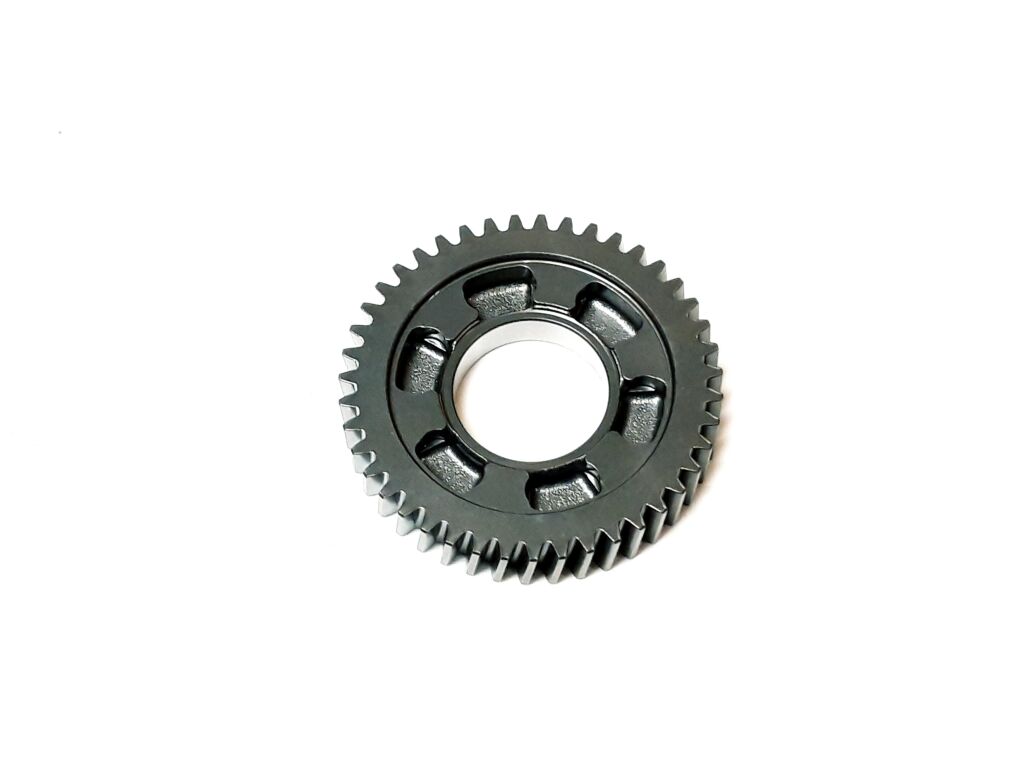

28 H GEAR DRIVEN GEAR (Ref. č 28) E02F22002002 H GEAR DRIVEN GEAR  1 461,98 Kč 559 Kč
SKLADEM

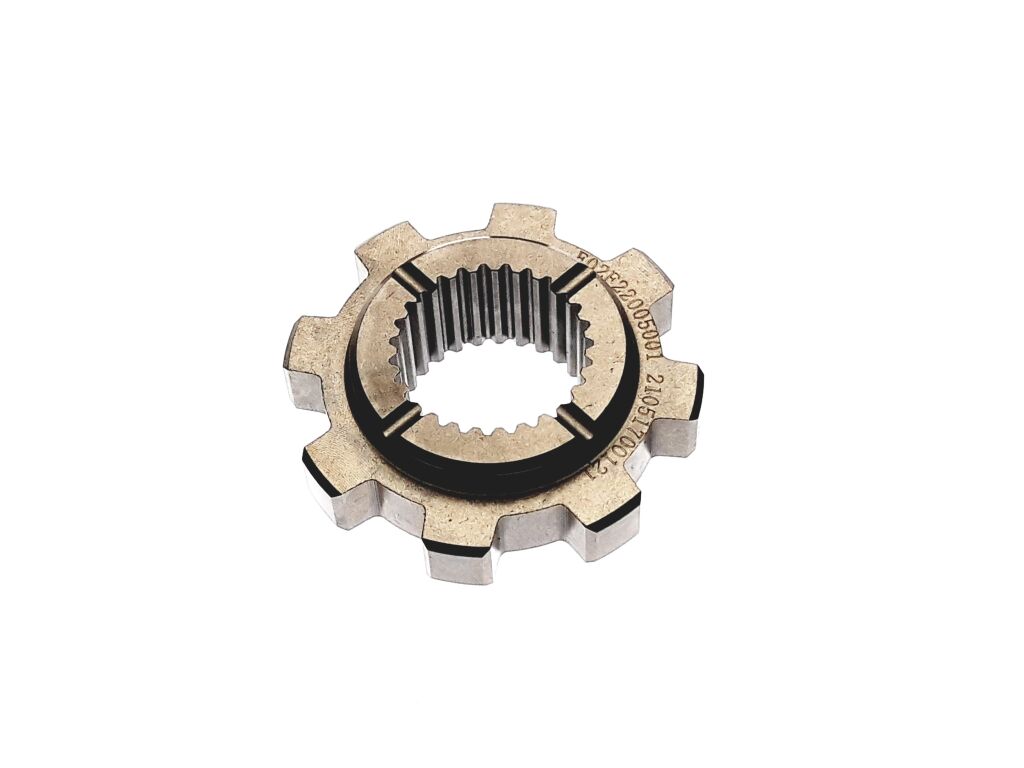

29 PARKING GEAR (Ref. č 29) E02F22005001 PARKING GEAR  1 299,17 Kč 362 Kč
SKLADEM

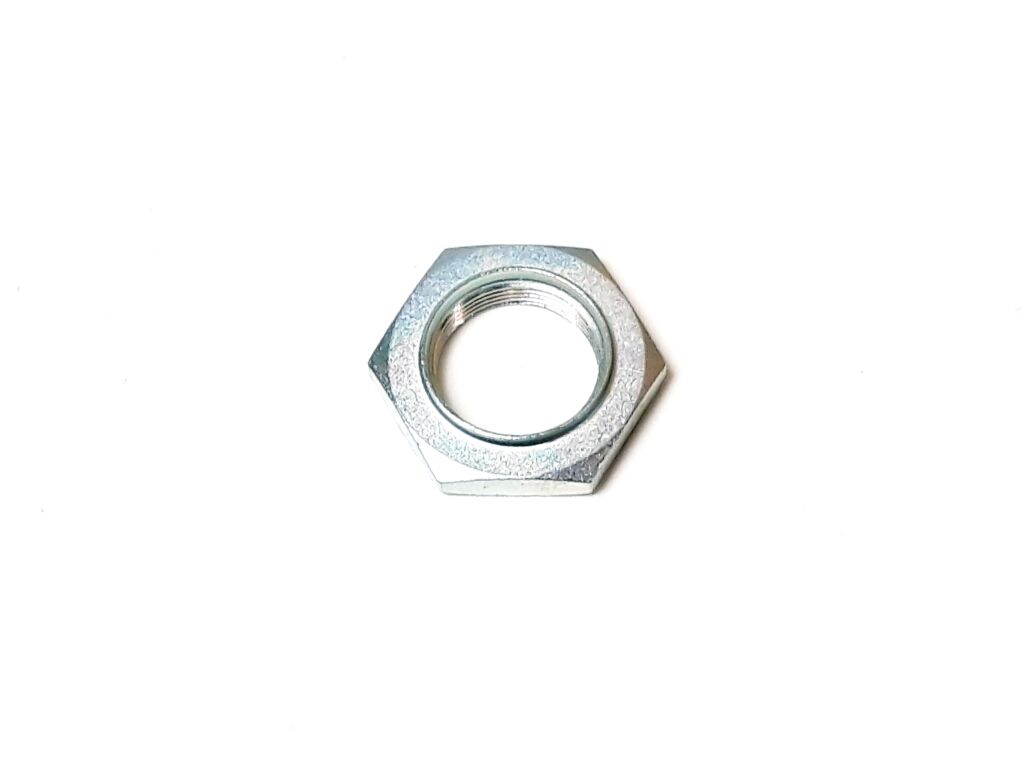

30 NUT M22×1 (Ref. č 30) F01F20403001 NUT M22×1  1 91,74 Kč 111 Kč
SKLADEM

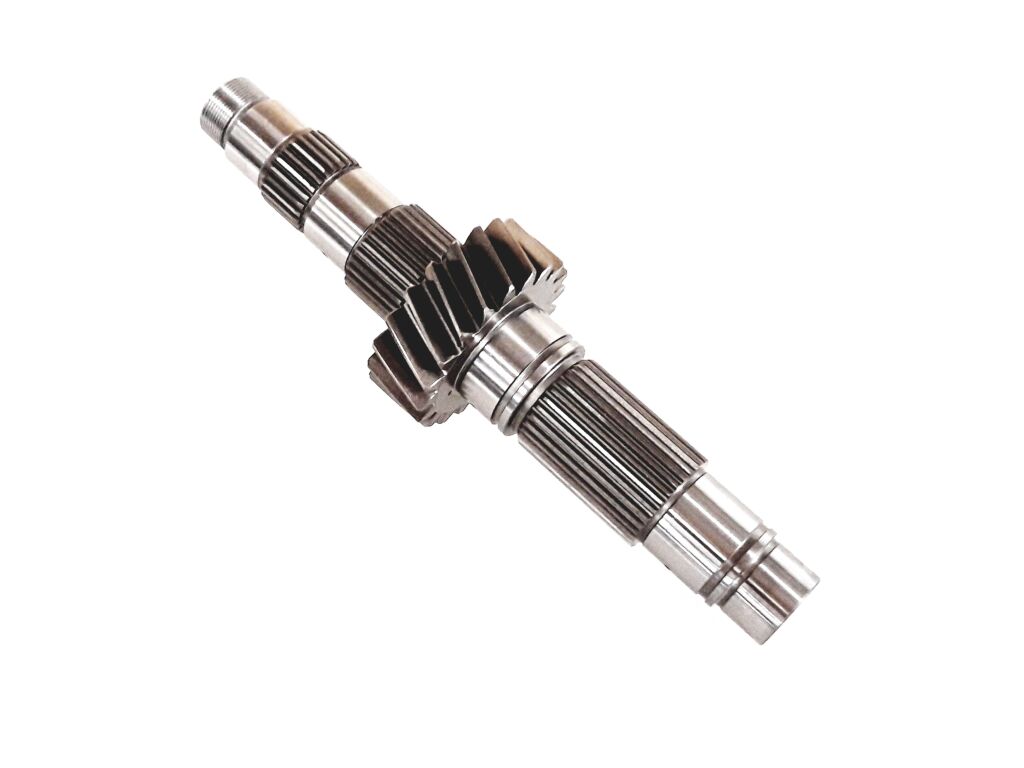

31 MAIN SHAFT(UTV) (Ref. č 31) E02F21000002 MAIN SHAFT(UTV)  1 1 297,52 Kč 1 570 Kč
SKLADEM

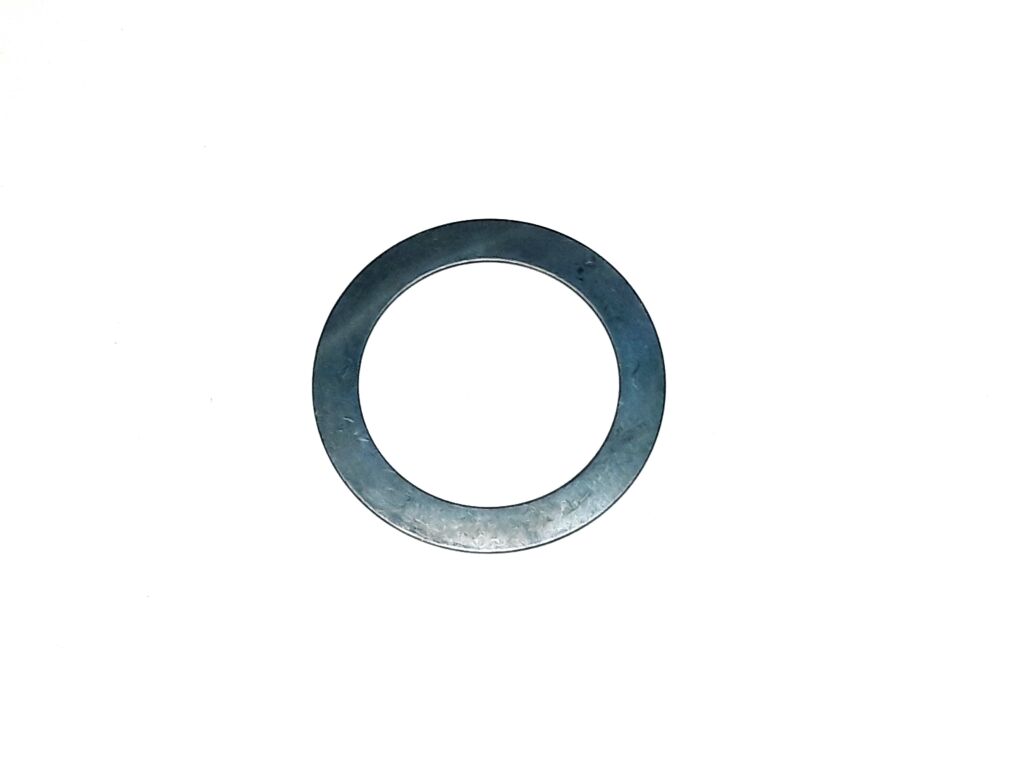

32 WASHER 26×44×3 (Ref. č 32) E02F27003001 WASHER 26×44×3  1 57,02 Kč 69 Kč
SKLADEM

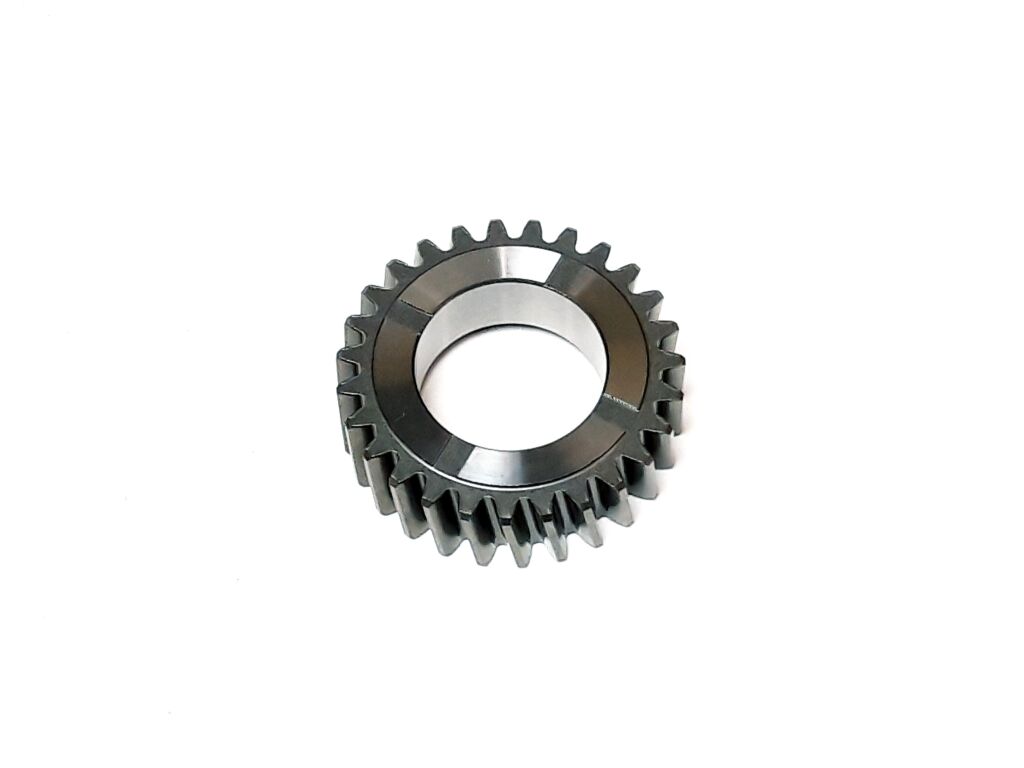

33 REVERSE GEAR IDLER (Ref. č 33) E02F27002001 REVERSE GEAR IDLER  1 386,78 Kč 468 Kč
SKLADEM
34 NEEDLE BEARING K30×35×17 (Ref. č 34) E02F22010001 NEEDLE BEARING K30×35×17  1 66,12 Kč 80 Kč
SKLADEM
35 REVERSE GEAR IDLER SHAFT (Ref. č 35) E02F27001001 REVERSE GEAR IDLER SHAFT  1 332,23 Kč 402 Kč
SKLADEM
36 DOWEL PIN 6×10 (Ref. č 36) GBT001192001 DOWEL PIN 6×10  1 57,02 Kč 69 Kč
SKLADEM
37 DEEP GROOVE BALL BEARINGS 6211 (Ref. č 37) GBT000276025 DEEP GROOVE BALL BEARINGS 6211  2 576,03 Kč 697 Kč
SKLADEM
38 REAR AXLE OUTPUT GEAR (Ref. č 38) E02F25001001 REAR AXLE OUTPUT GEAR  1 1 788,43 Kč 2 164 Kč
SKLADEM

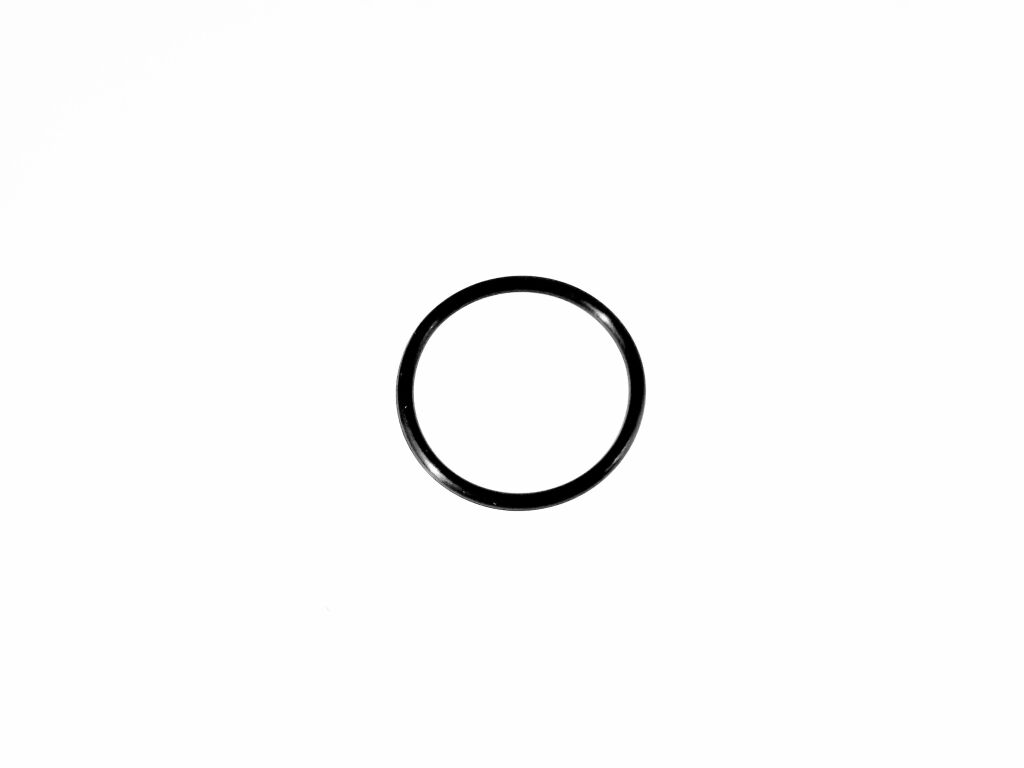

39 O-RING SEAL 31×2.5 (Ref. č 39) E02E10003001 O-RING SEAL 31×2.5  1 57,02 Kč 69 Kč
SKLADEM
22 CIRCLIP 35×2.5 (Ref. č 22) D01P21207001 CIRCLIP 35×2.5  1 57,02 Kč 69 Kč
SKLADEM
21 R/L GEAR COUPLING SLEEVE (Ref. č 21) E02F22006001 R/L GEAR COUPLING SLEEVE  2 270,25 Kč 327 Kč
SKLADEM
2 Four-axis assembly (Ref. č 2) E02F24005001 Four-axis assembly  1 1 768,60 Kč 2 140 Kč
SKLADEM
4 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6 (Ref. č 4) E02F24004003 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6  1 57,02 Kč 69 Kč
SKLADEM
5 DRIVING BEVEL GEAR (Ref. č 5) E02F24001002 DRIVING BEVEL GEAR  1 1 376,03 Kč 1 665 Kč
NA DOTAZ
6 BEARING 6305 (Ref. č 6) GBT000276020 BEARING 6305  1 745,45 Kč 902 Kč
SKLADEM
7 NUT M30×1.5-LH (Ref. č 7) E02F24006001 NUT M30×1.5-LH  1 62,81 Kč 76 Kč
SKLADEM
8 DRIVEN BEVEL GEAR SHAFT ENCLOSURE (Ref. č 8) E02F26003001 DRIVEN BEVEL GEAR SHAFT ENCLOSURE  1 57,02 Kč 69 Kč
SKLADEM
9 BEARING 6206 (Ref. č 9) GBT000276009 BEARING 6206  1 733,88 Kč 888 Kč
SKLADEM
10 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5 (Ref. č 10) E02F26002003 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5  1 57,02 Kč 69 Kč
SKLADEM
11 BEARING 6207 (Ref. č 11) GBT000276010 BEARING 6207  1 822,31 Kč 995 Kč
SKLADEM
12 DRIVEN BEVEL GEAR SHAFT (Ref. č 12) E02F26001002 DRIVEN BEVEL GEAR SHAFT  1 2 073,55 Kč 2 509 Kč
NA DOTAZ
13 Three-axis assembly (Ref. č 13) E02F23000001 Three-axis assembly  1 1 425,62 Kč 1 725 Kč
SKLADEM
14 NUT M33×1.5 (Ref. č 14) E02F23003001 NUT M33×1.5  2 66,12 Kč 80 Kč
SKLADEM

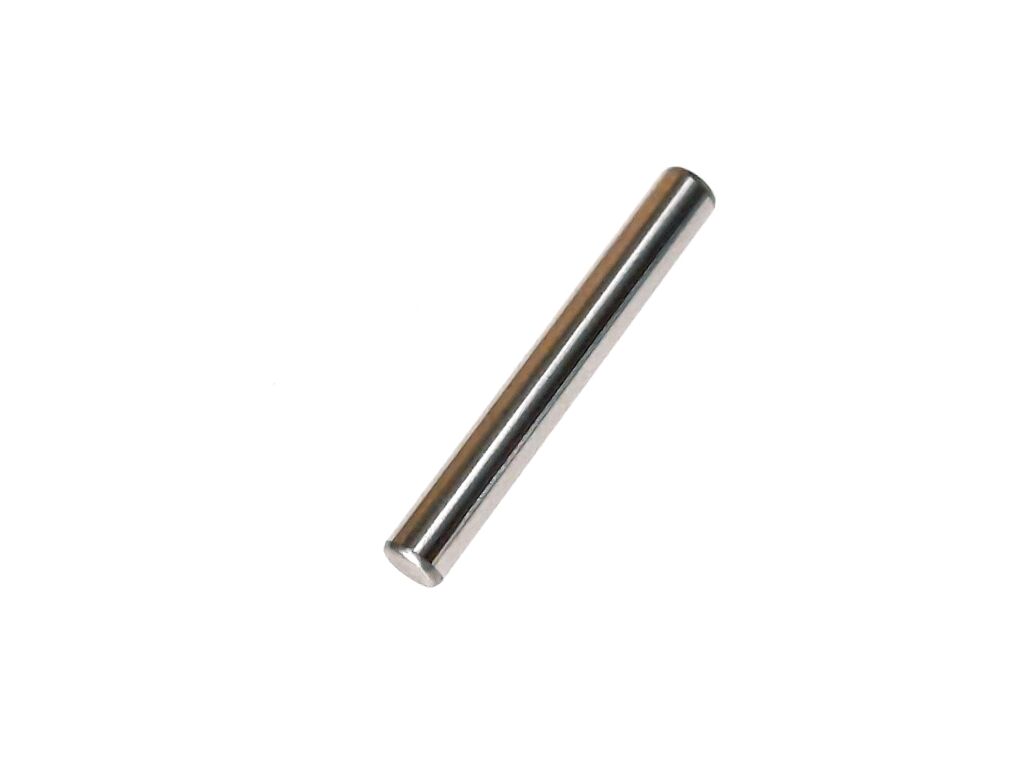

16 NEEDLE ROLLER P4×29.8 (Ref. č 16) GBT000309003 NEEDLE ROLLER P4×29.8  1 57,02 Kč 69 Kč
SKLADEM
17 CIRCLIP 28×2.5 (Ref. č 17) E02F22012002 CIRCLIP 28×2.5  1 57,02 Kč 69 Kč
SKLADEM
18 WASHER 28×40×2.5 (Ref. č 18) E02F22008002 WASHER 28×40×2.5  3 57,02 Kč 69 Kč
SKLADEM
19 L GEAR DRIVEN BEVEL (Ref. č 19) E02F22003001 L GEAR DRIVEN BEVEL  1 386,78 Kč 468 Kč
SKLADEM
20 NEEDLE ROLLER BEARING K28×33×17 (Ref. č 20) E02F22013002 NEEDLE ROLLER BEARING K28×33×17  2 61,98 Kč 75 Kč
SKLADEM
40 CVT DRIVEN WHEEL BUSHING (Ref. č 40) E02E10002001 CVT DRIVEN WHEEL BUSHING  1 90,08 Kč 109 Kč
SKLADEM
