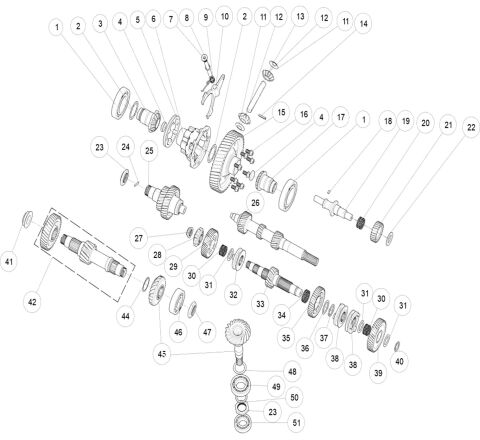

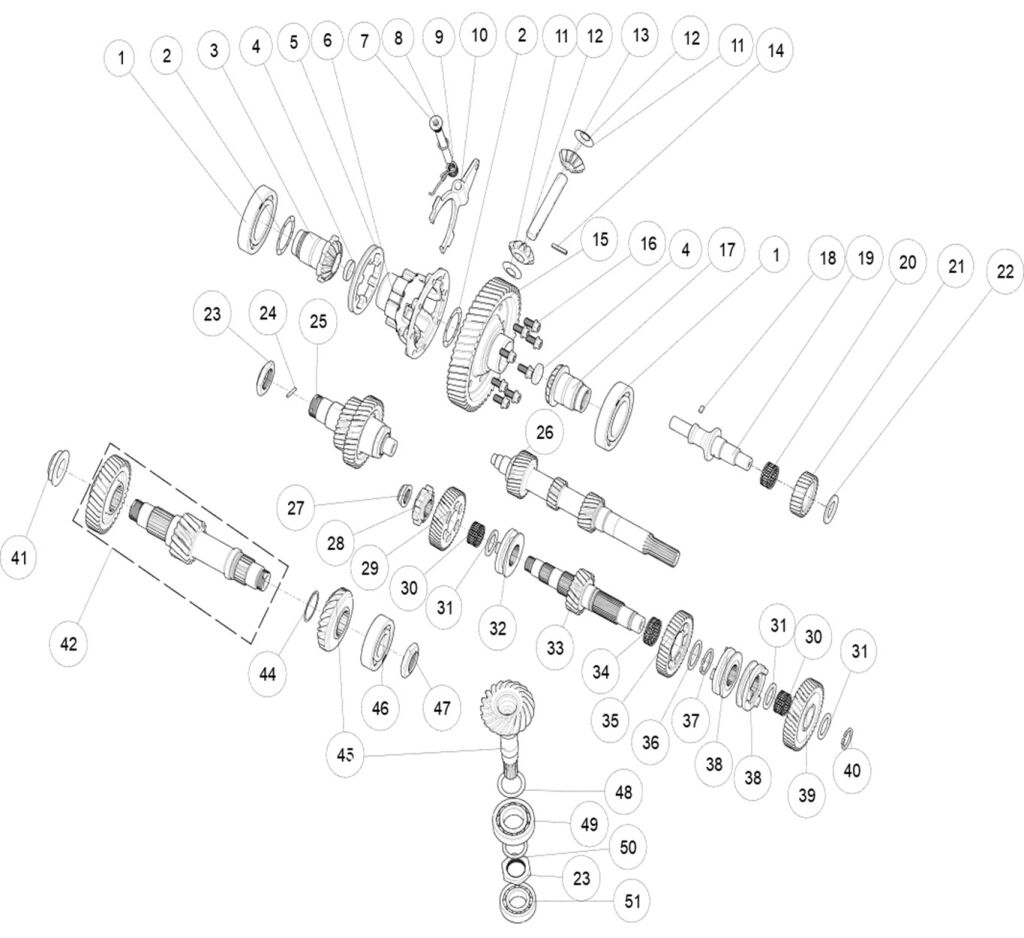

Transmission components（with diff）

SEGWAY
Výrobce: SEGWAY
Kód produktu: SEGWAY_1_117_UTV1000
Vybrat MODEL:
Fugleman UT10 Fugleman UT10
Ref. č Obr. Kód p. Popis Počet v daném rozkresu Cena za 1 ks dostupnost
52 DRIVEN BEVEL GEAR SHAFT (Ref. č 52) E02F26001002 DRIVEN BEVEL GEAR SHAFT  1 2 073,55 Kč 2 509 Kč
NA DOTAZ
37 CIRCLIP 35×2.5 (Ref. č 37) D01P21207001 CIRCLIP 35×2.5  1 57,02 Kč 69 Kč
SKLADEM
36 SPACER 35×46×1.5 (Ref. č 36) E02F22009001 SPACER 35×46×1.5  1 57,02 Kč 69 Kč
SKLADEM
28 PARKING GEAR (Ref. č 28) E02F22005001 PARKING GEAR  1 299,17 Kč 362 Kč
SKLADEM
38 R/L GEAR COUPLING SLEEVE (Ref. č 38) E02F22006001 R/L GEAR COUPLING SLEEVE  2 270,25 Kč 327 Kč
SKLADEM
39 L GEAR DRIVEN BEVEL (Ref. č 39) E02F22003001 L GEAR DRIVEN BEVEL  1 386,78 Kč 468 Kč
SKLADEM
40 CIRCLIP 28×2.5 (Ref. č 40) E02F22012002 CIRCLIP 28×2.5  1 57,02 Kč 69 Kč
SKLADEM
51 BEARING 6206 (Ref. č 51) GBT000276009 BEARING 6206  1 733,88 Kč 888 Kč
SKLADEM
50 DRIVEN BEVEL GEAR SHAFT ENCLOSURE (Ref. č 50) E02F26003001 DRIVEN BEVEL GEAR SHAFT ENCLOSURE  1 57,02 Kč 69 Kč
SKLADEM
49 BEARING 6207 (Ref. č 49) GBT000276010 BEARING 6207  1 822,31 Kč 995 Kč
SKLADEM
48 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5 (Ref. č 48) E02F26002003 DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5  1 57,02 Kč 69 Kč
SKLADEM
47 NUT M30×1.5-LH (Ref. č 47) E02F24006001 NUT M30×1.5-LH  1 62,81 Kč 76 Kč
SKLADEM
46 BEARING 6305 (Ref. č 46) GBT000276020 BEARING 6305  1 745,45 Kč 902 Kč
SKLADEM
45 DRIVE AND DRIVEN BEVEL GEAR COMBINATION (Ref. č 45) E02F26001003 DRIVE AND DRIVEN BEVEL GEAR COMBINATION  1 2 610,74 Kč 3 159 Kč
NA DOTAZ
44 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6 (Ref. č 44) E02F24004003 DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6  1 57,02 Kč 69 Kč
SKLADEM
42 Four-axis assembly (Ref. č 42) E02F24005001 Four-axis assembly  1 1 768,60 Kč 2 140 Kč
SKLADEM
41 NUT M30×1.5 (Ref. č 41) E02F24007001 NUT M30×1.5  1 62,81 Kč 76 Kč
SKLADEM
1 NUT M30×1.5 (Ref. č 1) E02F24007001 NUT M30×1.5  1 62,81 Kč 76 Kč
SKLADEM
35 R GEAR DRIVEN BEVEL (Ref. č 35) E02F22004001 R GEAR DRIVEN BEVEL  1 442,98 Kč 536 Kč
SKLADEM
34 NEEDLE ROLLER BEARING K35×40×13 (Ref. č 34) E02F22011001 NEEDLE ROLLER BEARING K35×40×13  1 72,73 Kč 88 Kč
SKLADEM
33 COUNTERSHAFT (Ref. č 33) E02F22001001 COUNTERSHAFT  1 1 208,26 Kč 1 462 Kč
SKLADEM
32 H GEAR ENGAGEMENT SLEEVE (Ref. č 32) E02F22007001 H GEAR ENGAGEMENT SLEEVE  1 259,50 Kč 314 Kč
SKLADEM
31 WASHER 28×40×2.5 (Ref. č 31) E02F22008002 WASHER 28×40×2.5  3 57,02 Kč 69 Kč
SKLADEM
30 NEEDLE ROLLER BEARING K28×33×17 (Ref. č 30) E02F22013002 NEEDLE ROLLER BEARING K28×33×17  2 61,98 Kč 75 Kč
SKLADEM
29 H GEAR DRIVEN GEAR (Ref. č 29) E02F22002002 H GEAR DRIVEN GEAR  1 461,98 Kč 559 Kč
SKLADEM
27 NUT M22×1 (Ref. č 27) F01F20403001 NUT M22×1  1 91,74 Kč 111 Kč
SKLADEM
26 MAIN SHAFT(UTV) (Ref. č 26) E02F21000002 MAIN SHAFT(UTV)  1 1 297,52 Kč 1 570 Kč
SKLADEM
25 Three-axis assembly (Ref. č 25) E02F23000001 Three-axis assembly  1 1 425,62 Kč 1 725 Kč
SKLADEM
11 Q01R31700003 Planetary gear liner (unavailable)  2 57,02 Kč 69 Kč
NA CESTĚ
10 REAR OUTPUT FORK (Ref. č 10) E02F25006001 REAR OUTPUT FORK  1 404,96 Kč 490 Kč
NA DOTAZ
9 RETURN TORSION SPRING (Ref. č 9) E02F25008001 RETURN TORSION SPRING  1 54,55 Kč 66 Kč
NA DOTAZ
8 O-Ring 13.8×2.5 (Ref. č 8) F01G00005001 O-Ring 13.8×2.5  1 57,02 Kč 69 Kč
SKLADEM
7 FORK SHAFT (Ref. č 7) E02F25007001 FORK SHAFT  1 354,55 Kč 429 Kč
NA DOTAZ
6 REAR OUTPUT DIFFERENTIAL HOUSING (Ref. č 6) E02F25002001 REAR OUTPUT DIFFERENTIAL HOUSING  1 1 703,31 Kč 2 061 Kč
NA DOTAZ
5 REAR DIFFERENTIAL OUTPUT SLEEVE (Ref. č 5) E02F25003001 REAR DIFFERENTIAL OUTPUT SLEEVE  1 309,92 Kč 375 Kč
NA DOTAZ
4 CAPPING (Ref. č 4) E02F25202001 CAPPING  2 54,55 Kč 66 Kč
NA DOTAZ
3 LEFT REAR HALF SHAFT BEVEL GEAR (Ref. č 3) E02F25201001 LEFT REAR HALF SHAFT BEVEL GEAR  1 752,89 Kč 911 Kč
NA DOTAZ
2 ADJUSTING SHIM OF REAR AXLE BEVEL GEAR (Ref. č 2) E02F25004001 ADJUSTING SHIM OF REAR AXLE BEVEL GEAR  2 54,55 Kč 66 Kč
NA DOTAZ
12 PLANETARY GEAR (Ref. č 12) E02F25102001 PLANETARY GEAR  2 145,45 Kč 176 Kč
NA DOTAZ
13 REAR OUTPUT PLANETARY GEAR SHAFT (Ref. č 13) E02F25005001 REAR OUTPUT PLANETARY GEAR SHAFT  1 175,21 Kč 212 Kč
NA DOTAZ
14 ELASTIC CYLINDRICAL PIN 5 × TWENTY-EIGHT (Ref. č 14) GBT008791003 ELASTIC CYLINDRICAL PIN 5 × TWENTY-EIGHT  1 54,55 Kč 66 Kč
NA DOTAZ
24 NEEDLE ROLLER P4×29.8 (Ref. č 24) GBT000309003 NEEDLE ROLLER P4×29.8  1 57,02 Kč 69 Kč
SKLADEM
23 NUT M33×1.5 (Ref. č 23) E02F23003001 NUT M33×1.5  2 66,12 Kč 80 Kč
SKLADEM
22 WASHER 26×44×3 (Ref. č 22) E02F27003001 WASHER 26×44×3  1 57,02 Kč 69 Kč
SKLADEM
21 REVERSE GEAR IDLER (Ref. č 21) E02F27002001 REVERSE GEAR IDLER  1 386,78 Kč 468 Kč
SKLADEM
20 NEEDLE BEARING K30×35×17 (Ref. č 20) E02F22010001 NEEDLE BEARING K30×35×17  1 66,12 Kč 80 Kč
SKLADEM
19 REVERSE GEAR IDLER SHAFT (Ref. č 19) E02F27001001 REVERSE GEAR IDLER SHAFT  1 332,23 Kč 402 Kč
SKLADEM
18 DOWEL PIN 6×10 (Ref. č 18) GBT001192001 DOWEL PIN 6×10  1 57,02 Kč 69 Kč
SKLADEM
17 RIGHT REAR HALF SHAFT BEVEL GEAR (Ref. č 17) E02F25101001 RIGHT REAR HALF SHAFT BEVEL GEAR  1 645,45 Kč 781 Kč
NA DOTAZ
16 Q03F30800001 HEXAGON FLANGE BOLT M10×1.0×18  1 57,02 Kč 69 Kč
NA DOTAZ

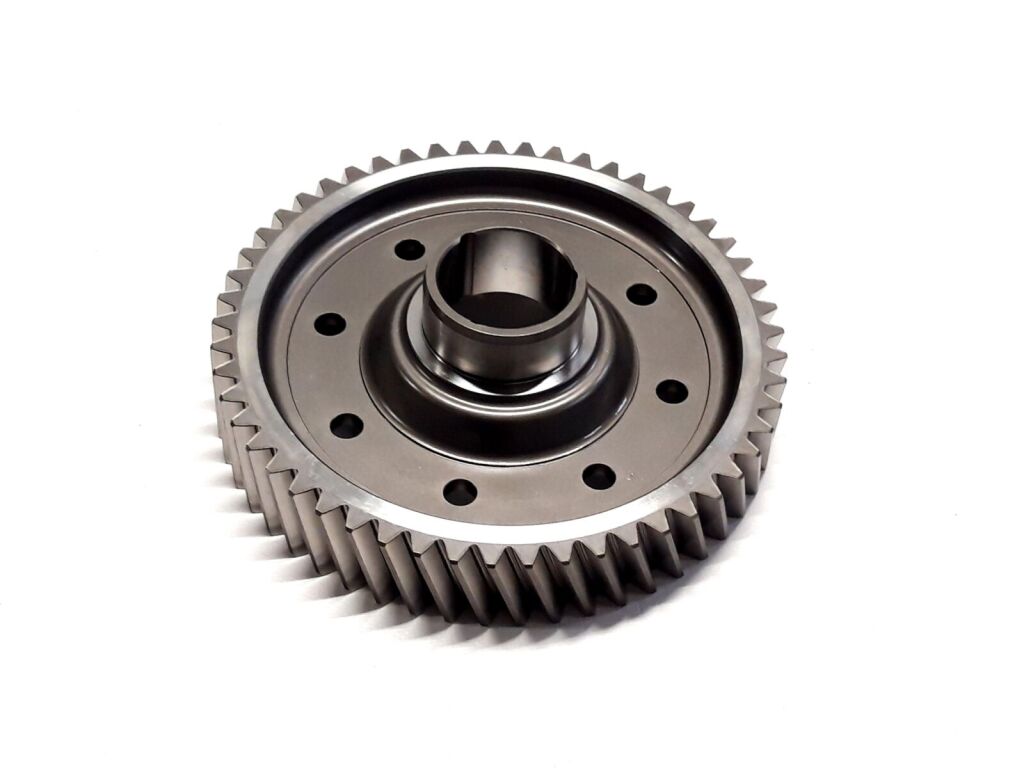

15 REAR AXLE OUTPUT GEAR (DIFFERENTIAL) (Ref. č 15) E02F25001002 REAR AXLE OUTPUT GEAR (DIFFERENTIAL)  1 2 867,77 Kč 3 470 Kč
NA DOTAZ
