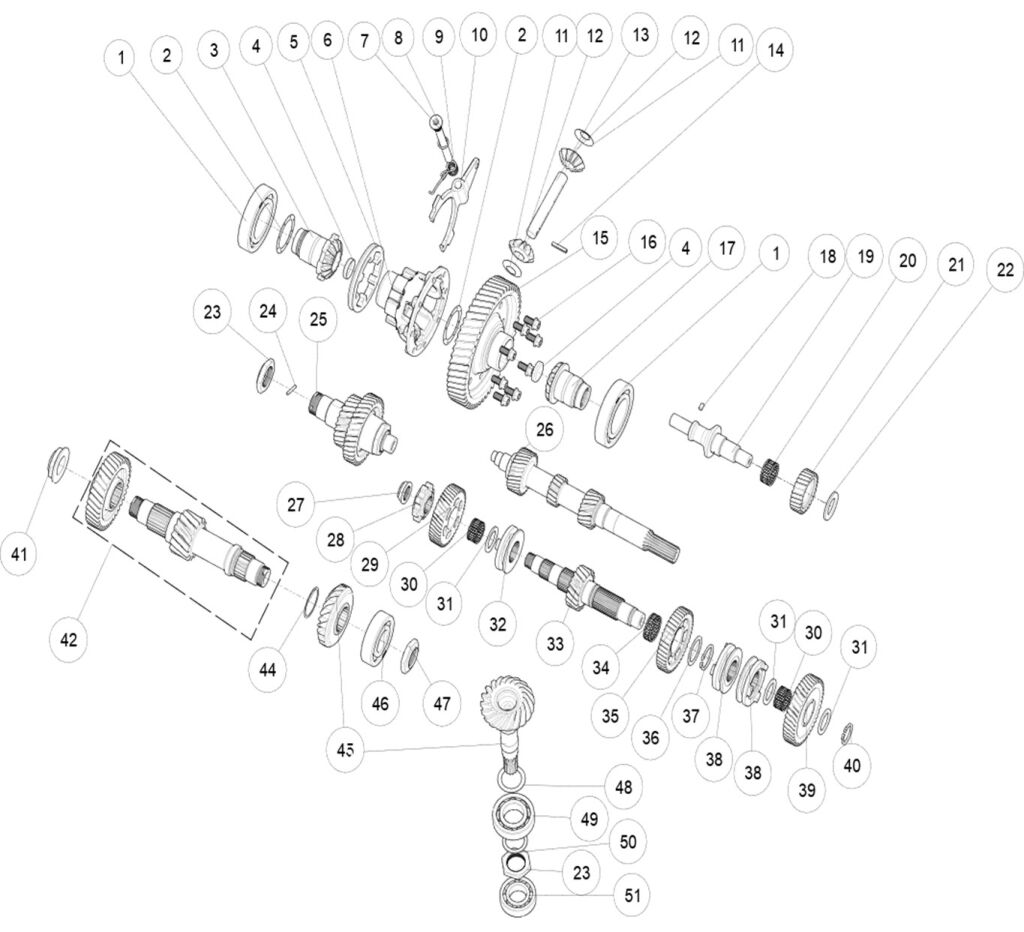

Transmission components（with diff）

Výrobce SEGWAY
Kód produktu SEGWAY_1_116_UT10_CREW_U3

Ref. č	Kód p.	Popis	Počet v daném rozkresu	Cena za 1 ks	dostupnost
52	E02F26001002	DRIVEN BEVEL GEAR SHAFT	1	Cena bez DPH 2 177,69 Kč Cena s DPH 2 635 Kč	NA DOTAZ
37	D01P21207001	CIRCLIP 35×2.5	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
36	E02F22009001	SPACER 35×46×1.5	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
35	E02F22004001	R GEAR DRIVEN BEVEL	1	Cena bez DPH 465,29 Kč Cena s DPH 563 Kč	SKLADEM
34	E02F22011001	NEEDLE ROLLER BEARING K35×40×13	1	Cena bez DPH 76,03 Kč Cena s DPH 92 Kč	SKLADEM
33	E02F22001001	COUNTERSHAFT	1	Cena bez DPH 1 268,60 Kč Cena s DPH 1 535 Kč	SKLADEM
32	E02F22007001	H GEAR ENGAGEMENT SLEEVE	1	Cena bez DPH 272,73 Kč Cena s DPH 330 Kč	SKLADEM
31	E02F22008002	WASHER 28×40×2.5	3	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
30	E02F22013002	NEEDLE ROLLER BEARING K28×33×17	2	Cena bez DPH 65,29 Kč Cena s DPH 79 Kč	SKLADEM
29	E02F22002002	H GEAR DRIVEN GEAR	1	Cena bez DPH 484,30 Kč Cena s DPH 586 Kč	SKLADEM
28	E02F22005001	PARKING GEAR	1	Cena bez DPH 314,88 Kč Cena s DPH 381 Kč	NA DOTAZ
38	E02F22006001	R/L GEAR COUPLING SLEEVE	2	Cena bez DPH 283,47 Kč Cena s DPH 343 Kč	NA DOTAZ
39	E02F22003001	L GEAR DRIVEN BEVEL	1	Cena bez DPH 406,61 Kč Cena s DPH 492 Kč	SKLADEM
40	E02F22012002	CIRCLIP 28×2.5	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
51	GBT000276009	BEARING 6206	1	Cena bez DPH 770,25 Kč Cena s DPH 932 Kč	SKLADEM
50	E02F26003001	DRIVEN BEVEL GEAR SHAFT ENCLOSURE	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
49	GBT000276010	BEARING 6207	1	Cena bez DPH 862,81 Kč Cena s DPH 1 044 Kč	SKLADEM
48	E02F26002003	DRIVEN BEVEL GEAR SHAFT ADJUSTMENT PAD 35×48×0.5	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
47	E02F24006001	NUT M30×1.5-LH	1	Cena bez DPH 65,29 Kč Cena s DPH 79 Kč	SKLADEM
46	GBT000276020	BEARING 6305	1	Cena bez DPH 782,64 Kč Cena s DPH 947 Kč	SKLADEM
45	E02F26001003	DRIVE AND DRIVEN BEVEL GEAR COMBINATION	1	Cena bez DPH 2 741,32 Kč Cena s DPH 3 317 Kč	NA DOTAZ
44	E02F24004003	DRIVE BEVEL GEAR SHAFT ADJUSTMENT PAD 42×48×0.6	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
42	E02F24005001	Four-axis assembly	1	Cena bez DPH 1 858,68 Kč Cena s DPH 2 249 Kč	SKLADEM
41	E02F24007001	NUT M30×1.5	1	Cena bez DPH 65,29 Kč Cena s DPH 79 Kč	SKLADEM
27	F01F20403001	NUT M22×1	1	Cena bez DPH 96,69 Kč Cena s DPH 117 Kč	SKLADEM
26	E02F21000002	MAIN SHAFT(UTV)	1	Cena bez DPH 1 365,29 Kč Cena s DPH 1 652 Kč	NA DOTAZ
25	E02F23000001	Three-axis assembly	1	Cena bez DPH 1 497,52 Kč Cena s DPH 1 812 Kč	NA DOTAZ
11	Q01R31700003	Planetary gear liner (unavailable)	2	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
10	E02F25006001	REAR OUTPUT FORK	1	Cena bez DPH 425,62 Kč Cena s DPH 515 Kč	NA DOTAZ
9	E02F25008001	RETURN TORSION SPRING	1	Cena bez DPH 57,02 Kč Cena s DPH 69 Kč	NA DOTAZ
8	F01G00005001	O-Ring 13.8×2.5	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
7	E02F25007001	FORK SHAFT	1	Cena bez DPH 371,90 Kč Cena s DPH 450 Kč	NA DOTAZ
6	E02F25002001	REAR OUTPUT DIFFERENTIAL HOUSING	1	Cena bez DPH 1 788,43 Kč Cena s DPH 2 164 Kč	NA DOTAZ
5	E02F25003001	REAR DIFFERENTIAL OUTPUT SLEEVE	1	Cena bez DPH 325,62 Kč Cena s DPH 394 Kč	NA DOTAZ
4	E02F25202001	CAPPING	2	Cena bez DPH 57,02 Kč Cena s DPH 69 Kč	NA DOTAZ
3	E02F25201001	LEFT REAR HALF SHAFT BEVEL GEAR	1	Cena bez DPH 790,91 Kč Cena s DPH 957 Kč	NA DOTAZ
2	E02F25004001	ADJUSTING SHIM OF REAR AXLE BEVEL GEAR	2	Cena bez DPH 57,02 Kč Cena s DPH 69 Kč	NA DOTAZ
12	E02F25102001	PLANETARY GEAR	2	Cena bez DPH 152,89 Kč Cena s DPH 185 Kč	NA DOTAZ
13	E02F25005001	REAR OUTPUT PLANETARY GEAR SHAFT	1	Cena bez DPH 184,30 Kč Cena s DPH 223 Kč	NA DOTAZ
14	GBT008791003	ELASTIC CYLINDRICAL PIN 5 × TWENTY-EIGHT	1	Cena bez DPH 57,02 Kč Cena s DPH 69 Kč	NA DOTAZ
24	GBT000309003	NEEDLE ROLLER P4×29.8	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
23	E02F23003001	NUT M33×1.5	2	Cena bez DPH 69,42 Kč Cena s DPH 84 Kč	SKLADEM
22	E02F27003001	WASHER 26×44×3	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
21	E02F27002001	REVERSE GEAR IDLER	1	Cena bez DPH 406,61 Kč Cena s DPH 492 Kč	SKLADEM
20	E02F22010001	NEEDLE BEARING K30×35×17	1	Cena bez DPH 69,42 Kč Cena s DPH 84 Kč	SKLADEM
19	E02F27001001	REVERSE GEAR IDLER SHAFT	1	Cena bez DPH 348,76 Kč Cena s DPH 422 Kč	SKLADEM
18	GBT001192001	DOWEL PIN 6×10	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	SKLADEM
17	E02F25101001	RIGHT REAR HALF SHAFT BEVEL GEAR	1	Cena bez DPH 677,69 Kč Cena s DPH 820 Kč	NA DOTAZ
16	Q03F30800001	HEXAGON FLANGE BOLT M10×1.0×18	1	Cena bez DPH 60,33 Kč Cena s DPH 73 Kč	NA DOTAZ
15	E02F25001002	REAR AXLE OUTPUT GEAR (DIFFERENTIAL)	1	Cena bez DPH 3 011,57 Kč Cena s DPH 3 644 Kč	NA DOTAZ
